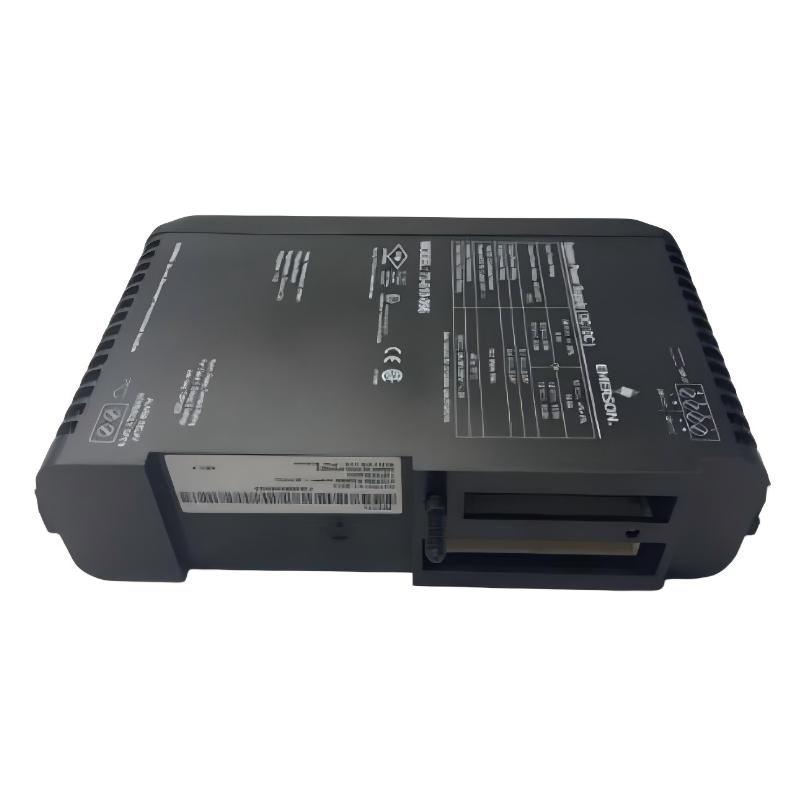

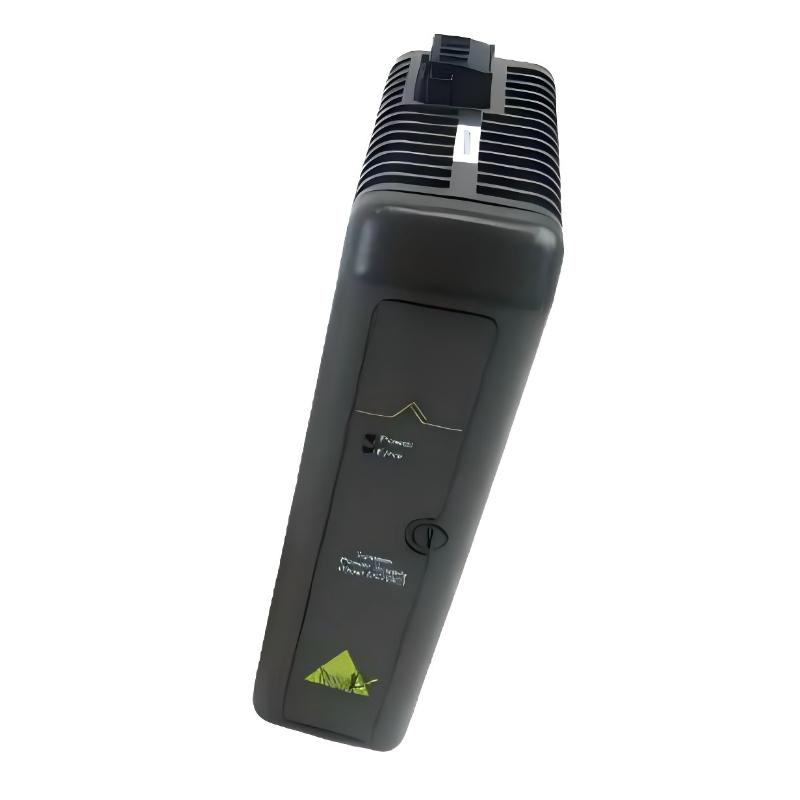

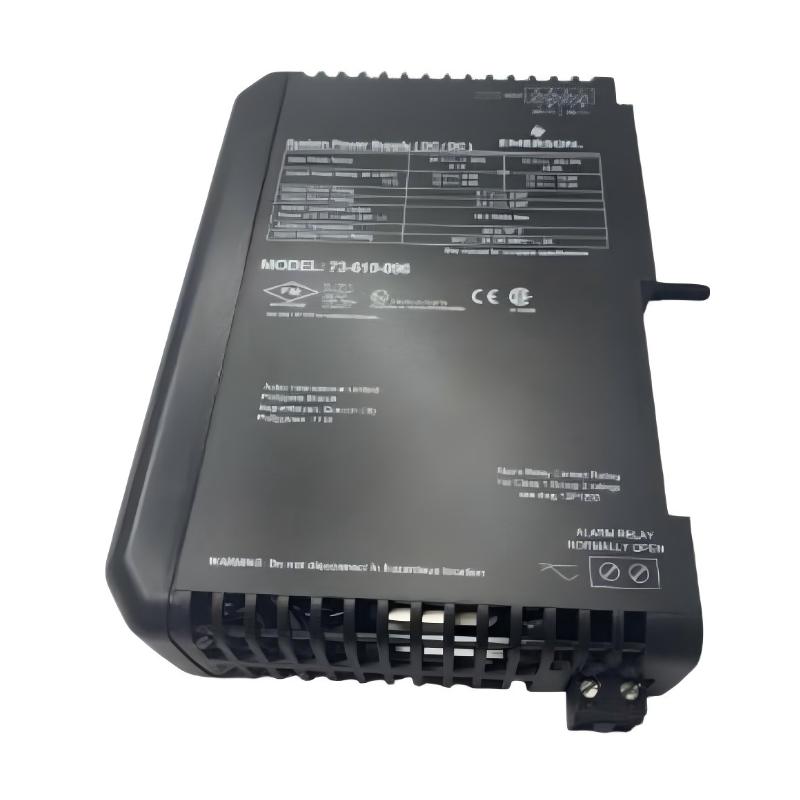

1. What is the main function of the Emerson VE5009 System Power Supply?

The Emerson VE5009 System Power Supply is designed to provide stable electrical power for components within an Emerson DeltaV process control system. As part of the system power architecture, it supports the normal operation of connected control, I/O, and electronic equipment.

Reliable system power is essential for maintaining continuous automation operation. A stable power supply helps reduce problems such as unexpected controller resets, module interruptions, communication failures, and system downtime caused by unstable electrical conditions.

2. Where is the VE5009 System Power Supply typically used?

The VE5009 is intended for industrial automation and process control applications based on Emerson DeltaV systems. Typical applications include chemical processing, manufacturing, power generation, process industries, and other industrial facilities requiring continuous monitoring and control.

It operates as part of the DeltaV control system infrastructure and provides electrical power to associated system components. Its use is particularly important in applications where reliable operation and continuous process availability are required.

3. What are the common symptoms of a VE5009 power supply fault?

A VE5009 fault may result in system power alarms, controller resets, loss of connected module operation, communication interruptions, or unstable behavior of DeltaV control equipment.

An aging or deteriorating power supply may also produce intermittent problems rather than a complete failure. Modules may repeatedly restart, temporarily lose communication, or become unavailable during normal system operation.

Because similar symptoms can be caused by input power problems, loose connections, damaged wiring, or abnormal downstream loads, technicians should inspect the entire power path before determining that the VE5009 itself needs replacement.

4. How can the VE5009 System Power Supply be troubleshot?

Troubleshooting should begin by reviewing DeltaV system diagnostics and alarm information to identify any power-related indications. The incoming power should then be checked to confirm that it is stable and suitable for the control system.

Technicians should inspect the VE5009 power connections, connectors, wiring, and output condition. Connected modules should also be checked for abnormal loading or electrical problems that could affect system power.

Comparing the input supply, power supply output, and status of downstream modules can help determine whether the problem originates from the VE5009 or another part of the DeltaV system.

5. What can cause the VE5009 to operate abnormally?

Several conditions can affect VE5009 operation, including unstable input power, loose electrical connections, damaged wiring, excessive connected load, unsuitable cabinet conditions, overheating, and aging electronic components.

A malfunctioning downstream module can also create an abnormal load and cause power-related symptoms. For this reason, technicians should not assume that every power-related alarm indicates an internal VE5009 failure.

A complete inspection of the input supply, connections, wiring, output condition, connected loads, and system diagnostics provides a more reliable way to identify the root cause.

6. How should the VE5009 System Power Supply be installed or replaced?

Before installation or replacement, the associated DeltaV control system should be placed in a safe maintenance condition and the applicable power sources should be isolated according to site procedures.

The replacement unit should be checked against the existing system configuration before installation. Wiring and connector positions should be identified carefully to prevent incorrect connections during replacement.

After installation, all electrical connections should be inspected. Once power is restored, technicians should verify system diagnostics, module status, and overall control operation to confirm that the replacement power supply is operating correctly.

7. What should be checked if DeltaV modules experience intermittent power loss?

If DeltaV modules experience intermittent power loss, technicians should first check the incoming power supply for voltage fluctuations or other abnormalities.

The next step is to inspect the VE5009 connections, connectors, and wiring for loose contacts or damaged conductors. The output condition should also be monitored to determine whether the interruption occurs at the power supply or further downstream.

If only specific modules are affected, their individual wiring and electrical load should be investigated. If several modules lose power simultaneously, the common power distribution path should receive particular attention.

8. How can the long-term reliability of the VE5009 System Power Supply be improved?

Long-term reliability can be improved by maintaining stable input power, ensuring secure electrical connections, and keeping the control cabinet environment within appropriate operating conditions.

Routine maintenance should include inspection of wiring and connectors, review of DeltaV system alarms, and monitoring of connected control modules for repeated resets, communication interruptions, or unexpected power loss.

Preventive maintenance is especially valuable in continuously operating process control systems. Identifying deteriorating connections, abnormal loads, or power-related performance changes at an early stage can reduce unexpected downtime and help maintain stable DeltaV system operation.
