1. What is the main function of the Emerson VE6021P2 Ethernet Switch?

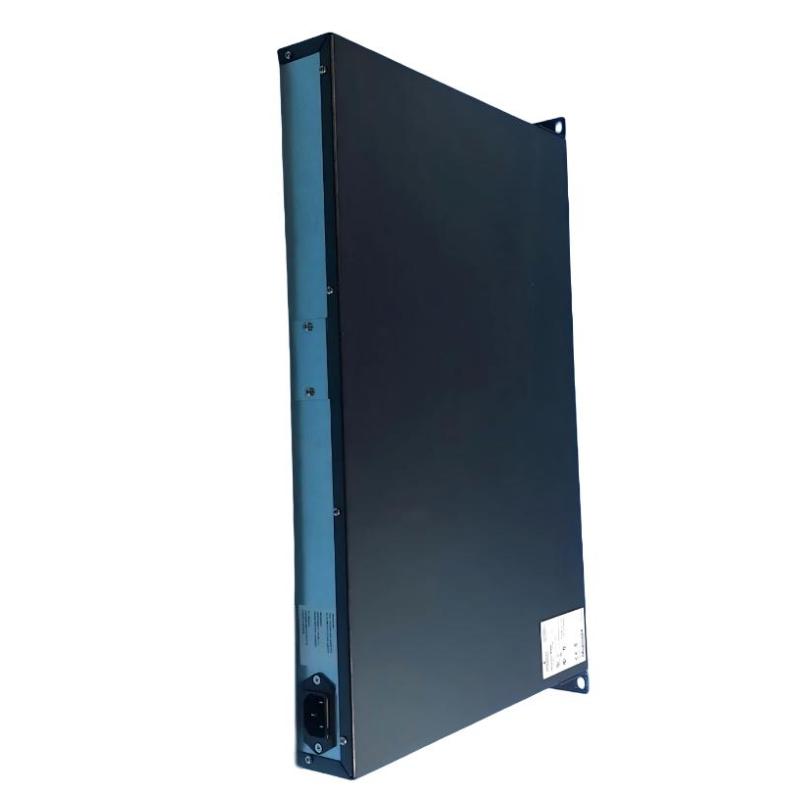

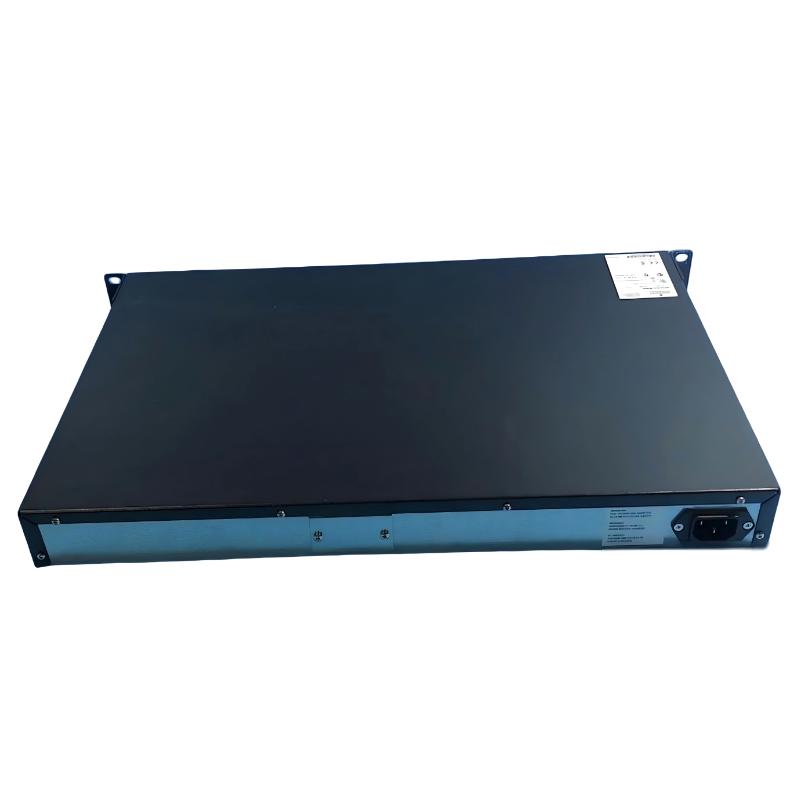

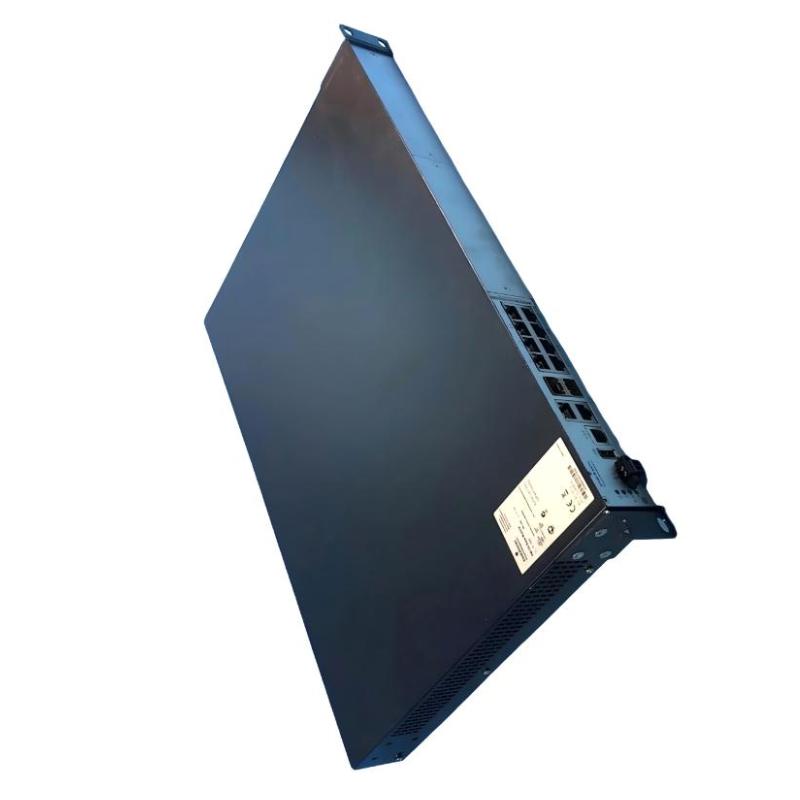

The Emerson VE6021P2 is an Ethernet Switch designed for industrial automation and control systems. Its primary function is to provide reliable Ethernet communication and data exchange between controllers, I/O devices, engineering stations, operator stations, and other network equipment. It can serve as a communication point within an industrial control network, allowing different devices to exchange control data, status information, and monitoring information. The switch is normally integrated into the overall automation network and works together with other network equipment to maintain stable communication throughout the control system.

2. Where is the VE6021P2 typically used?
The VE6021P2 is suitable for industrial environments that require Ethernet communication between multiple automation devices. Typical applications include process automation, DCS systems, industrial control cabinets, plant communication networks, and other industrial Ethernet infrastructures. Depending on the system architecture, the switch can connect controllers, I/O devices, operator stations, engineering workstations, and other Ethernet-based equipment. For larger systems, it may also be integrated with additional network switches to establish a structured industrial communication network.

3. How should communication problems involving the VE6021P2 be troubleshot?
Start by checking the power supply and confirming that the switch is operating normally. Next, inspect all Ethernet cables and connectors for loose connections, physical damage, or poor contact. The network settings of the connected equipment should then be checked, including IP addresses, subnet configuration, and other applicable communication parameters. If only one device is unable to communicate, focus on that device, its cable, and the corresponding switch port. If several devices lose communication simultaneously, check the switch, power supply, upstream network connection, and common communication paths. A step-by-step approach helps isolate the actual source of the problem.

4. What can cause intermittent Ethernet communication through the VE6021P2?
Intermittent communication may be caused by unstable power, damaged network cables, loose connectors, poor electrical contact, electromagnetic interference, incorrect network configuration, or problems with connected equipment. Industrial facilities often contain motors, drives, contactors, and other electrical equipment that can introduce interference into communication systems. Proper cable routing, shielding, and grounding can help reduce these effects. If the problem occurs only when a motor starts, a drive changes speed, or another piece of equipment changes operating state, the communication fault should be compared with those operating conditions to determine whether there is a relationship.

5. How can a technician determine whether a VE6021P2 Ethernet port is faulty?
The first step is to check the Ethernet cable and external device connected to the suspected port. If port status indicators are available, check the link and activity indications for abnormal behavior. A known-good cable and network device can then be connected for comparison. If communication is restored after replacing the cable or external device, the original component may be the cause. If the same port remains unable to communicate with known-good equipment, the port itself may require further inspection. Network configuration should also be verified before identifying the problem as a hardware failure.

6. Can incorrect network configuration cause the VE6021P2 to appear defective?
Yes. Incorrect configuration on controllers, computers, I/O devices, or other network nodes can cause communication failures even when the Ethernet switch itself is operating normally. Common configuration-related causes include IP address conflicts, incorrect subnet settings, and incompatible communication parameters. Therefore, troubleshooting should include both physical network connections and the configuration of connected devices. Configuration checks are especially important after replacing equipment, changing network topology, or modifying the control system. Reviewing the complete communication path can help distinguish a configuration problem from a hardware problem.

7. What precautions should be taken when replacing the VE6021P2?
Before replacing the switch, document the existing network topology and identify each device and cable connected to the relevant ports. Follow the required site maintenance and electrical isolation procedures before removing the existing unit. Install the replacement VE6021P2 according to the original network arrangement and reconnect each communication cable correctly. After power is restored, verify communication with controllers, I/O devices, operator stations, engineering stations, and other network equipment. If the switch is part of a DCS or other critical control network, communication with upstream systems and other network switches should also be checked before returning the system to normal operation.

8. What commissioning checks should be performed after installing a new VE6021P2?
After installation, verify that the power supply is stable and check every Ethernet connection against the system network documentation. Test communication between the switch and connected controllers, I/O devices, engineering stations, operator stations, and other network nodes. If the system uses multiple switches or redundant communication paths, verify each relevant network route. After the control system is returned to operation, monitor for communication alarms, device disconnections, abnormal data updates, or unexpected network behavior. Continued monitoring under normal operating conditions helps confirm stable communication and can reveal intermittent problems that may not appear during initial commissioning.
