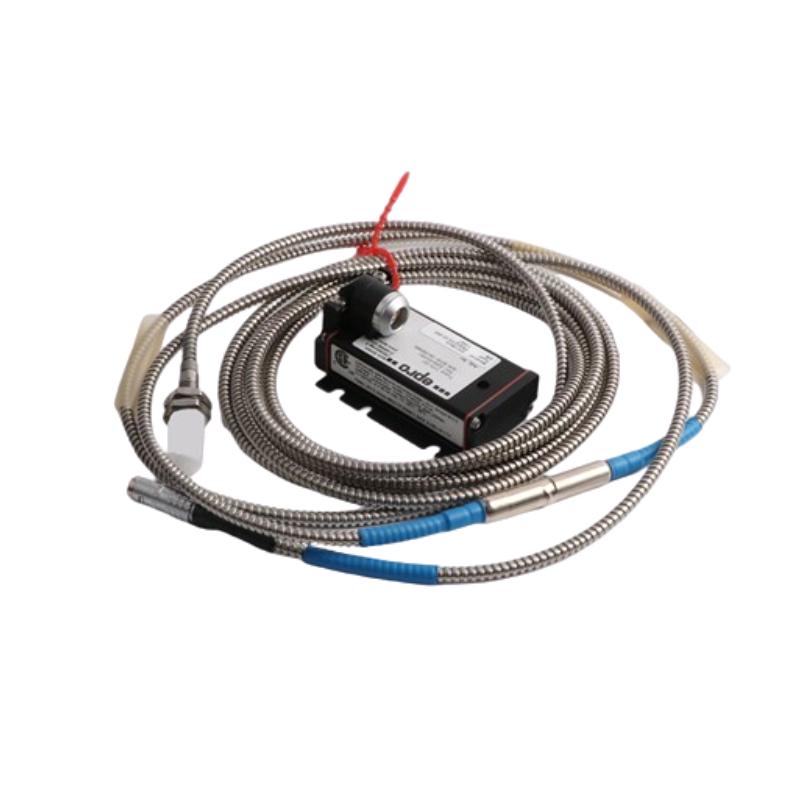

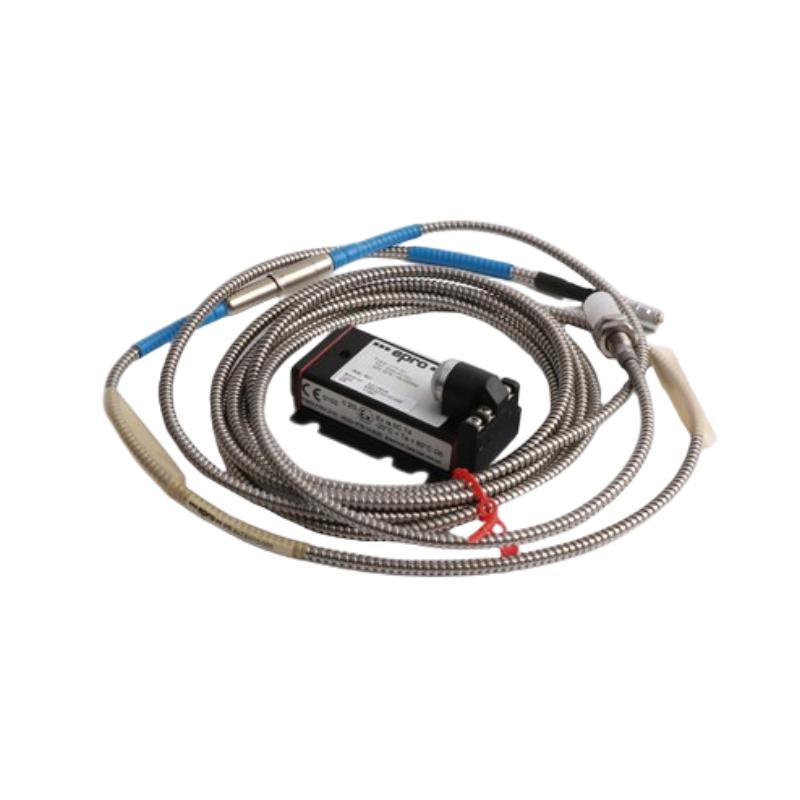

Epro CON021/916-240+PR6426/010-140 Eddy Current Sensor System
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CON021/916-240 + PR6426/010-140 |
| Product Type | Eddy Current Sensor System |
| Manufacturer | EPRO / Emerson |
| System Function | Non-contact displacement measurement for shaft position and vibration monitoring |
| Sensor Type | PR6426/010-140 Eddy Current Proximity Sensor |
| Converter Type | CON021/916-240 Signal Converter |
| Measurement Principle | Eddy current technology |
| Sensor Diameter | 32 mm |
| Measurement Range | 12 mm |
| Initial Air Gap | Approx. 1.5 mm |
| Sensitivity | 2 V/mm |
| Linearity Error | ≤ ±1.5% |
| Target Material | Ferromagnetic steel |
| Static Measurement Range | ±6 mm |
| Frequency Response | 0 to 20 kHz (-3 dB) |
| Converter Rise Time | Less than 15 μs |
| Output Signal | -4 to -20 VDC or -2 to -18 VDC depending on configuration |
| Supply Voltage | -23 to -32 VDC |
| Sensor Operating Temperature | -35°C to +175°C |
| Short-Term Temperature Limit | Up to 200°C |
| Converter Operating Temperature | -30°C to +100°C |
| Sensor Protection Rating | IP66 |
| Converter Protection Rating | IP20 |
| Sensor Material | Stainless steel housing with PTFE cable |
| Cable Length | Available in multiple configurations |
| Connector Type | LEMO connector |
| Sensor Dimensions | Approx. 32 mm probe diameter |
| Converter Dimensions | Approx. 56 mm × 50.8 mm × 11 mm |
| Sensor Weight | Approx. 800 g including cable |
| Converter Weight | Approx. 120 g |
| Total System Weight | Approx. 920 g |
| Installation Method | Sensor mounted near rotating shaft; converter installed in control cabinet |
| Application Areas | Steam turbines, gas turbines, hydro turbines, compressors, pumps, and large rotating machinery |
| Reliability Features | Provides stable non-contact measurement, extended displacement range, and reliable signal conversion |
FAQ
Q1: What is the CON021/916-240 + PR6426/010-140 used for?
- The CON021/916-240 + PR6426/010-140 is an eddy current sensor system used for monitoring shaft displacement, axial position, radial movement, and vibration conditions in large rotating equipment.
Q2: How does the PR6426/010-140 sensor work?
- The sensor uses eddy current technology to measure the distance between the probe and a conductive metal target without direct contact, providing continuous displacement data.
Q3: What is the measurement range of the PR6426/010-140?
- The sensor provides a 12 mm measurement range and is designed for applications requiring extended shaft displacement monitoring.
Q4: What is the function of the CON021/916-240 converter?
- The converter converts the sensor signal into a standardized output signal suitable for machinery monitoring, protection systems, and industrial control equipment.
Q5: What equipment commonly uses this sensor system?
- The system is commonly used in steam turbines, gas turbines, hydro turbines, compressors, pumps, and other critical rotating machinery.
Q6: What are the advantages of this eddy current sensor system?
- It provides non-contact measurement, high accuracy, fast response, extended measuring capability, and stable operation in demanding industrial environments.
Q7: What should be considered during installation?
- Users should verify sensor mounting position, probe gap adjustment, shaft material compatibility, cable routing, converter wiring, power supply, and calibration parameters before operation.
Q8: What should be checked before replacing the CON021/916-240 + PR6426/010-140 system?
- Confirm sensor and converter compatibility, measurement range, output signal requirements, wiring configuration, mechanical dimensions, and monitoring system parameters before replacement.
Epro CON021/916-240+PR6426/010-140 Eddy Current Sensor System is in stock. Please contact us for a quick quote and competitive pricing.
