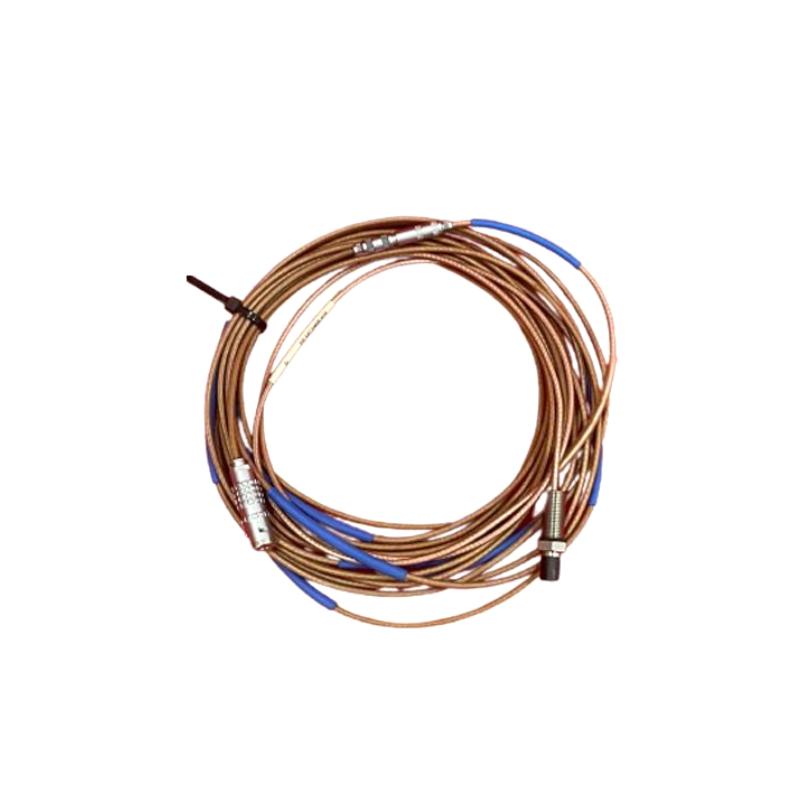

Epro CON021+PR6424/010-100 Eddy Current Sensor System
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | CON021 + PR6424/010-100 |
| Product Type | Eddy Current Sensor System |
| Manufacturer | EPRO / Emerson |
| System Function | Non-contact shaft displacement, vibration, and position measurement |
| Sensor Type | PR6424/010-100 Eddy Current Proximity Sensor |
| Converter Type | CON021 Signal Converter |
| Measurement Principle | Eddy current technology |
| Sensor Diameter | 16 mm |
| Measurement Range | ±5 mm |
| Linear Measurement Range | Approx. 10 mm |
| Initial Air Gap | Approx. 1.0 mm |
| Sensitivity | 4 V/mm |
| Linearity Error | ≤ ±1.5% |
| Target Material | Ferromagnetic steel |
| Shaft Diameter Requirement | ≥80 mm |
| Frequency Response | 0 to 20 kHz (-3 dB) |
| Converter Rise Time | Less than 15 μs |
| Output Signal | -4 to -20 VDC or -2 to -18 VDC depending on configuration |
| Supply Voltage | -23 to -32 VDC |
| Sensor Operating Temperature | -35°C to +180°C |
| Converter Operating Temperature | -30°C to +100°C |
| Sensor Protection Rating | IP66 |
| Converter Protection Rating | IP20 |
| Sensor Material | Stainless steel housing with PTFE cable |
| Cable Length | Approx. 5 m |
| Connector Type | LEMO connector |
| Sensor Dimensions | Approx. 16 mm probe diameter |
| Converter Dimensions | Compact industrial mounting design |
| Sensor Weight | Approx. 150 g |
| Converter Weight | Approx. 120 g |
| Total System Weight | Approx. 270 g |
| Installation Method | Sensor mounted near rotating shaft; converter installed in control cabinet |
| Application Areas | Steam turbines, gas turbines, compressors, pumps, fans, gearboxes, and large rotating machinery |
| Reliability Features | Provides extended measurement range, stable signal conversion, high accuracy, and reliable operation in industrial environments |
FAQ
Q1: What is the CON021 + PR6424/010-100 used for?
- The CON021 + PR6424/010-100 is an eddy current sensor system designed for monitoring shaft vibration, radial displacement, axial movement, eccentricity, and rotational position in critical rotating equipment.
Q2: How does the PR6424/010-100 sensor work?
- The sensor uses eddy current technology to measure the distance between the probe and a conductive metal target without physical contact, providing stable and continuous displacement monitoring.
Q3: What is the measurement range of the PR6424/010-100?
- The PR6424/010-100 provides an extended linear measurement range of approximately 10 mm, making it suitable for applications requiring larger shaft movement monitoring.
Q4: What is the function of the CON021 converter?
- The CON021 converter provides signal conditioning for the eddy current sensor and converts the measured signal into a standardized output for monitoring and protection systems.
Q5: What equipment commonly uses this sensor system?
- The system is commonly used in steam turbines, gas turbines, compressors, pumps, fans, gearboxes, and other heavy-duty rotating machinery requiring continuous condition monitoring.
Q6: What are the advantages of the CON021 + PR6424/010-100 system?
- It provides non-contact measurement, extended displacement range, fast response, high reliability, and stable performance in demanding industrial environments.
Q7: What should be considered during installation?
- Users should check probe mounting position, sensor gap adjustment, shaft material compatibility, cable routing, converter wiring, power supply, and calibration parameters before operation.
Q8: What should be checked before replacing the CON021 + PR6424/010-100 system?
- Confirm sensor and converter compatibility, measurement range, output signal requirements, cable length, wiring configuration, mechanical dimensions, and monitoring system settings before replacement.
Epro CON021+PR6424/010-100 Eddy Current Sensor System is in stock. Please contact us for a quick quote and competitive pricing.
