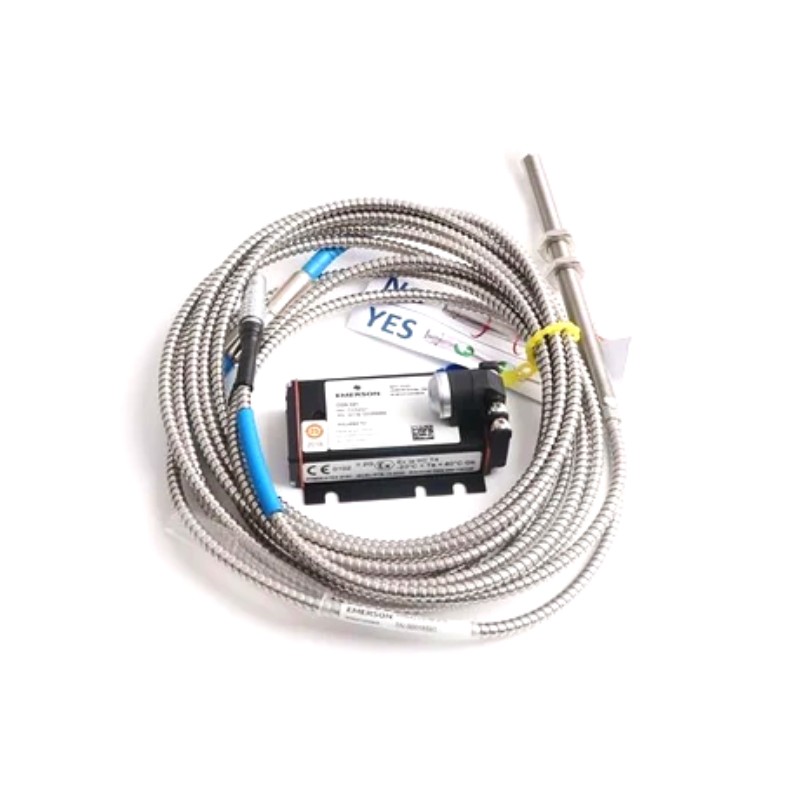

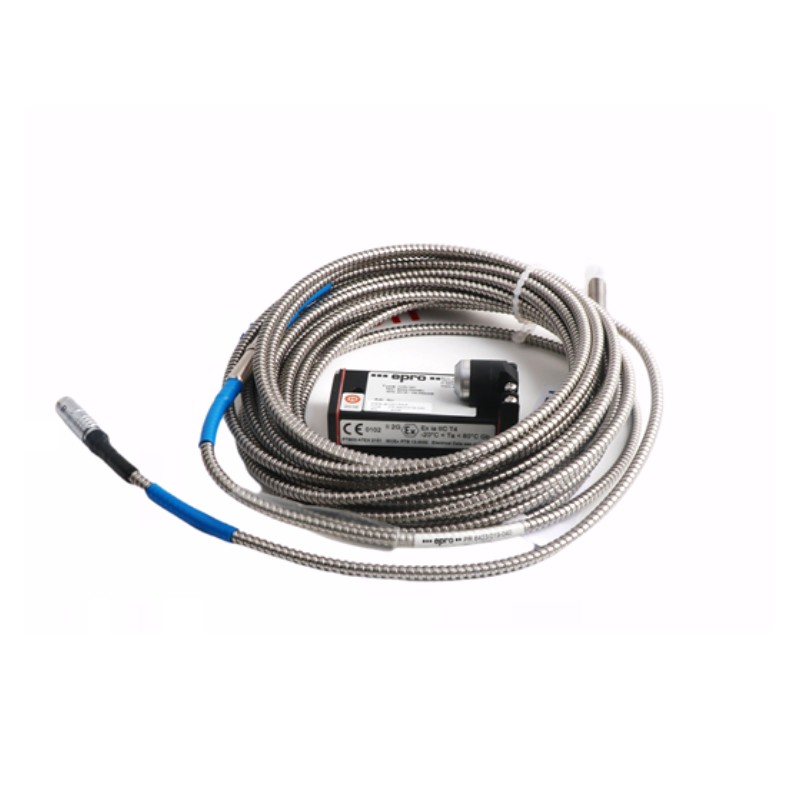

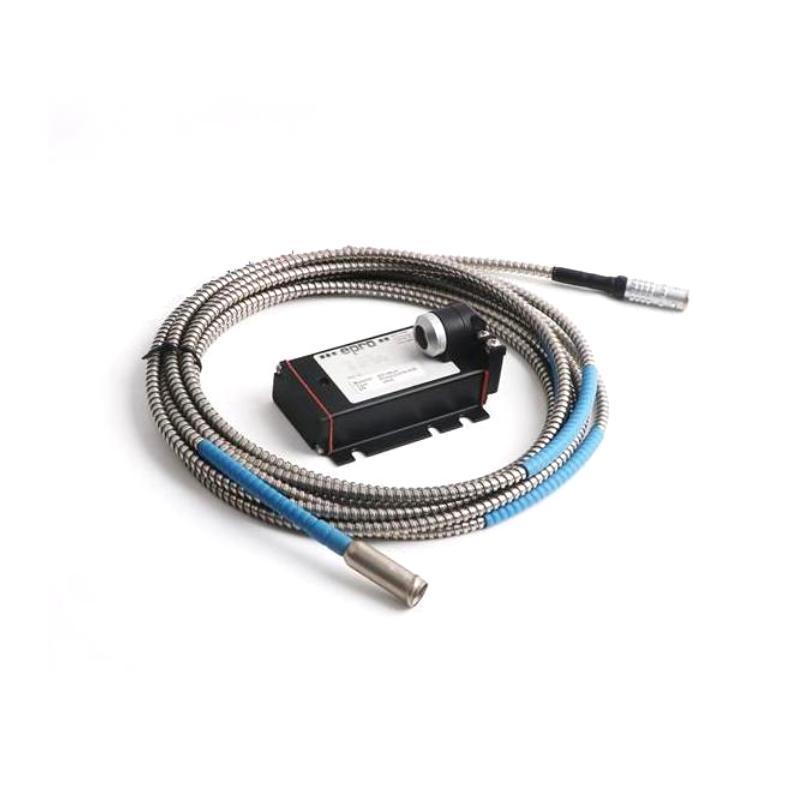

Epro PR6423/000-030 Eddy current displacement sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | PR6423/000-030 |
| Product Type | Eddy current displacement sensor |
| Manufacturer | EPRO / Emerson |
| Measurement Principle | Non-contact eddy current technology |
| Main Function | Shaft displacement and vibration monitoring |
| Application | Rotating machinery condition monitoring and protection |
| Sensor Diameter | 8 mm |
| Measuring Range | 2 mm |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm |
| Linearity Deviation | ±0.025 mm |
| Minimum Shaft Diameter | 25 mm |
| Target Material | Ferromagnetic steel materials |
| Operating Temperature | -35°C to +180°C |
| Cable Operating Temperature | -35°C to +150°C |
| Protection Class | IP66 |
| Sensor Tip Material | PEEK |
| Sensor Housing Material | Stainless steel |
| Cable Material | PTFE insulated cable |
| Thread Specification | M10 × 1 |
| Cable Length | Approx. 3 m |
| Installation Method | Threaded mounting |
| Signal Type | Eddy current displacement signal |
| Compatible Converter | CON011 / CON021 series |
| Typical Applications | Steam turbines, gas turbines, compressors, generators, pumps, gearboxes, and other rotating equipment |
| Dimensions | Sensor diameter approx. 8 mm; overall size depends on installation configuration |
| Weight | Approx. 100 g |
FAQ
Q1: What is the PR6423/000-030 mainly used for?
A: The PR6423/000-030 is designed for shaft displacement and vibration monitoring in rotating machinery, providing reliable condition monitoring data.
Q2: What technology does the PR6423/000-030 use?
A: The sensor uses eddy current technology to achieve accurate non-contact displacement measurement and reduce mechanical wear.
Q3: What equipment is suitable for the PR6423/000-030?
A: The sensor is suitable for turbines, compressors, generators, pumps, gearboxes, and other industrial rotating equipment requiring continuous monitoring.
Q4: What is the measuring range of the PR6423/000-030?
A: The sensor provides a 2 mm linear measuring range with a 0.5 mm initial air gap for precise shaft displacement detection.
Q5: What are the main advantages of the PR6423/000-030?
A: The product offers high measurement accuracy, stable signal output, long-term reliability, and suitability for demanding industrial environments.
Q6: Can the PR6423/000-030 be used in high-temperature environments?
A: Yes. The sensor is designed for industrial applications and can operate under a wide temperature range, making it suitable for critical machinery monitoring.
Q7: What should be considered during installation?
A: Users should ensure correct sensor gap adjustment, proper mounting position, compatible shaft material, and reliable connection with the monitoring system.
Q8: How can the service life of the PR6423/000-030 be extended?
A: Proper installation, regular inspection, stable operating conditions, and periodic maintenance of the monitoring system can help maintain performance and reliability.
Epro PR6423/000-030 Eddy current displacement sensor is in stock. Please contact us for a quick quote and competitive pricing.
