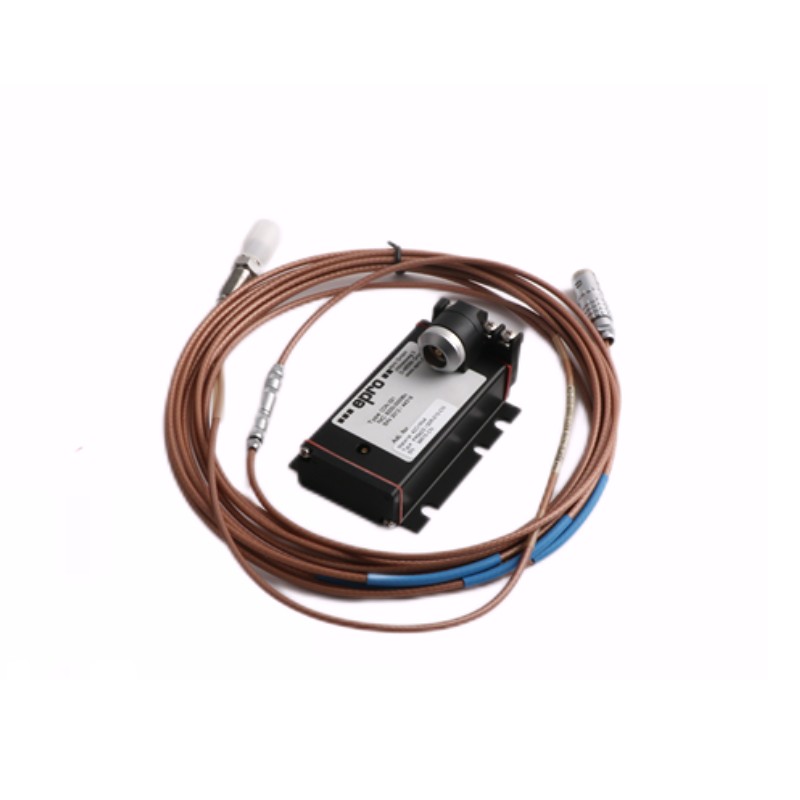

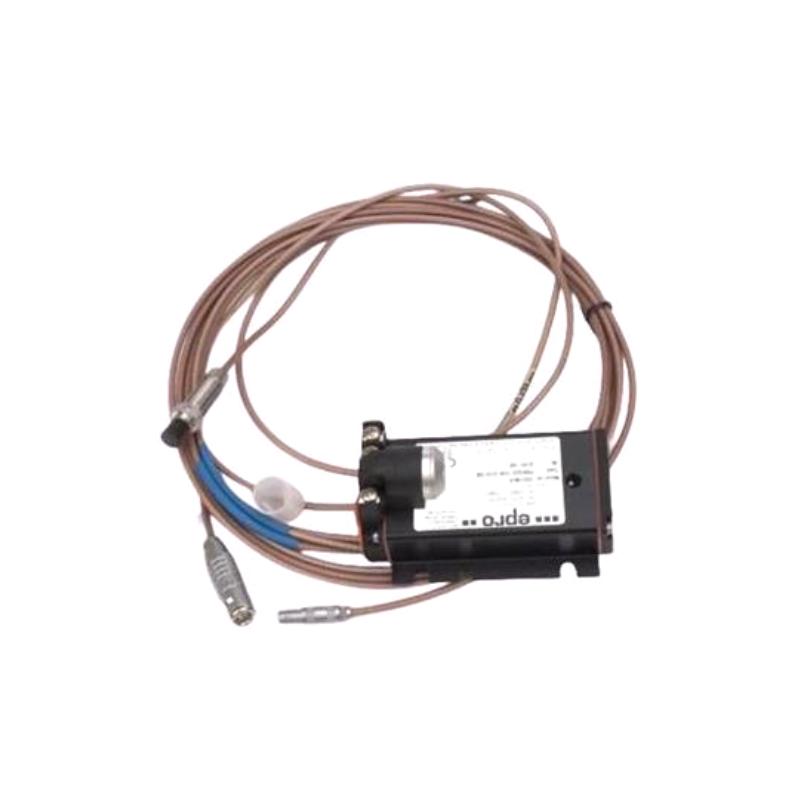

Epro PR6423/002-041 Eddy current displacement sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | PR6423/002-041 |
| Product Type | Eddy current displacement sensor |
| Manufacturer | EPRO / Emerson |
| Measurement Principle | Non-contact eddy current technology |
| Main Function | Shaft displacement, shaft position, vibration, eccentricity, and speed monitoring |
| Application | Critical rotating machinery condition monitoring and protection |
| Sensor Diameter | 8 mm |
| Measuring Range | 2 mm |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm ±5% |
| Linearity Deviation | ±0.025 mm |
| Target Material | Ferromagnetic steel materials (42CrMo4 / AISI 4140 standard) |
| Minimum Shaft Diameter | 25 mm |
| Frequency Response | Up to 10 kHz |
| Sensor Operating Temperature | -35°C to +180°C |
| Cable Operating Temperature | -35°C to +150°C |
| Protection Class | IP66 |
| Sensor Tip Material | PEEK |
| Sensor Housing Material | Stainless steel |
| Cable Material | PTFE insulated armored cable |
| Cable Length | According to configuration (commonly 4.5 m) |
| Cable Diameter | Approx. 6 mm |
| Thread Specification | M10 × 1 |
| Connector Material | Nickel-plated brass |
| Installation Method | Threaded mounting |
| Compatible Converter | CON021 / CON041 series |
| Signal Type | Eddy current displacement signal |
| Standard Applications | Steam turbines, gas turbines, hydro turbines, compressors, gearboxes, pumps, and fans |
| Dimensions | Sensor diameter approx. 8 mm; overall dimensions depend on cable configuration |
| Weight | Approx. 150 g with cable |
FAQ
Q1: What is the PR6423/002-041 mainly used for?
A: The PR6423/002-041 is mainly used for non-contact measurement of shaft displacement, vibration, position, eccentricity, and speed in high-performance rotating machinery.
Q2: What measurement technology does the PR6423/002-041 use?
A: The sensor uses eddy current technology, which detects changes in the distance between the probe and the shaft surface without physical contact.
Q3: What equipment is suitable for the PR6423/002-041?
A: It is suitable for steam turbines, gas turbines, compressors, pumps, generators, gearboxes, and other critical rotating equipment requiring continuous condition monitoring.
Q4: What is the measuring range of the PR6423/002-041?
A: The sensor provides a 2 mm linear measuring range with a 0.5 mm initial air gap, allowing accurate shaft displacement measurement.
Q5: What are the advantages of the PR6423/002-041?
A: The sensor provides high accuracy, non-contact operation, stable performance, fast response, and long service life in industrial environments.
Q6: Can the PR6423/002-041 work in harsh environments?
A: Yes. The sensor is designed for critical machinery applications and features a stainless-steel housing, high-temperature capability, and durable armored cable construction.
Q7: Which converters are compatible with the PR6423/002-041?
A: The sensor can be connected with compatible EPRO converters such as CON021 and CON041 to create a complete shaft displacement monitoring system.
Q8: How can the performance of the PR6423/002-041 be maintained?
A: Regular inspection, correct installation, proper air gap adjustment, calibration checks, and preventive maintenance help maintain measurement accuracy and extend service life.
Epro PR6423/002-041 Eddy current displacement sensor is in stock. Please contact us for a quick quote and competitive pricing.
