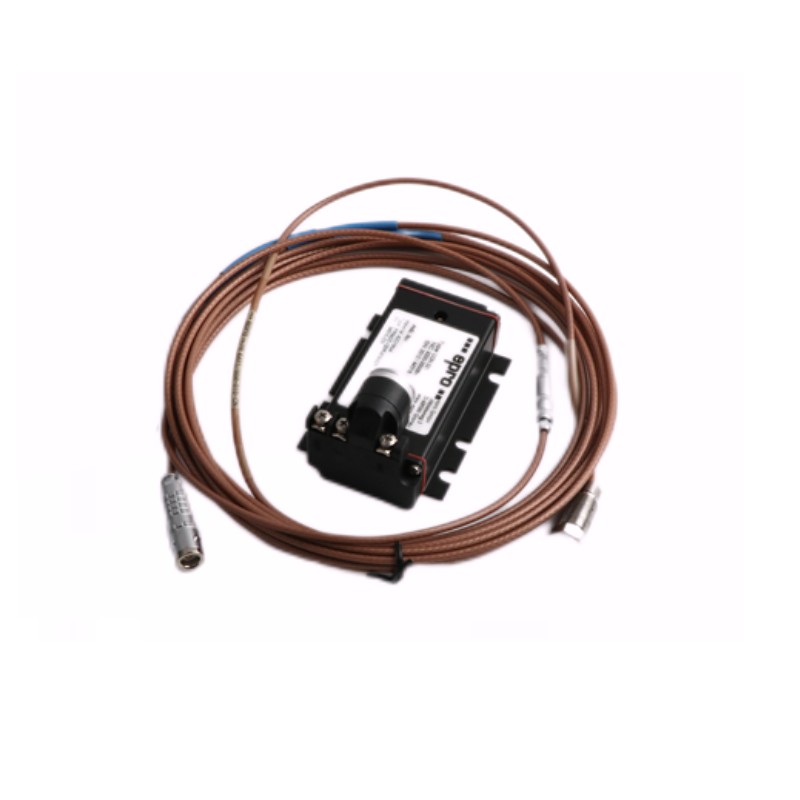

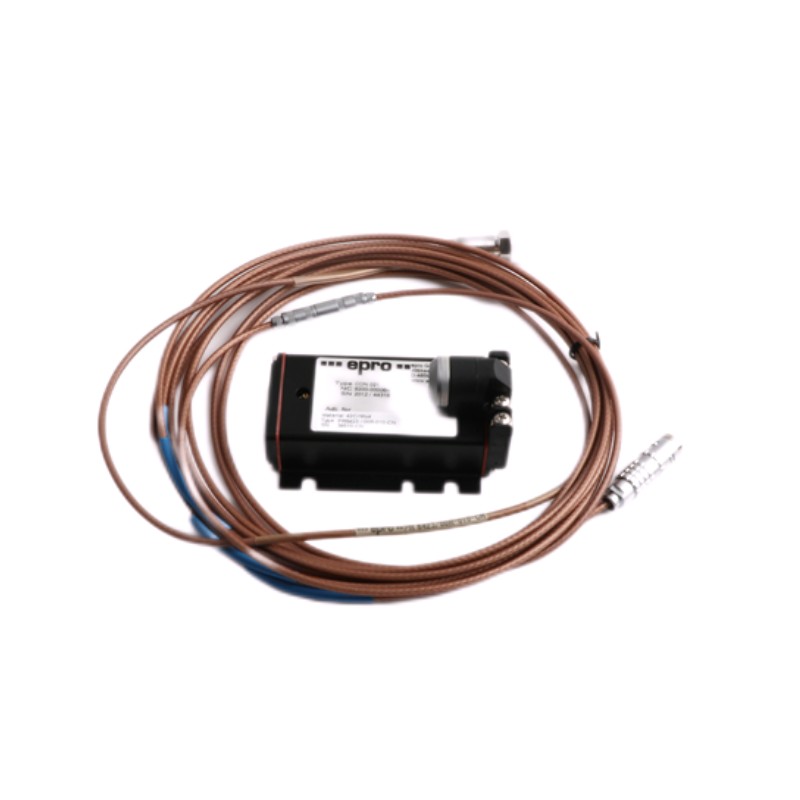

Epro PR6423/005-030 8 mm Eddy Current Sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Model | PR6423/005-030 |
| Product Type | 8 mm Eddy Current Sensor (Displacement / Vibration Probe) |
| Manufacturer | EPRO / Emerson |
| Series | PR6423 Series |
| Main Function | Non-contact measurement of shaft displacement, vibration, position, eccentricity, and rotational speed |
| Application | Turbine monitoring, compressors, pumps, gearboxes, steam turbines, gas turbines, industrial rotating machinery |
| Sensor Type | Eddy Current Proximity Sensor |
| Sensor Diameter | 8 mm |
| Measuring Range | ±1 mm position measurement (2 mm linear range) |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm |
| Frequency Range | 0…20 kHz |
| Mounting Thread | M10 × 1 |
| Cable Length | Approx. 8 m |
| Connector Type | LEMO connector |
| Cable Material | PTFE |
| Target Material | Ferromagnetic steel |
| Operating Temperature | -35°C to +180°C |
| Protection Class | IP66 |
| Accuracy | ±0.025 mm deviation from best fit line |
| Installation Type | Non-contact installation |
| Converter Compatibility | CON011 / CON021 / CON041 converters, MMS systems |
| Weight | Approx. 300 g |
| Dimensions | Sensor body Ø8 mm, length approx. 75 mm |
| Typical Applications | Rotor vibration monitoring, shaft displacement measurement, machine condition monitoring |
FAQ
Q1: What is the PR6423/005-030 mainly used for?
A: The PR6423/005-030 is an 8 mm eddy current sensor used for non-contact measurement of shaft vibration, displacement, position, and speed in critical rotating equipment.
Q2: What is the measurement range of the PR6423/005-030?
A: It provides a 2 mm linear measuring range with approximately ±1 mm position measurement capability.
Q3: What type of equipment uses this sensor?
A: It is commonly used in steam turbines, gas turbines, compressors, pumps, gearboxes, and other rotating machinery monitoring systems.
Q4: Does the PR6423/005-030 require contact with the shaft?
A: No. It is a non-contact eddy current sensor that measures shaft movement through electromagnetic field changes.
Q5: Which converter can be used with this sensor?
A: It can be connected with compatible EPRO converters such as CON021 and CON041 for vibration and displacement monitoring systems.
Q6: What are the advantages of the PR6423/005-030?
A: It provides high accuracy, high-temperature resistance, long service life, and reliable monitoring for critical rotating machinery.
Q7: What is the difference between PR6423/005-030 and PR6423/005-030+CON021?
A: PR6423/005-030 is the eddy current probe itself, while the +CON021 version includes the matching signal converter for direct integration into monitoring systems.
Epro PR6423/005-030 8 mm Eddy Current Sensor is in stock. Please contact us for a quick quote and competitive pricing.
