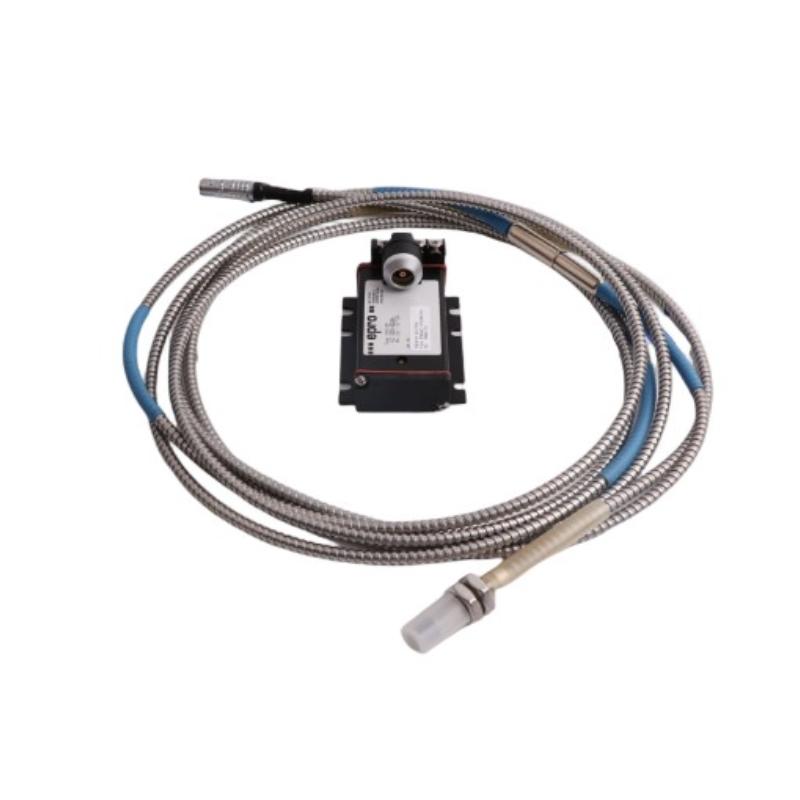

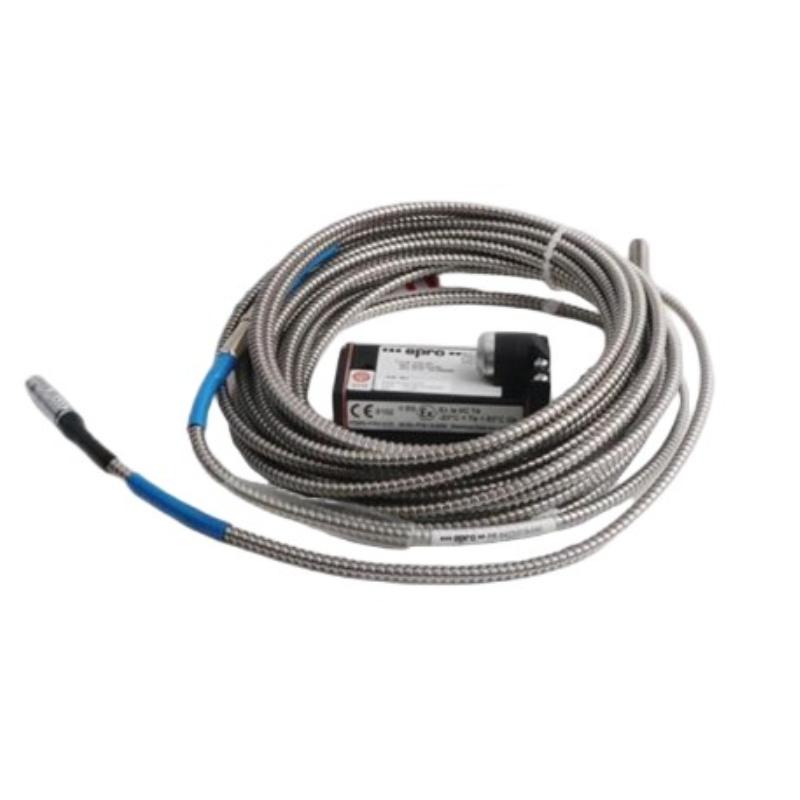

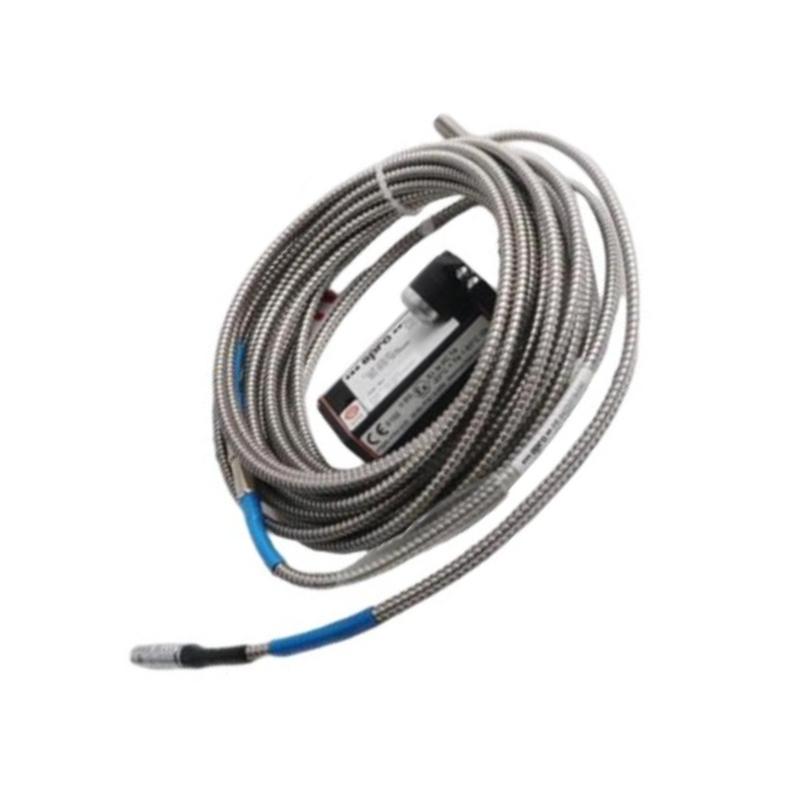

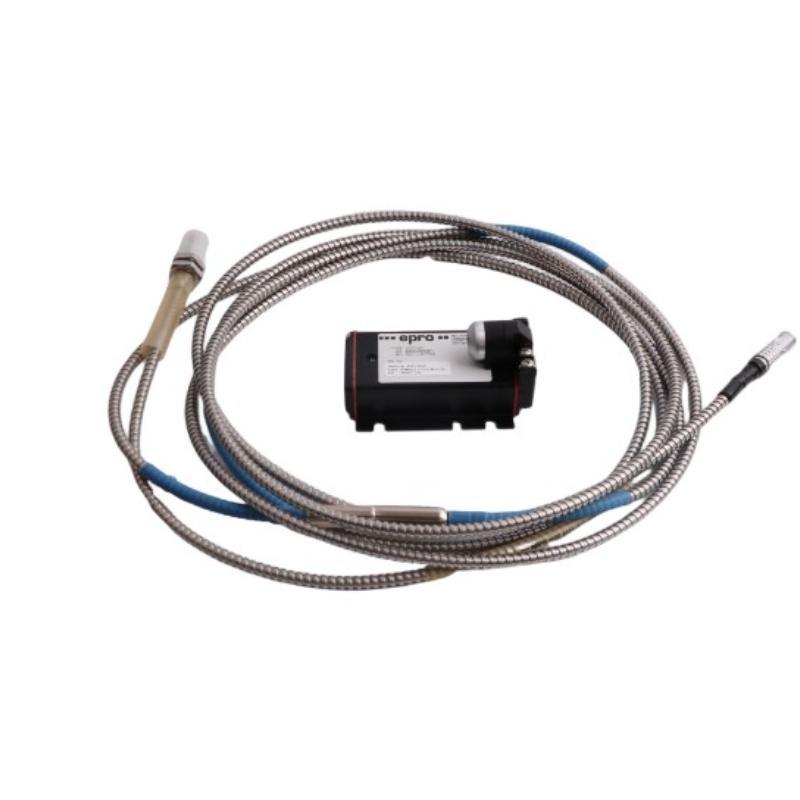

Epro PR6423/010-040+CON021 Eddy Current Displacement Measurement System
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/010-040 + CON021 |
| Product Type | Eddy Current Displacement Measurement System |
| Product Series | EPRO PR6423 Sensor + CON021 Signal Converter |
| Main Function | Non-contact measurement system for monitoring shaft displacement, vibration, axial position, radial movement, eccentricity, and speed of rotating machinery |
| Manufacturer | EPRO / Emerson |
| System Configuration | PR6423/010-040 eddy current sensor with CON021 signal converter |
| Measurement Principle | Eddy current proximity measurement technology |
| Sensor Type | 8 mm Eddy Current Proximity Sensor |
| Probe Diameter | 8 mm |
| Mounting Thread | M10 × 1 |
| Linear Measurement Range | 2 mm |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Linearity Deviation | ≤ ±0.025 mm |
| Frequency Response | DC to 20 kHz |
| Target Material | Ferromagnetic steel (42CrMo4 / AISI 4140 standard) |
| Minimum Shaft Diameter | ≥25 mm |
| Sensor Cable Length | 10 m integrated cable |
| Sensor Operating Temperature | -35°C to +180°C |
| Short-Term Temperature Capability | Up to +200°C (less than 4 hours) |
| Converter Operating Temperature | -30°C to +100°C |
| Sensor Protection Class | IP66 |
| Converter Protection Class | IP20 |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Sensor Housing Material | Stainless steel |
| Cable Material | PTFE insulated cable |
| Converter Housing Material | Aluminum alloy |
| Converter Supply Voltage | -23 VDC to -32 VDC |
| Converter Output Signal | -4 V to -20 V proportional displacement output |
| Converter Frequency Response | 0 to 20 kHz (-3 dB) |
| Converter Rise Time | <15 μs |
| Mounting Method | Threaded sensor installation and panel mounting for converter |
| Sensor Dimensions | Approximately 45 mm probe length × 8 mm diameter |
| Converter Dimensions | Approximately 56 × 50.8 × 18 mm |
| Weight | Sensor: approximately 100 g; Converter: approximately 120 g |
| Application Areas | Steam turbines, gas turbines, hydraulic turbines, compressors, pumps, fans, gearboxes, and critical rotating machinery |
FAQ
Q1: What is the main function of the PR6423/010-040 + CON021 system?
A1: The system is designed for accurate non-contact measurement of shaft displacement, vibration, eccentricity, and position changes in critical rotating machinery.
Q2: What components are included in the PR6423/010-040 + CON021 system?
A2: The system consists of the PR6423/010-040 eddy current sensor and the CON021 signal converter, forming a complete displacement monitoring solution.
Q3: What is the measurement range of the PR6423/010-040 sensor?
A3: The sensor provides a 2 mm linear measurement range with a 0.5 mm initial air gap for precise shaft displacement detection.
Q4: What is the difference between PR6423/010-040 and shorter cable versions?
A4: The main difference is the integrated cable length. The PR6423/010-040 configuration uses a 10 m cable, which is suitable for installations requiring longer routing distances.
Q5: What is the purpose of the CON021 converter?
A5: The CON021 converts the eddy current sensor signal into a standardized output signal for connection with machinery monitoring and protection systems.
Q6: What equipment is suitable for the PR6423/010-040 + CON021 system?
A6: It is commonly used in steam turbines, gas turbines, compressors, generators, pumps, fans, and other rotating equipment requiring continuous condition monitoring.
Q7: Can the PR6423/010-040 sensor operate in harsh industrial environments?
A7: Yes. The sensor features stainless steel construction, PTFE cable insulation, IP66 protection, and high-temperature resistance for demanding industrial applications.
Q8: What should be checked if the measurement signal is unstable?
A8: Check the probe installation gap, shaft surface condition, cable integrity, converter power supply, grounding, and system calibration settings.
Epro PR6423/010-040+CON021 Eddy Current Displacement Measurement System is in stock. Please contact us for a quick quote and competitive pricing.
