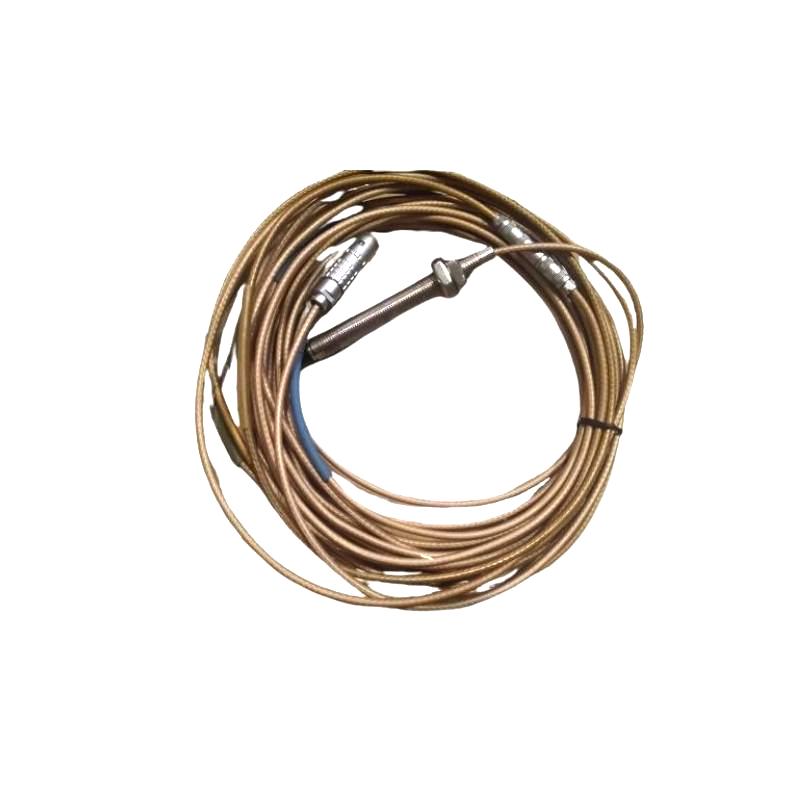

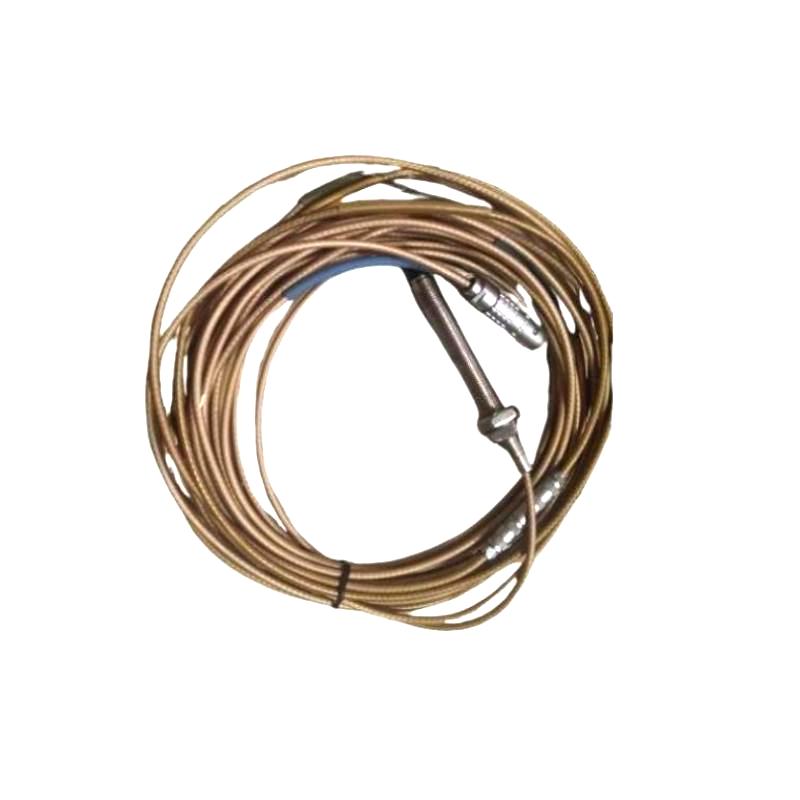

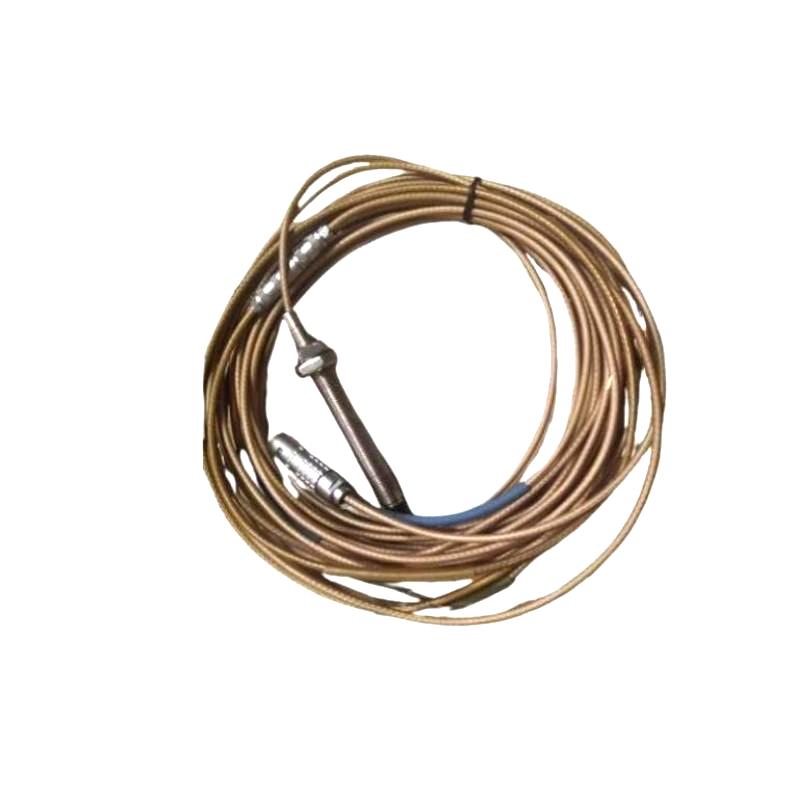

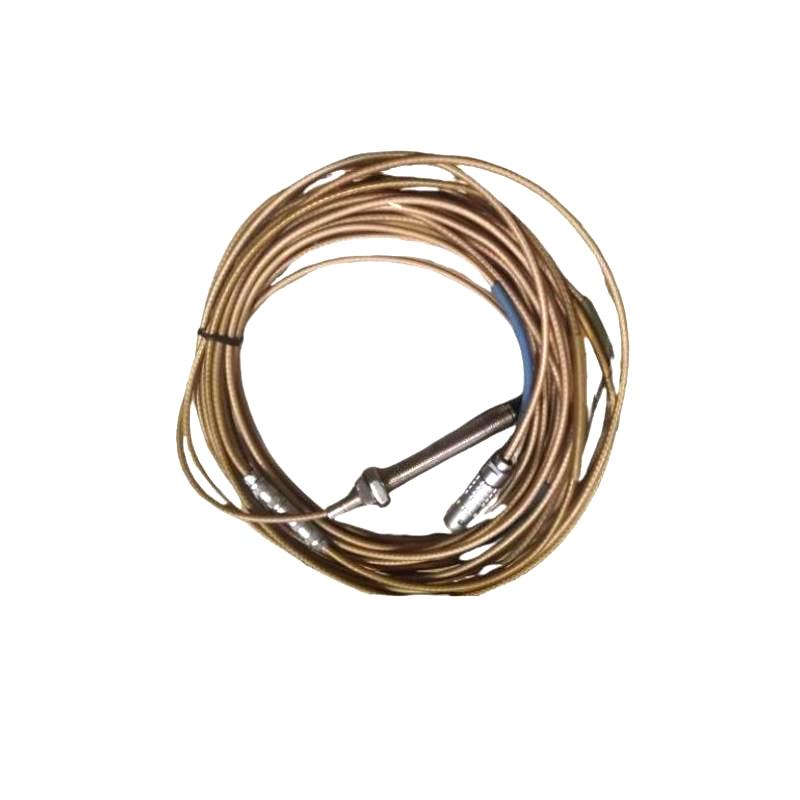

Epro PR6423/010-120+CON021 Eddy Current Displacement Measurement System
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/010-120 + CON021 |
| Product Type | Eddy Current Displacement Measurement System |
| Product Series | EPRO PR6423 Sensor + CON021 Signal Converter |
| Main Function | Non-contact measurement system for monitoring shaft displacement, vibration, axial position, eccentricity, and rotational speed in critical rotating machinery |
| Manufacturer | EPRO / Emerson |
| System Configuration | PR6423/010-120 eddy current sensor combined with CON021 signal converter |
| Measurement Principle | Eddy current proximity measurement technology |
| Sensor Type | 8 mm Eddy Current Proximity Sensor |
| Probe Diameter | 8 mm |
| Linear Measurement Range | 2 mm |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm (203.2 mV/mil) |
| Linearity Deviation | ≤ ±1% |
| Dynamic Measurement Range | 0 to 500 μm |
| Frequency Response | DC to 20 kHz |
| Target Material | Ferromagnetic steel (42CrMo4 standard) |
| Minimum Shaft Diameter | ≥25 mm |
| Sensor Cable Length | 12 m integrated cable |
| Cable Type | PTFE insulated high-temperature cable |
| Sensor Operating Temperature | -35°C to +180°C |
| Short-Term Temperature Capability | Up to +200°C |
| Converter Model | CON021 |
| Converter Operating Temperature | -30°C to +100°C |
| Converter Protection Class | IP20 |
| Converter Supply Voltage | -23 VDC to -32 VDC |
| Converter Output Signal | -4 V to -20 V proportional displacement output |
| Converter Frequency Response | 0 to 20 kHz |
| Converter Rise Time | <15 μs |
| Sensor Tip Material | PEEK (Polyether Ether Ketone) |
| Sensor Housing Material | Stainless steel |
| Converter Housing Material | Aluminum alloy |
| Mounting Method | Threaded sensor installation and panel mounting for converter |
| Sensor Dimensions | Approximately 45 mm probe length × 8 mm diameter |
| Converter Dimensions | Approximately 56 × 50.8 × 11 mm |
| Weight | Sensor: approximately 100 g; Converter: approximately 120 g |
| Application Areas | Steam turbines, gas turbines, hydraulic turbines, compressors, generators, pumps, fans, gearboxes, and critical rotating machinery |
FAQ
Q1: What is the main function of the PR6423/010-120 + CON021 system?
A1: The system is designed for precise non-contact monitoring of shaft displacement, vibration, axial movement, eccentricity, and rotational speed in critical rotating machinery.
Q2: What components are included in the PR6423/010-120 + CON021 system?
A2: The system consists of the PR6423/010-120 eddy current sensor and the CON021 signal converter, providing a complete displacement measurement solution.
Q3: What measurement technology does the PR6423/010-120 use?
A3: The sensor uses eddy current technology to measure distance changes between the probe and the rotating shaft target surface without physical contact.
Q4: What is the measurement range of the PR6423/010-120 sensor?
A4: The sensor provides a 2 mm linear measurement range with a 0.5 mm initial air gap for accurate displacement monitoring.
Q5: What is the purpose of the CON021 converter?
A5: The CON021 converts the sensor signal into a standardized output signal suitable for machinery monitoring and protection systems.
Q6: What equipment commonly uses the PR6423/010-120 + CON021 system?
A6: It is commonly used in steam turbines, gas turbines, compressors, generators, pumps, fans, gearboxes, and other critical rotating machinery.
Q7: Can the PR6423/010-120 + CON021 operate in harsh industrial environments?
A7: Yes. The system is designed for industrial applications with high-temperature resistance, durable sensor construction, and reliable signal processing capability.
Q8: What should be checked if the measurement signal is unstable?
A8: Check the probe installation gap, shaft surface condition, cable connections, converter power supply, grounding, and calibration settings.
