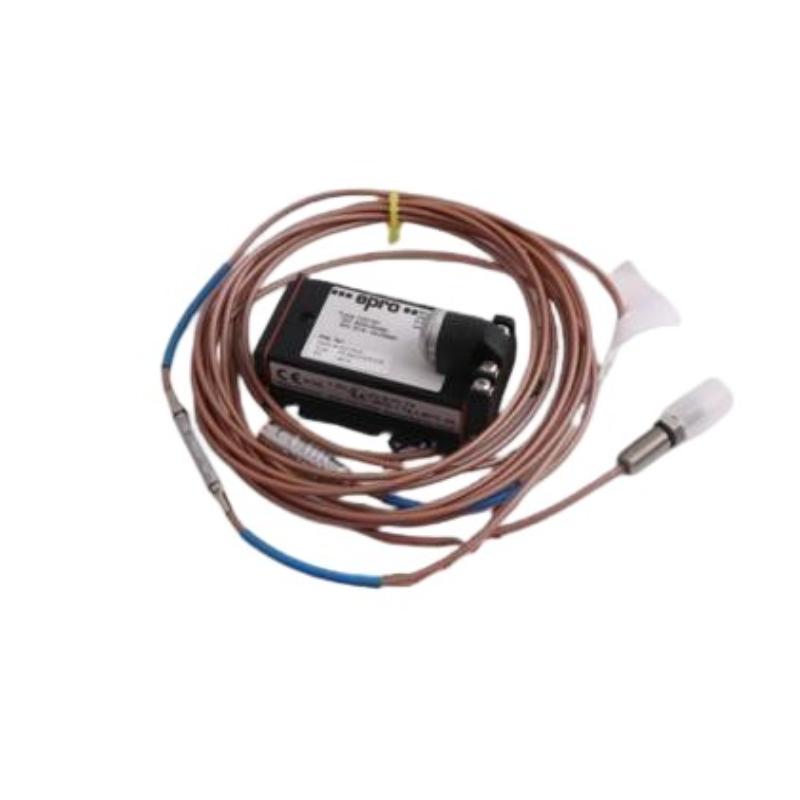

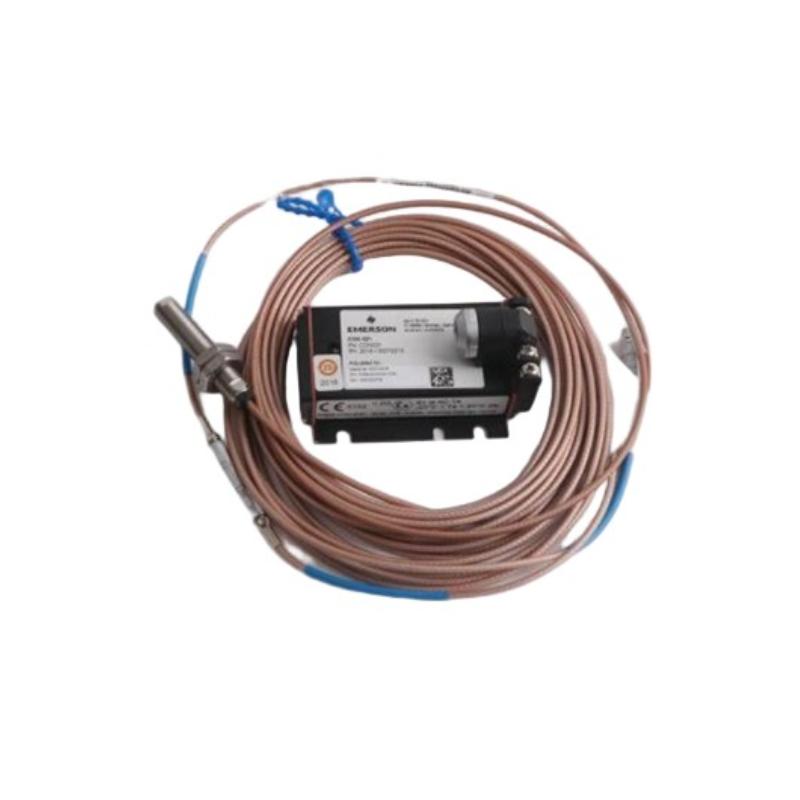

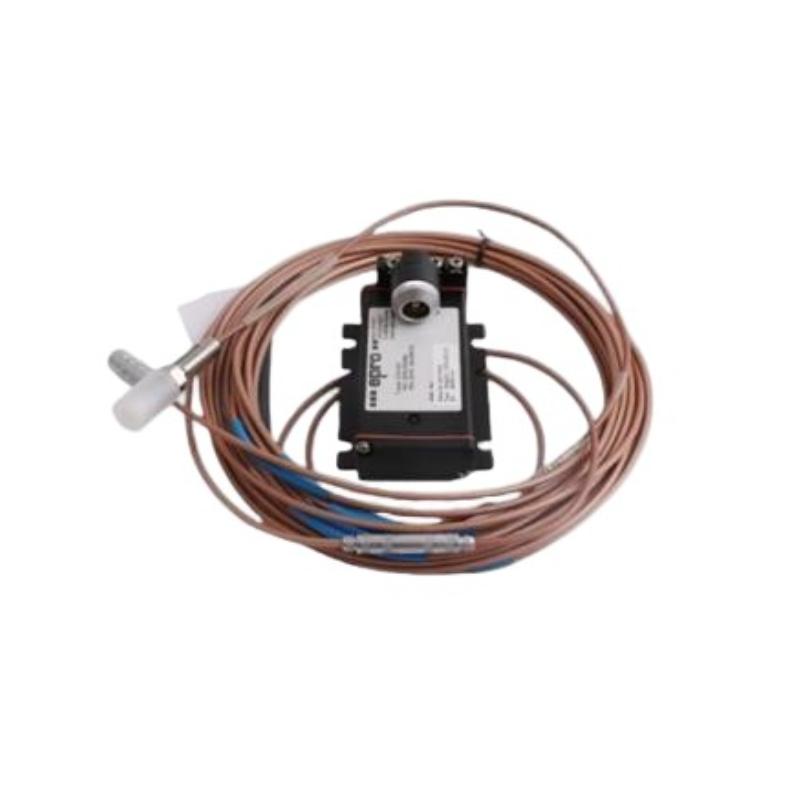

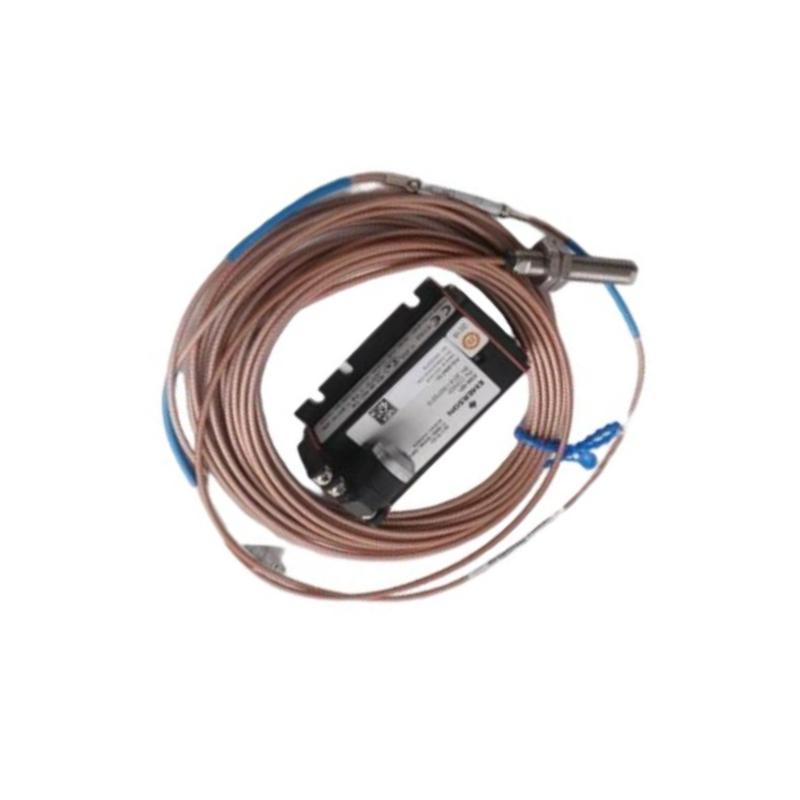

Epro PR6423/012-130 Eddy Current Displacement Sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/012-130 |
| Product Type | Eddy Current Displacement Sensor |
| Manufacturer | EPRO / Emerson |
| Series | PR6423 Series |
| Main Function | Non-contact measurement of shaft displacement, vibration, position, eccentricity, and speed in rotating machinery |
| Sensor Type | Eddy Current Probe |
| Probe Diameter | 8 mm |
| Measurement Principle | Eddy current non-contact displacement measurement |
| Linear Measurement Range | ±1 mm |
| Dynamic Measurement Range | 0 to 500 μm |
| Sensitivity | 8 V/mm |
| Initial Air Gap | Approximately 1.5 mm |
| Target Material | Ferromagnetic steel (42CrMo4 standard) |
| Shaft Diameter Requirement | ≥25 mm |
| Frequency Response | 0 to 20 kHz |
| Operating Temperature | -35°C to +180°C |
| Short-Term Temperature | Up to 200°C |
| Cable Type | PTFE insulated cable |
| Cable Length | 10 m |
| Thread Type | M10 × 1.0 |
| Protection Rating | IP66 |
| Converter Compatibility | CON011 / CON021 / CON041 |
| Output Signal | Requires converter for standard output |
| Material | Stainless steel sensor housing, PTFE cable |
| Dimensions | Probe diameter 8 mm, length approximately 45 mm |
| Weight | Approximately 100 g (sensor with cable) |
| Application Areas | Steam turbines, gas turbines, compressors, pumps, fans, gearboxes, and rotating machinery monitoring systems |
FAQ
Q1: What is the main function of the PR6423/012-130?
A1: The PR6423/012-130 is an eddy current displacement sensor used for non-contact measurement of shaft vibration, position, eccentricity, and displacement in rotating equipment.
Q2: What type of sensor is the PR6423/012-130?
A2: It is an 8 mm eddy current probe designed for critical machinery monitoring applications.
Q3: What is the measuring range of the PR6423/012-130?
A3: It provides a linear displacement range of ±1 mm and dynamic vibration measurement up to 500 μm.
Q4: What converter is required for the PR6423/012-130?
A4: The sensor is designed to work with EPRO converters such as CON011, CON021, or CON041.
Q5: What is the operating temperature range of the PR6423/012-130?
A5: The sensor operates from -35°C to +180°C, with short-term exposure up to 200°C.
Q6: What cable length does the PR6423/012-130 have?
A6: This model is configured with a 10 m cable length.
Q7: Where is the PR6423/012-130 commonly used?
A7: It is widely used in turbines, compressors, pumps, fans, and other rotating machinery for shaft condition monitoring.
Q8: What should be checked if the sensor signal is unstable?
A8: Check the probe installation gap, cable connection, converter power supply, grounding, target shaft material, and signal wiring condition.
Epro PR6423/012-130 Eddy Current Displacement Sensor is in stock. Please contact us for a quick quote and competitive pricing.
