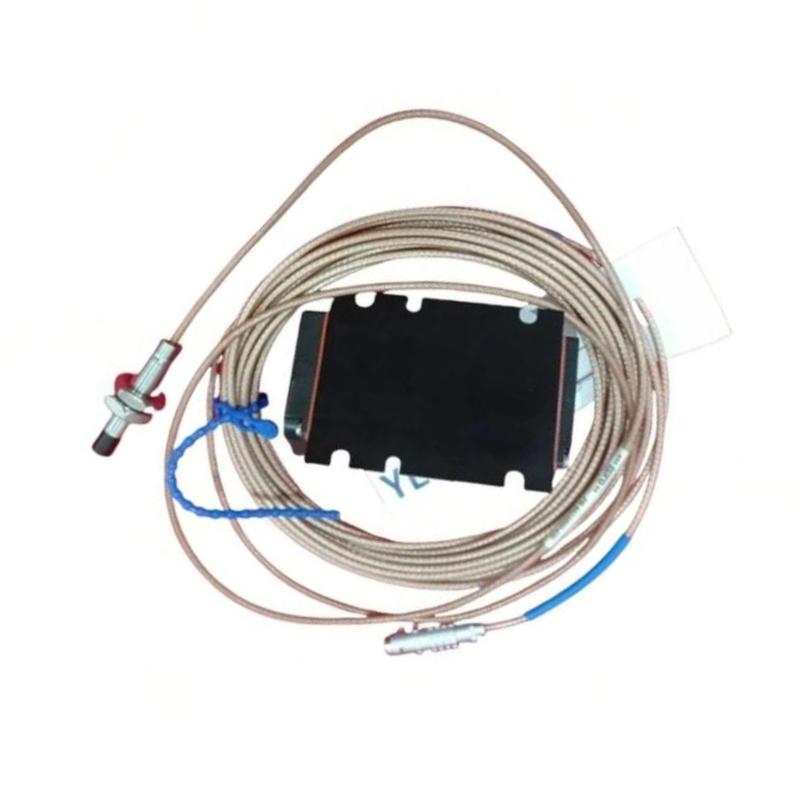

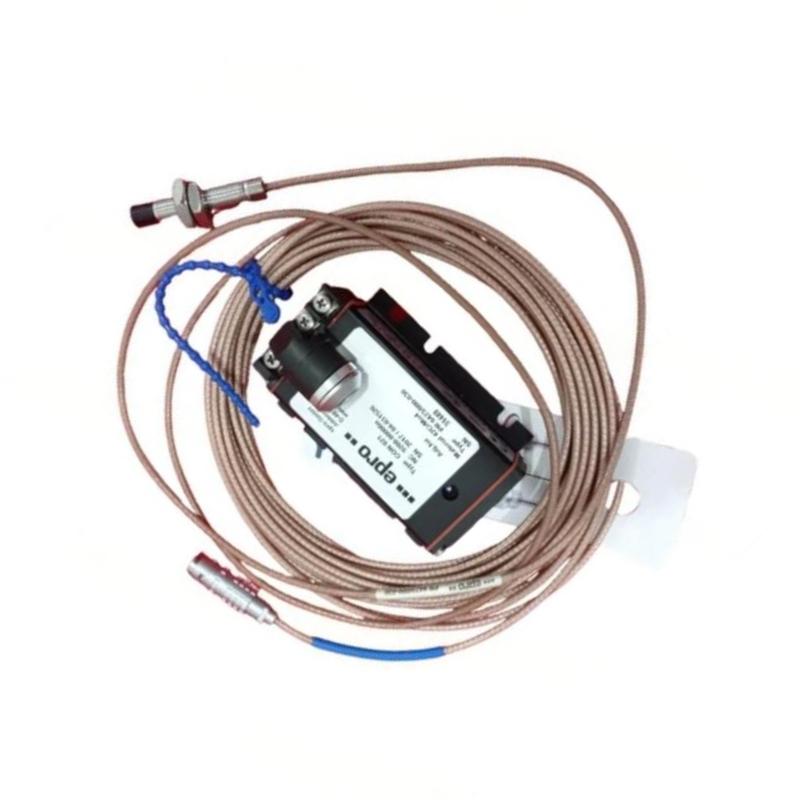

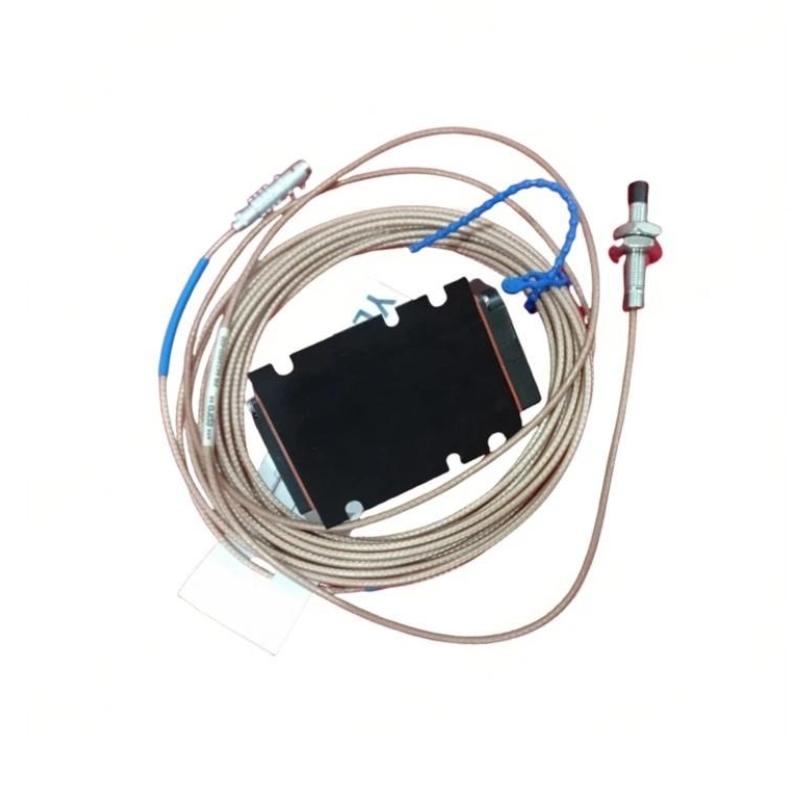

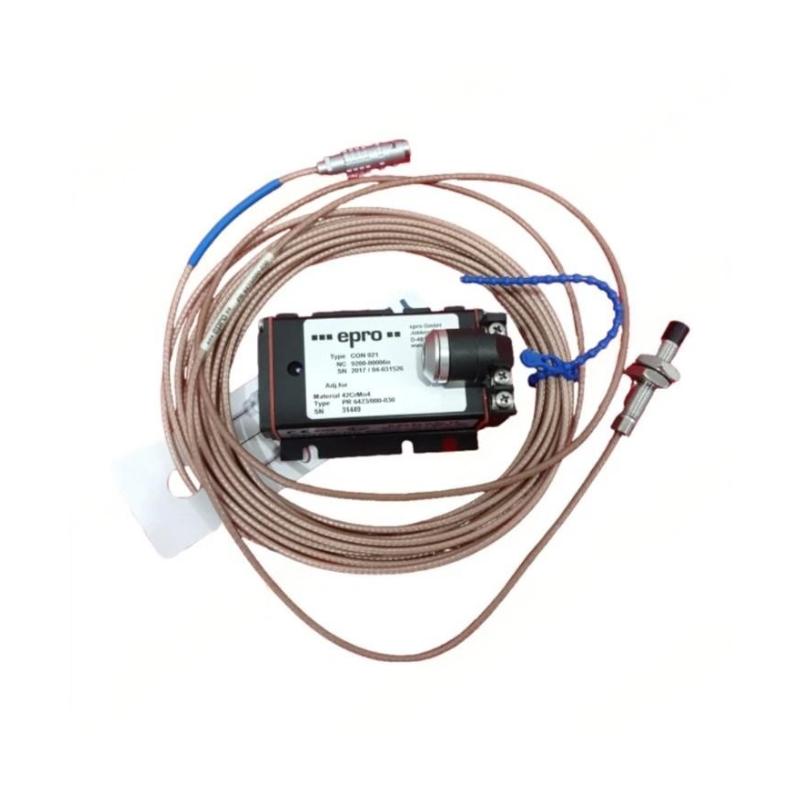

Epro PR6423/017-030-CN+CON021 Industrial Equipment
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | PR6423/017-030-CN + CON021 |
| Product Type | Industrial Equipment |
| Manufacturer | EPRO / Emerson |
| Product Series | PR6423 Eddy Current Sensor System |
| System Type | Non-contact Eddy Current Displacement Measurement System |
| Sensor Model | PR6423/017-030-CN |
| Signal Converter Model | CON021 |
| Measurement Principle | Eddy Current technology |
| Main Function | Shaft displacement, vibration, position, eccentricity and speed monitoring |
| Probe Diameter | 8 mm |
| Measurement Range | 2 mm |
| Initial Air Gap | 0.5 mm |
| Sensitivity | 8 V/mm |
| Linearity Error | ±0.025 mm |
| Target Material | Ferromagnetic steel |
| Minimum Shaft Diameter | 25 mm |
| Cable Length | Approx. 17 m |
| Cable Material | PTFE insulated cable |
| Sensor Tip Material | PEEK |
| Housing Material | Stainless steel |
| Sensor Operating Temperature | -35°C to +180°C |
| Converter Operating Temperature | -30°C to +100°C |
| Protection Class | Sensor: IP66 / Converter: IP20 |
| Frequency Response | 0 to 20 kHz |
| Power Supply | -23 to -32 VDC |
| Output Signal | Voltage output for monitoring systems |
| Connection Type | Connector and terminal connection |
| Installation Type | Threaded mounting |
| Application | Steam turbines, gas turbines, compressors, pumps, fans and rotating machinery monitoring |
| Dimensions | Approx. 8 mm diameter × 50 mm length |
| Weight | Approx. 0.2 kg |
FAQ
Q: What is the PR6423/017-030-CN + CON021 system used for?
A: The system is designed for non-contact measurement of shaft displacement, vibration, position and eccentricity in critical rotating machinery applications.
Q: What are the main components of this system?
A: The system consists of the PR6423/017-030-CN eddy current sensor and the CON021 signal converter, providing a complete displacement monitoring solution.
Q: How does the PR6423/017-030-CN sensor work?
A: The sensor uses eddy current technology to measure the distance between the probe tip and the conductive target surface without physical contact.
Q: What is the function of the CON021 converter?
A: The CON021 provides signal processing and conversion functions, allowing the sensor signal to be integrated into machinery monitoring systems.
Q: What equipment can use the PR6423/017-030-CN + CON021 system?
A: It is commonly used in steam turbines, gas turbines, compressors, pumps, fans and other rotating equipment requiring continuous condition monitoring.
Q: Does this sensor require direct contact with the shaft?
A: No. The probe operates through non-contact measurement, reducing mechanical wear and improving long-term operating stability.
Q: What installation factors affect measurement accuracy?
A: Proper probe gap adjustment, correct mounting position, suitable target material and reliable electrical connections are important for accurate operation.
Q: How does this system support predictive maintenance?
A: Continuous monitoring of shaft displacement and vibration helps detect abnormal conditions early and supports preventive maintenance planning.
Epro PR6423/017-030-CN+CON021 Industrial Equipment is in stock. Please contact us for a quick quote and competitive pricing.
