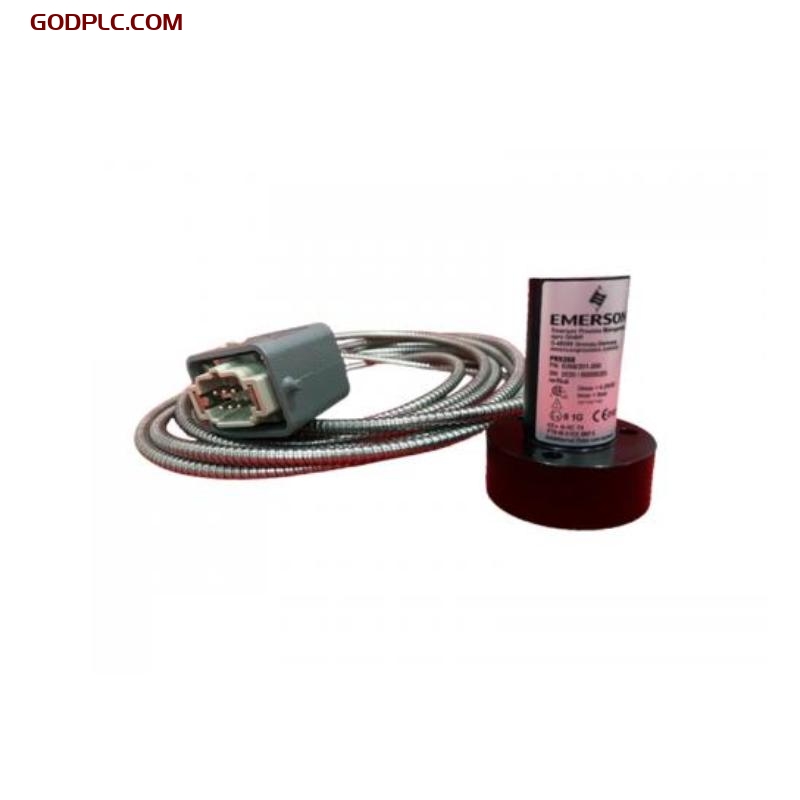

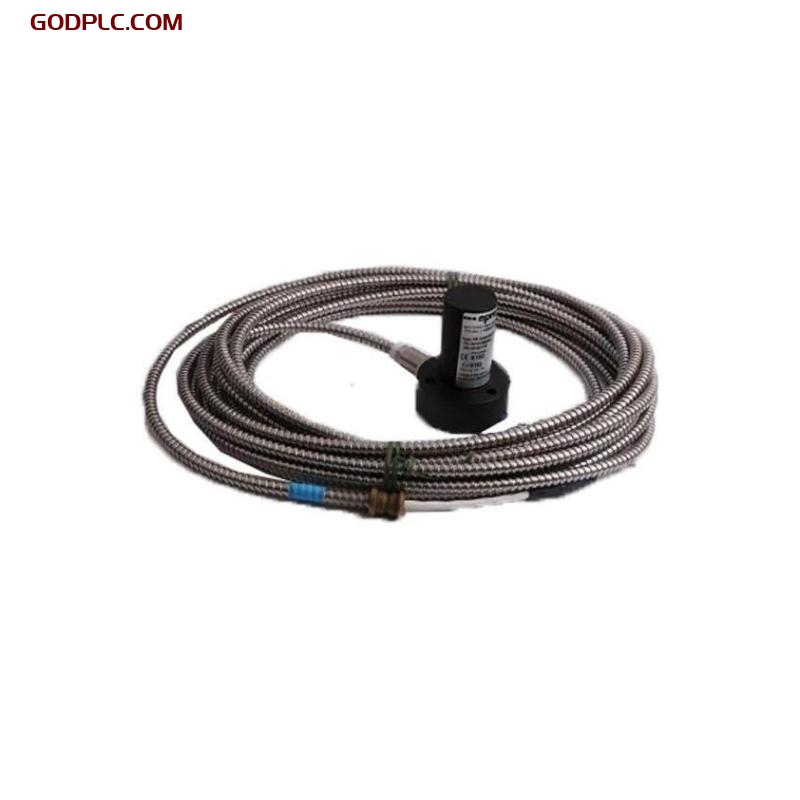

Epro PR9268/617-100N Electrodynamic Velocity Sensor
The Epro PR9268/617-100N is an electrodynamic velocity sensor designed for precise vibration measurement in critical turbomachinery applications. It is particularly suitable for monitoring absolute vibrations in equipment such as steam, gas, and hydro turbines, compressors, pumps, and fans. This sensor is engineered to deliver reliable performance in demanding industrial environments, ensuring optimal machinery operation and maintenance.
Product Overview
The PR9268/617-100N sensor operates on the electrodynamic principle, utilizing a seismic mass and a measuring coil supported by spring elements. As the sensor housing vibrates, the measuring element moves within a circular magnetic field, generating a voltage signal proportional to the vibration velocity. This design ensures accurate measurement of mechanical vibrations across a broad frequency range, making it an essential component in industrial vibration monitoring systems.
Key Features
-
High Sensitivity
- Offers a sensitivity of 28.5 mV/mm/s at 80 Hz and 20°C, enabling precise detection of vibration levels.
-
Wide Frequency Range
- Capable of measuring vibrations within a frequency range of 4 to 1,000 Hz, accommodating various industrial applications.
-
Robust Construction
- Manufactured with stainless steel housing, providing durability and resistance to harsh environmental conditions.
-
Self-Powered Operation
- Functions without an external power source, simplifying installation and reducing system complexity.
-
Versatile Mounting Options
- Designed for both vertical and horizontal installations, offering flexibility to suit different machinery configurations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model Number | PR9268/617-100N |
| Product Type | Electrodynamic Velocity Sensor |
| Sensitivity | 28.5 mV/mm/s at 80 Hz and 20°C |
| Frequency Range (±3 dB) | 4 to 1,000 Hz |
| Measurement Range | ±1,500 µm (peak-to-peak) |
| Natural Frequency | 4.5 Hz ± 0.75 Hz at 20°C |
| Transverse Sensitivity | <0.1 at 80 Hz |
| Amplitude Linearity | <2% |
| Maximum Continuous Acceleration | 10g (98.1 m/s²) |
| Maximum Intermittent Acceleration | 20g (196.2 m/s²) |
| Operating Temperature Range | -20 to +100°C (-4 to 212°F) |
| Humidity | 0 to 100%, non-condensing |
| Protection Class | IP65 |
| Housing Material | Stainless Steel |
| Cable Specifications | PTFE, 3x 0.5mm² with stainless steel armor |
| Electrical Connector | Harting plug made of die-cast aluminum |
| Dimensions | 160 mm x 160 mm x 120 mm |
| Weight | 0.8 kg |
Note: The dimensions and weight are based on standard configurations; variations may occur depending on specific model options.
Applications
The PR9268/617-100N sensor is ideal for monitoring absolute vibrations in various industrial settings, including:
- Turbomachinery
- Steam, gas, and hydro turbines
- Compressors
- Centrifugal and reciprocating compressors
- Pumps
- Centrifugal, reciprocating, and diaphragm pumps
- Fans and Blowers
- Industrial ventilation and cooling systems
- Gearboxes
- Speed reducers and increasers
By providing accurate vibration measurements, this sensor aids in early detection of mechanical issues, facilitating proactive maintenance and minimizing downtime.
Related Models
For applications requiring different specifications or features, Epro offers a range of related models within the PR9268 series:
| Model | Description |
|---|---|
| PR9268/201-100 | Electrodynamic velocity sensor with standard sensitivity and frequency range. |
| PR9268/303-000 | High-temperature electrodynamic velocity sensor suitable for extreme environments. |
| PR9268/201-000 | Standard electrodynamic velocity sensor for general-purpose vibration monitoring. |
| PR9268/60x-000 | Vertical orientation sensor without sinking current, ideal for specific mounting configurations. |
| PR9268/70x-000 | Vertical orientation sensor with sinking current, providing enhanced measurement stability. |
| PR9268/20x-000 | Horizontal orientation sensor designed for applications with specific directional requirements. |
| PR9268/30x-000 | Omni-directional sensor suitable for versatile mounting positions and orientations. |
| PR9268/617-000 | Electrodynamic velocity sensor with customized cable lengths and connector options. |
| PR9268/617-200 | Sensor variant with enhanced sensitivity for detecting low-level vibrations. |
| PR9268/617-300 | High-frequency electrodynamic velocity sensor for specialized industrial applications. |
Epro PR9268/617-100N Electrodynamic Velocity Sensor Original stock is in stock. Please contact us for a quick quote and competitive pricing.
