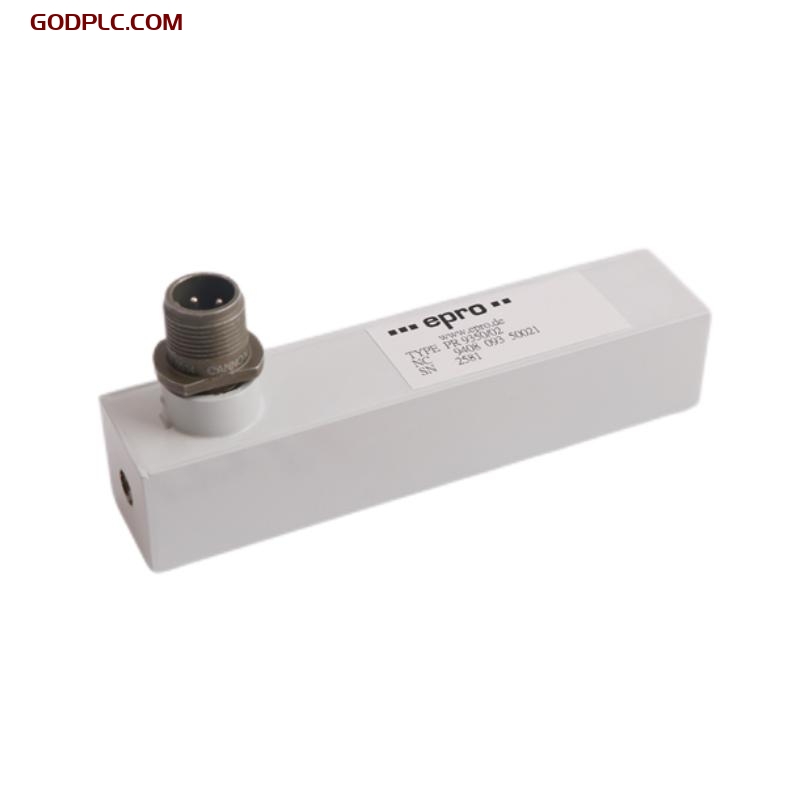

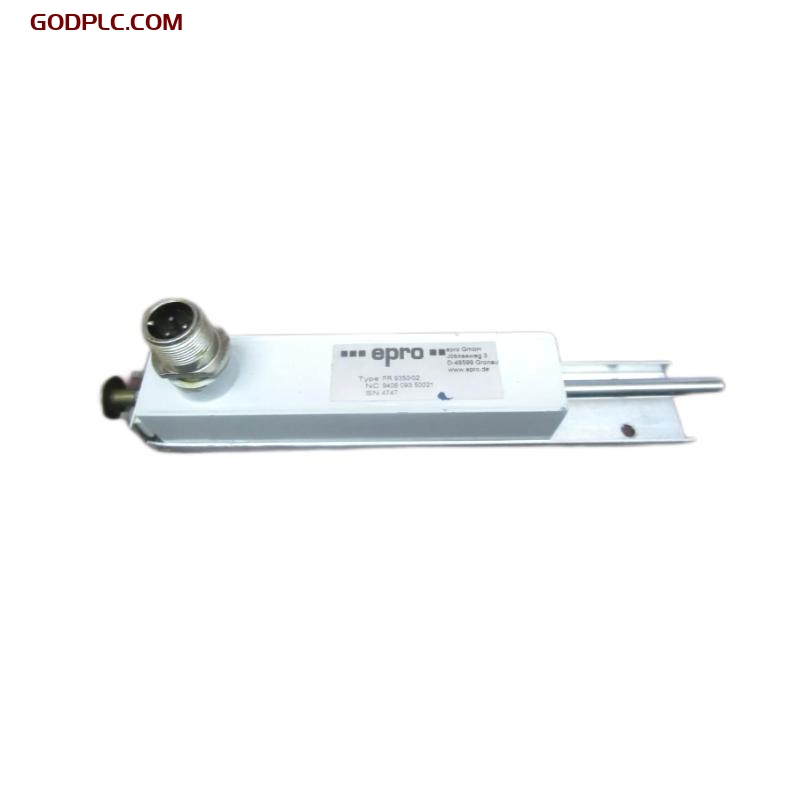

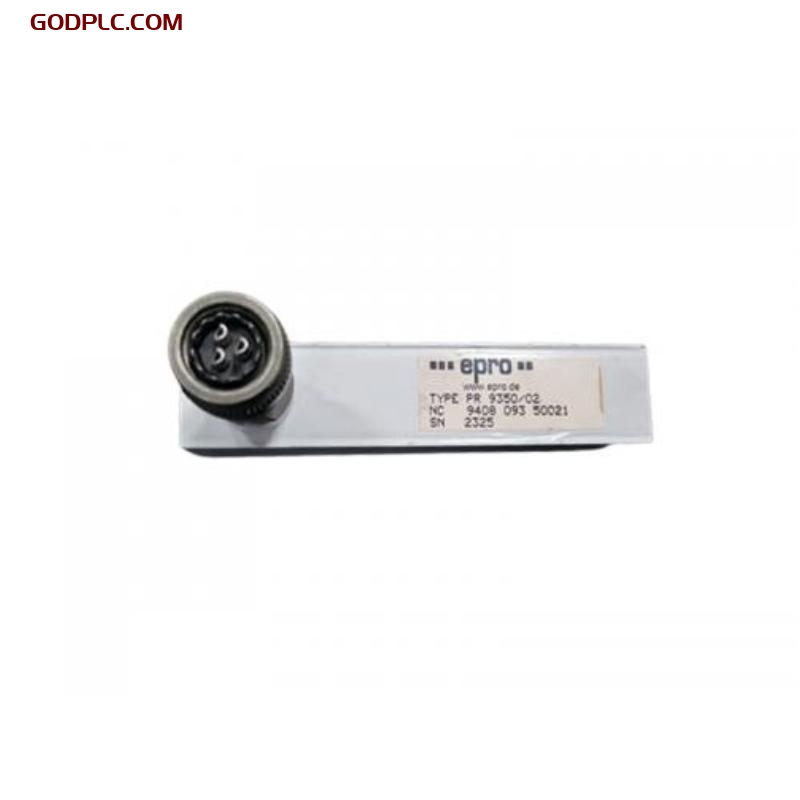

Epro PR9350/02 Inductive Sensor
The Epro PR9350/02 is a high-precision inductive sensor, specifically designed for accurate measurement of radial and axial shaft displacements, positions, and eccentricities in critical turbomachinery applications. Its robust construction and advanced sensing capabilities make it suitable for use in harsh industrial environments, ensuring reliable performance in monitoring and control systems.
Product Overview
The PR9350/02 operates on the principle of inductive transduction, utilizing a differential coil system comprising two windings and a solenoid plunger with a ferromagnetic core that moves within the coil. When the plunger is precisely centered, the impedance of both windings is identical. Any displacement causes a change in impedance, which is measured to determine the position accurately. This design allows for dynamic measurements up to 1,250 Hz, making it ideal for monitoring rapid movements in machinery.
Key Features
-
High Accuracy
- Offers an accuracy of ±0.05% of full scale, ensuring precise displacement measurements.
-
Excellent Repeatability
- Provides a repeatability of ±0.025% of full scale, ensuring consistent measurement results.
-
Wide Measurement Range
- Capable of measuring displacements up to ±25 mm, accommodating various industrial applications.
-
Robust Construction
- Designed to withstand harsh environmental conditions, with an operating temperature range of -20 to +100°C (-4 to 212°F) and protection class IP67.
-
Versatile Output Options
- Offers both DC voltage and 4 to 20 mA output signals, providing flexibility for integration into different monitoring systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model Number | PR9350/02 |
| Product Type | Inductive Sensor |
| Measurement Range | ±25 mm |
| Sensitivity | 270 mV/V |
| Linearity Error | 3.5% |
| Accuracy | ±0.05% of full scale |
| Repeatability | ±0.025% of full scale |
| Output Signal | DC voltage or 4 to 20 mA |
| Supply Voltage | 5 Vrms |
| Carrier Frequency | 3 to 5 kHz |
| Capacitance | 250 pF (each winding) |
| Operating Temperature Range | -20 to 100°C (-4 to 212°F) |
| Protection Class | IP67 |
| Housing Material | Stainless Steel |
| Dimensions | 127 mm x 27.25 mm x 27.25 mm |
| Weight | 0.255 kg |
Note: The dimensions and weight are based on standard configurations; variations may occur depending on specific model options.
Applications
The PR9350/02 sensor is ideal for monitoring absolute vibrations in various industrial settings, including:
- Turbomachinery
- Steam, gas, and hydro turbines
- Compressors
- Centrifugal and reciprocating compressors
- Pumps
- Centrifugal, reciprocating, and diaphragm pumps
- Fans and Blowers
- Industrial ventilation and cooling systems
- Gearboxes
- Speed reducers and increasers
By providing accurate displacement measurements, this sensor aids in early detection of mechanical issues, facilitating proactive maintenance and minimizing downtime.
Related Models
For applications requiring different specifications or features, Epro offers a range of related models within the PR9350 series:
| Model | Measurement Range | Sensitivity | Linearity Error |
|---|---|---|---|
| PR9350/01 | ±12 mm | 110 mV/V | 3.5% |
| PR9350/04 | ±50 mm | 270 mV/V | 2.5% |
| PR9350/06 | ±75 mm | 310 mV/V | 2.0% |
| PR9350/08 | ±100 mm | 310 mV/V | 2.0% |
| PR9350/12 | ±150 mm | 340 mV/V | 1.5% |
| PR9350/05-S2 | ±200 mm | 350 mV/V | 1.0% |
| PR9350/10 | ±250 mm | 360 mV/V | 0.8% |
| PR9350/15 | ±300 mm | 370 mV/V | 0.5% |
| PR9350/20 | ±350 mm | 380 mV/V | 0.3% |
| PR9350/25 | ±400 mm | 390 mV/V | 0.2% |
Epro PR9350/02 Inductive Sensor Hassle-Free After-Sales is in stock. Please contact us for a quick quote and competitive pricing.
