Technical Specifications

FAQ

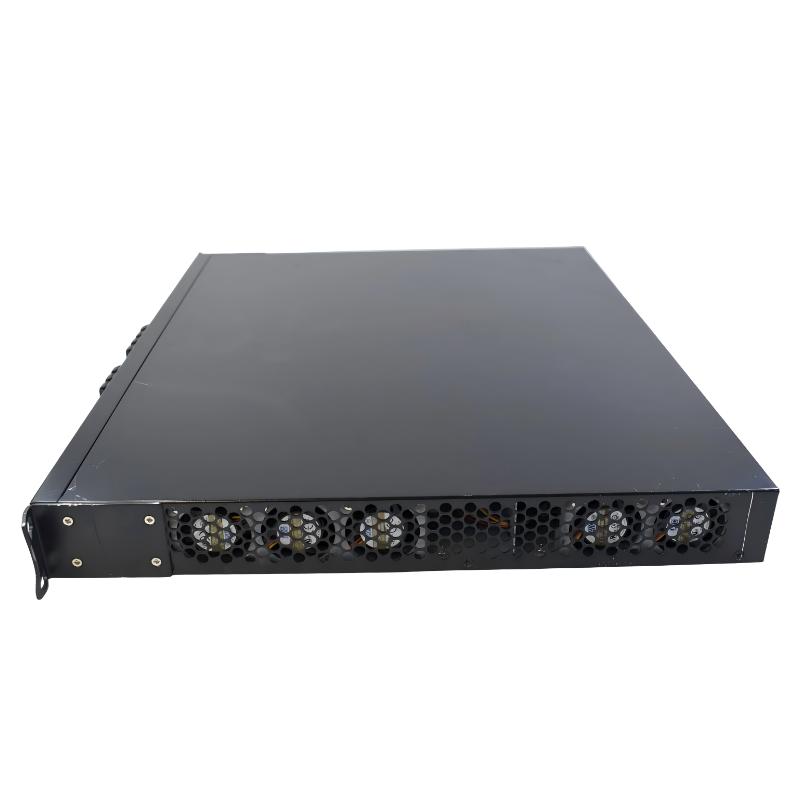

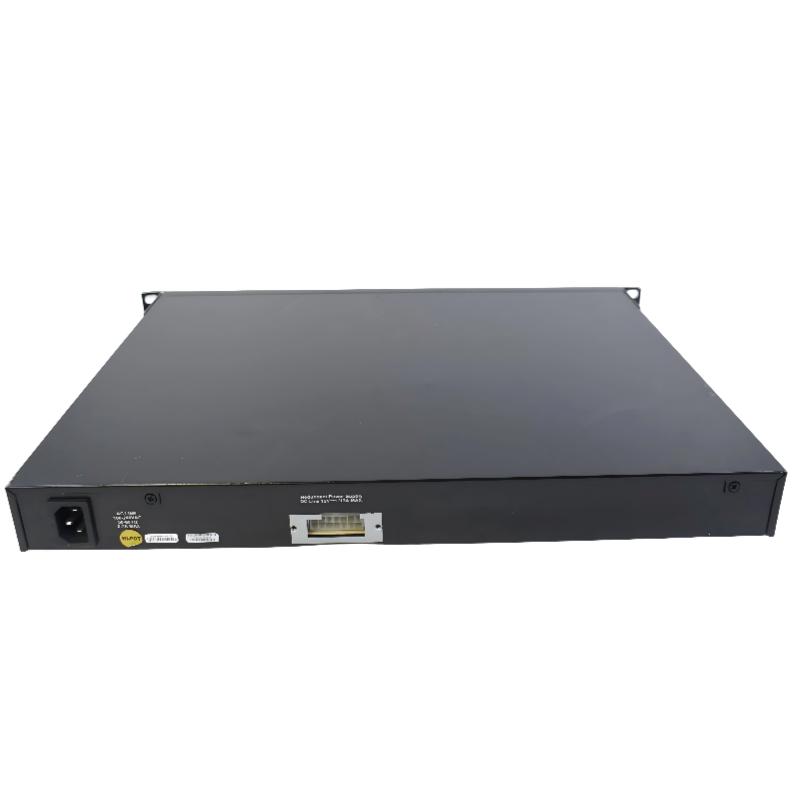

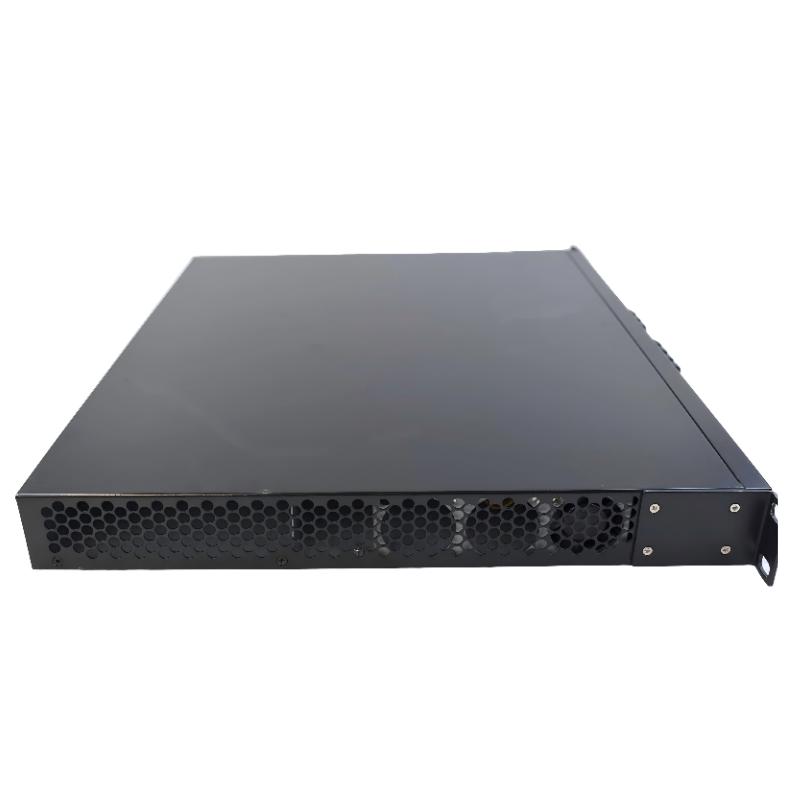

1. What is the main function of the A4H124-24FX?

The A4H124-24FX is a managed Ethernet switch designed for high-density industrial and control-network applications. It provides multiple 100Base-FX fiber connections for network devices and supports additional copper and Gigabit uplink connections for communication with higher-level network equipment. In a Foxboro I/A Series environment, it can be used to connect control-system workstations, servers, operator stations, engineering stations, and other Ethernet devices. Because it is a managed switch, network parameters and communication behavior can be configured and monitored rather than relying only on basic unmanaged switching. Features such as VLAN, RSTP, QoS, link aggregation, port mirroring, and SNMP management make it suitable for structured control-network architectures.

2. How many fiber ports does the A4H124-24FX provide?

The A4H124-24FX provides 24 × 100Base-FX fiber ports using MT-RJ connectors. These ports are intended for 100 Mbps fiber Ethernet communication and can be used to connect multiple distributed network devices over fiber. Fiber communication is particularly useful in industrial control environments where electrical isolation, longer communication distances, and improved resistance to electromagnetic interference are important. When troubleshooting a fiber connection, the fiber type, connector condition, transmit and receive paths, and link status should all be checked. The connected equipment must also support the appropriate 100Base-FX interface and optical characteristics.

3. What are the additional uplink interfaces on the A4H124-24FX used for?

In addition to its 24 fiber ports, the A4H124-24FX provides two fixed 10/100/1000Base-T RJ45 ports and two 1000Base-X SFP uplink interfaces. These ports can be used to connect the switch to higher-level network equipment, other switches, or network aggregation points. The Gigabit interfaces provide higher-bandwidth connections than the 100Base-FX access ports and can therefore be useful when connecting the switch to a backbone or another aggregation switch. The SFP interfaces also provide flexibility because compatible Gigabit optical modules can be selected according to the network design. Proper speed, duplex, VLAN, and uplink configuration should be confirmed before commissioning.

4. What should be checked if a 100Base-FX fiber port has no link?

If a 100Base-FX fiber port does not establish a link, first check that the MT-RJ connector is fully inserted and that the fiber cable is correctly connected at both ends. Inspect the fiber connectors for contamination, damage, or poor contact, as optical contamination can cause unstable or completely unavailable links. The transmit and receive paths should also be verified because incorrect fiber polarity can prevent communication. Next, check the remote device and confirm that its fiber interface is operating at the expected 100Base-FX configuration. If the physical connection appears normal, inspect the switch port status and configuration. For intermittent links, additional checks should include cable condition, optical signal quality, environmental interference, and the remote interface.

5. How is the A4H124-24FX managed and configured?

The A4H124-24FX supports management through a local console and network-based management functions. Administrators can configure and monitor the switch using supported management protocols and interfaces, including SNMP, RMON, Telnet, HTTP, SSH, and console access. Typical configuration tasks include assigning the switch IP address, configuring VLANs, setting port parameters, establishing RSTP behavior, configuring link aggregation, and monitoring network status. In a control-system environment, configuration should follow the existing network design rather than using arbitrary settings. IP addressing, VLAN configuration, switch identification, redundancy parameters, and port behavior should be documented before commissioning to prevent conflicts with other control-network devices.

6. Does the A4H124-24FX support VLAN and RSTP?

Yes. The A4H124-24FX supports VLAN functionality and spanning-tree technologies including RSTP. VLANs can be used to logically separate different types of network traffic and help organize a control network according to the system architecture. RSTP can be used to provide a controlled redundant network path and reduce the risk of a physical network loop causing widespread communication problems. When configuring RSTP in an industrial control network, the switch priority and topology should be planned carefully. Incorrect spanning-tree settings can result in unexpected path changes or communication interruptions, so the configuration should be tested against the actual network topology before being placed into service.

7. What can cause intermittent communication on the A4H124-24FX?

Intermittent communication can be caused by physical connections, fiber problems, incorrect port configuration, network loops, excessive traffic, VLAN errors, or problems with another connected device. For fiber ports, inspect the MT-RJ connectors and fiber cables first and verify that both transmit and receive paths are correct. For copper connections, check the Ethernet cable, connector condition, negotiated speed, and duplex configuration. Network-level checks should include VLAN membership, RSTP status, link aggregation settings, and traffic conditions. Port statistics and management information can help identify errors, packet loss, or repeated link changes. If the problem occurs only when a particular device is connected, that device and its network configuration should also be investigated.

8. What should be checked before replacing the A4H124-24FX?

Before replacing the A4H124-24FX, the actual source of the network fault should be identified. Check the power supply, switch status indicators, fiber and copper connections, network configuration, VLAN settings, RSTP topology, uplink interfaces, and connected devices. If possible, record the existing configuration before removing the switch, including IP settings, VLAN assignments, port configurations, management parameters, and redundancy settings. The replacement unit should be checked for compatible hardware and interface configuration, particularly when it is being installed in an existing Foxboro I/A Series control network. After installation, verify every network connection and restore the required configuration. Communication should then be tested between the connected control-system devices, followed by checks of redundancy, VLAN operation, uplinks, and management access.
