1. What is the primary function of the Foxboro FBM202 P0926EQ?

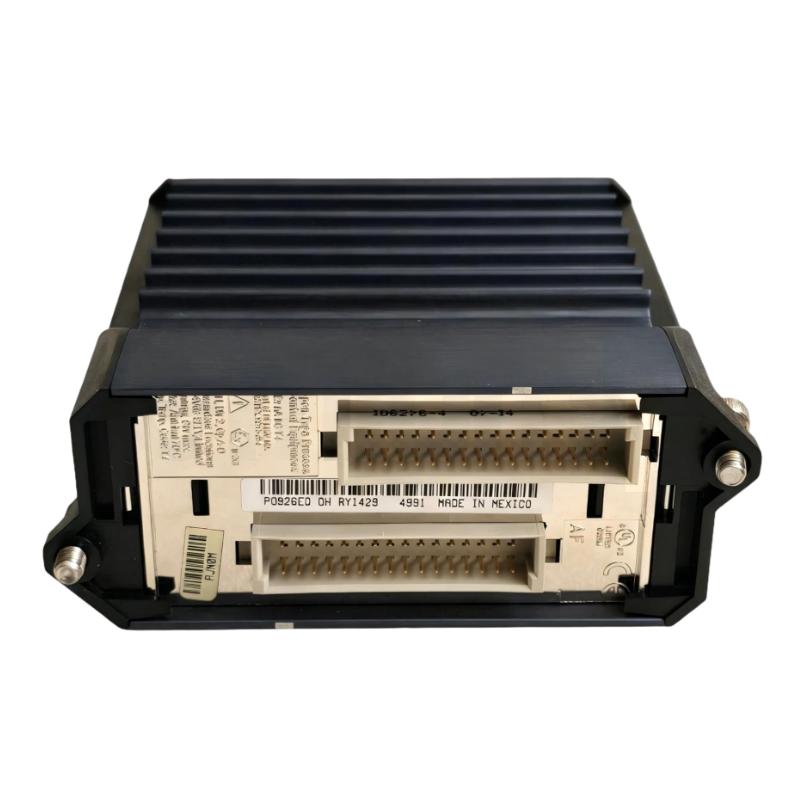

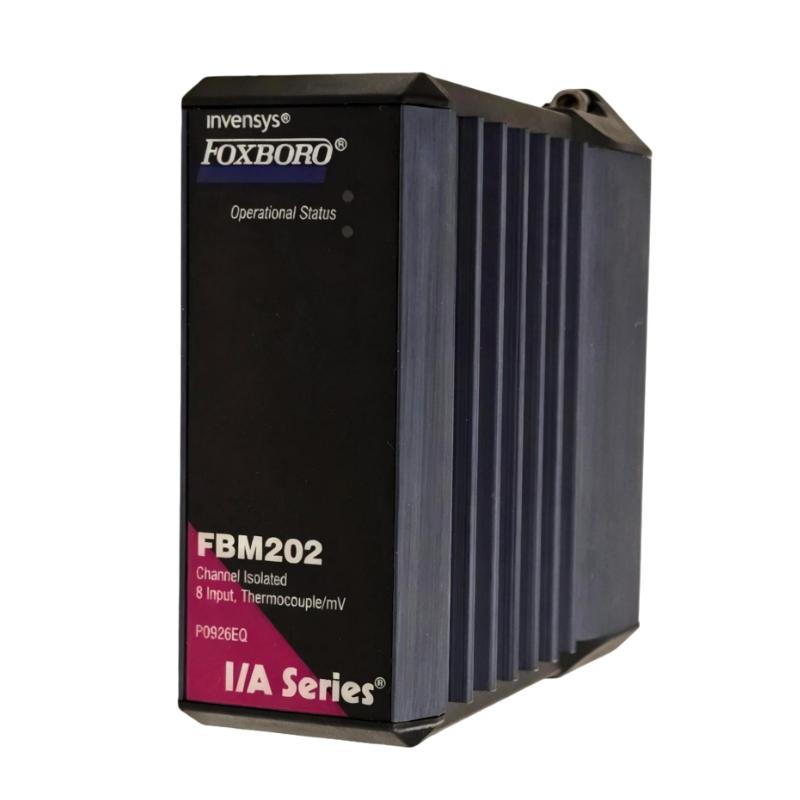

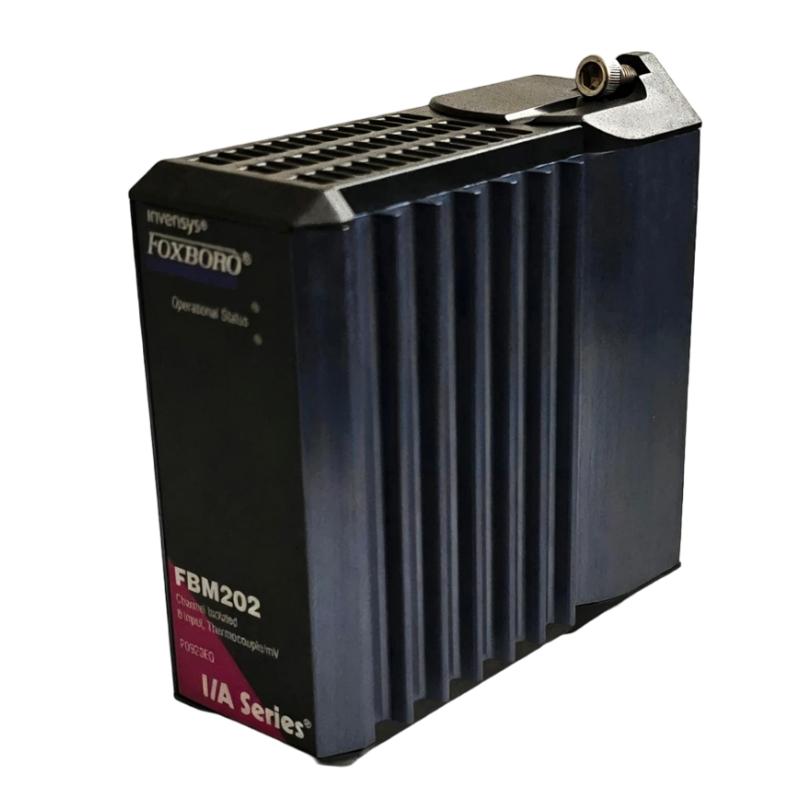

The Foxboro FBM202 P0926EQ is an 8-channel Thermocouple/mV Input Module designed for the Foxboro I/A Series 200 control architecture. It receives low-level thermocouple and millivolt signals from field devices, converts the analog signals into digital process data, and transfers the processed information through the module Fieldbus to the associated control system. It is commonly used for temperature monitoring, process measurement, alarming, trending, and temperature-related control applications.

2. How many thermocouple or mV input channels does the FBM202 provide?
The FBM202 provides eight isolated and independent thermocouple/mV input channels. Each channel can acquire a thermocouple signal or an appropriate millivolt-level signal. The independent channel design allows multiple temperature measurement points to be connected to one module while reducing the influence of electrical potential differences between field circuits.

3. Which thermocouple types are supported by the FBM202 P0926EQ?
The module supports common thermocouple types including B, E, J, K, N, R, S, and T, as well as compatible millivolt signals. The actual temperature measurement range depends on the selected thermocouple type and the configuration of the control system. Correct sensor type configuration is important because the DCS uses the selected thermocouple characteristics to convert the measured millivolt signal into an engineering-unit temperature value.

4. How does the FBM202 perform reference-junction or cold-junction compensation?
The FBM202 uses a dedicated isolated reference-junction temperature compensation channel. A 4-wire, 100 Ω platinum RTD conforming to IEC 751 Class B is used at the appropriate termination assembly to measure terminal temperature. This temperature information is used to compensate for the reference junction when processing thermocouple signals, helping maintain measurement accuracy when the temperature around the termination point changes.

5. What should be checked if the FBM202 temperature reading is inaccurate?
The complete measurement loop should be inspected rather than immediately assuming that the FBM202 is defective. Check the thermocouple type configured in the control system, sensor polarity, thermocouple extension or compensating cable, terminal connections, termination assembly, and reference-junction RTD. Electrical interference and loose or oxidized connections can also affect low-level mV signals. Comparing the expected sensor output with the value received by the DCS can help determine whether the problem originates from the sensor, wiring, termination hardware, or input module.

6. Does the FBM202 provide thermocouple burnout detection?
Yes. The FBM202 provides thermocouple burnout detection and drives the affected input toward the full upscale value when an open-circuit condition is detected. This function helps the control system distinguish a potential thermocouple or wiring failure from a normal process temperature signal. During troubleshooting, the burnout indication should be evaluated together with field wiring continuity, terminal connections, and the condition of the thermocouple itself.

7. How does channel isolation improve FBM202 signal performance?
The eight input channels are galvanically isolated from other channels and from ground. This isolation helps reduce the effects of ground-potential differences and unwanted electrical interaction between field circuits. The module also uses an independent Sigma-Delta A/D converter for each input channel, providing a dedicated conversion path for each measurement and supporting stable acquisition of low-level thermocouple and millivolt signals.

8. How should the FBM202 P0926EQ be integrated into an I/A Series system?
The FBM202 is installed on the appropriate FBM baseplate and used together with a compatible field termination assembly. Field thermocouples or mV sources are connected through the termination hardware, while the module communicates with the associated control architecture through the redundant 2 Mbps module Fieldbus. During commissioning, the technician should verify module addressing, Fieldbus communication, power supply redundancy, termination wiring, sensor type configuration, reference-junction compensation, and input scaling before placing the measurement channels into normal process operation.
