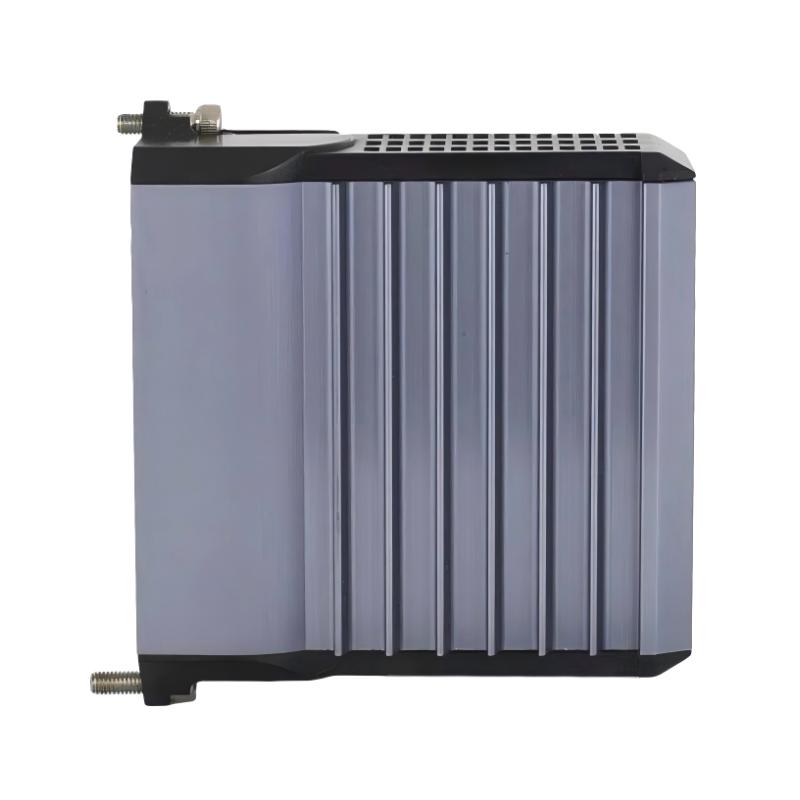

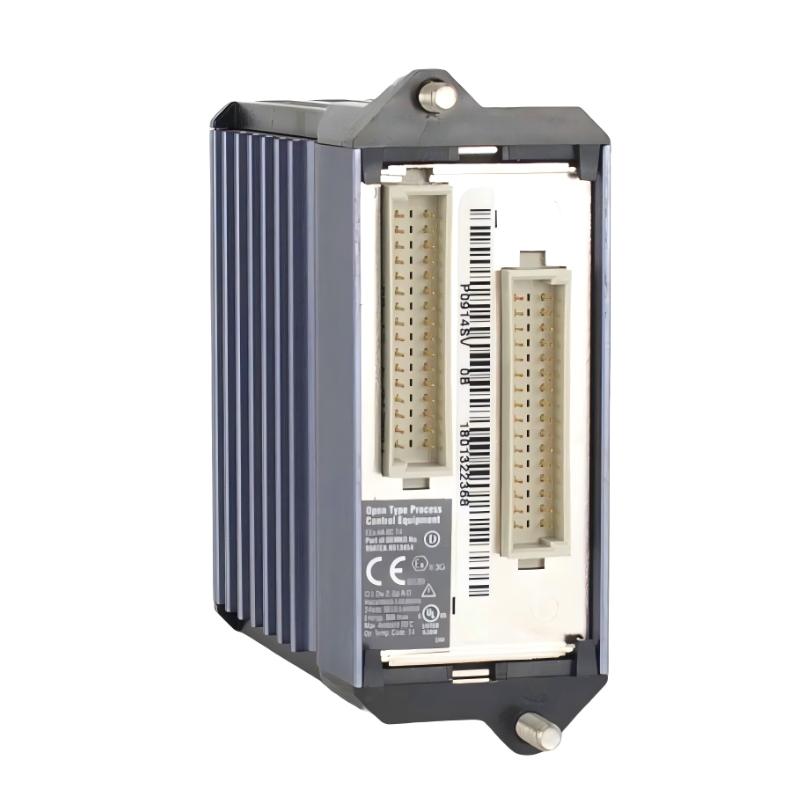

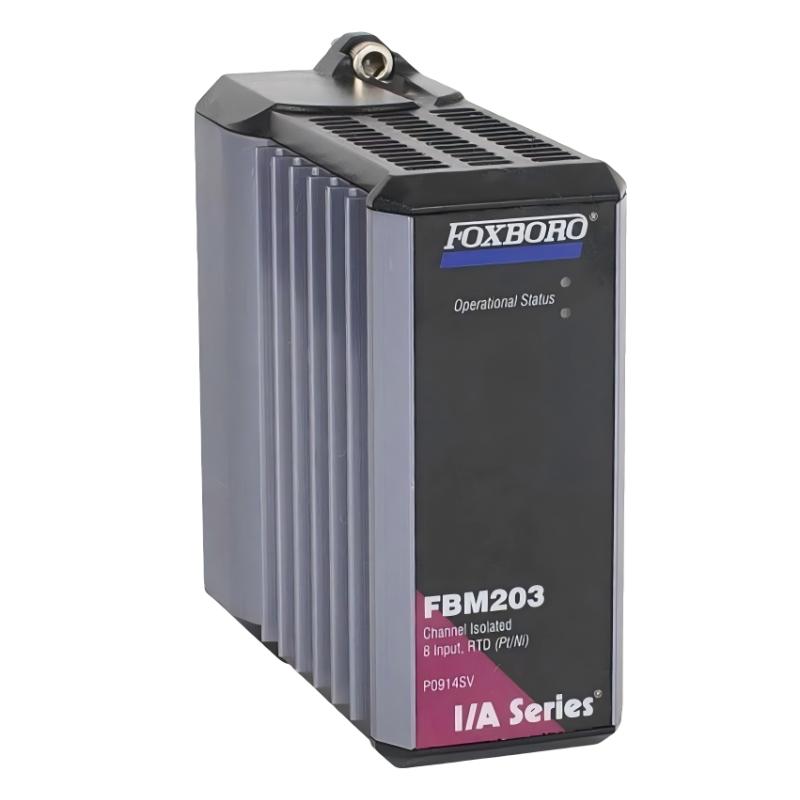

Foxboro FBM203 P0914SV 8-Channel Isolated Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FBM203 |
| Order Number | P0914SV |
| Brand | Foxboro |
| Product Series | I/A Series |
| Product Type | 8-Channel Isolated RTD Input Module |
| Input Type | Resistance Temperature Detector (RTD) |
| Number of Input Channels | 8 |
| Channel Isolation | Each input channel is galvanically isolated from other channels and ground |
| Input Wiring | 2-Wire or 3-Wire RTD |
| Input Resistance Range | 0 to 320 Ω |
| Sensor Current | 0.19 mA DC nominal |
| Typical Platinum RTD | 100 Ω nominal at 0°C |
| Typical Nickel RTD | 235 Ω nominal at 0°C |
| Supported Sensor Types | Platinum DIN, Platinum SAMA, Platinum IEC, Nickel SAMA |
| Lead Resistance | 50 Ω maximum per lead |
| Analog Accuracy | ±0.03% of span |
| Accuracy Temperature Coefficient | ±50 ppm/°C |
| A/D Conversion | Independent sigma-delta conversion for each channel |
| Common-Mode Rejection | >125 dB at 50/60 Hz |
| Normal-Mode Rejection | >95 dB at 50/60 Hz |
| Fieldbus Communication | Redundant 2 Mbps module Fieldbus |
| Supply Voltage | 24 VDC, +5% / -10%, redundant |
| Maximum Power Consumption | 3 W |
| Maximum Heat Dissipation | 3 W |
| Isolation Withstand | 600 VAC for one minute between channels and ground, or between channels |
| Operating Temperature | -20 to +70°C |
| Operating Humidity | 5–95% RH, non-condensing |
| Mounting | Foxboro 200 Series modular baseplate |
| Typical Application | Industrial temperature measurement, process monitoring and DCS control |
| Dimensions | 114 × 45 × 104 mm |
| Weight | 0.284 kg |
FAQ
Q1: What is the Foxboro FBM203 P0914SV?
A: The FBM203 P0914SV is an 8-channel isolated RTD input module in the Foxboro I/A Series. It is designed to acquire resistance-based temperature signals from compatible RTD sensors for industrial process monitoring and control.
Q2: How many RTD input channels does the FBM203 provide?
A: The FBM203 provides eight independent RTD input channels. Each channel is electrically isolated from the other input channels and from ground.
Q3: What RTD wiring configurations are supported?
A: The FBM203 supports 2-wire and 3-wire RTD sensor connections. The wiring configuration should be selected according to the connected sensor and required measurement accuracy.
Q4: What is the input resistance range of the FBM203?
A: The standard FBM203 supports an input range of 0 to 320 Ω per channel. This range is suitable for compatible platinum and nickel RTD sensors.
Q5: Which RTD sensors are compatible with the FBM203?
A: The FBM203 supports platinum and nickel RTDs, including Platinum DIN, Platinum SAMA, Platinum IEC and Nickel SAMA sensor types. A typical compatible sensor is a 100 Ω platinum RTD or a 235 Ω nickel RTD at 0°C.
Q6: How does the FBM203 provide channel isolation?
A: Each analog input channel uses galvanic isolation from the other channels and ground. This helps prevent electrical interaction between field sensor circuits and improves signal integrity in multi-point measurement applications.
Q7: How does the FBM203 communicate with the Foxboro control system?
A: The module communicates with the associated Foxboro control architecture through the redundant 2 Mbps module Fieldbus. The fieldbus provides the communication path between the FBM203 and the corresponding Fieldbus Communications Module or Control Processor.
Q8: What should be checked before installing an FBM203 P0914SV?
A: Verify the module model and order number, RTD type, 2-wire or 3-wire wiring configuration, input resistance range, baseplate compatibility, field termination arrangement and redundant power/fieldbus connections before commissioning the module.
