Foxboro FCP280 RH924UQ Process Controller
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Product Family | Foxboro DCS / EcoStruxure Foxboro |
| Model | FCP280 |
| Ordering Number | RH924UQ |
| Product Type | Field Control Processor 280 |
| Primary Function | Distributed process controller for regulatory, logic, timing, and sequential control |
| Application | Industrial process automation and DCS control |
| Processor Architecture | ARM-based System on Chip (SoC) |
| System Memory | 128 MB SDRAM |
| Flash Memory | 128 MB |
| Error Detection | ECC memory protection with single-bit correction and multiple-bit error detection |
| Control Execution | Up to 16,000 function blocks per second |
| Configurable Control Blocks | Up to 8,000 blocks, including up to 7,993 user-configurable blocks |
| Fieldbus I/O Capacity | Up to 128 FBMs, depending on FBM type and system configuration |
| 200 Series Fieldbus | HDLC, up to 2 Mbps |
| 100 Series Fieldbus | HDLC, up to 268 Kbps |
| Control Network | 100 Mbps Ethernet |
| Network Connection | Copper or fiber-optic Ethernet through the appropriate network adapter |

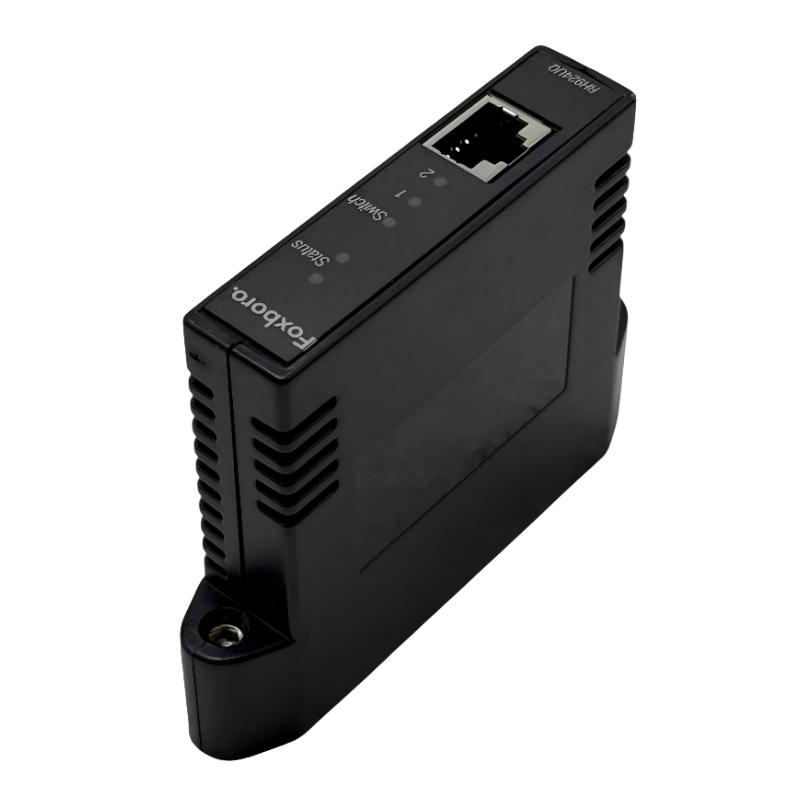

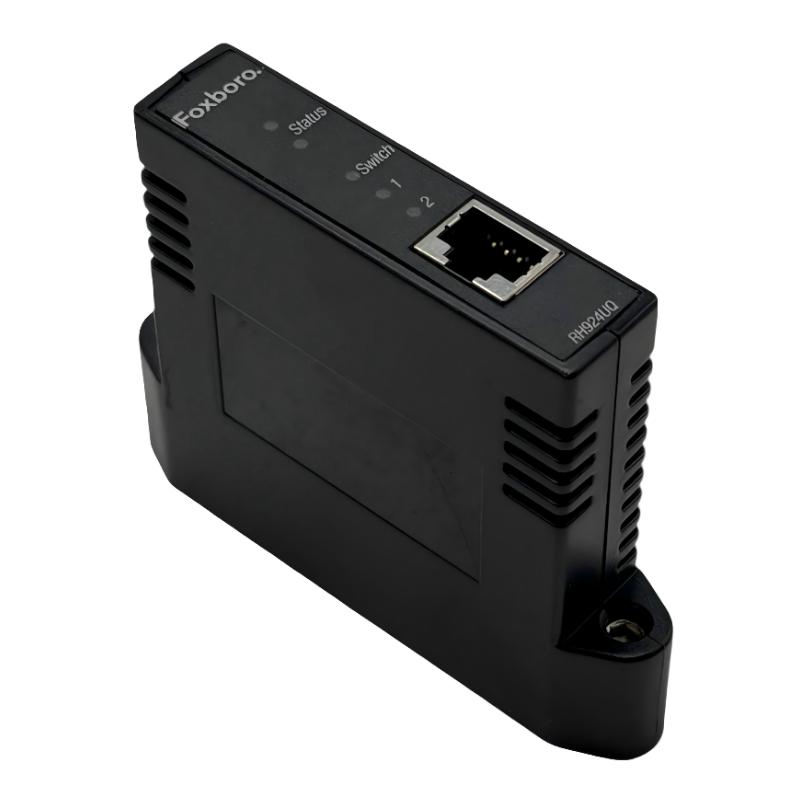

| Copper Adapter | RH924UQ |
| Fault-Tolerant Operation | Supports dual FCP280 configuration for redundant control |
| Self-Hosting | Supports self-hosting operation using a valid control database stored in Flash memory |
| Display | Front-panel LCD for module identification, role, status and operating information |
| Diagnostics | Power-up diagnostics, runtime diagnostics, watchdog monitoring and fault status indication |
| Programming / Control Functions | Regulatory control, logic control, timing, sequential control, data acquisition and alarm processing |
| Power Supply | 24 VDC |
| Power Consumption | Approximately 11 W maximum for a single module |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5–95%, non-condensing |
| Environmental Rating | Class G3 harsh environment |
| Mounting | Device-specific two-position FCP280 baseplate, horizontal or vertical mounting |
| Dimensions | 130 × 25 × 100 mm |
| Weight | 0.4 kg |
FAQ
1. What is the main function of the Foxboro FCP280?
The FCP280 is a Field Control Processor designed for distributed process control. It executes regulatory, logic, timing and sequential control functions while also handling data acquisition and alarm processing.
2. What is the relationship between FCP280 and RH924UQ?
FCP280 is the product model, while RH924UQ is the ordering number specified for this configuration. RH924UQ is associated with the copper network adapter used for FCP280 Ethernet control-network connectivity.
3. How many Fieldbus Modules can an FCP280 support?
Depending on the fieldbus configuration and FBM type, an FCP280 can support up to 128 Fieldbus Modules. The exact capacity depends on the combination of 100 Series and 200 Series FBMs used in the system.
4. What communication networks are supported by the FCP280?
The FCP280 connects to the Foxboro control network through 100 Mbps Ethernet. It also communicates with connected FBMs through the fieldbus interfaces, supporting HDLC communication at different rates according to the FBM series.
5. Does the FCP280 support fault-tolerant operation?
Yes. A fault-tolerant FCP280 configuration can use two processor modules operating as a redundant pair. The two processors exchange and compare control information so that the healthy processor can continue control operation if a processor fault is detected.
6. Can the FCP280 operate without a host workstation?
Yes. The FCP280 supports self-hosting operation. When a valid control database is available in Flash memory, the processor can boot and execute the configured control strategy without requiring the host workstation to be continuously available.
7. What diagnostic functions are available on the FCP280?
The FCP280 provides power-up and runtime diagnostics, watchdog monitoring, communication status monitoring and fault indication. Its front-panel LCD and LED indicators can also provide useful information about the processor role, network status and fieldbus communication.
8. What should be checked if an FCP280 stops communicating with the DCS network?
Check the 24 VDC power supply, network adapter connection, Ethernet cable, control-network switch, communication indicators and FCP280 diagnostic status. For systems using redundant processors, also verify the Primary/Shadow status and confirm that both processor modules are correctly connected to the redundant baseplate.
Foxboro FCP280 RH924UQ Process Controller is in stock. Please contact us for a quick quote and competitive pricing.
