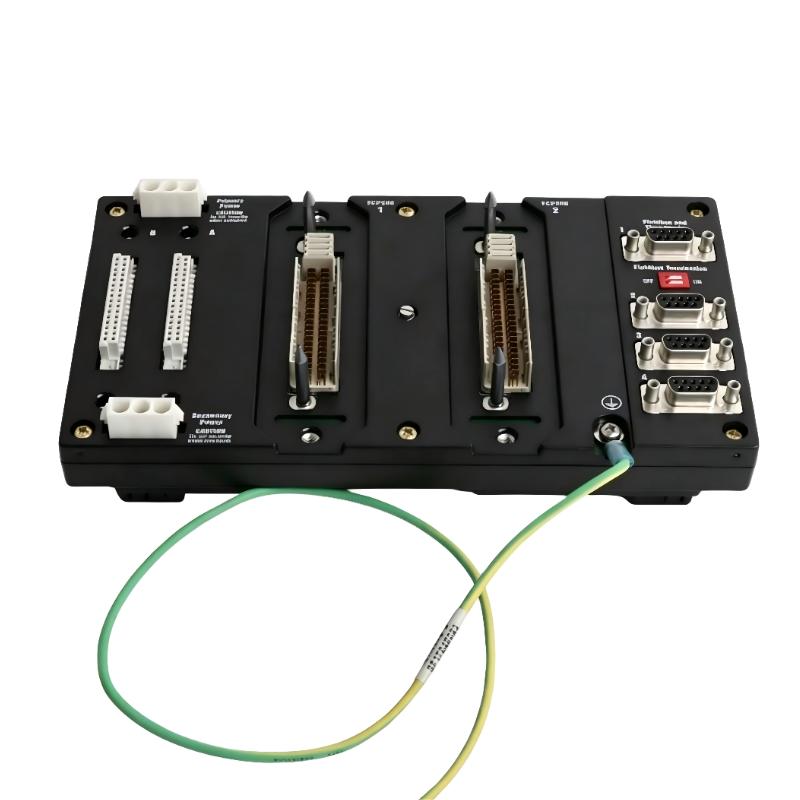

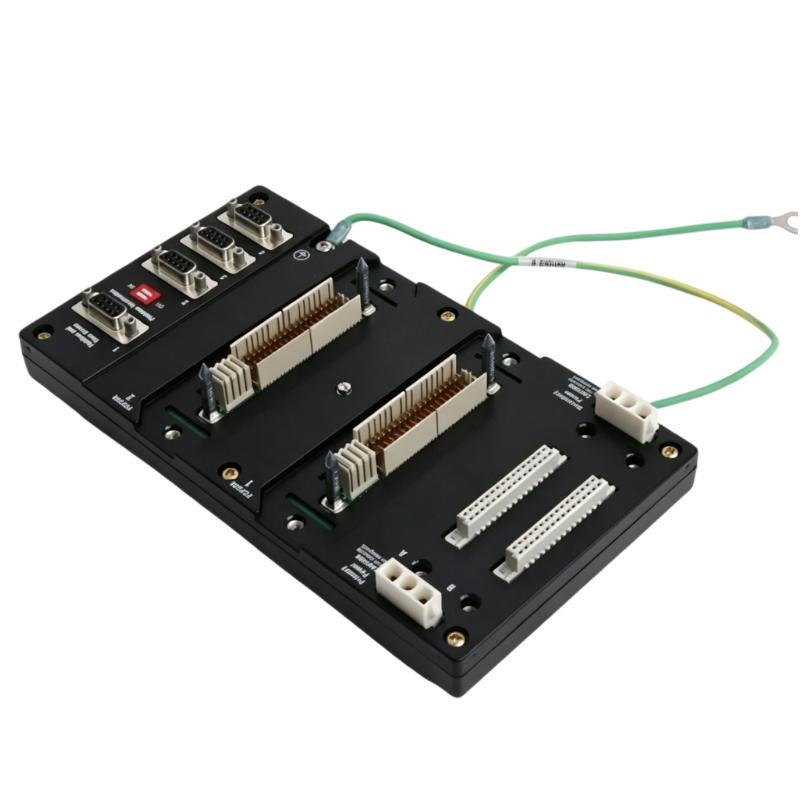

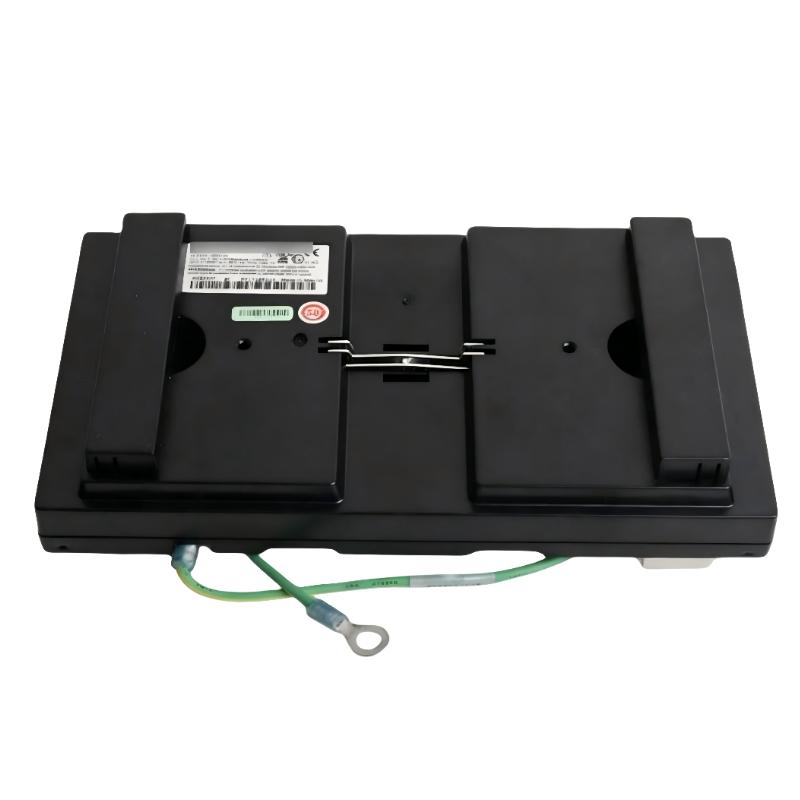

Foxboro FCP280 RH924YF Vertical Mounting Base Plate
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Foxboro |
| Product Type | Vertical Mounting Base Plate |
| Model | FCP280 |
| Order Number | RH924YF |
| Compatible Controller | Foxboro FCP280 Field Control Processor |
| Mounting Method | Vertical DIN rail mounting |
| Baseplate Type | Standard 2-position FCP280 baseplate |
| Supported Configuration | Single non-fault-tolerant FCP280 or fault-tolerant FCP280 pair |
| Fieldbus Support | Four HDLC fieldbus channels (PIO channels) |
| Fieldbus Termination | Fieldbus Port 1 can be terminated using baseplate DIP switches; Ports 2–4 are internally terminated |
| Control Network Interface | Supports compatible copper or fiber adapters for connection to the Foxboro Evo Control Network |
| Compatible Copper Adapter | RH924UQ |
| Compatible Fiber Adapter | RH924WA |
| Fault-Tolerant Connection | Dedicated baseplate connection for paired FCP280 controllers |
| Installation Application | Foxboro Evo / I/A Series DCS control system |
| Dimensions | 150 × 35 × 110 mm |
| Weight | 0.35 kg |
FAQ
1. What is the Foxboro FCP280 RH924YF used for?
The RH924YF is a dedicated vertical mounting baseplate for the Foxboro FCP280 Field Control Processor. It provides the mechanical mounting position and electrical interconnection required to integrate the FCP280 into a Foxboro DCS control system.
2. What is the difference between FCP280 and RH924YF?
FCP280 is the Field Control Processor model, while RH924YF is the order number for its standard vertical-mounted baseplate. The RH924YF is a mounting and interconnection component rather than the processor itself.
3. Can RH924YF support a redundant FCP280 configuration?
Yes. The standard FCP280 baseplate is designed to accommodate either a single non-fault-tolerant FCP280 or a fault-tolerant pair of FCP280 processors. The processors must be installed in their designated positions on the baseplate.
4. How many fieldbus channels are supported by the RH924YF baseplate?
The FCP280 baseplate supports four HDLC fieldbus channels, also referred to as PIO channels. These channels provide the fieldbus infrastructure used by the FCP280 for communication with the associated field I/O subsystem.
5. Does RH924YF require external termination switches for all fieldbus ports?
No. On the standard FCP280 baseplate, Fieldbus Port 1 can be terminated through the DIP switches provided on the baseplate. Fieldbus Ports 2, 3, and 4 have internal termination and normally do not require additional external termination hardware.
6. Which communication adapters can be used with the RH924YF?
The FCP280 baseplate can be used with compatible copper and fiber Control Network adapters. RH924UQ is the associated copper adapter, while RH924WA is the associated fiber adapter. The appropriate adapter should be selected according to the Control Network infrastructure.
7. Can the RH924YF be installed in an existing Foxboro DCS system?
Yes. The FCP280 baseplates are designed for use in both new and existing Foxboro control configurations. When replacing or upgrading compatible FCP280 installations, the baseplate should be checked for correct fieldbus, power, network adapter, and processor compatibility before commissioning.
8. What should be checked when commissioning an FCP280 installed on an RH924YF?
Verify that the baseplate is securely mounted, the FCP280 is correctly seated in its designated position, DC power connections are correct, fieldbus cables are properly connected, and the required fieldbus termination settings are configured. For redundant systems, also verify the correct processor pairing and fault-tolerant interconnection before placing the node into service.
