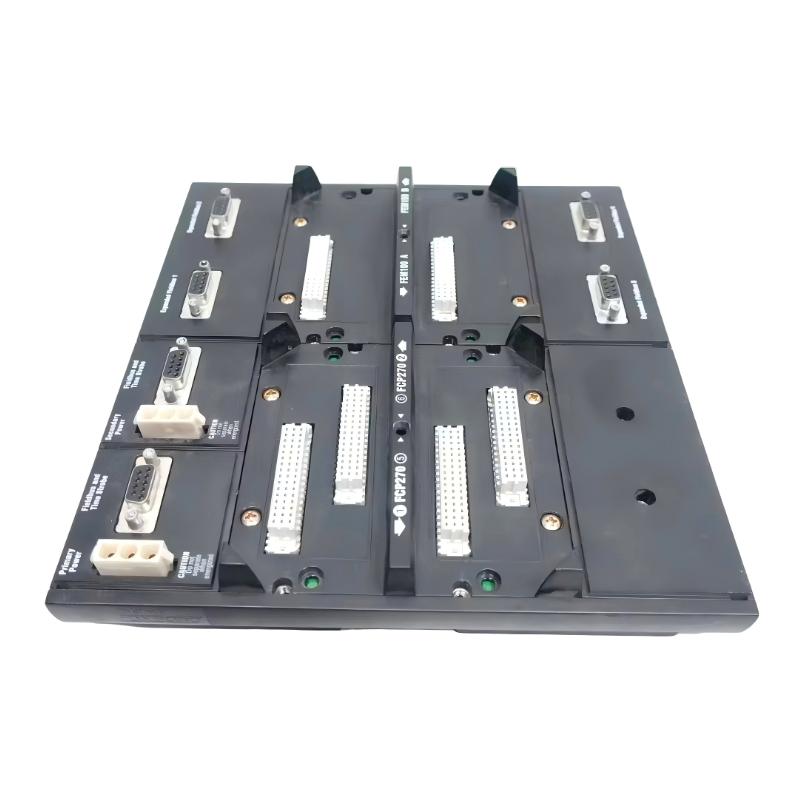

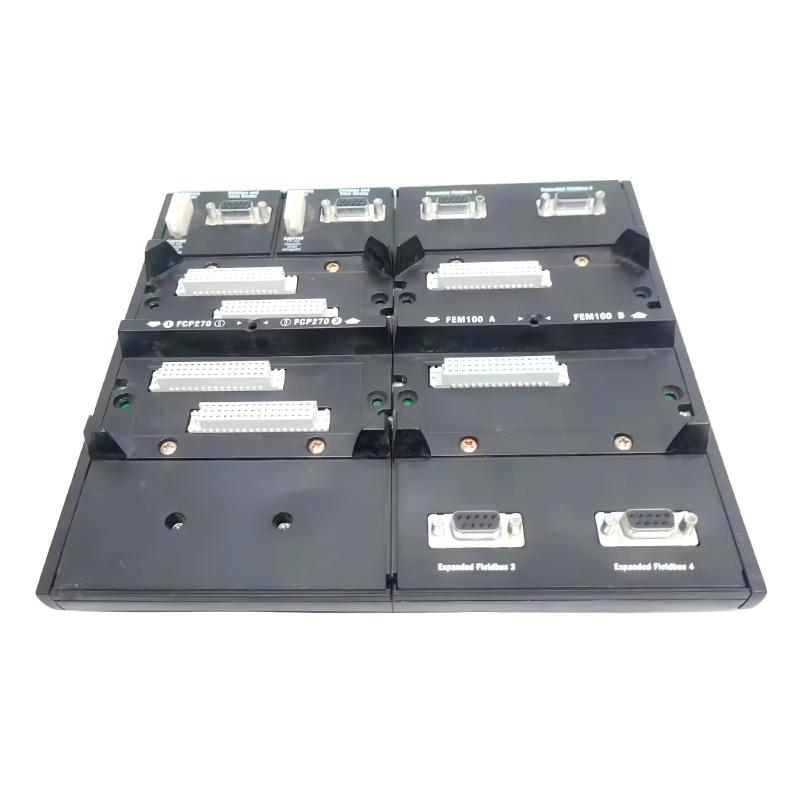

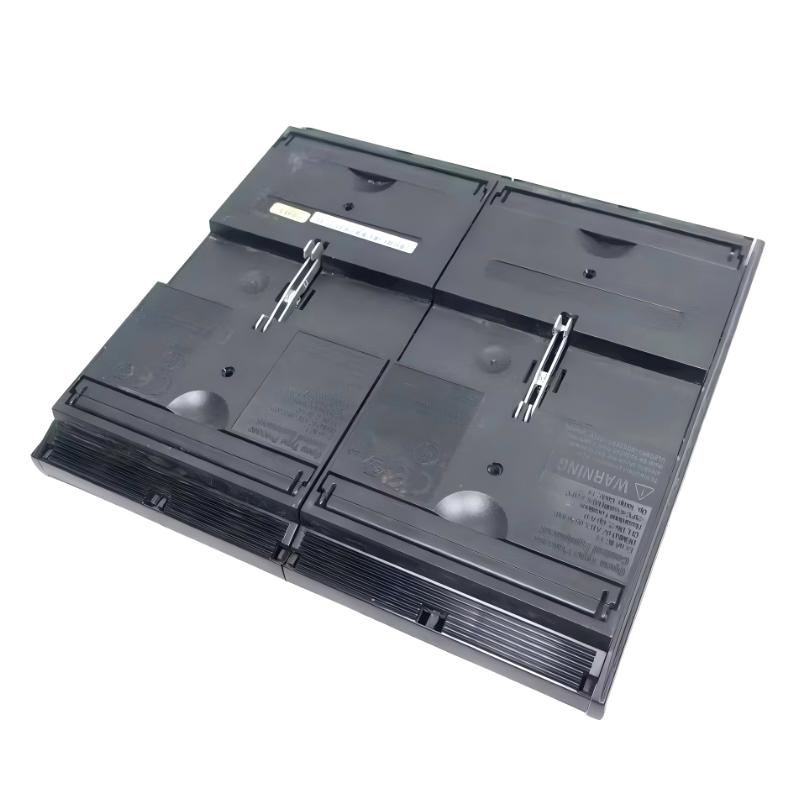

1. What is the Foxboro P0973CN Expansion Backplane used for?
The Foxboro P0973CN is an expansion backplane designed to provide the physical, power, and communication interconnection required by compatible Foxboro control and fieldbus modules. It is used in Foxboro DCS and process automation architectures where additional fieldbus or I/O capacity is required. The backplane allows compatible modules to be installed as an organized expansion segment while maintaining the required communication and power connections.

2. How many module positions does the P0973CN provide?
The P0973CN is identified as a 4+2 slot fieldbus communications base module. Its configuration is intended for compatible control and fieldbus expansion hardware, such as FCP270 and FEM100 modules. The actual slot assignment depends on the system architecture and the modules being installed, so the project configuration should be checked before populating the backplane.

3. Which Foxboro modules are compatible with the P0973CN?
The P0973CN is primarily associated with Foxboro Series 200 architectures and is designed for compatible modules such as FCP270 field control processors and FEM100 fieldbus expansion modules. Compatibility should be verified against the specific hardware revision and system architecture before installation, particularly when integrating older I/A Series equipment with newer Foxboro Evo components.

4. What type of power connection does the P0973CN use?
The P0973CN supports primary and secondary 24 V DC power connections. The redundant power arrangement allows compatible system architectures to maintain power availability if one supply path becomes unavailable. During commissioning, both power paths should be checked for correct voltage, polarity, wiring, and connection integrity before the connected control or fieldbus modules are placed into normal operation.

5. Does the P0973CN provide fieldbus communication between modules?
Yes. The backplane provides the communication interconnection required by compatible fieldbus modules and controllers. In Series 200 configurations, the module fieldbus can use a redundant 2 Mbps communication architecture. The backplane itself is a passive interconnection component, while the installed controller and fieldbus modules perform the active processing and communication functions.

6. What is the role of the P0973CN in a Foxboro DCS expansion architecture?
The P0973CN acts as an expansion platform that allows additional fieldbus infrastructure to be integrated into the DCS. When used with compatible controllers and fieldbus expansion modules, it can extend the system’s ability to communicate with distributed I/O modules. This makes it useful for applications where the original control configuration needs additional I/O capacity without redesigning the complete DCS architecture.

7. What should be checked before replacing a P0973CN backplane?
Before replacement, verify the exact order number, system generation, installed controller and fieldbus modules, slot configuration, power connections, and fieldbus wiring. The replacement backplane should have the same required hardware configuration and mounting arrangement. After installation, check the 24 V DC supply paths and communication connections, then confirm that all installed modules are correctly recognized by the control system.

8. What are common causes of communication problems after installing a P0973CN?
Communication problems can result from incorrect module placement, loose backplane connections, incorrect fieldbus wiring, missing or unstable power, incompatible hardware revisions, or problems elsewhere in the redundant fieldbus network. When troubleshooting, first verify the 24 V DC supply and module seating, then inspect the communication cables and connectors. If the physical connections are correct, check controller and FEM configuration, hardware compatibility, and system diagnostic information.
