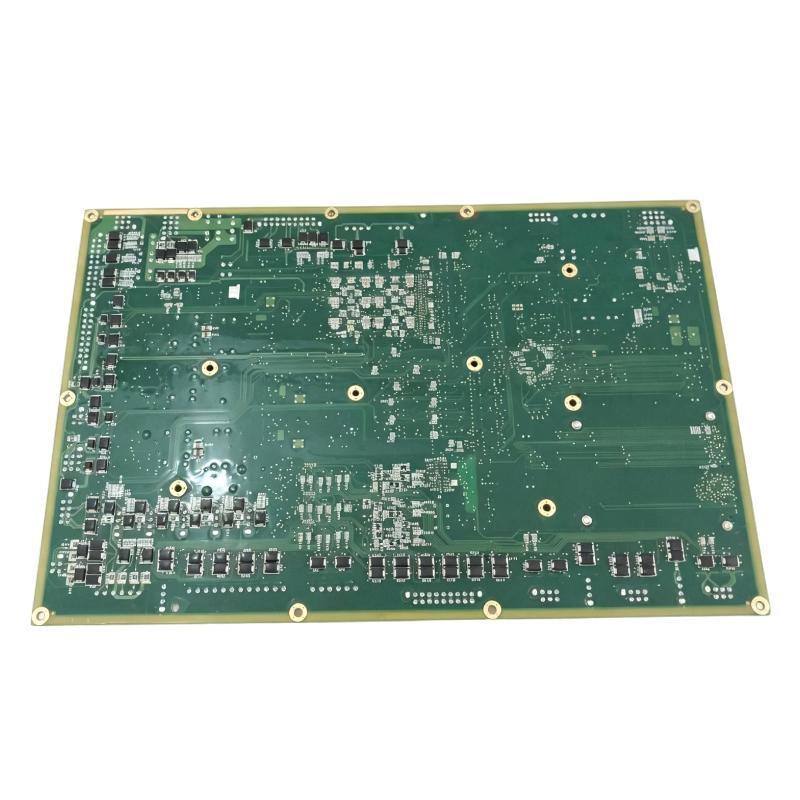

GE 109W6503P001 Set-top Box Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | 109W6503P001 |
| Product Type | Set-top Box Module |
| Module Type | Set-top Box / Digital Interface Module |
| Main Function | Digital signal processing and set-top box system functions |
| Application | Industrial electronic and control equipment |
| System Integration | Designed for integration with compatible GE equipment |
| Signal Processing | Digital signal processing and interface management |
| Communication | Depends on the host system configuration |
| Installation | Internal installation within compatible equipment |
| Connection | Electrical connection through module interfaces |
| Operating Mode | Digital electronic control and signal processing |
| Maintenance | Power-off inspection, testing, and module replacement |
| Dimensions | 165 × 25 × 100 mm |
| Weight | 0.3 kg |
FAQ
1. What is the main function of the GE 109W6503P001 Set-top Box Module?
The GE 109W6503P001 is a set-top box module designed to provide digital signal processing and interface functions within compatible GE equipment. Its specific operating functions depend on the host system and the configuration in which the module is installed.
2. What type of equipment is the 109W6503P001 used with?
The module is intended for use with compatible GE electronic or control equipment. Before installation, the host equipment model, module revision, interface configuration, and system requirements should be checked to ensure proper compatibility.
3. What should be checked if the 109W6503P001 does not operate correctly?
First check the module’s power supply and all electrical connections. Inspect connectors for loose contacts, contamination, or oxidation. If the external wiring is normal, check the host system configuration and communication or signal interfaces before determining whether the module itself requires replacement.
4. What are common causes of communication or signal problems with this module?
Possible causes include incorrect connections, unstable power, poor connector contact, incompatible system configuration, damaged interface circuits, or faults in the host equipment. Troubleshooting should start with the external connections and power conditions before performing board-level diagnostics.
5. Can the GE 109W6503P001 be replaced directly with another module?
Replacement should be based on the complete part number and system compatibility rather than physical appearance. Module revisions can have different interfaces, firmware requirements, or electrical characteristics. The replacement should therefore be verified against the original 109W6503P001 configuration.
6. How should the 109W6503P001 be installed?
Before installation, disconnect the equipment from its power source and follow appropriate electrostatic discharge protection procedures. Check the connector orientation and ensure that the module is correctly seated in its designated position. After installation, verify the connections before powering up the system.
7. How can a technician determine whether the module itself is faulty?
Confirm that the host equipment, power supply, connectors, and associated signal circuits are functioning normally. If the system continues to show abnormal signal processing or interface behavior after these external factors have been eliminated, the module can be tested using suitable diagnostic equipment or replaced with a verified compatible unit for comparison.
8. What maintenance is recommended for the GE 109W6503P001?
Keep the module and its connectors free from dust, moisture, corrosion, and other contaminants. Periodically inspect the electrical connections and check for signs of overheating or physical damage. During handling or replacement, use proper ESD precautions and avoid unnecessary contact with electronic components.
GE 109W6503P001 Set-top Box Module is in stock. Please contact us for a quick quote and competitive pricing.
