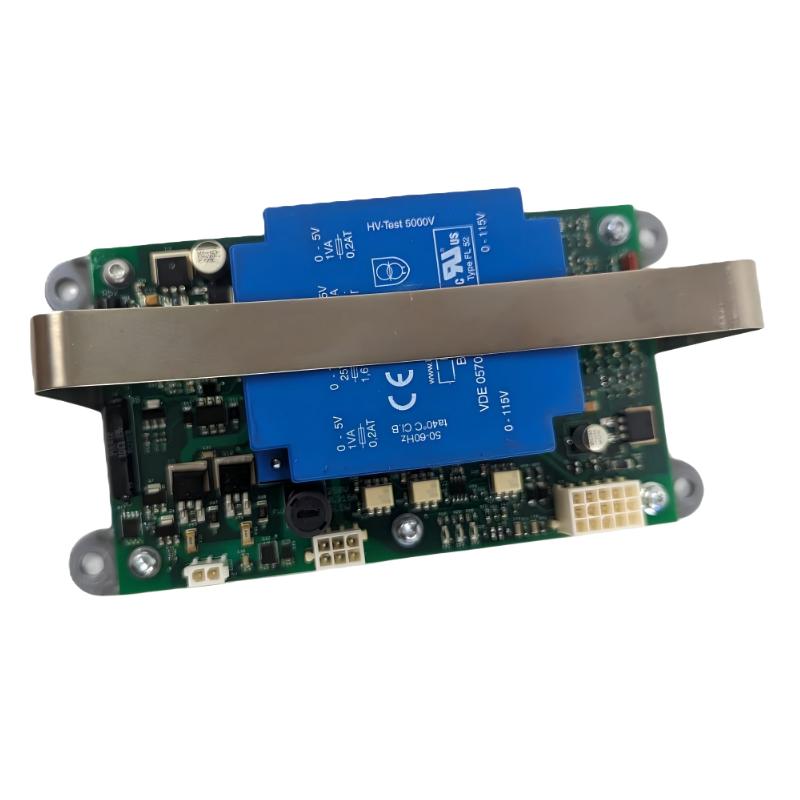

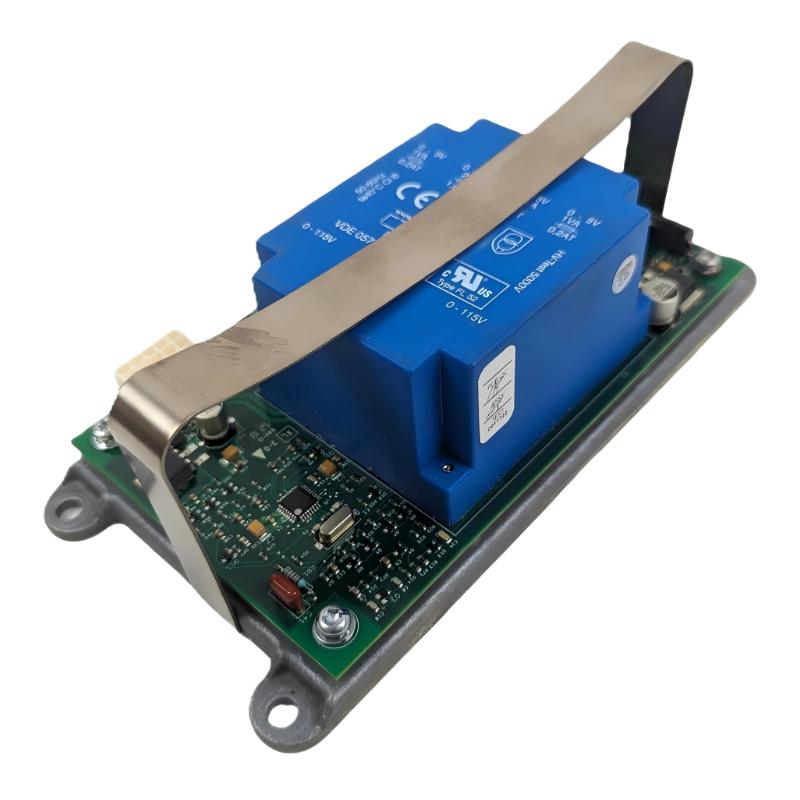

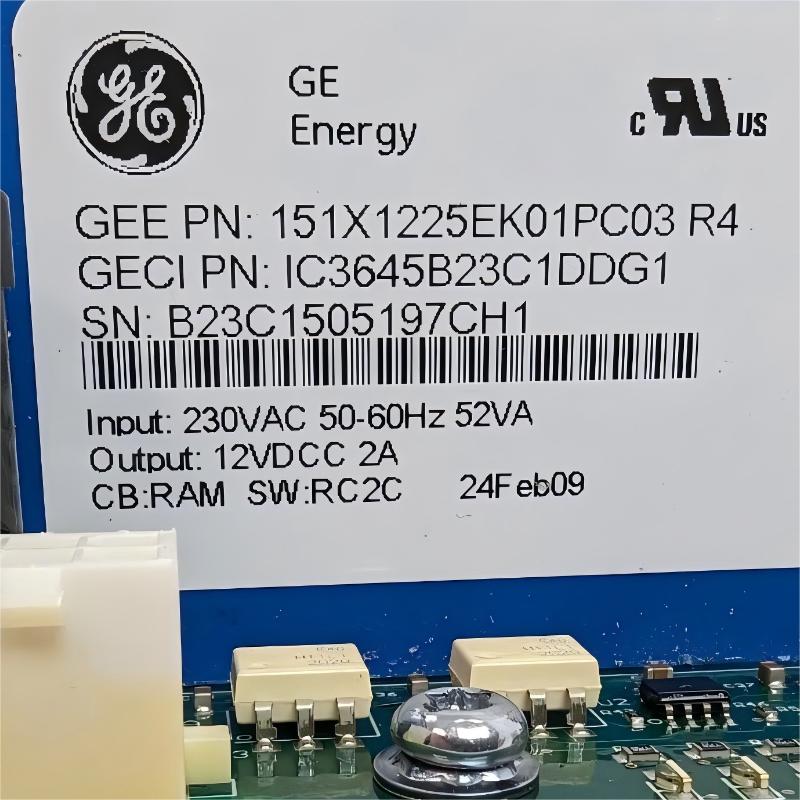

GE 151X1225EK01PC03 Charger Board Assembly
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | 151X1225EK01PC03 |
| Product Type | Charger Board Assembly |
| Assembly Type | Charger / Power Control Board Assembly |
| Main Function | Battery charging and DC power management |
| Application | Industrial control and electrical power systems |
| Board Type | Printed Circuit Board Assembly (PCBA) |
| Power Function | DC power regulation and charging control |
| Control Function | Charging control, power management, and related protection |
| Electrical Connection | Board-mounted connectors for system integration |
| Installation | Internal mounting within compatible control or power equipment |
| Maintenance | Power-off inspection, testing, removal, and replacement |
| Dimensions | 216 × 152 × 52 mm |
| Weight | 2.3 kg |
FAQ
1. What is the main function of the GE 151X1225EK01PC03 Charger Board Assembly?
The GE 151X1225EK01PC03 is a charger board assembly used for charging control and DC power management within compatible industrial equipment. It works with the associated power and battery circuits to maintain the required charging operation and electrical supply conditions.
2. Where is the 151X1225EK01PC03 typically used?
This board assembly is intended for industrial control equipment, electrical systems, and applications that require battery charging or DC power management. It is normally installed inside a compatible cabinet, power unit, or control assembly and connected to other system components through its board-level interfaces.
3. What should be checked if the charger function is abnormal?
Start by checking the incoming power supply, board connectors, terminals, and associated wiring. The battery connection and charging circuit should also be inspected. If the external wiring and power supply are normal but charging remains abnormal, the board assembly itself should be tested.
4. What are common causes of power-related faults on the 151X1225EK01PC03?
Possible causes include abnormal input power, loose or oxidized connectors, defective protective components, faults in the onboard power circuit, and aging electronic components. Troubleshooting should normally begin with the input supply and external wiring before moving to the board-level circuitry.
5. What precautions should be taken when replacing the 151X1225EK01PC03?
Disconnect the equipment from its power source before removing the board and make sure the relevant DC circuits have been safely discharged. Mark or record connector positions before removal. After installing the replacement board, verify all connections and mounting points before restoring power.
6. Can another GE charger board be used as a direct replacement for 151X1225EK01PC03?
A different board should not be selected solely because it has a similar appearance or physical dimensions. Power ratings, connector assignments, control logic, and protection functions may differ between models. The complete part number 151X1225EK01PC03 and the equipment configuration should be verified before replacement.
7. How can a technician determine whether the charger board itself has failed?
First verify that the input power, external wiring, battery circuit, and connected load are operating correctly. If these conditions are normal but the charging output or control function is still unavailable, the board can be examined using appropriate electrical test equipment. Visual inspection can also help identify overheating, damaged components, contamination, or connector problems.
8. What maintenance practices are recommended for the 151X1225EK01PC03?
Avoid hot-plugging the board and use appropriate electrostatic discharge protection during maintenance. Periodically inspect connectors, terminals, and the PCB for contamination, corrosion, overheating, or physical damage. In industrial environments with high temperature, humidity, or vibration, maintaining suitable operating conditions can significantly improve board reliability.
GE 151X1225EK01PC03 Charger Board Assembly is in stock. Please contact us for a quick quote and competitive pricing.
