Technical Specifications

FAQ

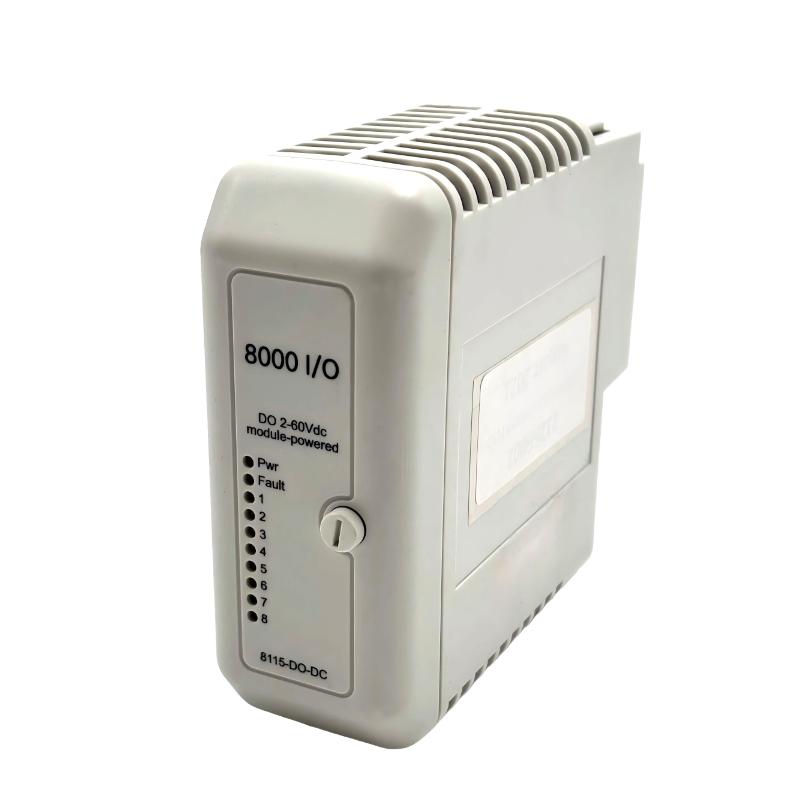

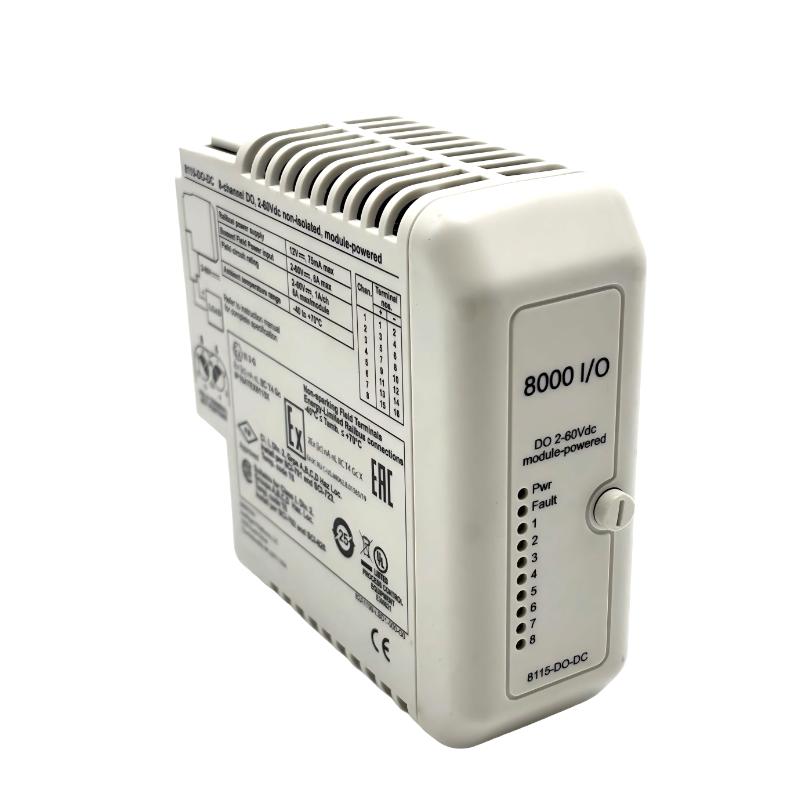

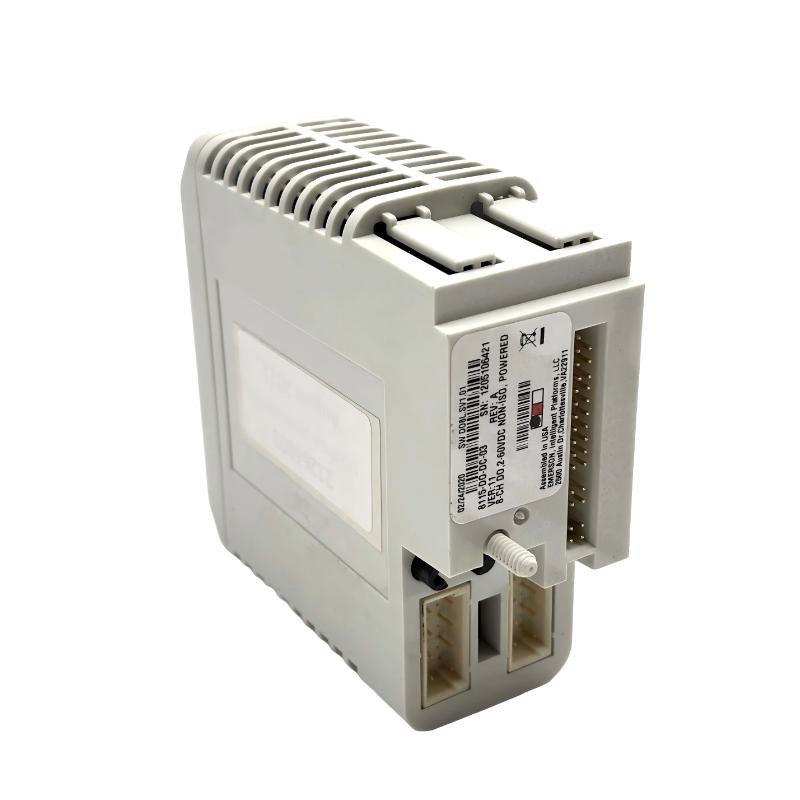

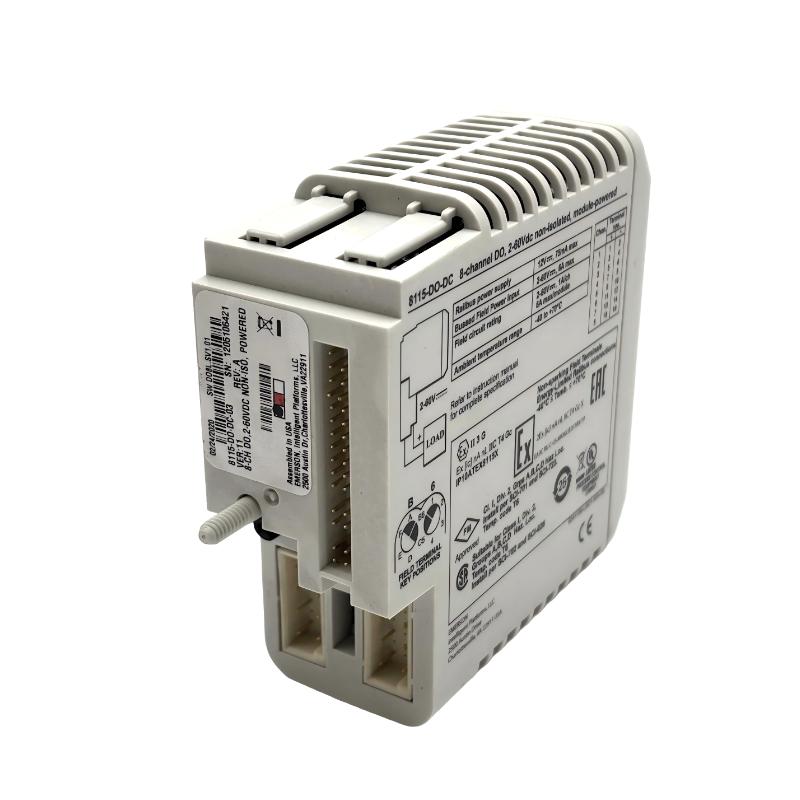

1. What is the primary function of the GE 8115-DO-DC 8-Channel Digital Output Module?

The GE 8115-DO-DC 8-Channel Digital Output Module is designed to provide reliable digital output control for industrial automation systems. It receives output commands from a PLC, DCS, or other industrial controller and converts those commands into electrical switching signals that operate field devices such as relays, contactors, solenoid valves, indicator lamps, alarms, and other digital actuators. Each of the eight output channels operates independently, allowing multiple devices to be controlled simultaneously without affecting one another. This module plays an essential role in executing automation logic by ensuring that commands generated by the controller are accurately transmitted to the field equipment. Its reliable output performance contributes to improved system responsiveness, operational stability, and overall production efficiency in demanding industrial environments.

2. What industrial applications are suitable for the GE 8115-DO-DC Digital Output Module?

The GE 8115-DO-DC is widely used in manufacturing automation, process control, power generation, water treatment, oil and gas facilities, chemical plants, mining operations, food processing, pharmaceutical production, and other industrial automation applications. It is particularly suitable for systems that require dependable digital switching of field equipment. Typical applications include controlling conveyor systems, motor starters, pumps, industrial valves, alarm systems, machine interlocks, production equipment, and auxiliary electrical devices. Because industrial facilities often require hundreds of output signals operating continuously, this module provides a reliable interface between the control system and field equipment while supporting stable and accurate operation under demanding industrial conditions.

3. What problems may occur if the GE 8115-DO-DC Digital Output Module develops a fault?

If the GE 8115-DO-DC develops a fault, several operational problems may occur within the automation system. Individual output channels may fail to switch correctly, multiple outputs may become inactive, or connected field devices may not respond to controller commands. Operators may also experience intermittent output signals, unexpected equipment behavior, alarm activation failures, or machine interlock problems. In some situations, the controller may generate module diagnostic alarms indicating communication or hardware faults. Troubleshooting should begin by verifying the controller diagnostics, module status indicators, power supply, wiring integrity, output circuits, and connected field devices. Since output failures can also result from damaged external loads or wiring issues, technicians should perform a systematic inspection before replacing the module.

4. How should the GE 8115-DO-DC Digital Output Module be installed correctly?

Proper installation of the GE 8115-DO-DC begins with completely disconnecting system power to ensure personnel safety and protect sensitive electronic components. The module should be firmly inserted into the designated rack or backplane slot, ensuring that all connectors are fully engaged. Field wiring should then be connected according to the approved electrical drawings, with careful attention paid to terminal identification and output channel assignments. After installation, technicians should verify that all wiring is secure, correctly labeled, and free from shorts or loose connections. Once power is restored, each output channel should be individually tested through the control program to confirm proper switching operation and correct response of the connected field devices. Proper installation significantly reduces commissioning issues and improves long-term system reliability.

5. How can technicians troubleshoot the GE 8115-DO-DC Digital Output Module?

Troubleshooting the GE 8115-DO-DC should follow a structured diagnostic process. Technicians should first examine controller diagnostic messages and module status LEDs to determine whether the module is being correctly recognized by the automation system. The next step is to verify the module power supply, inspect backplane communication, and examine all field wiring for loose connections or damaged conductors. Individual output channels should then be tested through the control software while monitoring the response of connected devices. If an output channel appears inactive, technicians should determine whether the issue originates from the module, the external load, the field wiring, or the control logic. Using electrical test instruments to verify output signals and continuity can greatly simplify fault isolation and reduce equipment downtime.

6. How should the GE 8115-DO-DC be maintained for long-term reliable operation?

Long-term reliability can be achieved through regular preventive maintenance. Maintenance activities should include inspecting module mounting, verifying terminal tightness, checking field wiring integrity, cleaning dust from the control cabinet, and monitoring module diagnostic information for early warning signs of potential failures. Environmental conditions such as excessive heat, humidity, vibration, and airborne contaminants should also be controlled because they may gradually affect electronic performance over time. During scheduled maintenance, technicians should verify the operation of all eight output channels and confirm that connected field devices continue to respond correctly. Maintaining proper cabinet ventilation and performing routine functional testing help minimize unexpected failures, extend module service life, and improve the overall reliability of the industrial automation system.

7. Why is the GE 8115-DO-DC important in industrial automation systems?

The GE 8115-DO-DC is a critical interface between the automation controller and field equipment. Although a PLC or DCS generates the control logic internally, the actual operation of industrial equipment depends on reliable output signals delivered through digital output modules. Every machine start command, valve operation, alarm activation, and equipment interlock ultimately relies on these output channels functioning correctly. A reliable digital output module ensures that control commands are executed accurately and without unnecessary delays, improving production efficiency and operational safety. In modern automation systems, dependable output modules are essential for maintaining continuous production, reducing equipment downtime, and ensuring consistent process control across complex industrial facilities.

8. What should be verified before replacing the GE 8115-DO-DC Digital Output Module?

Before replacing the GE 8115-DO-DC, technicians should first verify that the module itself is responsible for the malfunction rather than another component within the automation system. This process includes reviewing controller diagnostics, checking module status indicators, verifying the system power supply, inspecting backplane communication, testing field wiring, and confirming the condition of all connected loads. Output logic should also be reviewed to ensure that the controller is issuing the expected commands. Before removing the module, all wiring positions, channel assignments, and system configuration parameters should be documented to simplify installation of the replacement unit. After replacement, comprehensive functional testing should be performed on all eight output channels, including verification of field device operation, interlock logic, alarm functions, and overall system performance to ensure reliable restoration of normal operation.
