1. What is the main function of the GE DS200DTBDG1ABB Terminal Relay Board?

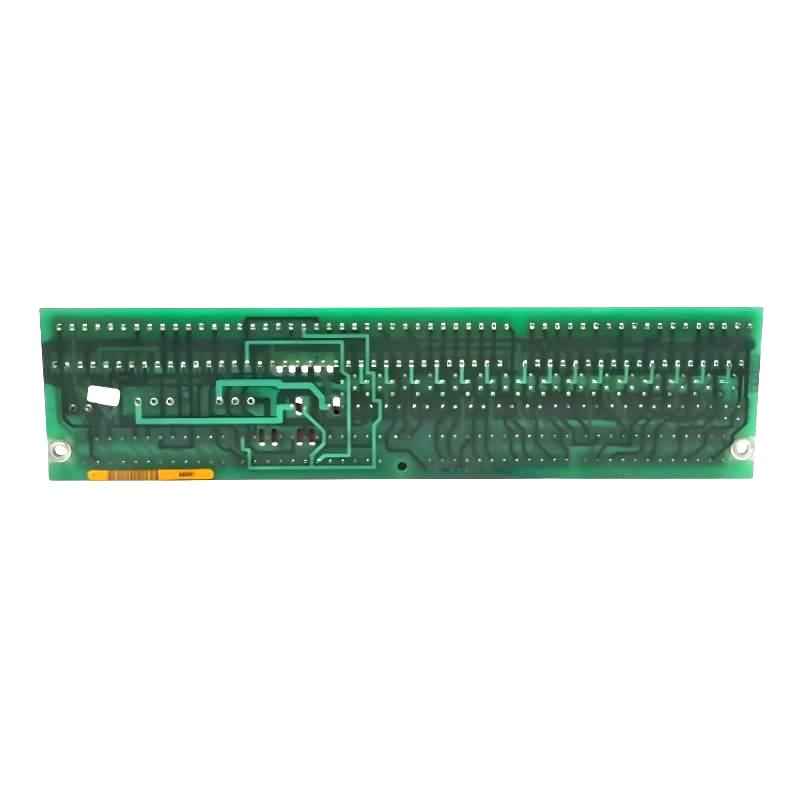

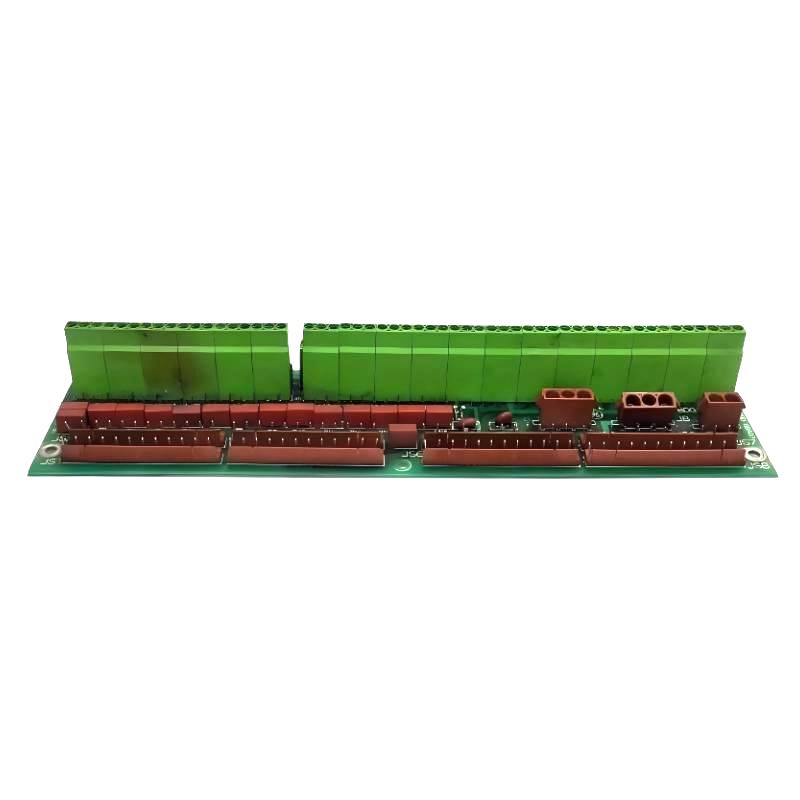

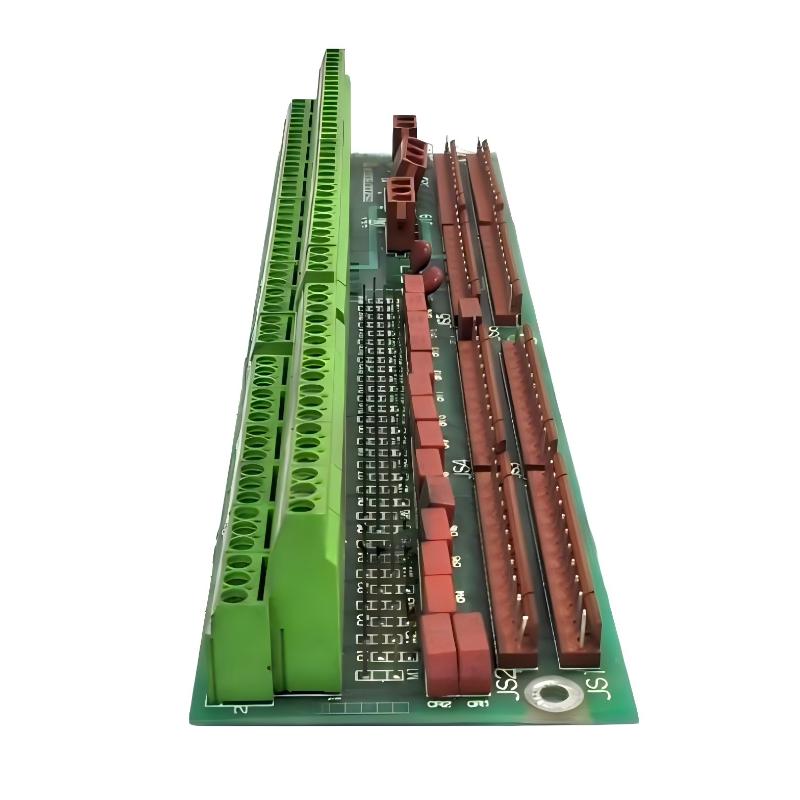

The GE DS200DTBDG1ABB Terminal Relay Board is a terminal relay interface board used in GE Mark V control systems. Its main purpose is to provide signal connection and relay interface functions between the control system and external field devices.

The board allows control signals from the main control system to be transferred to connected equipment through relay circuits while also supporting signal distribution between different control components.

In gas turbine and industrial automation applications, the terminal relay board plays an important role in improving communication reliability between the control system and field devices, ensuring that control commands and status signals can be transmitted effectively.

2. What systems are compatible with the DS200DTBDG1ABB Terminal Relay Board?

The DS200DTBDG1ABB is mainly designed for GE Speedtronic Mark V control systems. It is commonly used in industrial control environments where reliable relay interfaces and field signal connections are required.

Typical applications include gas turbine control systems, power generation equipment, and large industrial automation platforms. In these systems, the board works as an interface component between control modules and external devices such as actuators, alarms, and relay-controlled equipment.

Before installation, the complete control system configuration should be checked to confirm compatibility with existing hardware and wiring requirements.

3. What role does the DS200DTBDG1ABB play in a GE Mark V system?

In a GE Mark V control system, the DS200DTBDG1ABB provides relay interface and field wiring connection functions. It acts as a bridge between the control logic processed by the system and the external devices that require control signals.

The board helps transfer output commands from the control system to field equipment and allows related status signals to be connected back into the control architecture.

By organizing relay connections and field signals, the board improves system reliability and makes troubleshooting and maintenance easier for engineers working on industrial equipment.

4. What are the common causes of DS200DTBDG1ABB failures?

Common causes of DS200DTBDG1ABB failures include loose terminal connections, relay contact problems, damaged field wiring, electrical interference, and aging electronic components caused by long-term operation.

When abnormal output signals, incorrect relay operation, or equipment response failures occur, technicians should first inspect the board connections and verify whether external field wiring is functioning correctly.

Further troubleshooting should include checking control signals, relay status, and GE Mark V diagnostic information to determine whether the issue originates from the relay board, connected equipment, or the control logic system.

5. How should the DS200DTBDG1ABB Terminal Relay Board be installed correctly?

The DS200DTBDG1ABB should be installed according to GE Mark V system installation requirements. Before installation, the control system should be placed in a safe maintenance condition.

Technicians should verify the board model, wiring configuration, terminal assignments, and field signal connections before replacing or installing the board.

After installation, system testing should be performed to confirm that relay outputs, field connections, and control functions operate correctly. Proper installation helps prevent signal errors and improves long-term system stability.

6. How can relay output problems on the DS200DTBDG1ABB be diagnosed?

When relay output problems occur, troubleshooting should begin by confirming whether the control system is sending the correct output command.

The next steps include checking terminal connections, relay operating status, external device wiring, and connected loads. Loose connections, damaged cables, or abnormal external equipment conditions can all affect relay performance.

If field wiring is normal, technicians should review GE Mark V alarms and diagnostic information to determine whether the problem is related to the relay board, control signals, or another system component.

7. What should be considered when replacing the DS200DTBDG1ABB?

Before replacing the DS200DTBDG1ABB, technicians should record the original wiring configuration and verify all field signal connections to ensure correct installation of the replacement board.

Power should be removed before performing replacement work, and appropriate anti-static precautions should be taken to protect electronic components.

After installing the new board, all terminal connections should be checked carefully, and system tests should be performed to verify that relay outputs and control signals have returned to normal operation.

8. How can the long-term reliability of the DS200DTBDG1ABB be improved?

Long-term reliability of the DS200DTBDG1ABB can be improved through regular inspection, proper wiring maintenance, and good control cabinet management.

Maintenance personnel should periodically check terminal connections, verify relay operation, and inspect the installation environment for factors such as dust, moisture, or electrical interference that may affect board performance.

For critical industrial equipment, preventive maintenance combined with GE Mark V system diagnostics can help identify potential problems before they lead to equipment downtime.

Through correct installation, stable operation, and regular maintenance, the DS200DTBDG1ABB can provide reliable signal interface performance for GE Mark V control applications.
