1. What is the main function of the GE DS200IPCSG1ABB?

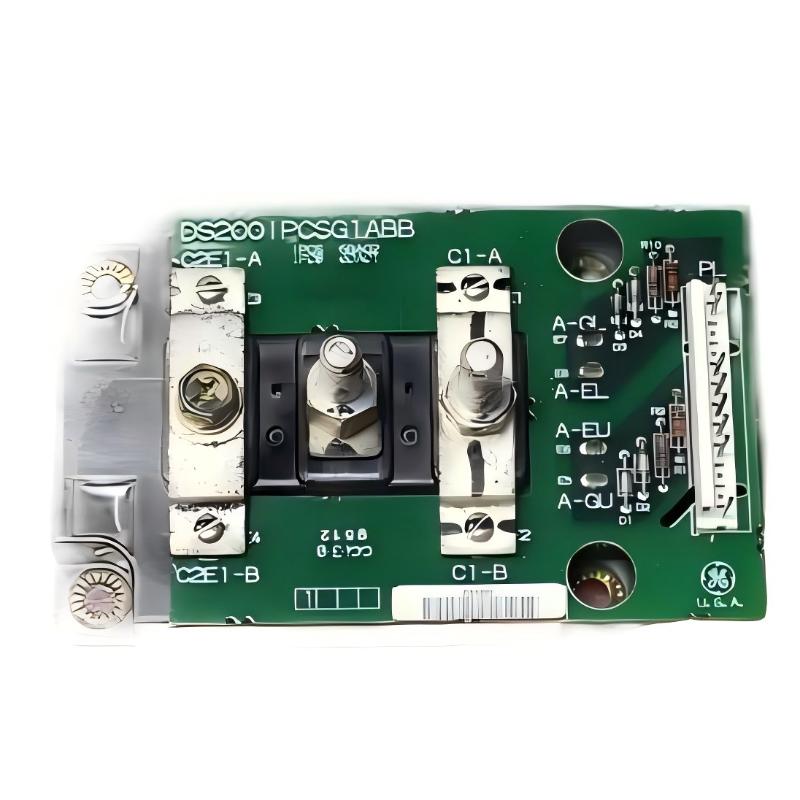

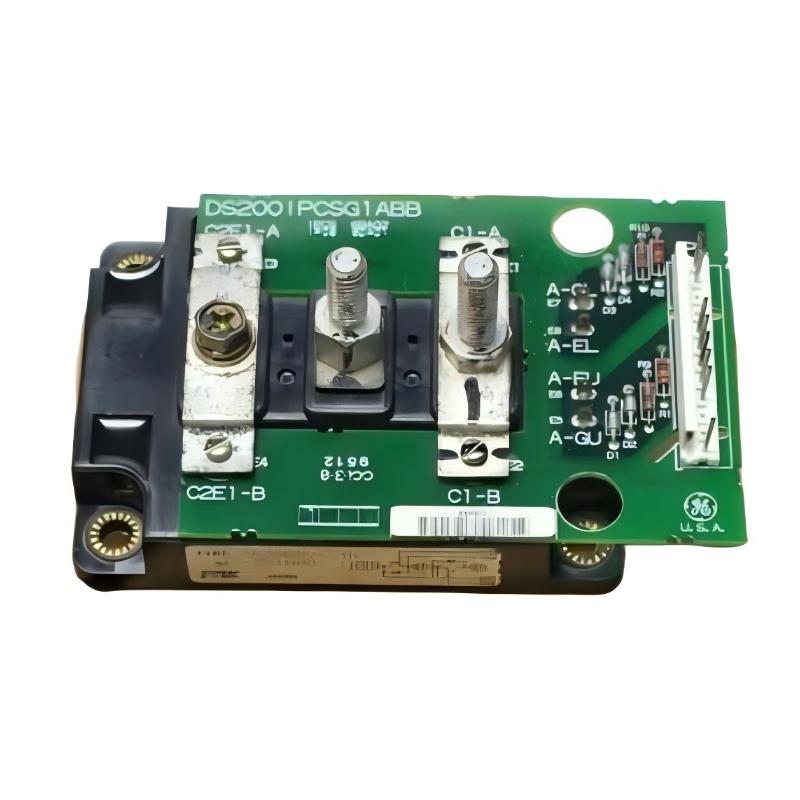

The GE DS200IPCSG1ABB is an IGBT P3 Snubber Board associated with GE EX-2000 power electronics equipment. Its primary function is to provide transient suppression for the IGBT power circuit during semiconductor switching. When an IGBT switches rapidly, the inductance present in the power circuit can produce voltage spikes and transient energy. The snubber circuit helps control these transient conditions and reduces the electrical stress placed on the associated IGBT and other power components. The DS200IPCSG1ABB is therefore not a general-purpose control board; it performs a specialized function within the power electronics section. Its condition should be evaluated together with the IGBT module, DC bus, switching circuit, electrical connections, and other related power components.

2. Why is a snubber board important in an IGBT power circuit?

IGBTs operate by switching electrical current at high speed, and rapid current changes can interact with unavoidable stray inductance in the power circuit. This interaction can generate voltage overshoot and high-frequency transients. If these transients are not adequately controlled, they can increase the electrical stress on the IGBT and may contribute to premature semiconductor failure. A snubber network provides a controlled path for managing part of this transient energy and helps limit excessive voltage changes during switching. The DS200IPCSG1ABB performs this type of supporting function in the associated P3 IGBT power circuit. A properly functioning snubber circuit can therefore contribute to more stable switching behavior and improved protection of the power semiconductor stage.

3. What are common symptoms of a DS200IPCSG1ABB-related fault?

A problem involving the DS200IPCSG1ABB may be associated with repeated IGBT failures, abnormal power-stage operation, unexpected inverter or excitation-system trips, excessive electrical noise, or visible signs of overheating and component damage. However, these symptoms do not necessarily mean that the snubber board itself is the original source of the problem. Abnormal DC bus voltage, damaged IGBT modules, poor connections, excessive switching stress, cooling problems, or faults elsewhere in the power circuit can produce similar symptoms. For this reason, troubleshooting should evaluate the complete power stage rather than replacing the snubber board immediately. Inspection of the associated IGBT module, power connections, bus conditions, cooling system, and other components can help determine whether the snubber board is defective or has been damaged as a consequence of another fault.

4. What should be checked before replacing the DS200IPCSG1ABB?

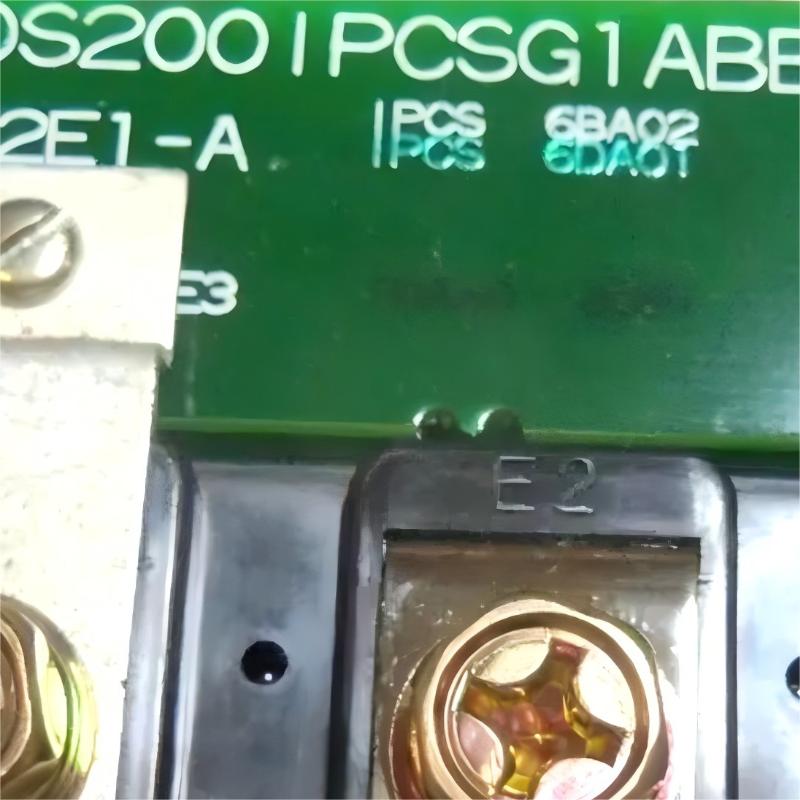

Before replacement, the complete DS200IPCSG1ABB part number should be verified against the existing board and the equipment configuration. Because this board is part of a power electronics circuit, the system must be safely isolated according to the applicable maintenance procedure. Stored energy in DC bus capacitors and other power components must also be considered before touching the circuit. The original board’s connectors and wiring should be documented before removal to prevent incorrect reconnection. The replacement board should be inspected for physical damage, contamination, loose components, or other abnormalities before installation. It is also important to inspect the associated IGBT module and power circuit. If an IGBT or another power component has failed, installing a replacement snubber board without correcting the underlying fault may cause the new board to fail again.

5. How does the DS200IPCSG1ABB protect the associated IGBT circuit?

The DS200IPCSG1ABB helps protect the associated IGBT power circuit by controlling voltage transients generated during switching. When an IGBT changes state rapidly, parasitic inductance can cause a sudden voltage increase. The snubber circuit helps manage this transient response and reduces the magnitude of voltage stress experienced by the semiconductor device. This is particularly important in high-power applications where switching energy can be significant. The board does not replace the IGBT gate driver, protection system, or control logic; instead, it supports the electrical behavior of the power stage during switching. If the snubber circuit becomes damaged or degraded, the IGBT may be exposed to higher transient stress and may become more vulnerable to repeated electrical failure.

6. Can the DS200IPCSG1ABB be fully tested with a standard multimeter?

A standard multimeter can be useful for basic electrical checks, such as identifying obvious open or short conditions in accessible circuit paths, but it cannot completely verify the dynamic performance of an IGBT snubber circuit. Snubber components operate under high-speed switching conditions, and their actual behavior can depend on voltage, current, frequency, and transient energy. A circuit that appears normal during a static resistance measurement may still behave abnormally when the power electronics are operating. Therefore, if a deeper diagnosis is required, appropriate test equipment and the approved maintenance procedure should be used. Measurements on high-energy IGBT circuits should only be performed by qualified personnel with the required electrical safety precautions in place.

7. What can cause repeated failure of the DS200IPCSG1ABB?

Repeated failure can be caused by excessive switching transients, abnormal DC bus conditions, IGBT module failure, poor electrical connections, incorrect wiring, insufficient cooling, component aging, or another fault in the associated power conversion circuit. If a new snubber board fails shortly after installation, simply replacing it again may not resolve the actual problem. The technician should inspect the complete power stage, including the IGBT module, DC bus, electrical connections, cooling conditions, and switching circuitry. Particular attention should be given to the condition of the associated semiconductor module because an IGBT failure can produce high-energy electrical transients that may damage the snubber components. Determining whether the board is the primary failure source or a secondary victim of another fault is essential for preventing repeated breakdowns.
