1. What is the main function of the GE DS200ITXDG1AAA?

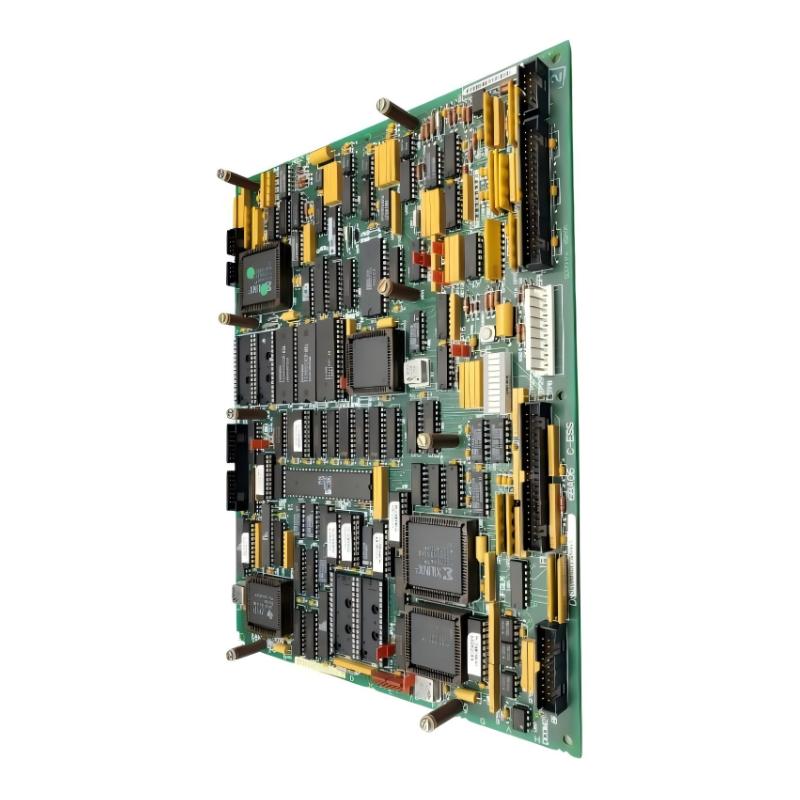

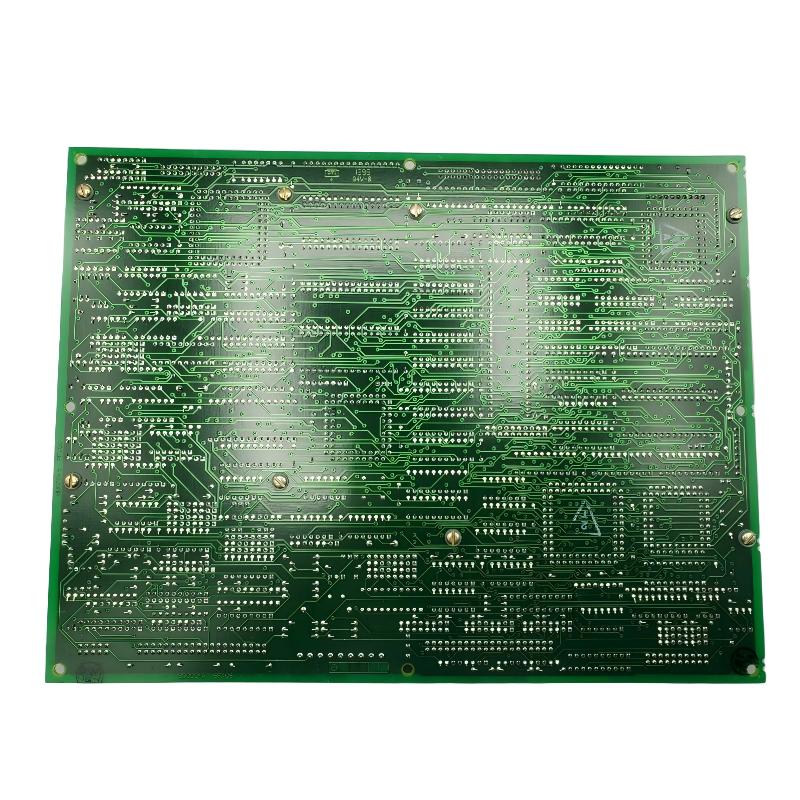

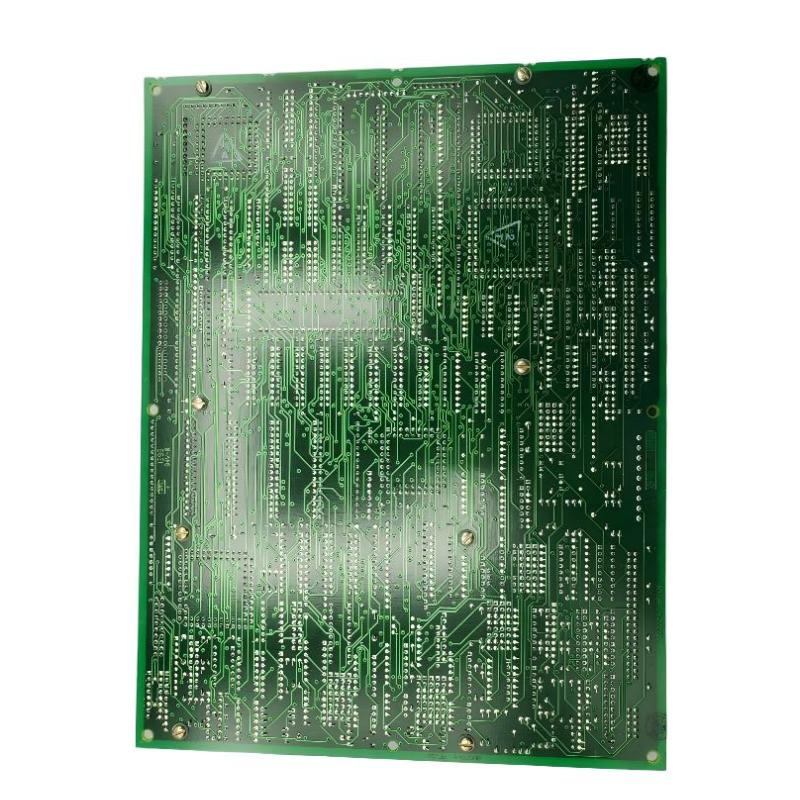

The GE DS200ITXDG1AAA is a Processor Module used in the GE Mark V control architecture. Its primary role is to perform processing tasks required by the control system, including execution of configured control logic, handling system data, supporting diagnostic functions, and coordinating information with other system components. Processor modules are an important part of a turbine control system because they provide the computational resources required for continuous monitoring and control. The DS200ITXDG1AAA should therefore be considered as part of the overall control architecture rather than as an independent PLC controller. Its actual operation depends on the surrounding Mark V hardware, system configuration, software, communication paths, and associated I/O or control modules.

2. What systems can the DS200ITXDG1AAA be used with?

The DS200ITXDG1AAA is associated with GE Mark V turbine control equipment and related industrial control applications. The Mark V architecture was designed for turbine control and monitoring, with processor and interface modules working together to execute control functions and collect operating information. When applying a replacement module, compatibility should be determined from the actual equipment configuration, board identification, system revision, and installed hardware rather than from the physical appearance of the board alone. Different board revisions or configurations may have different system requirements. Before installation, the complete part number should therefore be compared with the existing module and the equipment documentation available for the specific control system.

3. What are common symptoms of a DS200ITXDG1AAA processor module fault?

A processor module problem can result in abnormal control-system behavior, diagnostic alarms, loss of expected communication, unstable processing functions, or failure of specific control tasks. Depending on the nature of the fault, the system may also report processor-related diagnostics or fail to operate correctly with other control modules. However, a processor-related alarm does not automatically mean that the DS200ITXDG1AAA itself has failed. Power supply problems, communication wiring, system configuration, memory-related issues, or faults in another control module can produce similar symptoms. Troubleshooting should therefore begin by reviewing system diagnostics and power conditions, followed by checking communication paths and associated modules before replacing the processor.

4. What should be checked before replacing the DS200ITXDG1AAA?

Before replacement, verify the complete DS200ITXDG1AAA part number and confirm that the replacement module matches the existing Mark V system configuration. The control system should be placed in an appropriate maintenance condition, and power isolation should be performed according to the site’s approved procedures. Before removing the original module, the position and connection of cables should be documented carefully to avoid installation errors. It is also useful to record existing diagnostic messages and system status information before removing the board. After installation, the technician should verify connections, system power, communication status, processor diagnostics, and the operation of related control functions. If the original problem was caused by another module or a system-level issue, replacing the processor alone may not correct the fault.

5. How can communication problems involving the DS200ITXDG1AAA be diagnosed?

Communication problems should be investigated systematically rather than assuming that the processor module is defective. First, check the system’s diagnostic information and determine whether the problem affects one communication path or multiple control-system components. Then inspect the associated connectors, cables, interfaces, and power supplies. Loose connections, damaged wiring, incorrect configuration, or a failed interface module can interrupt communication even when the processor itself is operating normally. If available, compare the affected communication path with a known-good path or review historical diagnostic information to identify changes in system behavior. A processor replacement should generally be considered only after external communication and power-related causes have been investigated.

6. Can the DS200ITXDG1AAA be tested with a standard multimeter?

A standard multimeter can be useful for checking basic electrical conditions such as supply voltage and continuity where appropriate, but it cannot fully evaluate the processor module’s processing functions, firmware behavior, memory operation, or communication performance. Processor modules contain digital circuitry that requires more comprehensive diagnostic methods than simple resistance or voltage measurements. A module may show normal supply voltage while still experiencing an internal processing or communication fault. For this reason, troubleshooting should combine electrical checks with system diagnostics, communication verification, and functional testing. Any electrical measurement should be performed according to the applicable maintenance procedure and only after the technician has confirmed the required safety conditions.

7. What can cause repeated failure of the DS200ITXDG1AAA?

Repeated processor-module failures may be caused by unstable power supplies, excessive electrical transients, poor grounding, environmental contamination, overheating, communication faults, or problems elsewhere in the control system. A replacement module can also appear to fail again if the original cause has not been corrected. For example, an abnormal power supply may affect multiple electronic modules, while a communication problem may be incorrectly interpreted as a processor fault. Before replacing another module, maintenance personnel should review the failure history, check the power system, inspect connections, and examine diagnostic information. Identifying the underlying system condition is more effective than repeatedly replacing the processor module without confirming the original failure mechanism.

8. How should the DS200ITXDG1AAA be maintained for reliable operation?

Reliable operation of the DS200ITXDG1AAA depends on maintaining the complete Mark V control environment in good condition. Regular maintenance should include checking system diagnostics, power supply conditions, connectors, communication cables, grounding, and the surrounding control cabinet environment. The module should also be inspected for visible contamination, corrosion, loose connections, or other signs of abnormal operation when maintenance procedures permit physical inspection. Diagnostic records should be retained so that recurring processor or communication problems can be compared with previous events. If repeated alarms occur, the cause should be investigated at the system level rather than simply clearing the alarm or replacing the processor. All module replacement, testing, and maintenance work should follow the applicable GE Mark V equipment procedures and site electrical safety requirements.
