1. What is the main function of the GE DS200LDCCH1AGA?

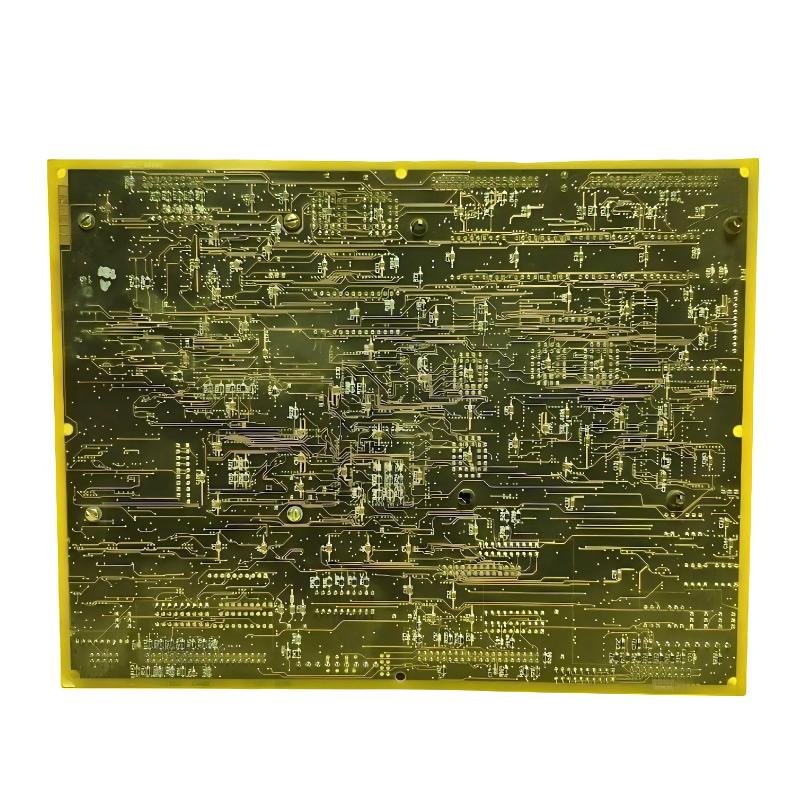

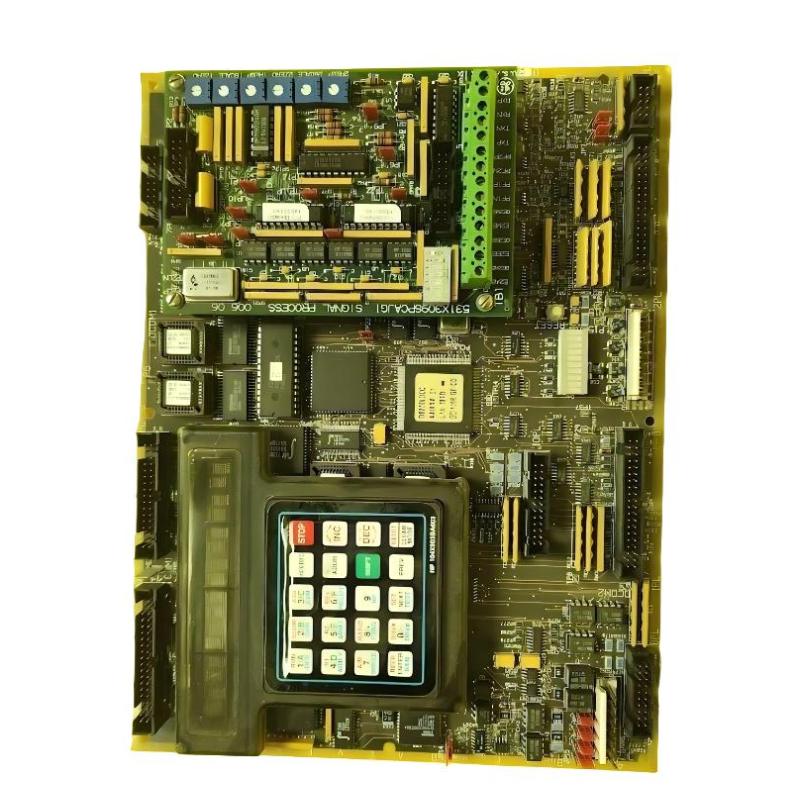

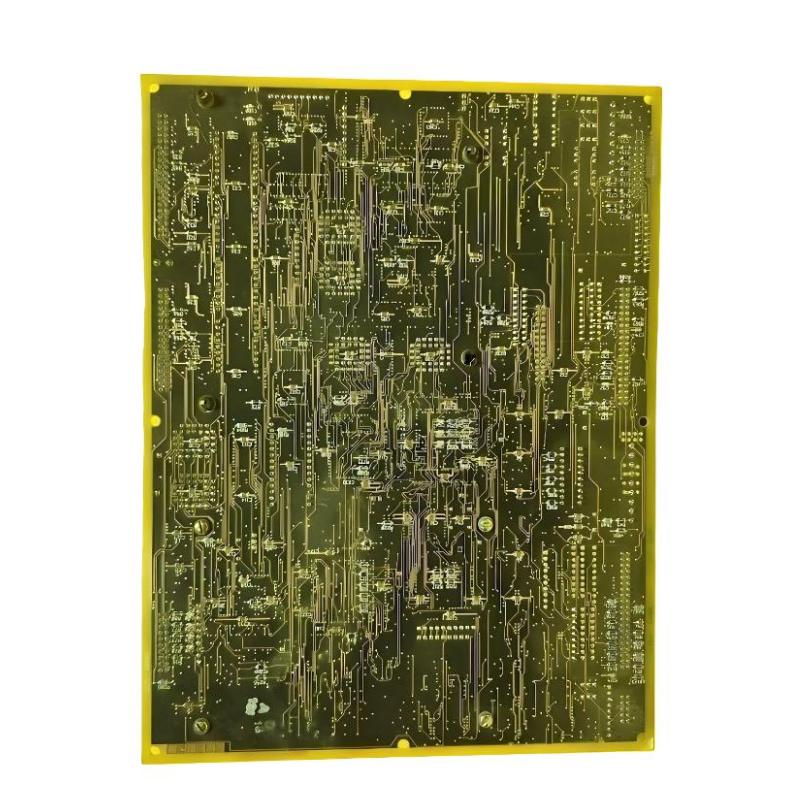

The GE DS200LDCCH1AGA is a Drive Control LAN Communication Board designed to provide communication and data exchange within a GE drive control system. It supports the transfer of control data, operating status information, and other system information between related control components. Reliable communication is essential in industrial drive systems because control commands, operating conditions, and diagnostic information must be exchanged continuously between different modules. The DS200LDCCH1AGA works as part of the overall drive control architecture rather than as an independent controller. Its actual communication functions depend on the system configuration, connected modules, communication wiring, and associated control hardware.

2. What type of systems is the DS200LDCCH1AGA used in?

The DS200LDCCH1AGA is associated with GE industrial drive systems and related Mark V control architectures where communication between control components is required. It can support the exchange of operating status, control information, and diagnostic data within the drive control system. The communication board is not normally considered a standalone controller; instead, it functions as an important interface within the larger drive control architecture. Actual system configurations may differ depending on the equipment, hardware revision, software configuration, and communication structure. Therefore, when installing or replacing a DS200LDCCH1AGA, compatibility should be confirmed against the complete system configuration and the existing board identification.

3. What are common symptoms of a DS200LDCCH1AGA communication fault?

A communication problem involving the DS200LDCCH1AGA may result in loss of data exchange between control modules, communication alarms, abnormal status updates, or interruptions to specific drive control functions. Some communication problems appear immediately during system startup, while intermittent faults may only occur after the drive has been operating for a period of time or under certain operating conditions. Loose connectors, damaged communication wiring, electrical interference, unstable power, and faults in other control modules can produce symptoms similar to a defective communication board. Therefore, a communication alarm should not automatically be interpreted as a board failure. The complete communication path should be inspected together with system diagnostics before the board is replaced.

4. What should be checked before replacing the DS200LDCCH1AGA?

Before replacing the DS200LDCCH1AGA, verify the complete part number and compare it with the existing drive control system configuration. The equipment should be shut down and electrically isolated according to the applicable site maintenance and safety procedures. Before removing the original board, document the location of all connectors and communication cables to prevent incorrect reconnection. It is also useful to record existing alarms, communication status, and abnormal operating conditions before replacement. The replacement board should be inspected for visible damage and connector problems before installation. After installation, verify the power supply, communication connections, network status, and interaction with the other control modules. If the original communication problem was caused by external wiring or another control component, replacing the board alone may not resolve the fault.

5. How can LAN communication problems involving the DS200LDCCH1AGA be diagnosed?

LAN communication problems should be diagnosed by examining the complete communication path rather than immediately assuming that the DS200LDCCH1AGA has failed. Start by reviewing system alarms and diagnostic information to determine whether the problem affects one communication node or multiple control modules. Next, inspect communication cables, connectors, interfaces, and associated power conditions for loose connections, damaged wiring, or other abnormalities. If possible, compare the affected communication path with a known-good communication path to identify differences in system behavior. Intermittent faults should also be evaluated for electrical interference, unstable power, grounding problems, or connector contact issues. Only after the external communication path and power conditions have been verified should an internal board fault become the primary suspect.

6. Can a standard multimeter be used to test the DS200LDCCH1AGA?

A standard multimeter can be useful for basic electrical checks, such as verifying applicable supply conditions and checking accessible wiring for obvious open or abnormal connections. However, a multimeter cannot fully verify the LAN communication functions of the DS200LDCCH1AGA. The board involves digital communication, signal processing, and network interface functions that cannot be confirmed through simple voltage or resistance measurements alone. A board may receive normal power while still having a communication-interface or internal circuit fault. For this reason, troubleshooting should combine electrical checks with system diagnostics, communication-status verification, connector inspection, and appropriate professional test equipment when required. All electrical testing should be performed by qualified personnel following the applicable industrial safety procedures.

7. What can cause repeated communication faults on the DS200LDCCH1AGA?

Repeated communication faults can be caused by unstable power, damaged communication wiring, loose connectors, electrical interference, grounding problems, abnormal communication nodes, or an actual failure of the communication board. If the same communication alarm returns shortly after installing a replacement board, the surrounding communication system should be investigated rather than repeatedly replacing the board. For example, intermittent cable faults or poor connector contact can create recurring communication interruptions that appear to originate from the board. Abnormal power or grounding conditions can also affect the reliability of electronic communication equipment. Reviewing alarm history, operating conditions, and the timing of communication failures can help determine whether the problem is internal to the board or caused by the external system environment.

8. How should the DS200LDCCH1AGA be maintained for reliable communication?

Maintenance of the DS200LDCCH1AGA should focus on communication connections, power conditions, connectors, and the surrounding control cabinet environment. During scheduled maintenance, the board can be inspected for visible contamination, corrosion, loose connections, overheating, or other abnormal conditions, while communication cables should be checked for secure connections and physical damage. In industrial drive systems exposed to significant electrical interference, attention should also be given to communication cable routing, grounding, and the influence of nearby high-power equipment. Intermittent communication alarms should be recorded together with operating conditions so that recurring patterns can be identified. Keeping records of the board model, system configuration, communication faults, and maintenance activities can make future troubleshooting more efficient. All inspection, testing, and replacement work should follow the applicable GE drive control maintenance procedures and site electrical safety requirements.
