1. What is the main function of the GE DS200LPPAG1AAA Trace Protection Card?

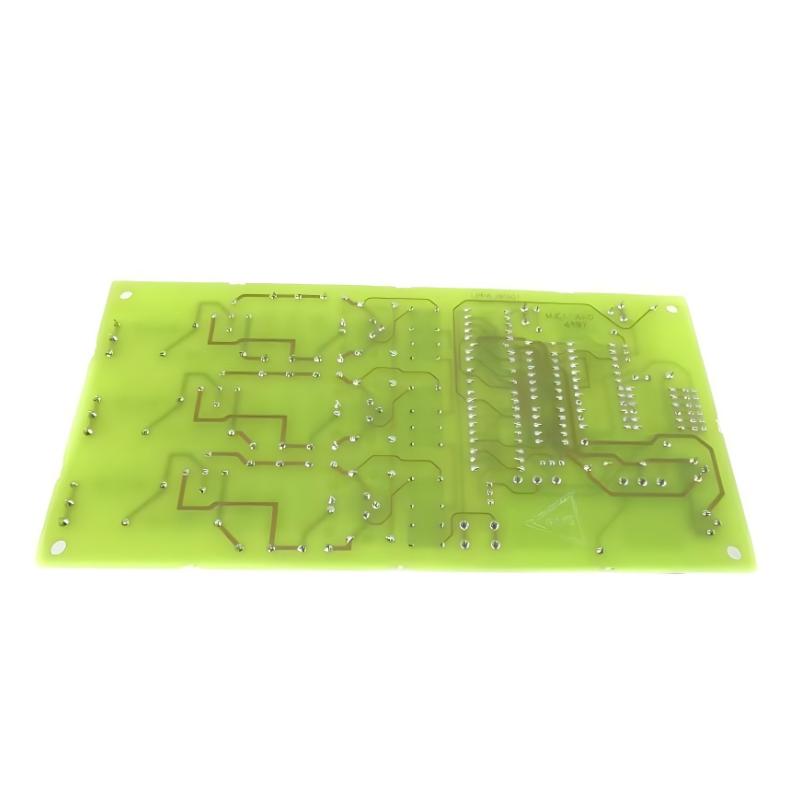

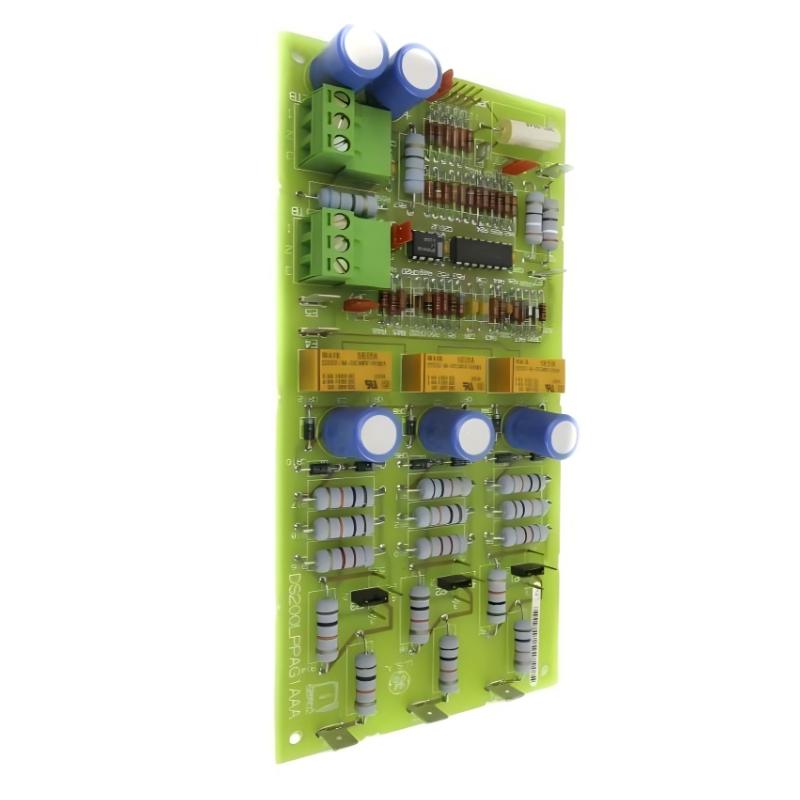

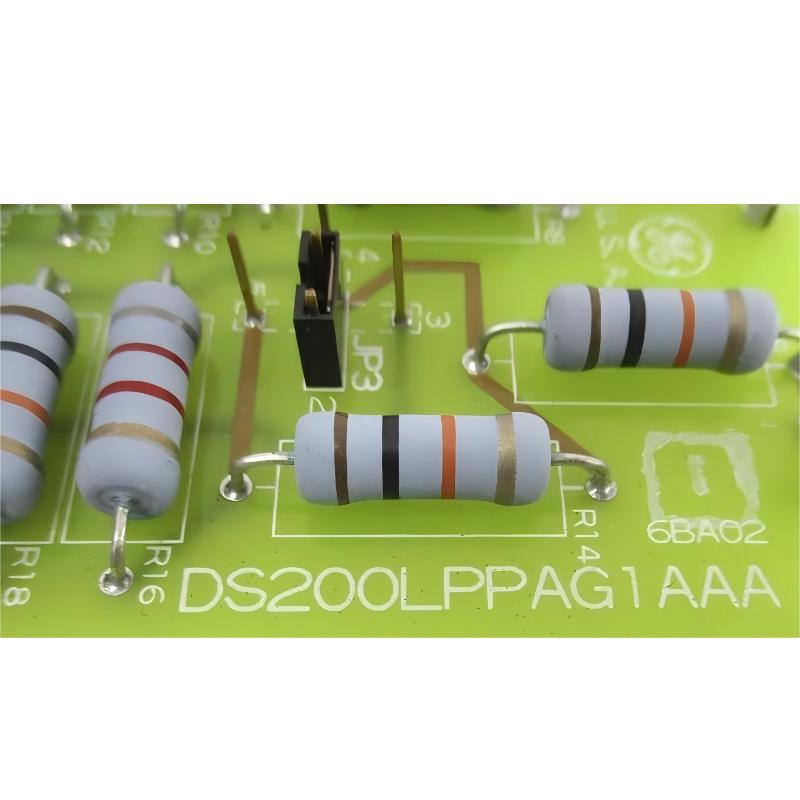

The GE DS200LPPAG1AAA is a Circuit Board Trace Protection Card designed for use within GE industrial control equipment. Its primary purpose is to provide protection for associated printed-circuit board traces and control circuitry against abnormal electrical conditions. In an industrial control system, circuit traces can be exposed to electrical disturbances resulting from wiring problems, transient conditions or component failures. A dedicated protection function helps reduce the possibility of damage spreading through the control circuit. The DS200LPPAG1AAA therefore contributes to the overall reliability of the control board and its associated circuitry. Its exact role depends on the Mark V system configuration in which it is installed, so the original board position and system documentation should be checked when performing replacement or troubleshooting work.

2. What type of system is the DS200LPPAG1AAA used with?

The DS200LPPAG1AAA belongs to the GE DS200 family of industrial control boards and is associated with GE Mark V control applications. Mark V systems are used in industrial equipment where multiple electronic boards work together to perform control, monitoring, protection and communication functions. The DS200LPPAG1AAA operates as part of this larger control architecture rather than as an independent controller. Before installing a replacement board, the complete part number and original system configuration should be verified. Different DS200 boards can have similar physical characteristics while performing completely different functions, so the correct board identification is important. Using a board with an incorrect part number or incompatible configuration may result in abnormal system behavior or protection functions not operating as intended.

3. How does a trace protection card help protect an industrial control board?

A trace protection card is intended to reduce the risk of electrical disturbances causing damage to associated circuit traces and control circuitry. Printed-circuit board traces are designed to carry specific electrical signals and currents, and abnormal electrical conditions can place additional stress on these conductive paths. Protection circuitry can help limit or control the effect of certain abnormal conditions before they cause more extensive damage. In an industrial control environment, this type of protection can be valuable because a failure in one circuit should ideally remain localized rather than affecting multiple control functions. The DS200LPPAG1AAA should therefore be considered part of the board-level protection structure. Its effectiveness also depends on correct system wiring, proper installation and the condition of the other connected components.

4. What are the common symptoms of a problem with the DS200LPPAG1AAA?

Symptoms depend on the specific protection circuit involved and the system configuration. Possible indications can include unexpected control-board behavior, abnormal system alarms, loss of a related control function or repeated electrical faults in an associated circuit. If the protection card itself has been damaged, visible signs such as discolored components, damaged circuit areas or abnormal heating may sometimes be present. However, a control problem does not automatically mean that the DS200LPPAG1AAA is defective. External wiring, connected components, power supplies and other boards can also create conditions that appear to originate from the protection circuit. Troubleshooting should therefore include a review of system alarms, affected functions, board condition and associated electrical circuits before deciding that the card needs replacement.

5. How should the DS200LPPAG1AAA be troubleshot?

Troubleshooting should begin with a safe inspection of the complete circuit associated with the protection card. First confirm that the system has been properly isolated according to the applicable maintenance procedure. Inspect the board for obvious signs of electrical damage, overheating, contamination or physical deterioration. Next, check the associated connectors and wiring for loose connections, damaged conductors or incorrect installation. If an electrical fault has occurred, the connected circuit should also be checked because replacing the protection card without correcting the original fault may cause the replacement board to fail again. System diagnostic information should be reviewed to identify which control function was affected. Where appropriate, electrical measurements should be performed using procedures suitable for the specific Mark V installation. Troubleshooting should always address the root cause rather than treating only the visible symptom.

6. What should be checked before replacing the DS200LPPAG1AAA?

Before replacing the board, verify the complete part number DS200LPPAG1AAA and confirm that the replacement is appropriate for the existing GE Mark V configuration. The original board position, connector locations and wiring arrangement should be documented before removal. It is also important to determine why the original board failed. If an external electrical fault, wiring problem or defective connected component caused excessive stress on the protection circuit, simply installing a new card may result in another failure. The condition of related circuit paths and connected components should therefore be checked during the replacement process. Proper shutdown, electrical isolation and electrostatic discharge precautions should be followed when handling the board. After installation, the relevant control and protection functions should be verified before returning the equipment to normal operation.

7. Can a faulty DS200LPPAG1AAA affect the operation of the control system?

Yes, depending on the circuit protected by the board, a fault can affect associated control functions. The protection card is part of the electrical architecture of the control system, so damage to the card or the circuits connected to it may interrupt or degrade the operation of related circuitry. The actual impact can range from an isolated circuit problem to a broader control-system issue if the affected circuit is important to other system functions. For this reason, engineers should evaluate the symptoms in the context of the complete Mark V control architecture. System alarms, affected I/O functions, power conditions and related boards should be reviewed together. This approach helps determine whether the protection card is the primary source of the problem or whether it has been affected by another underlying electrical fault.

8. What maintenance is recommended for the GE DS200LPPAG1AAA?

Maintenance should include regular inspection of the board, connectors and associated electrical circuits. During scheduled maintenance, check for contamination, corrosion, loose connections, physical damage, discoloration and signs of abnormal heating. The surrounding control cabinet should also be maintained in a clean and suitable operating condition because excessive contamination or poor environmental conditions can increase the risk of electrical problems. If system alarms indicate repeated faults in the circuit associated with the protection card, the underlying cause should be investigated rather than repeatedly replacing the board. When removing or installing the DS200LPPAG1AAA, use proper electrical isolation and electrostatic discharge protection procedures. After maintenance, verify the associated control functions and confirm that no abnormal electrical or diagnostic conditions remain before placing the equipment back into normal service.
