1. What is the main function of the GE DS200RTBAG3AHC Mark V Relay Terminal Board?

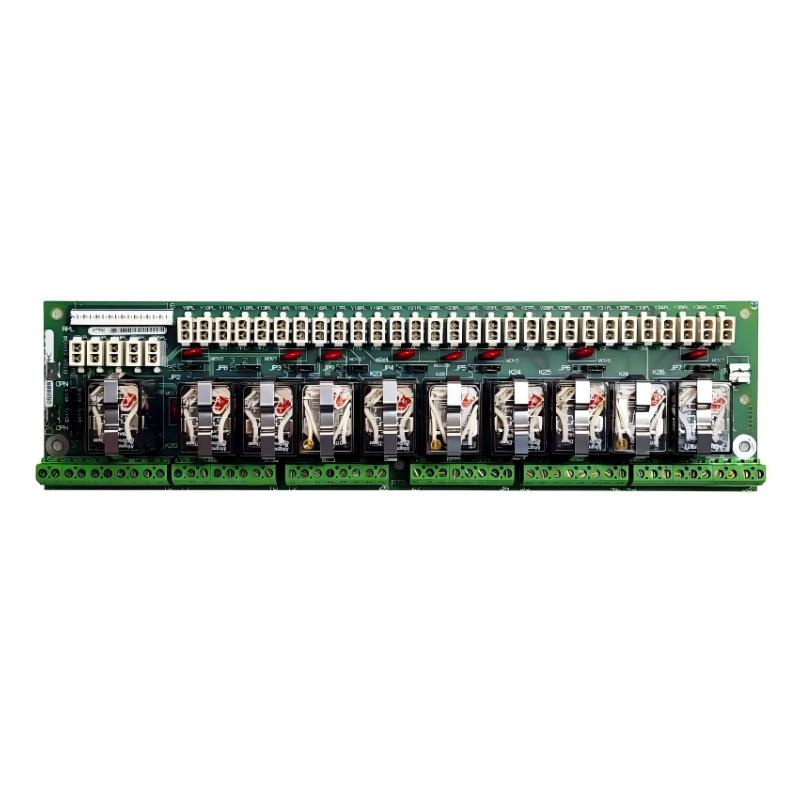

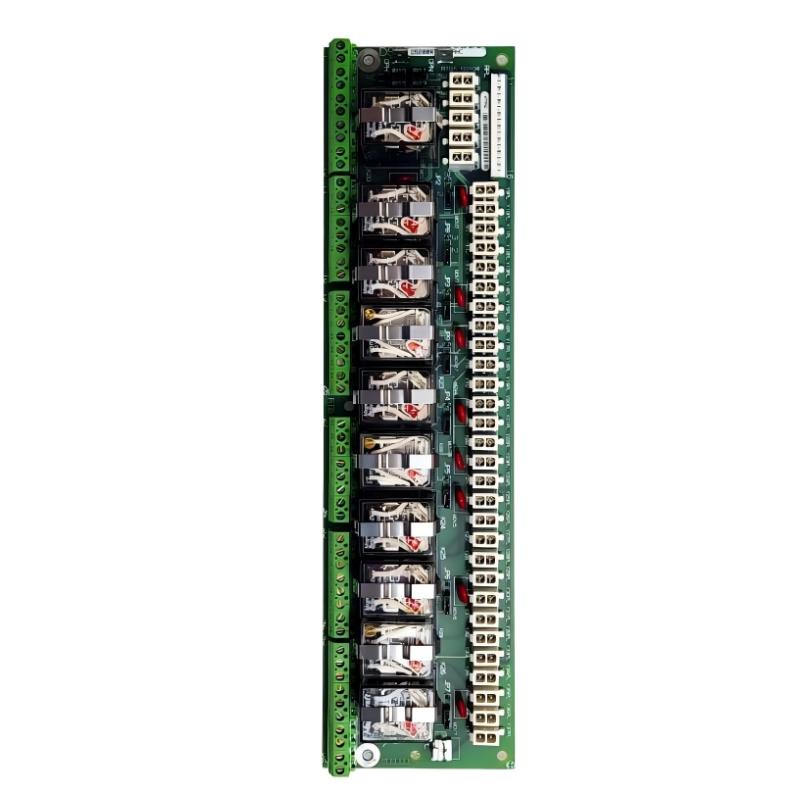

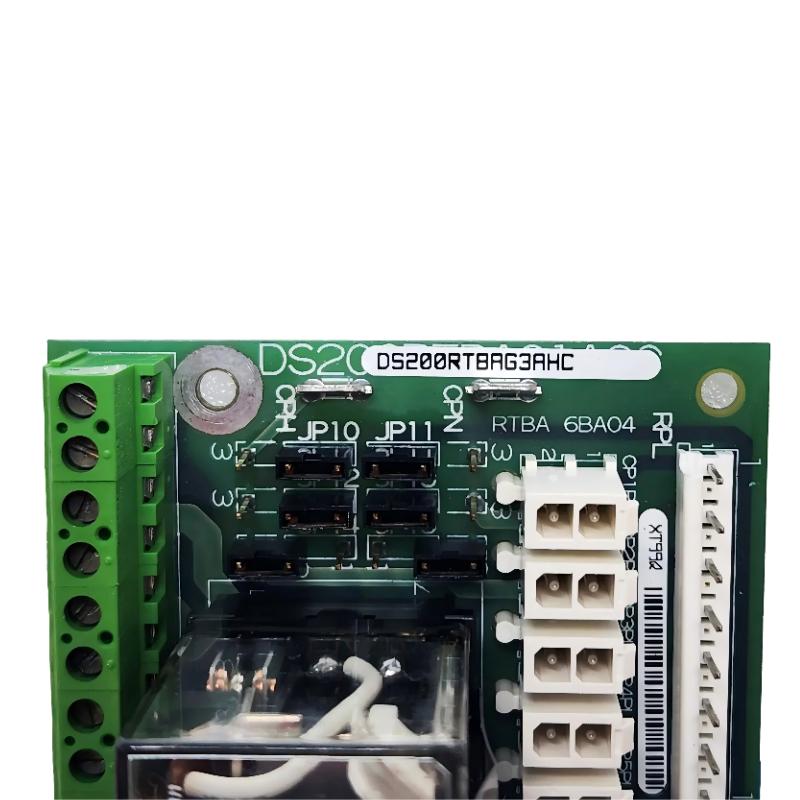

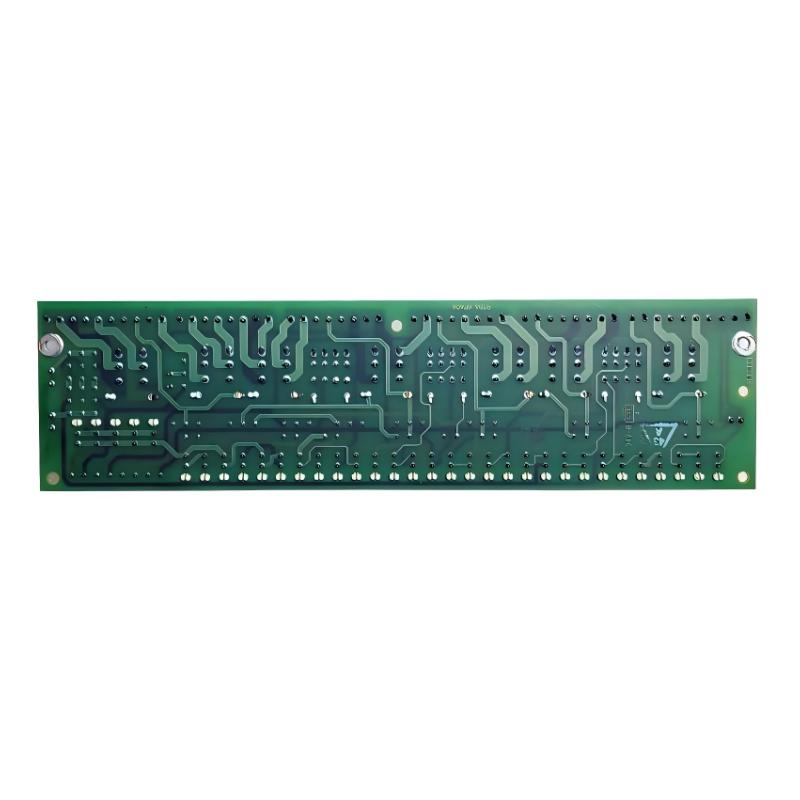

The GE DS200RTBAG3AHC is a Relay Terminal Board designed for use in GE Mark V turbine control systems. Its primary role is to provide a centralized termination and interface point for relay-related field wiring and control signals. External relay circuits, equipment status signals, permissive circuits, interlocks, and other discrete control connections can be routed through the terminal board to the appropriate Mark V control circuitry. This arrangement helps organize field wiring within the control cabinet and provides a convenient location for inspection, signal measurement, and maintenance. The exact purpose of each terminal depends on the specific turbine control configuration and should be confirmed using the applicable system documentation.

2. What types of signals can be connected to the DS200RTBAG3AHC?
The DS200RTBAG3AHC is intended for relay-related control and status signals used within Mark V turbine control applications. Depending on the specific system, these signals may include relay contact states, equipment status feedback, control commands, permissive signals, interlock circuits, and other discrete field signals. The actual terminal assignment is determined by the turbine’s electrical design and Mark V cabinet configuration. Therefore, technicians should not assume a universal terminal assignment based only on the board model. Before performing maintenance or rewiring, each terminal should be checked against the original system drawings to ensure that the correct field circuit is connected to the correct point.

3. How does the DS200RTBAG3AHC interface with the Mark V control system?
The DS200RTBAG3AHC provides an electrical termination interface between field relay circuits and the Mark V control system. Field devices and relay contacts are connected to designated terminal points, while associated signals are routed through the board and its connectors toward the relevant Mark V control circuitry. The board therefore forms part of the overall signal path rather than operating as an independent programmable controller. Reliable signal transmission depends on correct field wiring, secure terminal connections, properly seated connectors, and healthy downstream control circuitry. When troubleshooting a signal problem, the complete circuit path should be considered instead of assuming that the terminal board itself is the source of the fault.

4. How should a missing relay signal on the DS200RTBAG3AHC be diagnosed?
Begin by checking the field relay or device responsible for generating the signal. Verify that the relay operates correctly and that its contact state changes as expected. Next, inspect the corresponding terminal on the DS200RTBAG3AHC for loose screws, damaged wires, oxidation, or incorrect connections. If necessary, perform a continuity test on the associated field cable. The signal should then be checked at successive points along the circuit to determine where it is lost. If the correct signal is present at the terminal board but the Mark V system does not detect it, inspect the associated connectors and downstream control circuitry. Comparing measured values with the approved wiring documentation is an effective way to identify whether the problem is related to the field device, cable, terminal connection, board interface, or control system.

5. What precautions should be taken when replacing the DS200RTBAG3AHC?
Before replacement, the Mark V control system should be placed in an approved maintenance state and all required electrical isolation procedures should be followed. The existing board should be documented carefully before removal, including terminal numbers, field wire positions, connectors, and any relevant configuration details. Because multiple relay circuits can have similar wiring characteristics, reconnecting wires based solely on their physical position can result in incorrect circuit connections. The replacement board should be verified as the correct DS200RTBAG3AHC configuration before installation. After mounting the new board, every terminal and connector should be compared with the approved wiring documentation. Functional testing should then be performed to verify that all associated relay, status, permissive, and control signals operate correctly.

6. Can the DS200RTBAG3AHC be used for turbine interlock circuits?
The DS200RTBAG3AHC can be incorporated into Mark V turbine control applications involving relay-based interlocks, permissives, status signals, and control circuits when specified by the system design. Interlock circuits are used to prevent or permit certain turbine operations according to predefined conditions. The terminal board provides the physical connection point for these circuits, while the actual interlock logic is determined by the complete Mark V control architecture and associated relay circuitry. Therefore, the board itself does not independently determine whether an interlock condition is satisfied. Any changes to an interlock or protection circuit should be based on the approved turbine control drawings and should be verified through appropriate functional testing.

7. What can cause intermittent relay signals on the DS200RTBAG3AHC?
Intermittent relay signals may result from loose terminal connections, damaged field cables, poor connector contact, worn relay contacts, oxidation, mechanical vibration, or faults in associated control circuitry. Long-term operation in a turbine environment can expose wiring and connections to vibration and temperature changes, which may gradually reduce connection reliability. Electrical interference can also contribute to unstable signals if field wiring, grounding, or shielding is not properly arranged. Troubleshooting should cover the complete signal path, starting from the field relay and continuing through the cable, terminal connection, board connector, and control circuitry. Monitoring the signal under different operating conditions can also help identify intermittent faults that are difficult to reproduce during a static inspection.

8. What commissioning checks should be performed after installing the DS200RTBAG3AHC?
After installation, the board and all associated wiring should be checked against the approved Mark V system documentation. Confirm that every terminal and connector is correctly installed and that no field wires have been misplaced. Relay-related signals should then be tested individually to verify that the actual field contact state is correctly detected by the control system. Where applicable, permissive, interlock, equipment status, and control circuits should be tested under controlled conditions to confirm the expected system response. Associated alarms and status indications should also be checked. Finally, inspect the control cabinet for loose connections, incorrect wiring, or improperly seated connectors before returning the Mark V system to normal turbine operation.
