Technical Specifications

FAQ

1. What is the main function of the GE DS200SDCCG5AHD Drive Control Board?

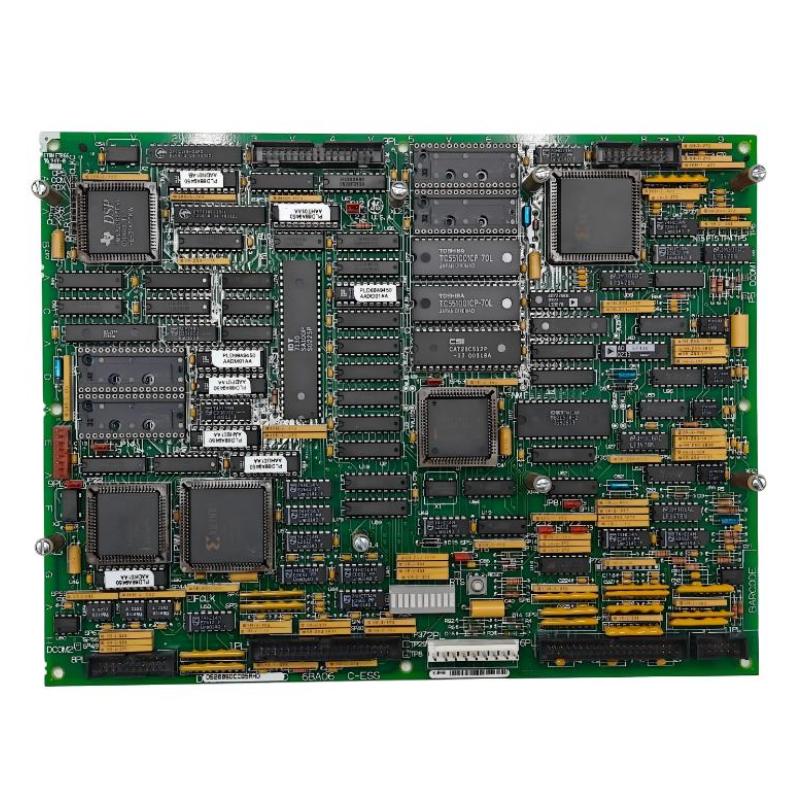

The GE DS200SDCCG5AHD is a Drive Control Board designed for GE Mark V control systems. It is responsible for processing drive-related control signals, monitoring operating conditions, and supporting diagnostic functions within the overall control architecture. The board works together with power supply, I/O, feedback, and other control components to coordinate drive operation. It is not normally used as an isolated control device, because its operation depends on communication and signal exchange with other parts of the Mark V system. Correct board configuration and reliable connections are therefore important for stable drive performance.

2. What types of functions does the DS200SDCCG5AHD perform in a Mark V system?
The DS200SDCCG5AHD performs several control-related tasks, including signal processing, drive control calculations, operating-status monitoring, and diagnostic processing. It receives information from associated control and feedback circuits and processes this information according to the configured drive control strategy. The resulting control signals are then exchanged with other components of the Mark V system. Because drive control requires continuous coordination between multiple hardware sections, a fault on the board may affect more than one operating function. When diagnosing a problem, it is therefore useful to evaluate the board together with its power, I/O, feedback, and communication interfaces.

3. What should be checked if the DS200SDCCG5AHD does not initialize correctly?
If the board does not initialize correctly, the first step is to verify that the required power supply is stable and reaches the appropriate board connections. The connectors should be inspected for loose engagement, contamination, damaged contacts, or incorrect installation. The board’s LED indicators should also be observed because their operating or diagnostic pattern can provide useful information about the startup condition. If the power and physical connections are correct but initialization still fails, associated control hardware, communication paths, memory, processor operation, and system configuration should be investigated. It is important to determine whether the problem originates on the board itself or from another component connected to the board.

4. How can a drive control fault associated with the DS200SDCCG5AHD be troubleshot?
Troubleshooting should begin by recording the exact fault indication and the operating condition under which it occurred. Check the board’s diagnostic indicators and verify that the control power supply remains within the required operating range. Next, inspect connectors, signal wiring, grounding, and communication interfaces for loose or damaged connections. If the fault involves drive feedback, the associated feedback source and wiring should also be checked. The Mark V system should then be evaluated for related alarms or abnormal control signals. Comparing the actual fault sequence with normal operating behavior can help distinguish between a board-level problem and a fault originating from an external drive, power, feedback, or I/O component.

5. What are common causes of unstable operation of the DS200SDCCG5AHD?
Unstable operation can result from power supply fluctuations, poor connector contact, damaged signal wiring, communication problems, grounding issues, electrical interference, or faults in associated Mark V hardware. Environmental conditions inside the control cabinet can also influence long-term reliability, particularly where vibration, excessive temperature, contamination, or poor ventilation are present. If the problem occurs intermittently, technicians should carefully inspect connectors and wiring rather than replacing the control board immediately. Monitoring the board during different operating conditions can help determine whether the instability is related to power, temperature, drive feedback, communication, or another external factor.

6. Can the DS200SDCCG5AHD be directly replaced with another DS200SDCC board?
A visually similar DS200SDCC board should not automatically be considered a direct replacement for the DS200SDCCG5AHD. Different board revisions and configurations can have different hardware characteristics, firmware requirements, memory arrangements, or application functions. Before replacement, the complete part number and revision information should be compared with the original board and the Mark V system documentation. The associated application, control configuration, connectors, and system requirements should also be verified. Using a board with an incorrect configuration may result in startup failures, communication problems, incorrect control behavior, or unexpected diagnostic alarms.

7. What role do the diagnostic indicators play during maintenance?
The diagnostic indicators on the DS200SDCCG5AHD provide technicians with a useful visual reference for determining the board’s operating condition. During normal operation, the indicators can show that the board has completed initialization and is processing control functions. Abnormal patterns may indicate a fault, initialization problem, communication issue, or another diagnostic condition. When troubleshooting, technicians should record the complete indicator sequence rather than relying on one illuminated LED. This information can then be compared with the relevant Mark V diagnostic information to narrow down the fault. LED information is most effective when combined with power measurements, connector inspection, system alarms, and operating data.

8. What checks should be performed after installing a replacement DS200SDCCG5AHD?
After installing a replacement board, verify the complete part number and configuration before energizing the system. Check that every connector is correctly seated and that associated power, I/O, feedback, and communication connections match the system documentation. After startup, observe the board’s diagnostic indicators and confirm that the initialization sequence completes normally. The drive should then be checked for correct communication, feedback signals, control response, alarms, and operating status. Functional testing should be performed under controlled conditions before returning the equipment to normal operation. If the original board was replaced because of a recurring fault, the associated external circuits should also be checked to ensure that the underlying cause has been addressed rather than simply replacing the affected control board.
