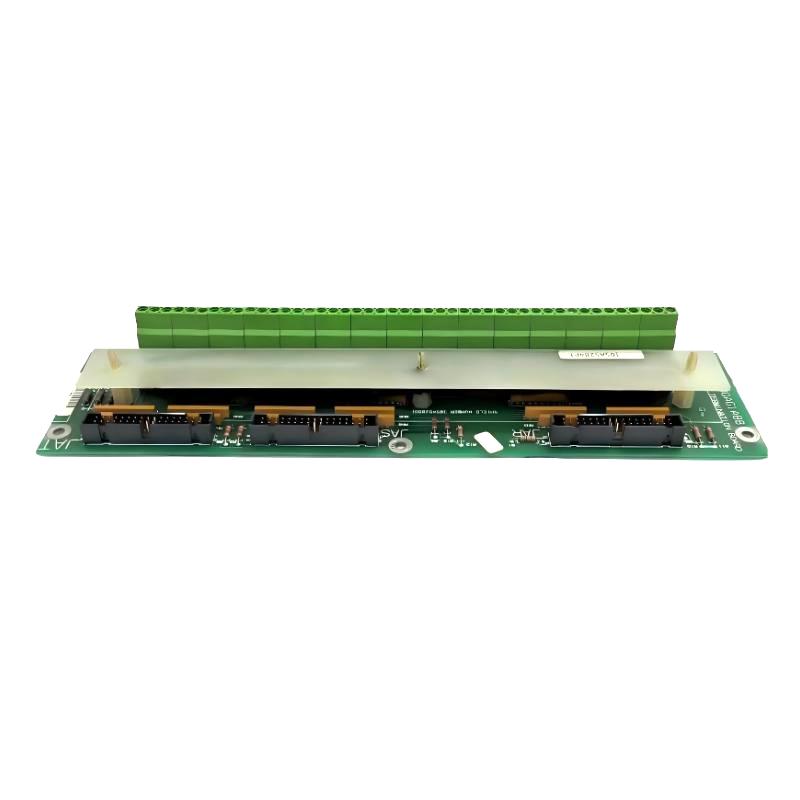

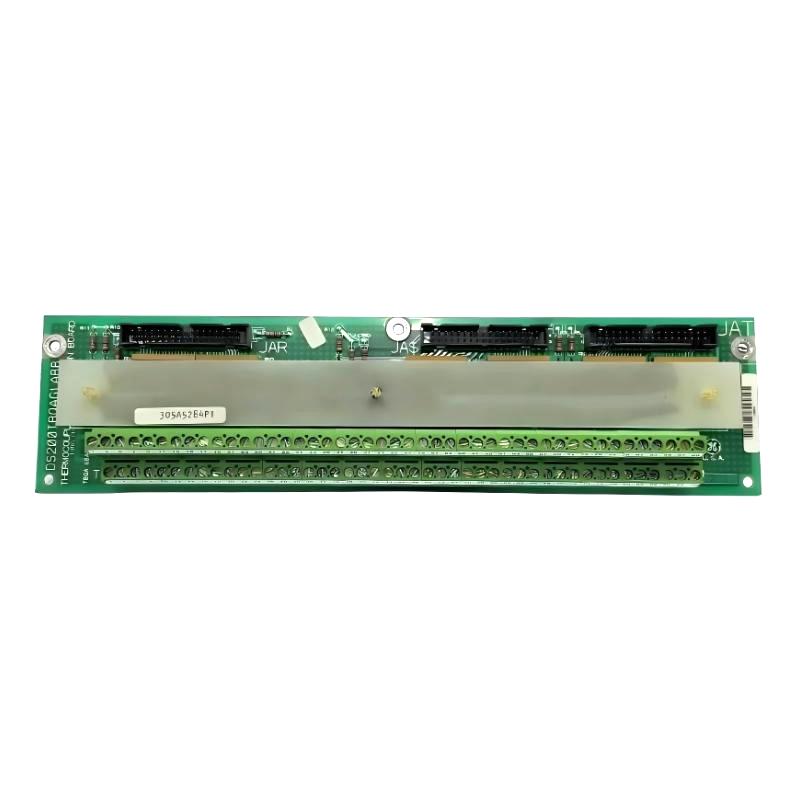

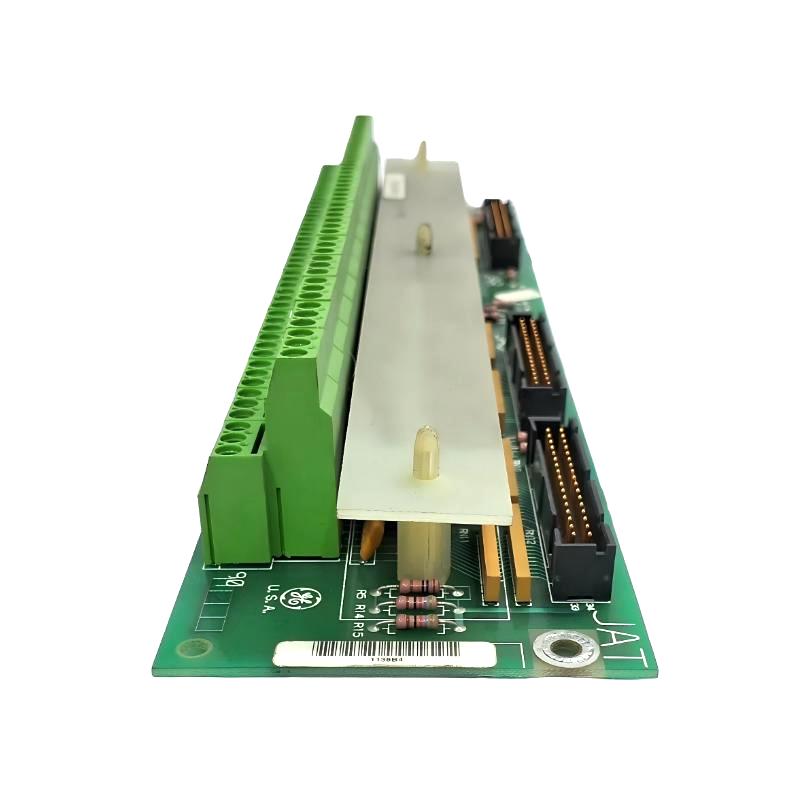

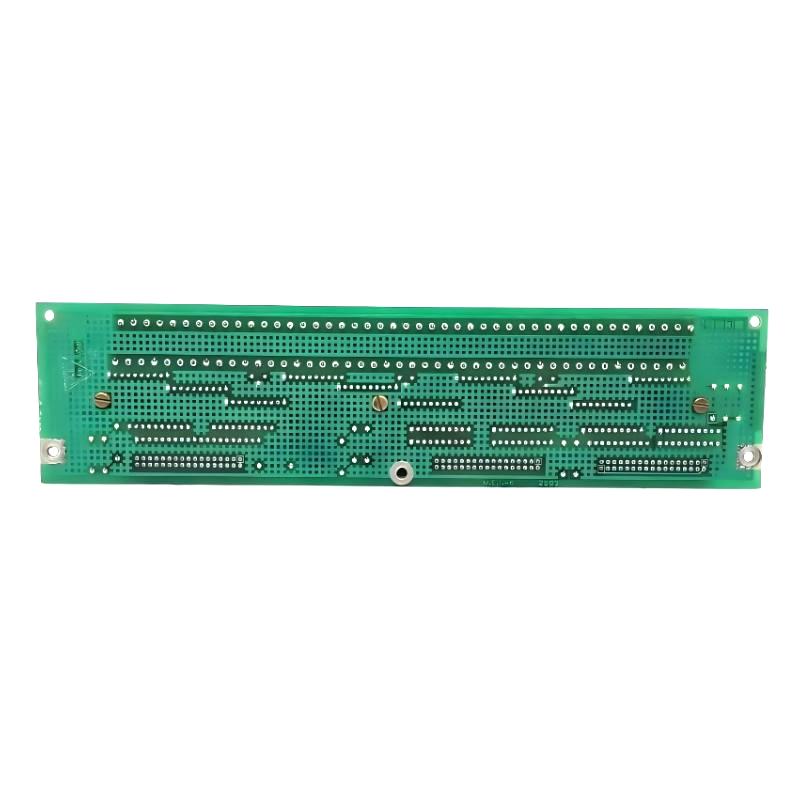

1. What is the main function of the GE DS200TBQAG1ABB Mark V Thermocouple Terminal Board?

The GE DS200TBQAG1ABB Mark V Thermocouple Terminal Board is an interface board designed for GE Mark V Speedtronic control systems. Its primary function is to provide a reliable connection point for thermocouple temperature sensors and transfer temperature measurement signals to the control system.

Thermocouples are widely used in industrial equipment because they can measure high temperatures and operate reliably in demanding environments. The DS200TBQAG1ABB provides organized terminal connections for field thermocouple wiring, allowing the control system to receive accurate temperature information.

In gas turbine and industrial automation applications, temperature monitoring is essential for equipment protection and performance control. The board helps monitor critical temperature points such as exhaust temperature, turbine components, combustion areas, and other important operating locations.

By providing stable thermocouple signal transmission, the DS200TBQAG1ABB supports reliable operation, fault detection, and protective control functions within the Mark V system.

2. Which systems and applications use the DS200TBQAG1ABB Thermocouple Terminal Board?

The DS200TBQAG1ABB is primarily used in GE Mark V Speedtronic control systems and is commonly applied in gas turbine control and industrial power generation environments.

Typical applications include gas turbines, steam turbines, generator systems, industrial combustion equipment, and other machinery that requires continuous temperature monitoring.

The board is installed inside control cabinets and acts as an interface between field thermocouple sensors and the main control system. It allows multiple temperature measurement signals to be connected in a structured and reliable manner.

In critical industrial processes, accurate temperature monitoring helps operators maintain safe operating conditions, optimize equipment performance, and identify abnormal conditions before serious failures occur.

3. How does the DS200TBQAG1ABB handle thermocouple temperature signals?

The DS200TBQAG1ABB handles thermocouple signals by providing terminal connections between field temperature sensors and the GE Mark V control system.

A thermocouple generates a small voltage signal based on temperature differences between the measurement point and reference point. The terminal board provides a stable connection path that transfers these signals to the corresponding control system input modules.

During installation, the correct thermocouple type and wiring method must be selected according to system requirements. Proper polarity connection is important because incorrect wiring may result in inaccurate temperature readings.

The quality of cable routing, shielding, and grounding also affects signal stability, especially in industrial environments with motors, generators, and high-power electrical equipment.

4. How can thermocouple signal faults on the DS200TBQAG1ABB be diagnosed?

When the DS200TBQAG1ABB experiences abnormal temperature readings, unstable signals, or signal loss, troubleshooting should begin with checking the complete signal path.

First, inspect the thermocouple wiring and terminal connections to confirm that cables are properly connected and free from damage. Loose terminals, broken wires, or incorrect polarity can cause inaccurate temperature measurements.

Next, check the thermocouple sensor itself to verify that it is operating correctly and producing the expected signal output.

The connection between the terminal board and the control system input module should also be inspected to ensure proper communication.

If field wiring and sensors are normal, further diagnosis should include checking system configuration parameters, I/O module status, and control system diagnostic information.

5. What advantages does the DS200TBQAG1ABB provide in GE Mark V temperature monitoring applications?

The DS200TBQAG1ABB provides a reliable and organized solution for connecting thermocouple temperature signals within GE Mark V control systems.

One of its main advantages is improved field wiring management. By providing dedicated terminal connections, the board simplifies installation, maintenance, and troubleshooting of temperature measurement circuits.

For gas turbine applications, accurate temperature monitoring is essential for maintaining combustion efficiency, protecting turbine components, and preventing overheating conditions.

The board supports stable signal transmission and helps ensure that temperature data collected from field sensors can be correctly processed by the control system.

Its compatibility with GE Mark V platforms makes it suitable for long-term industrial operation in demanding environments.

6. What should be considered when installing the DS200TBQAG1ABB?

Before installing the DS200TBQAG1ABB, the control system should be safely powered down and proper maintenance procedures should be followed.

During installation, thermocouple wires must be connected to the correct terminals according to the electrical drawings and system documentation. Incorrect wiring or reversed polarity may cause incorrect temperature readings.

Because thermocouple signals are low-voltage signals, proper cable routing and shielding practices should be used to reduce interference from electrical equipment.

After installation, each temperature input should be tested through the control system to confirm correct signal acquisition and accurate temperature display.

Regular inspection of terminal connections and wiring conditions is recommended to maintain reliable system performance.

7. What factors can affect the performance of the DS200TBQAG1ABB Thermocouple Terminal Board?

Several factors may influence the performance of the DS200TBQAG1ABB, including thermocouple condition, wiring quality, electrical interference, and environmental conditions.

Damaged thermocouples, poor connections, or incorrect wiring can result in unstable or inaccurate temperature signals.

Strong electromagnetic interference from motors, generators, variable frequency drives, and power equipment may introduce signal noise and affect measurement reliability.

Environmental conditions such as excessive humidity, contamination, or improper installation practices may also reduce long-term reliability.

When problems occur, the entire temperature measurement circuit should be inspected, including sensors, cables, terminal connections, input modules, and system settings.

8. Why is the DS200TBQAG1ABB important in industrial control and turbine monitoring systems?

The DS200TBQAG1ABB is an important component in industrial control systems because it provides reliable thermocouple signal connection for temperature monitoring applications.

In gas turbines and other critical industrial machines, temperature data is essential for controlling operation, protecting equipment, and improving efficiency. Accurate temperature measurement allows the control system to detect abnormal conditions and respond quickly.

When integrated with GE Mark V Speedtronic systems, the board supports temperature monitoring, alarm functions, and equipment protection strategies.

With stable signal connection capability, industrial reliability, and compatibility with GE control platforms, the DS200TBQAG1ABB plays an important role in maintaining safe and efficient operation of industrial equipment.
