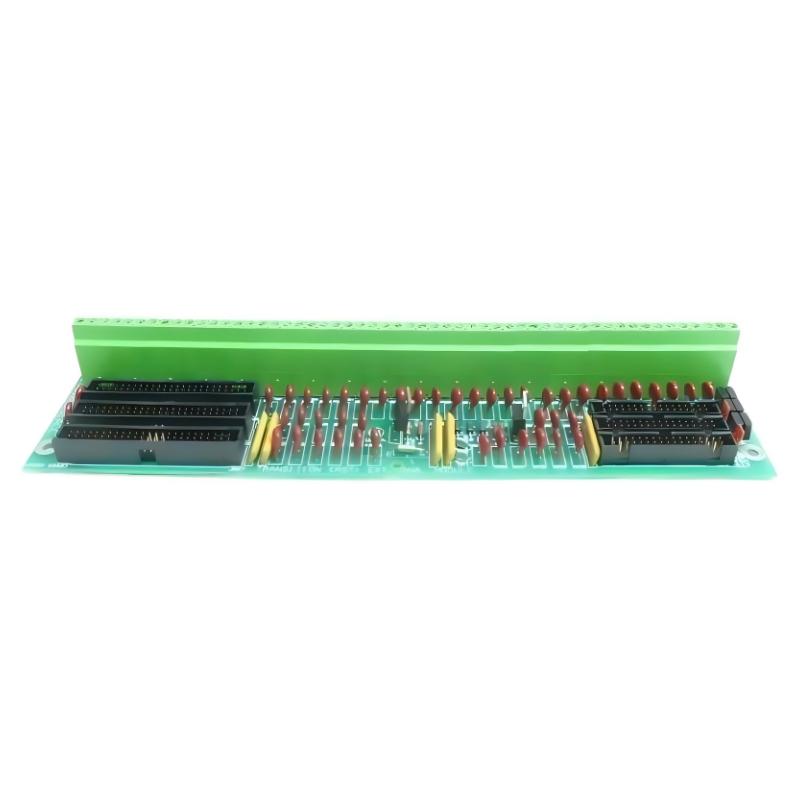

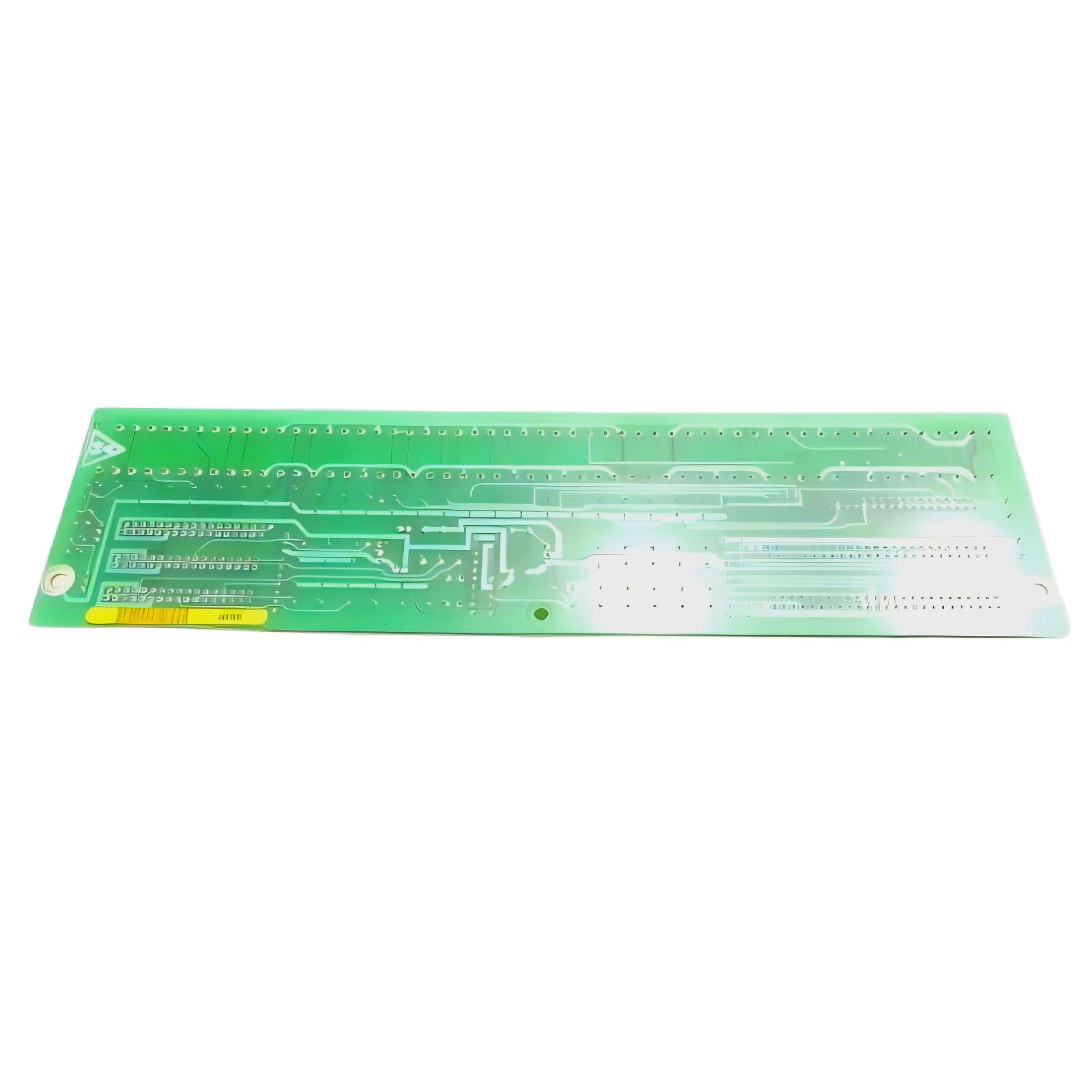

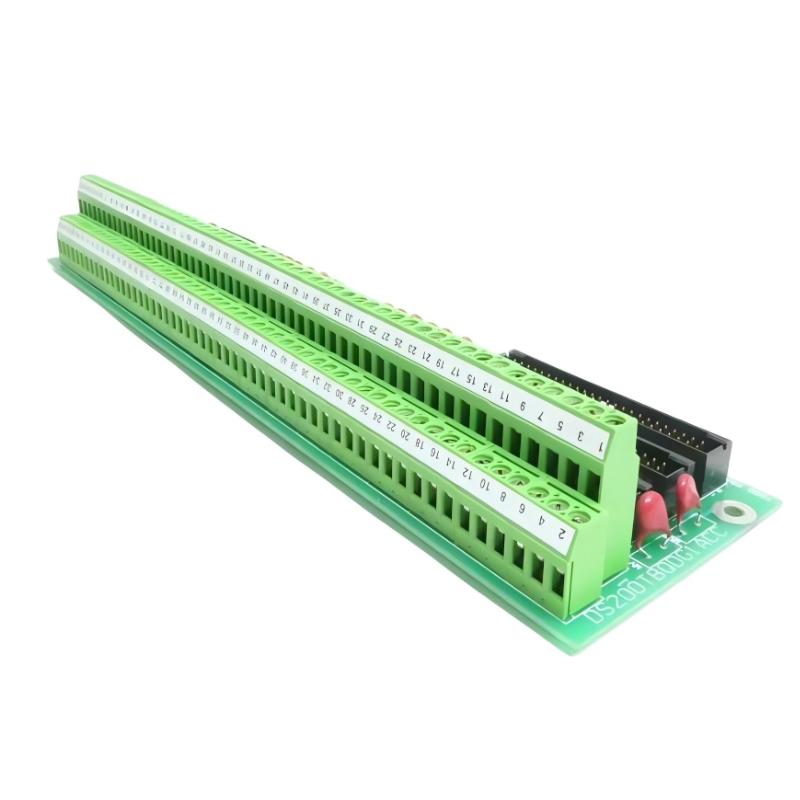

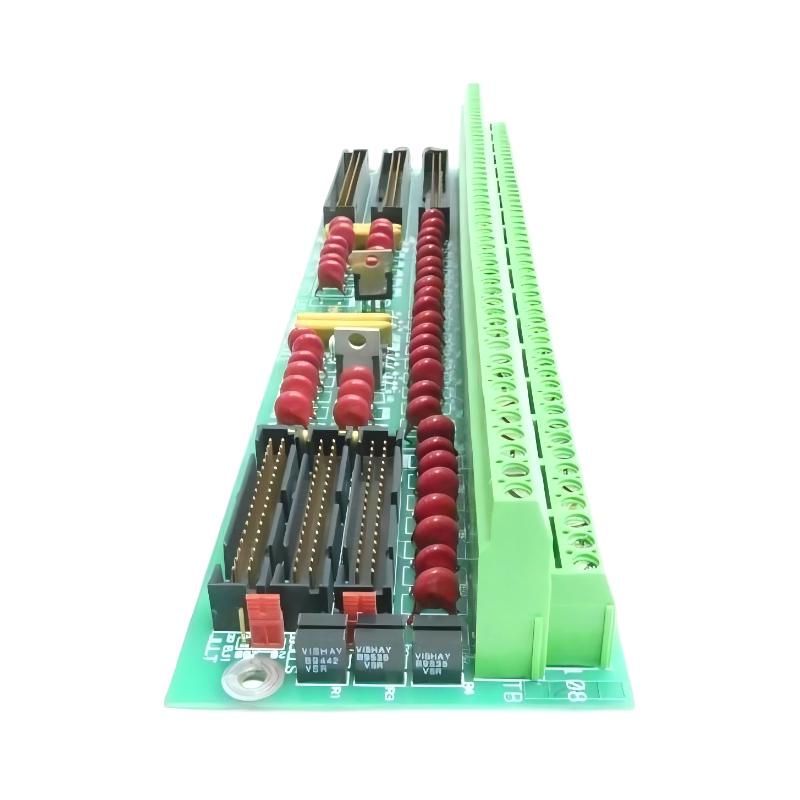

1. What is the primary function of the GE DS200TBQDG1ACC RST Extended Analog Termination Board?

The GE DS200TBQDG1ACC RST Extended Analog Termination Board is designed to provide a reliable interface for terminating and distributing analog signals within the GE Mark V Speedtronic control system. It serves as the connection point between field instrumentation and the control system’s analog I/O modules.

The board allows multiple field devices, including pressure transmitters, temperature sensors, flow transmitters, and other analog instruments, to be connected in an organized manner. By providing secure terminal connections, it ensures stable signal transmission while simplifying wiring management inside the control cabinet.

Its extended termination capability makes it especially suitable for applications requiring a large number of analog signal connections while maintaining high system reliability and simplified maintenance.

2. Which systems are compatible with the DS200TBQDG1ACC?

The DS200TBQDG1ACC is specifically designed for use with the GE Mark V Speedtronic turbine control platform. It is commonly installed in gas turbine control systems, steam turbine control systems, power generation facilities, and industrial automation equipment utilizing the Mark V architecture.

Because it functions as an analog termination interface, the board works together with GE analog I/O modules rather than operating independently. It provides the physical wiring interface required for communication between field devices and the control processor.

Its compatibility with existing Mark V systems makes it suitable for equipment upgrades, replacement projects, and routine maintenance without requiring major system modifications.

3. How does the DS200TBQDG1ACC improve analog signal reliability?

The board improves signal reliability by providing organized analog signal routing and secure terminal connections between field devices and the control system. Proper termination reduces wiring errors and minimizes signal degradation during transmission.

Industrial environments often contain electrical noise generated by motors, variable frequency drives, generators, and switching equipment. Correct installation practices, including shielded cables and proper grounding, help the board maintain stable analog signal quality even in electrically noisy environments.

Reliable signal transmission allows the control system to accurately monitor critical process variables and execute precise control actions, improving both operational performance and equipment protection.

4. How should analog signal problems be diagnosed on the DS200TBQDG1ACC?

Troubleshooting should begin by inspecting all external wiring connected to the terminal board. Loose terminals, damaged cables, or incorrect wiring are among the most common causes of unstable analog signals.

Next, verify that the connected transmitters, sensors, and other field instruments are functioning properly and producing expected output values. Comparing live measurements with field instrument readings can quickly identify abnormal devices.

Technicians should also inspect the connection between the termination board and the Mark V I/O modules while reviewing controller diagnostics and channel configuration. Systematic troubleshooting of the complete signal path usually provides the fastest method of locating the fault.

5. What are the advantages of using the DS200TBQDG1ACC in a Mark V control system?

The DS200TBQDG1ACC offers centralized analog signal termination, making field wiring more organized and easier to maintain. This reduces installation time and simplifies future troubleshooting or equipment replacement.

Its industrial-grade PCB construction provides reliable operation under demanding environmental conditions commonly found in power plants and industrial facilities. Stable analog signal transmission improves control accuracy and enhances the overall reliability of the automation system.

The board also supports efficient maintenance by allowing technicians to inspect and service field connections without disturbing other system components.

6. What should be considered during installation of the DS200TBQDG1ACC?

Before installation, all system power should be isolated and appropriate lockout/tagout procedures should be followed to ensure personnel safety.

Field wiring should be connected according to the official electrical drawings and terminal assignments. Signal polarity, shielding, grounding, and cable routing should be carefully verified before energizing the system.

Analog signal cables should be separated from high-voltage or high-current power cables to minimize electromagnetic interference. After installation, each analog channel should be tested to confirm accurate signal transmission and proper communication with the control system.

Routine inspections of terminal tightness and cable condition are recommended to maintain long-term reliability.

7. What factors can affect the performance of the DS200TBQDG1ACC?

Several factors can influence the performance of the termination board, including loose wiring connections, damaged field cables, incorrect terminal assignments, failed sensors, and configuration errors within the control system.

Environmental conditions such as excessive vibration, dust accumulation, moisture, and electromagnetic interference may also affect signal quality over time.

Preventive maintenance, including periodic inspection of terminal connections, cleaning of the control cabinet, verification of grounding integrity, and testing of field devices, can significantly improve long-term operating reliability and reduce unexpected downtime.

8. Why is the DS200TBQDG1ACC important in industrial automation and turbine control systems?

The DS200TBQDG1ACC serves as a critical interface between field instrumentation and the GE Mark V control platform. Accurate analog signal transmission is essential for monitoring operating conditions, regulating process variables, and protecting critical equipment.

In gas turbines and other industrial machinery, continuous monitoring of temperature, pressure, vibration, and flow enables the control system to respond quickly to changing operating conditions. Reliable signal termination helps ensure that these measurements remain accurate throughout long-term operation.

Its dependable performance, robust industrial design, excellent compatibility with GE Mark V systems, and ease of maintenance make the DS200TBQDG1ACC an important component in power generation, process automation, and turbine control applications.
