1. What is the main function of the GE DS200TCPDG1BEC Power Distribution Board?

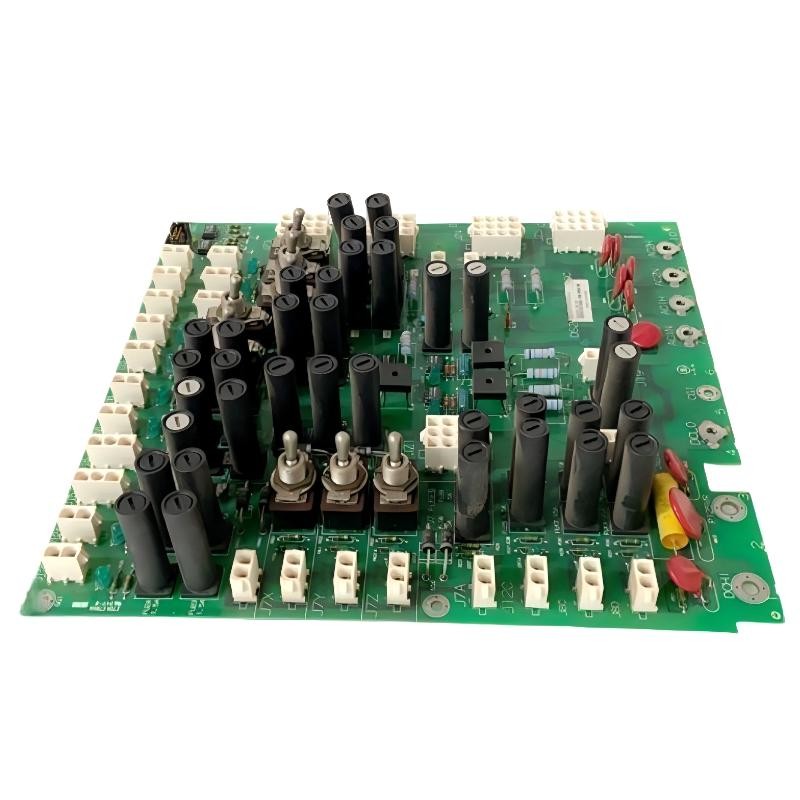

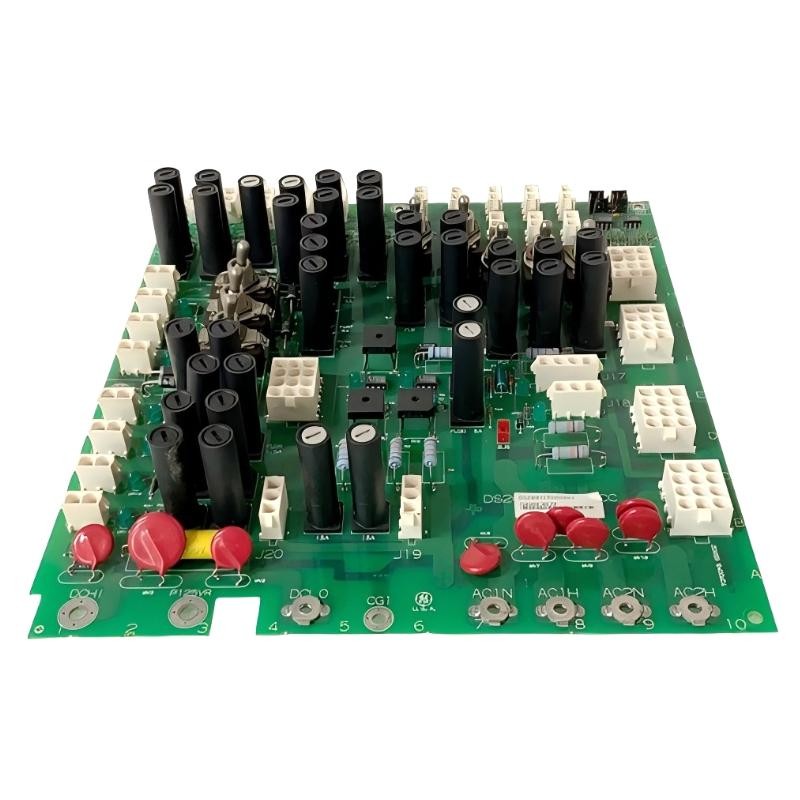

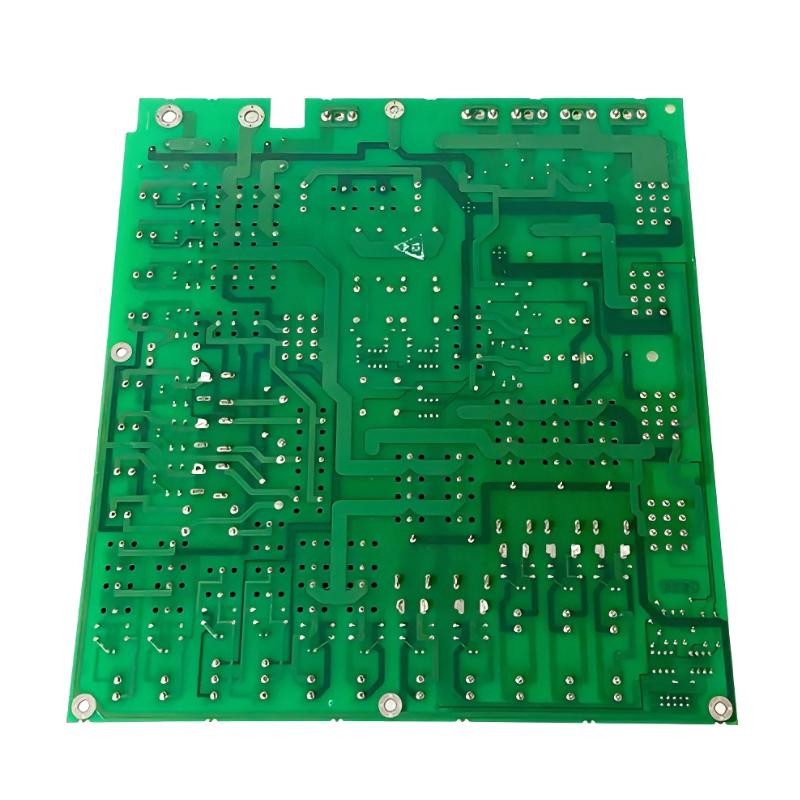

The DS200TCPDG1BEC is a power distribution board used in the GE Mark V turbine control system. Its primary function is to distribute electrical power to associated control-system circuits and provide the required power paths within the control architecture. The board works together with other Mark V power and control components to support stable operation of processors, I/O circuits, communication equipment, and related control hardware. Reliable power distribution is essential because interruptions, unstable supply conditions, or poor electrical connections can cause multiple system-level symptoms.

2. What type of system is the DS200TCPDG1BEC designed for?
The DS200TCPDG1BEC is designed for GE Mark V turbine control applications. It forms part of the electrical and control infrastructure installed within the Mark V control cabinet. Its actual connections and power distribution role depend on the specific turbine control configuration. When installing or replacing the board, technicians should verify the existing cabinet wiring and associated power circuits rather than relying only on the board model number. Correct identification of the intended installation position and connected circuits is important for maintaining the original system configuration.

3. What symptoms may indicate a problem with the DS200TCPDG1BEC?
A problem with the power distribution board may appear as loss of power to associated circuits, unexpected control-board faults, I/O failures, communication problems, system alarms, or intermittent equipment operation. The exact symptom depends on which distribution path or connection is affected. Loose connectors can cause intermittent faults, while a more serious electrical failure may result in complete loss of power to a connected circuit. Since similar symptoms can originate from external power supplies or downstream equipment, the complete power path should be checked before determining that the board itself has failed.

4. How can a DS200TCPDG1BEC power distribution fault be diagnosed?
Begin by identifying which control-system function or circuit is affected. Check the incoming power and verify that the board receives the expected supply. Then inspect connectors, terminals, cables, and visible components for loose connections, overheating, contamination, or physical damage. The relevant outgoing power paths should also be checked to determine whether the problem is limited to one circuit or affects multiple circuits. If the input is normal but an output distribution path is abnormal, further testing of the board and associated wiring is required. All electrical measurements should be performed according to the applicable site safety procedures.

5. What are common causes of DS200TCPDG1BEC faults?
Common causes include unstable power input, loose electrical connections, damaged cables, poor connector contact, excessive electrical loading, overheating, contamination, component aging, and incorrect maintenance procedures. A fault in a connected downstream device can also create abnormal loading and produce symptoms that appear to originate from the power distribution board. For this reason, replacing the board without checking the associated power circuits may not solve the underlying problem. A systematic inspection of the input supply, distribution paths, connectors, and connected loads provides a more reliable method of identifying the actual fault.

6. How should the DS200TCPDG1BEC be replaced?
Before replacement, the GE Mark V control system should be placed in an appropriate safe maintenance condition. The existing board’s position, connector locations, cable routing, and power connections should be documented before disconnection. After the required electrical isolation has been completed, carefully remove the existing board and install the replacement in the designated position. Reconnect all cables and connectors according to the original configuration, ensuring that each connection is secure and correctly positioned. Before returning the system to normal operation, perform the required electrical and functional checks.

7. What precautions should be taken when handling the DS200TCPDG1BEC?
The DS200TCPDG1BEC should be handled as a sensitive electronic circuit board. Appropriate ESD protection should be used during installation, inspection, and replacement to reduce the risk of static damage to electronic components. Avoid touching exposed circuitry or connector contacts unnecessarily, and hold the board by suitable non-component areas when handling it. The board should also be protected from moisture, dust, conductive contamination, and mechanical impact. Electrical power must be isolated in accordance with the applicable maintenance procedure before working on the board or its associated circuits.

8. What should be checked after installing a replacement DS200TCPDG1BEC?
After installation, verify that the board is correctly secured and that all power and signal connections have been restored to their proper positions. Check the incoming supply and confirm that the expected power is available through the relevant distribution paths. Review the Mark V system for power-related alarms, board status indications, or communication faults. The operation of affected control, I/O, and communication circuits should then be verified according to the site’s maintenance procedure. If the board supplies power to critical turbine control functions, appropriate functional testing should be completed before returning the system to normal operation.
