1. What is the main function of the GE DS200TCPSG1AME DC Input Power Supply Board?

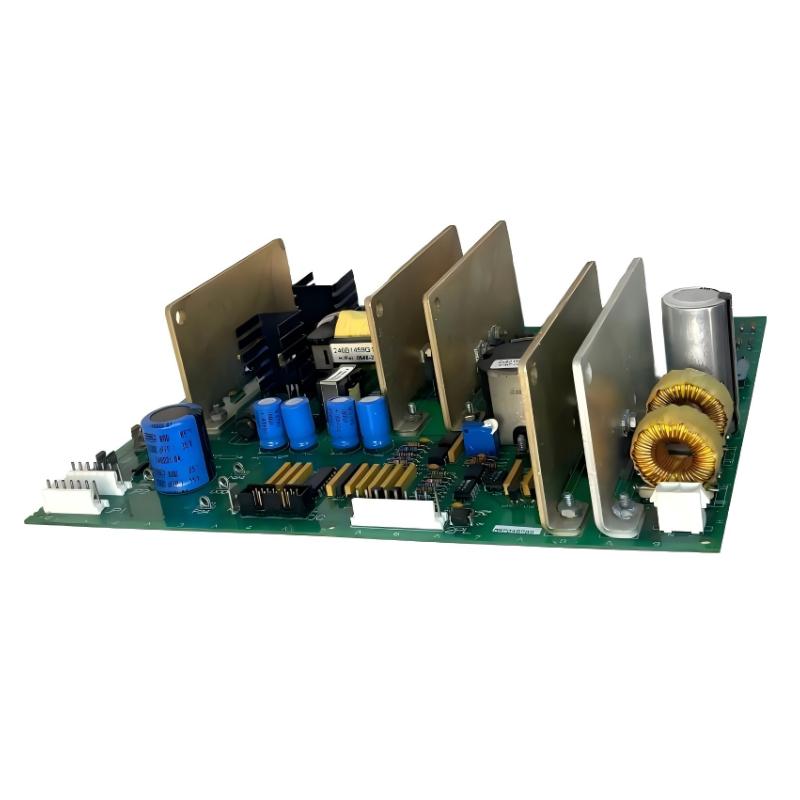

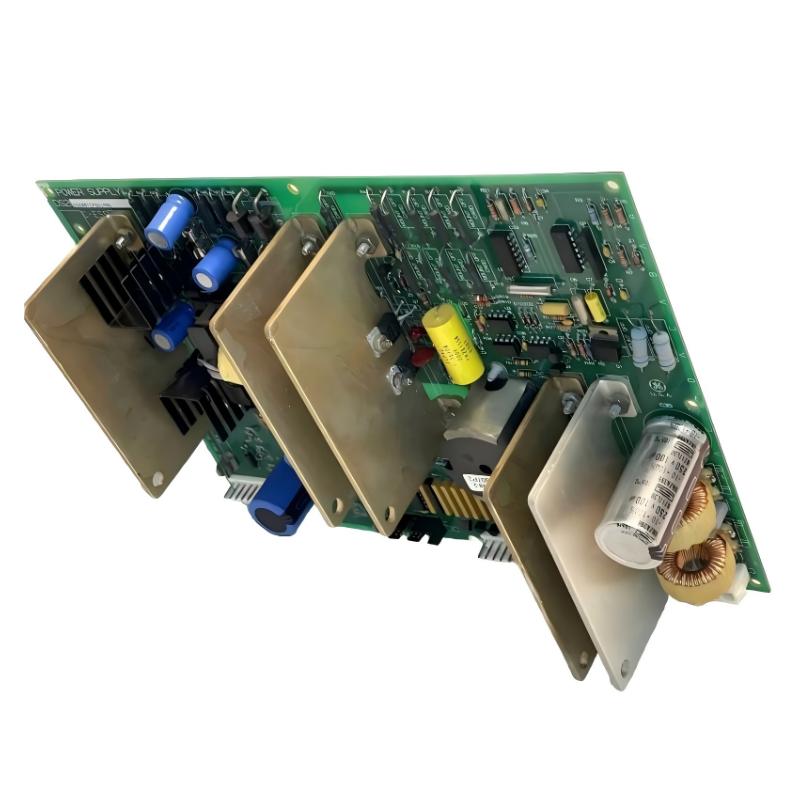

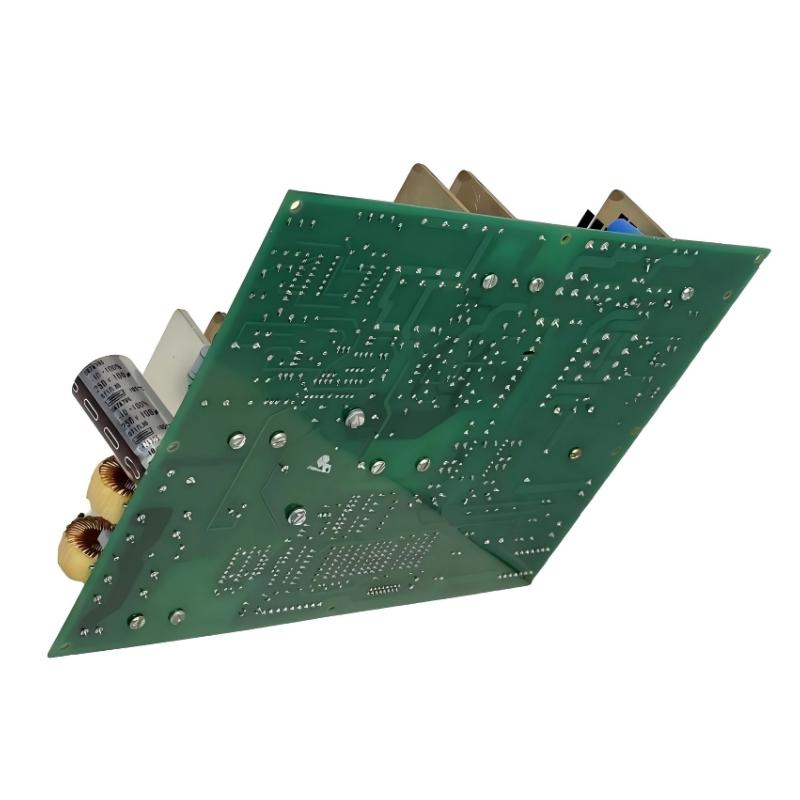

The DS200TCPSG1AME is a DC input power supply board designed for use in the GE Mark V turbine control system. Its main role is to receive the required DC input power and provide the appropriate power interface for associated control-system circuits. Stable power is essential for the operation of processors, control logic, I/O circuits, and other electronic components within the Mark V architecture. A properly functioning power supply board helps maintain consistent electrical conditions and supports reliable operation of the turbine control system.

2. What type of system is the DS200TCPSG1AME used in?
The DS200TCPSG1AME is associated with GE Mark V turbine control systems. It forms part of the control cabinet’s power infrastructure and works with other Mark V boards and electrical components. Its exact electrical role depends on the configuration of the individual turbine control system. When installing or replacing this board, the existing power wiring, connector arrangement, and system configuration should be checked carefully to ensure that the board is connected to the correct circuits and that the original power distribution architecture is maintained.

3. What symptoms may indicate a DS200TCPSG1AME power supply problem?
A problem with the DS200TCPSG1AME may result in unstable or missing DC power to connected control circuits. Typical symptoms can include control board faults, processor-related alarms, I/O abnormalities, communication problems, unexpected system resets, or failure of associated circuits to operate normally. Intermittent faults may occur when there is a poor connector or wiring connection, while a more serious internal failure may cause a persistent loss of power. Because external DC power sources and connected circuits can produce similar symptoms, the complete power supply path should be checked during troubleshooting.

4. How should the DS200TCPSG1AME be troubleshot when a DC power fault occurs?
Troubleshooting should begin by identifying the specific circuit or system function affected by the power problem. Verify that the external DC input supply is present and within the required operating range. Next, inspect the board connectors, terminals, cables, and visible components for loose connections, overheating, contamination, or physical damage. The relevant output circuits should also be checked to determine whether the problem is limited to a particular power path. If the input supply is normal but the board does not provide the expected output condition, further inspection of the board and associated circuitry is required.

5. What are common causes of DS200TCPSG1AME failures?
Common causes include unstable or incorrect DC input power, loose connections, damaged cables, poor connector contact, electrical overload, overheating, contamination, component aging, and improper maintenance. A short circuit or abnormal load in a downstream circuit can also place additional stress on the power supply board and create symptoms that resemble an internal board failure. Long-term electrical and thermal stress may gradually reduce component reliability. For this reason, technicians should check both the board and the connected power circuits before replacing the DS200TCPSG1AME.

6. How should the DS200TCPSG1AME be replaced?
Before replacement, the GE Mark V control system should be placed in the appropriate safe maintenance condition according to the site’s procedures. The existing board position, connector locations, cable routing, and DC power connections should be documented before disconnecting the original board. After the required electrical isolation has been completed, carefully remove the existing board and install the replacement in the designated position. Reconnect the cables and connectors according to the original configuration, then verify every connection before restoring power. After installation, appropriate electrical and functional checks should be completed before returning the system to normal operation.

7. What precautions should be taken when handling the DS200TCPSG1AME?
The DS200TCPSG1AME is an electronic power supply board and should be handled carefully during installation and maintenance. Appropriate ESD protection should be used to minimize the risk of static damage to sensitive components. Before working on the board, the applicable electrical isolation procedure must be followed because DC power circuits can present significant electrical hazards. Avoid touching exposed electronic components and connector contacts unnecessarily, and protect the board from moisture, dust, conductive contamination, and mechanical impact. Correct handling procedures help prevent damage to both the replacement board and the surrounding Mark V equipment.

8. What should be checked after installing a replacement DS200TCPSG1AME?
After installation, confirm that the board is securely installed and that all DC input and associated connections are correctly positioned. Verify that the incoming DC supply is stable and that the relevant power circuits receive the expected electrical supply. Check the Mark V system for power-related alarms, processor faults, I/O abnormalities, or communication errors. The affected control circuits should then be tested according to the site’s maintenance and commissioning procedures. If the board supplies power to critical turbine control functions, appropriate functional verification should be completed before the system is returned to normal service.
