1. What is the GE DS200TCQBG1BBA Extended Analog I/O Board mainly used for?

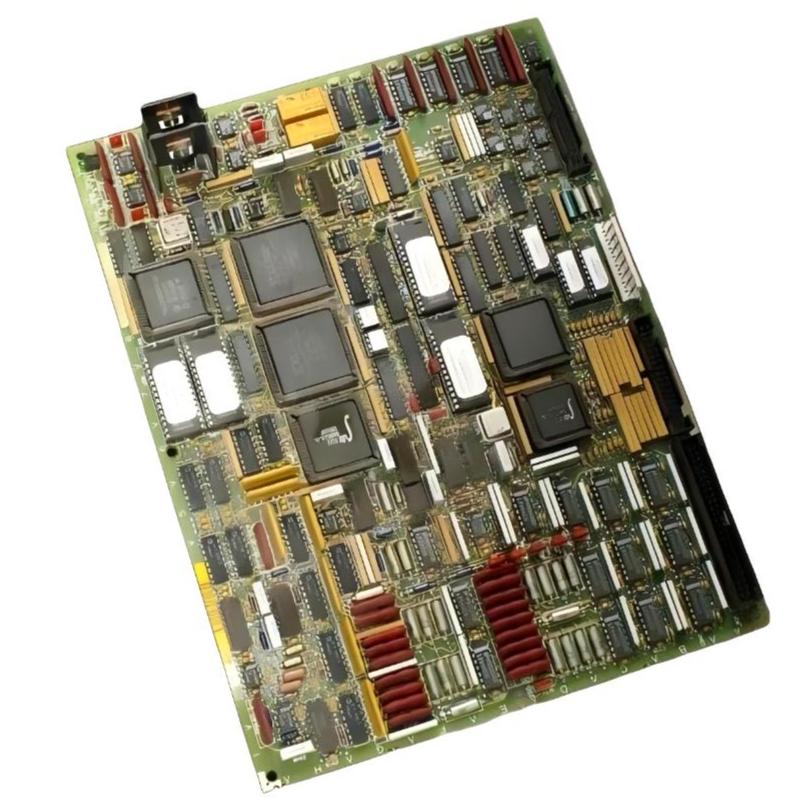

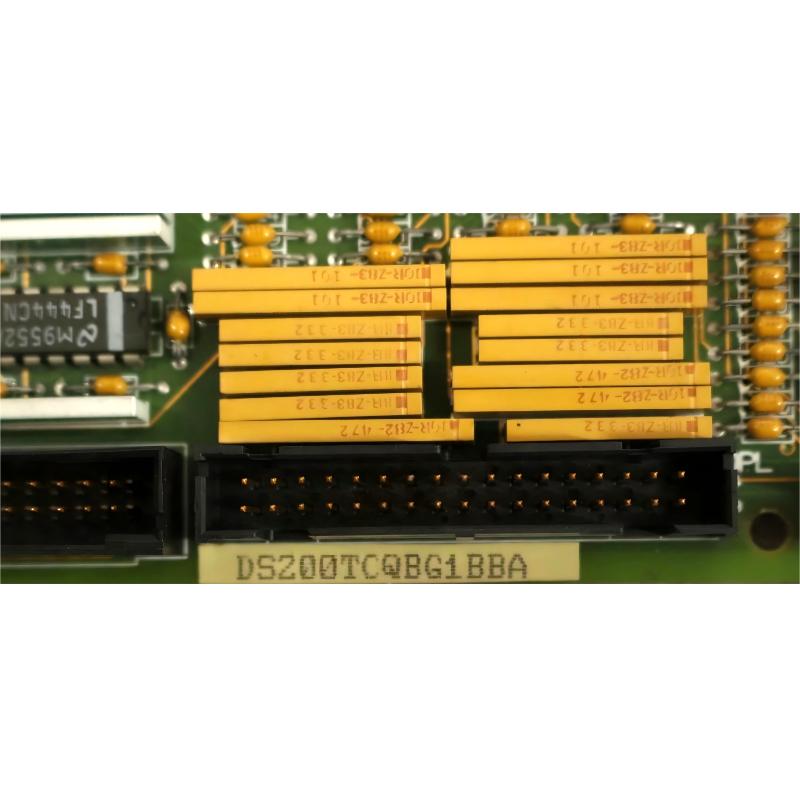

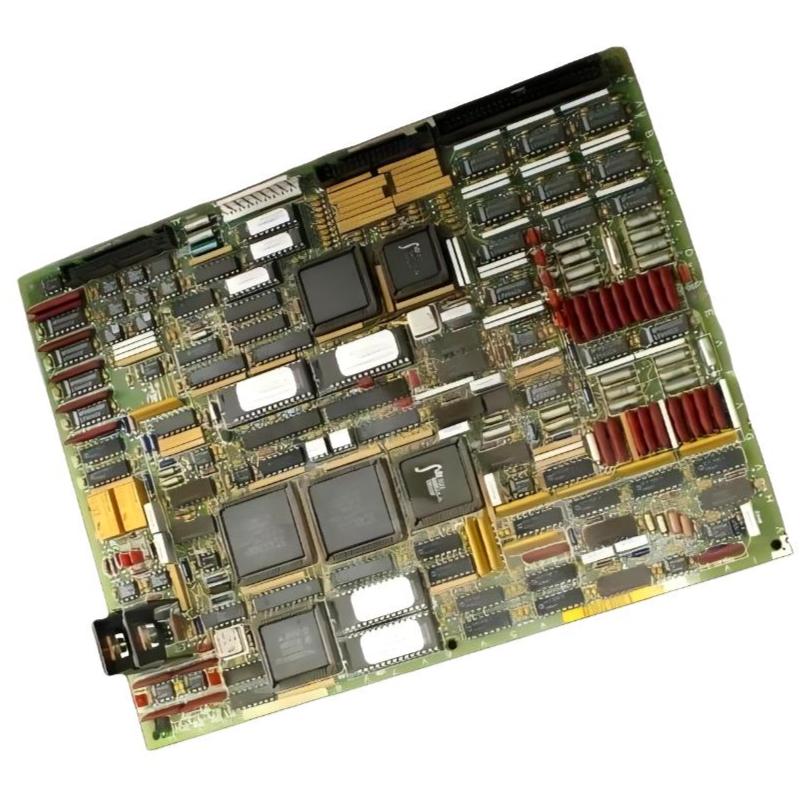

The DS200TCQBG1BBA is an Extended Analog I/O Board used in the GE Mark V Speedtronic turbine control system. Its primary purpose is to provide additional analog input, analog output and signal-conditioning capability for the control system. The board can interface with field instrumentation and control devices, process incoming analog signals and provide conditioned information to the Mark V control logic. In turbine applications, these functions can support process monitoring, actuator control and other operations requiring analog signal processing. When an analog measurement or control response becomes abnormal, the TCQB board and its associated signal path may need to be investigated as part of the overall troubleshooting process.

2. What types of analog signals can the DS200TCQBG1BBA process?
The DS200TCQBG1BBA is intended to handle various analog signals used within Mark V turbine control applications. Depending on the system configuration, these may include 4–20 mA signals, voltage signals, position feedback, temperature signals and other turbine-related analog measurements. Different field devices can have different output ranges and electrical characteristics, so the exact function of each channel must be determined from the original system configuration. The board uses its input, output and signal-conditioning circuits to make field signals suitable for use by the control system. During maintenance, technicians should verify the actual I/O configuration instead of assuming a channel function solely from its connector or channel number.

3. How does the DS200TCQBG1BBA differ from a standard Analog I/O Board?
The DS200TCQBG1BBA is an Extended Analog I/O Board designed to provide additional analog signal-processing capability within the Mark V system. It can be used when a turbine control installation requires more analog signal interfaces for field instrumentation and control functions. The actual role of the TCQB board depends on the complete Mark V hardware configuration, terminal board arrangement and application logic. For this reason, replacing or upgrading the board requires more than simply matching the general product description. The complete part number, board revision, terminal connections and system configuration should be verified to ensure that the replacement is appropriate for the specific installation.

4. How should an abnormal analog input on the DS200TCQBG1BBA be diagnosed?
When an analog input becomes abnormal, troubleshooting should begin at the field device and proceed through the complete signal path. First verify that the sensor or transmitter is operating correctly and measure its actual output with an appropriate test instrument. Then inspect the field wiring, terminals and terminal board for broken conductors, short circuits, loose connections or poor contact. The cable and connectors between the terminal board and DS200TCQBG1BBA should then be checked. If the actual field signal is correct but the corresponding value in the Mark V system remains abnormal, the relevant TCQB input channel and signal-conditioning circuitry should be investigated. Mark V diagnostic information should also be reviewed to determine whether the problem is isolated to one channel or related to a common power, connection or configuration issue.

5. What should be checked when the DS200TCQBG1BBA has an abnormal analog output?
When an analog output appears incorrect, first verify that the Mark V control logic is generating the expected output command. The corresponding TCQB output channel, field connector, terminal board and cable leading to the controlled device should then be inspected. For a 4–20 mA output, the actual output current should be measured with a suitable instrument and compared with the commanded value. If the control-system command is correct but the measured board output is incorrect, the output channel and associated signal-conditioning circuitry should be investigated. If the board output is correct but the field device does not respond as expected, the field wiring, load and actuator or receiving device should be checked. Measuring the signal at different points is an effective way to isolate the problem.

6. What should be considered when replacing a DS200TCQBG1BBA?
Before replacing the DS200TCQBG1BBA, the applicable equipment should be safely powered down and appropriate electrostatic protection procedures should be followed. The locations of all connectors, cables and hardware configuration settings should be carefully documented before removing the original board. Taking photographs before disassembly can also help prevent wiring mistakes during reinstallation. Because different connectors within a Mark V system can carry different signal functions, every connection must be returned to its original position. After installation, verify that the board is securely mounted and that all connectors are fully seated. Once power is restored, check the board and system diagnostic status before gradually verifying the actual analog input and output signals.

7. How can you determine whether the DS200TCQBG1BBA itself has failed?
The TCQB board should not be identified as defective based on a single abnormal measurement. First confirm that the field sensor or transmitter is producing the correct signal and eliminate possible problems with cables, terminal boards and connectors. If the field signal is confirmed to be correct but the value processed by the TCQB board remains incorrect, the corresponding input channel becomes a stronger candidate for investigation. For output problems, compare the control-system command with the actual electrical output from the board. If several independent channels fail at the same time, common power supplies, interfaces and system-level components should also be checked. Only after the surrounding field equipment and signal path have been verified should the DS200TCQBG1BBA be considered the primary source of the fault.

8. How should the DS200TCQBG1BBA be functionally verified after installation?
After installation, first confirm that the board is correctly seated and that all connectors and associated wiring have been restored to their proper positions. The system should then be checked for new diagnostic alarms or abnormal status indications. Based on the actual application configuration, each active analog input and output should be verified, including 4–20 mA, voltage, temperature and position-related signals where applicable. Input channels should be compared with actual field measurements, while output channels should be checked by comparing the control command with the measured electrical output. Signals involved in turbine regulation, alarms or protection should receive additional functional verification. After the static checks are completed, the system should be observed during operation to confirm signal stability, correct control response and the absence of intermittent signal fluctuations or false alarms.
