1. What is the GE DS200TCQCG1BFE RST Overflow Board mainly used for?

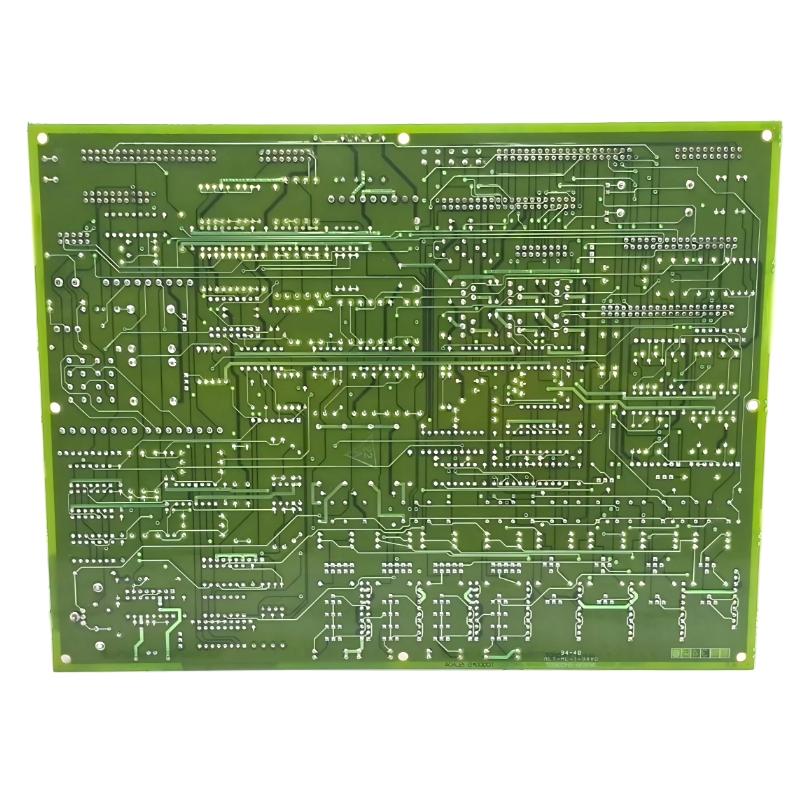

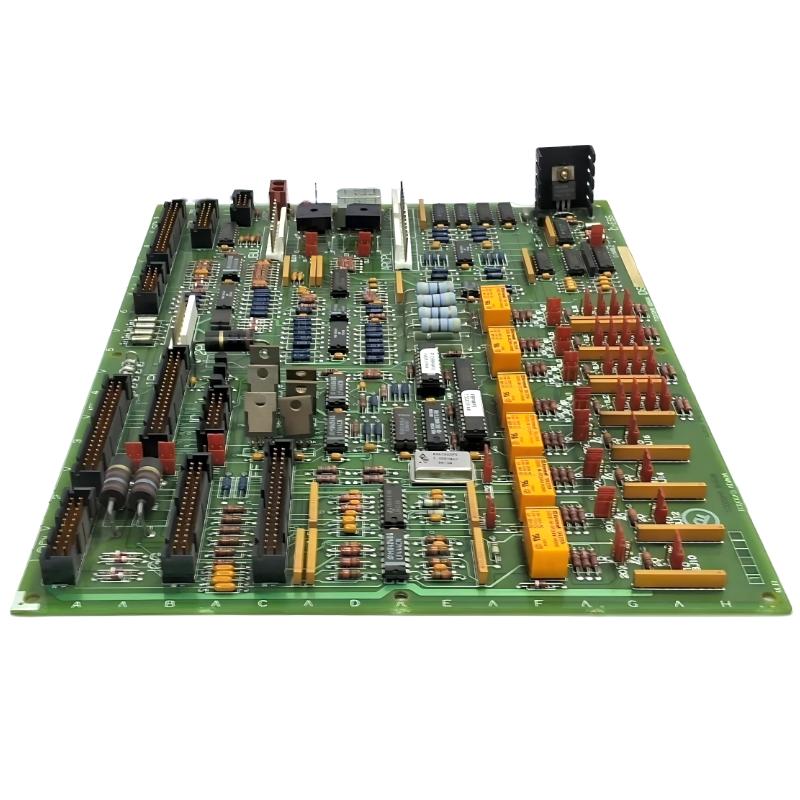

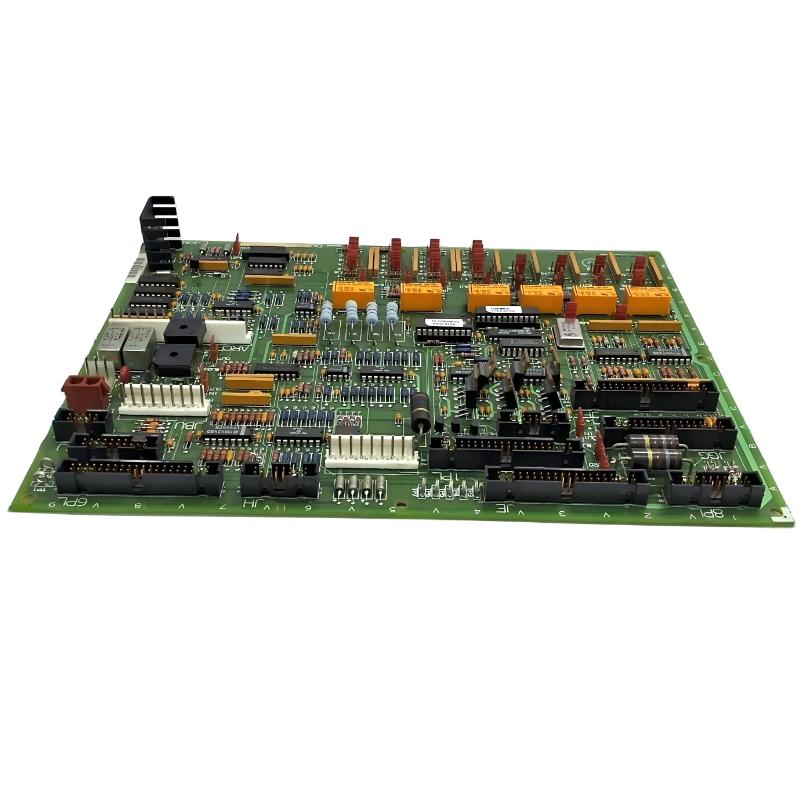

The DS200TCQCG1BFE is an RST Overflow Board used in the GE Mark V Speedtronic turbine control system. Its primary purpose is to expand and process analog I/O and related field signals used by the turbine control system. The board can support servo valve control signal processing, pulse-rate signal acquisition, generator and line feedback, as well as LVDT/LVDR position sensor functions. It works together with other Mark V control boards and terminal boards to condition, scale and transfer field signals to the turbine control logic. Because it forms part of important turbine I/O signal paths, abnormal operation of the board can affect control, feedback or monitoring functions.

2. What types of signals can the DS200TCQCG1BFE process?
The DS200TCQCG1BFE can be associated with several turbine control signal types, including servo valve control signals, shaft pulse-rate signals, generator feedback, line feedback, LVDT/LVDR excitation and feedback signals, and applicable 4–20 mA analog signals. Different signals are processed through their corresponding interfaces and hardware circuits according to the Mark V system configuration. The exact signal assignment depends on the turbine control system design and terminal board arrangement. During maintenance, technicians should verify the actual system drawings and original wiring before testing or reconnecting any interface. This helps prevent incorrect connections that could result in abnormal control or feedback signals.

3. What is the purpose of the servo valve output function on the DS200TCQCG1BFE?
The servo valve output function is used to process control signals associated with turbine actuators and servo-controlled equipment. A control command generated by the turbine control system is routed through the appropriate circuitry and processed by the TCQC board according to the system configuration. The board performs the required signal scaling and conditioning before the signal reaches the servo control circuit. The TCQC circuitry is also associated with servo clamping and related control functions, so its operating condition can influence actuator response. If a servo valve responds slowly, moves incorrectly or fails to follow the control command, troubleshooting should include the control logic, associated signal boards, TCQC board, terminal board, field wiring and servo valve rather than focusing on only one component.

4. What are the hardware jumpers on the DS200TCQCG1BFE used for?
The DS200TCQCG1BFE uses hardware jumpers for certain configuration functions. Depending on the system application, jumper settings can affect servo signal scaling, feedback signal processing and other specific operating parameters. The jumper configuration must therefore match the requirements of the particular Mark V installation. Before replacing the board, the original jumper positions should be carefully documented and transferred to the replacement board. Incorrect jumper settings can result in incorrect servo output ranges, abnormal feedback values or control behavior that differs from the original system. For equipment that has been operating for many years, photographing and recording all jumper positions before removal is a useful maintenance practice.

5. How does the DS200TCQCG1BFE handle LVDT/LVDR signals?
LVDT and LVDR devices are commonly used to detect the position of actuators or other mechanical components. The DS200TCQCG1BFE can provide the required excitation and participate in processing the resulting position feedback signals. The processed position information can then be used by the Mark V control system to determine actual actuator position and compare it with the commanded position. If LVDT/LVDR feedback becomes unstable, jumps unexpectedly, disappears or produces an unreasonable value, troubleshooting should begin with the sensor and field wiring. The terminal board, excitation signal and TCQC interface should then be checked. If the sensor output is confirmed to be correct while the control system continues to show an abnormal feedback value, the board-level signal-processing path should be investigated.

6. How should an abnormal pulse-rate signal on the DS200TCQCG1BFE be diagnosed?
Pulse-rate signals are commonly associated with turbine shaft speed or other rotating-equipment speed measurements. When a pulse signal becomes abnormal, first verify that the magnetic pickup or other speed sensor is operating correctly and that the field wiring has no open circuit, short circuit or poor connection. The relevant terminal board and connection to the TCQC board should then be inspected. The pulse amplitude and frequency should also be checked to ensure that the signal is within the expected operating range. If the field pulse signal is correct but the Mark V system cannot correctly recognize the speed information, the relevant TCQC input channel, connectors and downstream signal-processing circuitry should be investigated. Special attention should be given to intermittent or missing speed signals when the measurement is involved in turbine protection functions.

7. What should be considered when replacing the DS200TCQCG1BFE?
Before replacing the DS200TCQCG1BFE, the applicable control equipment should be placed in a safe condition and the required power-isolation procedures should be completed. The positions of all connectors, cables and hardware jumpers should be recorded before removing the original board. Because the TCQC board can be involved in servo outputs, pulse inputs, feedback signals and other control interfaces, incorrect wiring can directly affect turbine control functions. Every connector must therefore be returned to its original position. The hardware jumper configuration should also match the original system requirements. After installation, verify that all connectors are secure and use the Mark V diagnostic system to confirm the board and associated signals are operating normally before gradually returning the related functions to service.

8. How can you confirm that the DS200TCQCG1BFE is operating correctly after installation?
After installation, first inspect the board, connectors and hardware jumper configuration to ensure that everything matches the original system requirements. The Mark V control system should then be checked for any new board or I/O diagnostic alarms. For servo control circuits, verify that the control command, servo output and actuator feedback correspond correctly. For pulse-rate signals, confirm that the measured speed is stable and consistent with the actual turbine operating condition. LVDT/LVDR circuits should be checked for proper excitation and accurate position feedback. Generator, line feedback and other applicable analog channels should also be verified individually. If the TCQC board participates in alarm or protection functions, those functions should receive appropriate functional verification. The turbine control function should only be returned to normal operation after the signals are stable and the expected control response has been confirmed.
