1. What is the main function of the DS215TCDAG1BZZ01A?

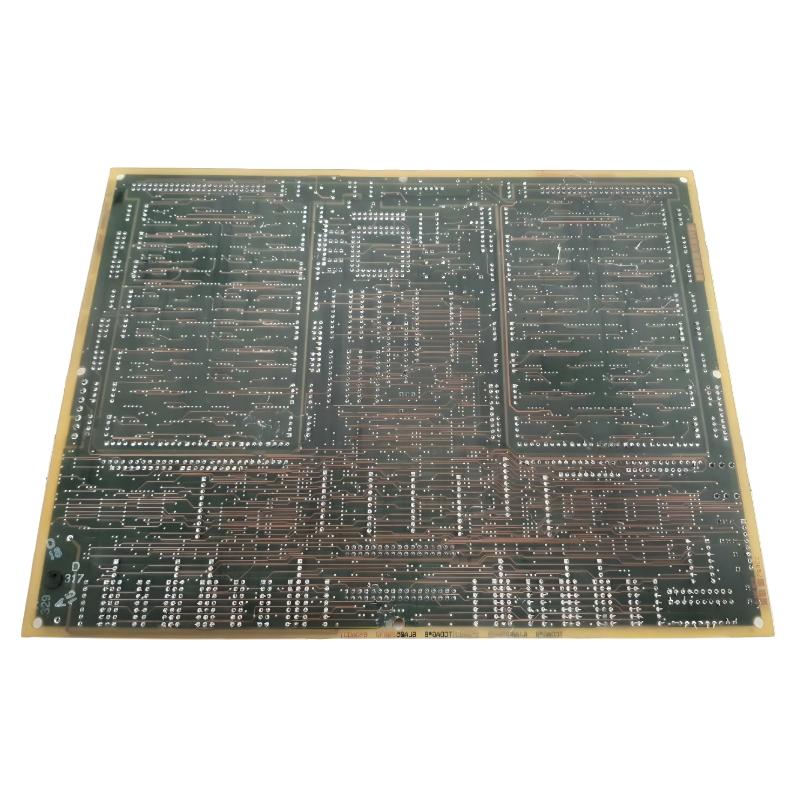

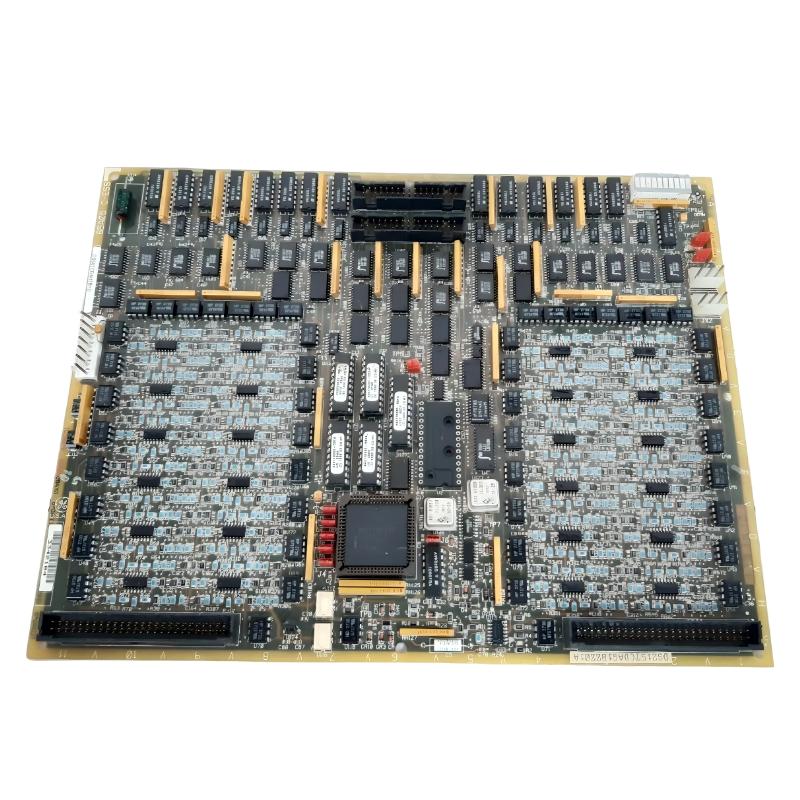

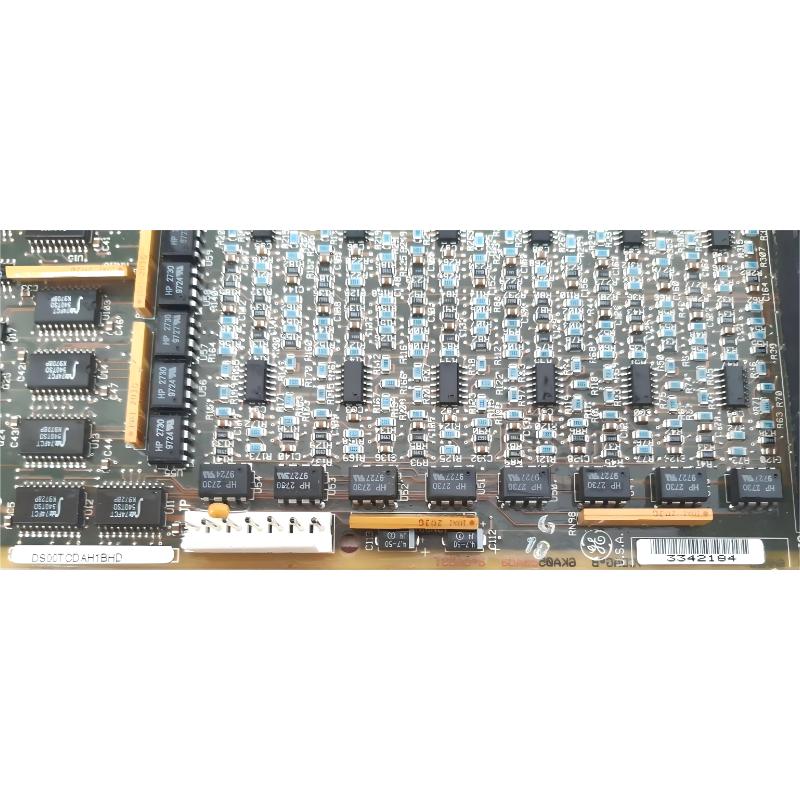

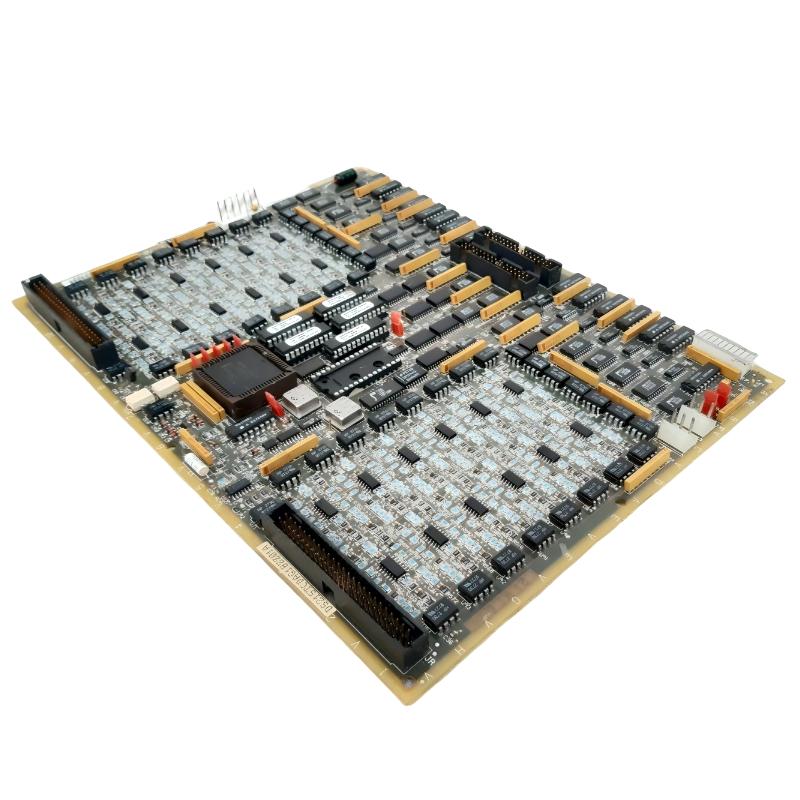

The DS215TCDAG1BZZ01A is a GE Mark V Digital I/O Board with firmware, designed to process digital contact input and contact output signals within the turbine control system. It provides an interface between terminal boards and the control electronics, allowing field contact signals to be received, conditioned, processed, and transferred through the IONET network. The board can process contact inputs from DTBA and DTBB terminal boards and handle contact output signals associated with relay or solenoid control. It is normally used as part of the digital I/O architecture of a Mark V system rather than as a standalone controller. Its correct operation depends on the associated terminal boards, IONET connections, power distribution, jumper configuration, and system software settings.

2. Which terminal boards are connected to the DS215TCDAG1BZZ01A?

The DS215TCDAG1BZZ01A interfaces with DTBA and DTBB terminal boards for digital contact signal processing. The JQ connection is associated with the DTBA interface, while the JR connection is used for signals from the DTBB board. These connections allow field contact signals to reach the TCDA board for conditioning and processing. After processing, the information can be transferred through the IONET network to other Mark V control hardware. When troubleshooting an input problem, both the corresponding terminal board and the wiring between the terminal board and TCDA should therefore be inspected. A signal missing at the TCDA input does not necessarily indicate a fault in the board itself.

3. What is the purpose of the JX1 and JX2 connectors?

JX1 and JX2 are used for IONET signal connections on the DS215TCDAG1BZZ01A. They provide the communication path through which processed digital I/O information is exchanged between the TCDA board and other components of the Mark V control architecture. Proper connection and termination of the IONET network are important for reliable data transmission. If communication problems occur, both JX1 and JX2 should be inspected for loose connections, damaged contacts, wiring problems, or incorrect termination configuration. The IONET ID configuration should also be checked because an incorrect board address can prevent the system from identifying or communicating with the expected I/O board.

4. How is the IONET ID configured on the DS215TCDAG1BZZ01A?

The IONET ID is configured using the J4, J5, and J6 hardware jumpers on the board. These jumpers determine the identification assigned to the TCDA board within the IONET communication structure. The correct jumper arrangement depends on the specific Mark V system configuration and the location of the board within the control architecture. An incorrect IONET ID can cause communication conflicts, missing I/O information, or incorrect board identification. Before changing these jumpers, the existing configuration should be recorded and compared with the system configuration requirements. After making a change, the board should be checked through the system diagnostic interface to confirm that the expected I/O board is correctly recognized.

5. What should be checked if the DS215TCDAG1BZZ01A does not recognize contact inputs?

If contact inputs are not being recognized, begin by checking the corresponding field device, wiring, terminal connections, and DTBA or DTBB terminal board. Next, verify that the signal reaches the appropriate JQ or JR interface on the TCDA board. The board’s configuration should also be reviewed because contact input inversion is controlled through software I/O configuration constants. If the physical input changes but the Mark V system reports the opposite state, an incorrect inversion setting may be responsible. If the field signal is correct and the configuration is correct but the input remains unavailable, inspect the TCDA board, connectors, IONET communication, and associated control hardware. This step-by-step approach helps distinguish field wiring problems from board-level or configuration problems.

6. What can cause IONET communication problems on the DS215TCDAG1BZZ01A?

IONET communication problems can be caused by incorrect IONET ID settings, termination configuration, damaged communication wiring, loose connectors, power problems, or faults in another device on the same network. The first step is to check the JX1 and JX2 connections and confirm that the communication wiring is secure. Next, verify the IONET ID jumpers J4, J5, and J6 and ensure that the selected address matches the Mark V system configuration. The termination settings associated with J2 and J3 should also be checked where applicable. If communication remains unstable, inspect the connected TCQC, CTBA, and other IONET devices to determine whether another node is affecting the network. System diagnostic information can help identify whether the problem is a board-address issue, network fault, or hardware failure.

7. What should be checked before replacing the DS215TCDAG1BZZ01A?

Before replacing the DS215TCDAG1BZZ01A, the complete digital I/O signal path should be checked. Verify the relevant field device, wiring, DTBA or DTBB terminal board, JQ or JR connection, IONET wiring, and power distribution through the JP connection. The board’s jumper configuration should also be recorded, particularly the IONET ID, termination settings, and stall-timer configuration. Since this version includes firmware, the replacement board should have a compatible firmware configuration for the existing Mark V system. After installation, all connectors and jumpers should be carefully checked before restoring the system to operation. Digital inputs, contact outputs, IONET communication, diagnostic indications, and associated control functions should then be tested to confirm correct operation.

8. Can another Mark V Digital I/O Board directly replace the DS215TCDAG1BZZ01A?

A different Mark V Digital I/O Board should not automatically be treated as a direct replacement for the DS215TCDAG1BZZ01A. Mark V I/O boards can have different hardware configurations, connector assignments, firmware versions, IONET addressing requirements, and application-specific functions. Even boards that perform similar digital I/O functions may require different jumper settings or system configurations. Before selecting a replacement, the complete part number and revision should be compared with the original board, along with its firmware and associated terminal-board configuration. The IONET ID and termination settings must also be compatible with the existing system. After replacement, the complete I/O path should be tested, including contact inputs, relay or solenoid outputs, IONET communication, and Mark V diagnostic functions.
