Technical Specifications

FAQ

1. What is the main function of the GE DS215TCQBG1BZZ01A Extended Analog I/O Board?

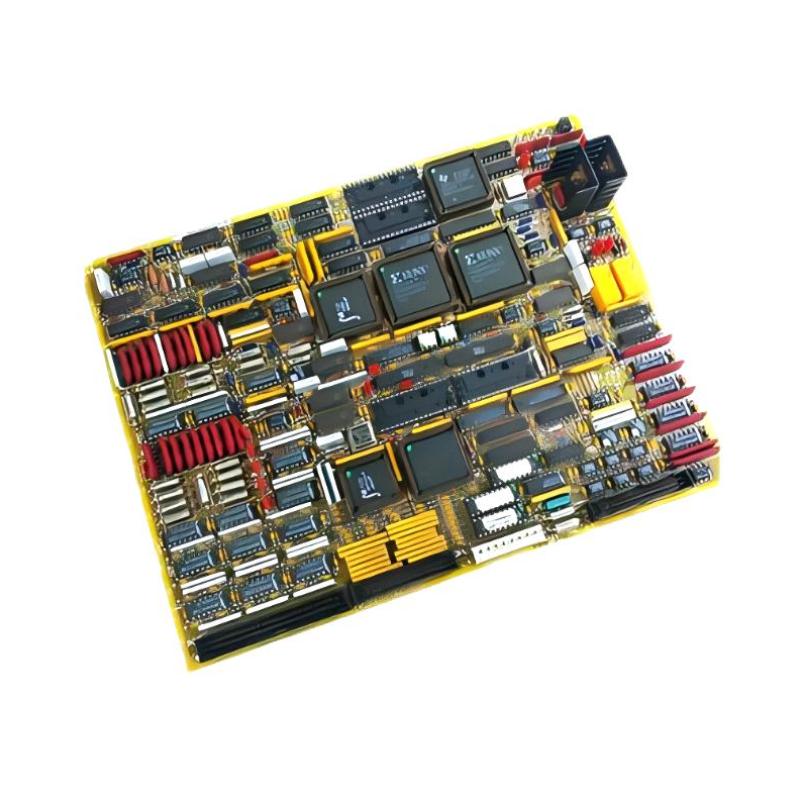

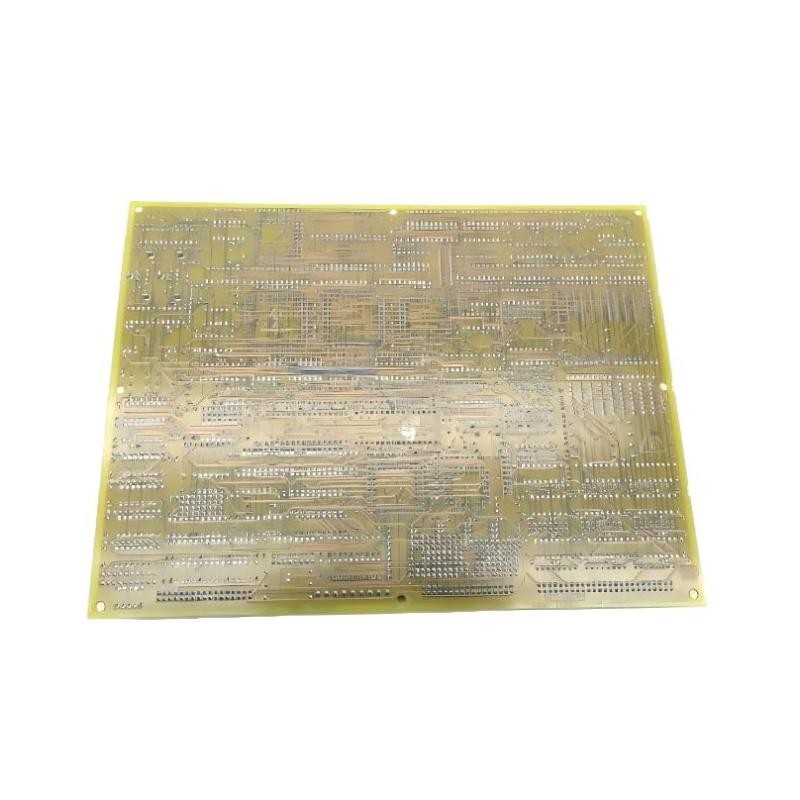

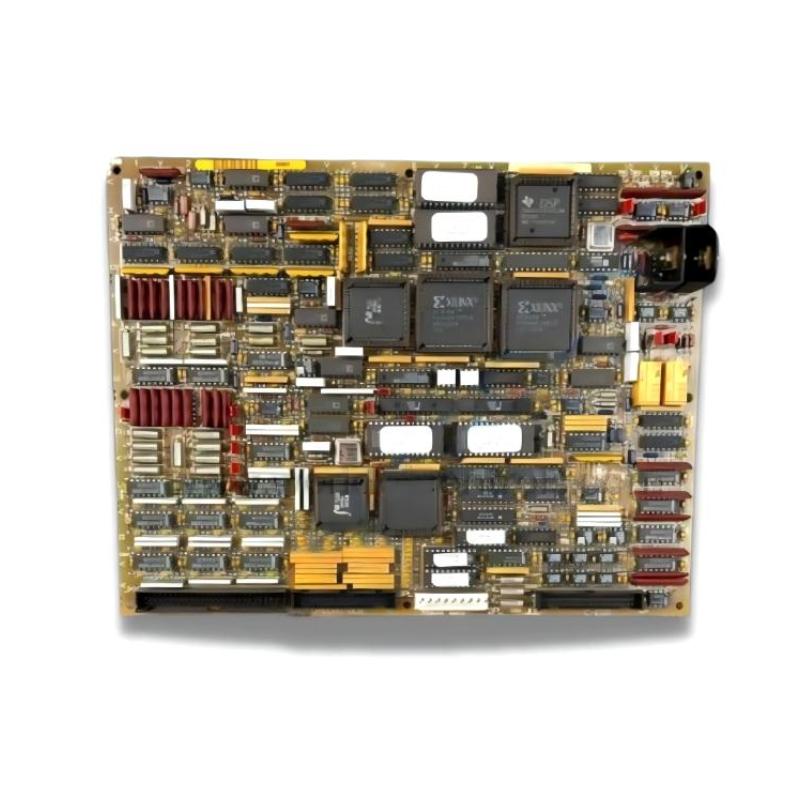

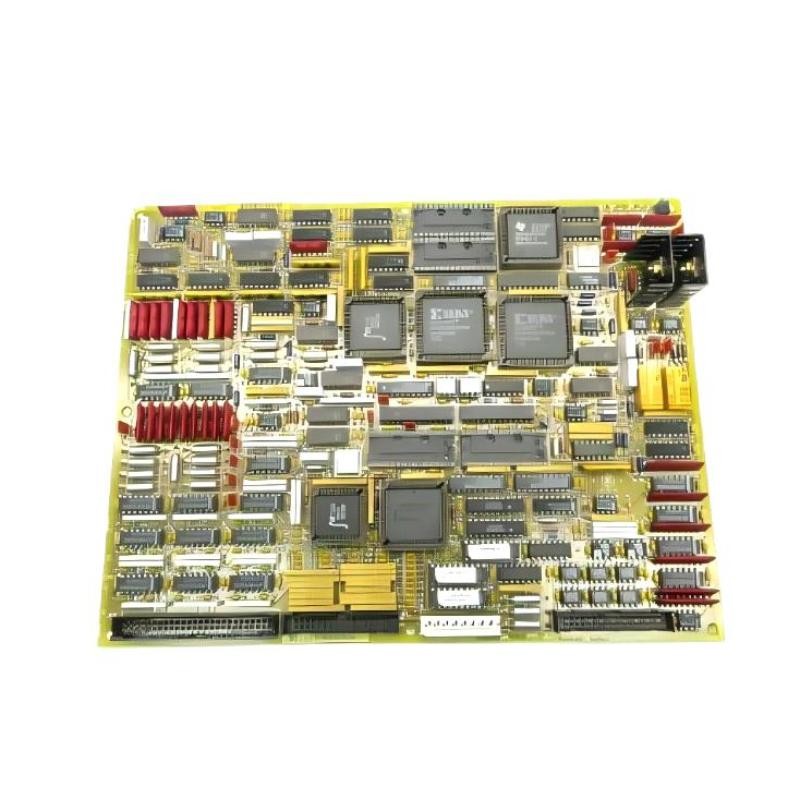

The GE DS215TCQBG1BZZ01A is a TCQB Extended Analog I/O Board used in the GE Mark V Speedtronic turbine control system. Its primary purpose is to expand the analog input and output processing capability of the control system. The board can be installed within the R, S, and T control cores according to the specific Mark V system configuration and is used to interface additional field measurement and control signals with the turbine control system. Depending on the application, the board can support signals associated with proximity probes, accelerometers, vibration monitoring, and other analog field devices. The TCQB board performs important signal interface, conditioning, and scaling functions before the processed information is used by the Mark V control logic.

2. What is the relationship between DS215TCQBG1BZZ01A and DS200TCQBG1BBA?

DS215TCQBG1BZZ01A and DS200TCQBG1BBA are associated with the GE Mark V TCQB Extended Analog I/O Board. DS215TCQBG1BZZ01A is the complete DS215-series assembly reference, while DS200TCQBG1BBA identifies the associated DS200-series board configuration. When purchasing or replacing this board, both references should be checked together with the actual hardware configuration. Compatibility should not be determined only from the TCQB functional designation because different board revisions or application configurations may have different jumper arrangements, firmware or memory configurations, and interface requirements. Before replacement, the original board identification, revision, jumper positions, EPROM configuration, and cable connections should be documented to ensure the replacement board matches the existing Mark V installation.

3. Where is the DS215TCQBG1BZZ01A typically installed in a Mark V system?

The TCQB Extended Analog I/O Board is typically used within the R, S, and T control cores of a GE Mark V turbine control system when additional analog I/O processing is required. In systems using a Triple Modular Redundant architecture, the corresponding boards can be installed in the appropriate control cores as defined by the system design. The actual quantity and installation location depend on the turbine application, I/O architecture, and control cabinet configuration. Before installation, the correct board position should always be verified using the applicable Mark V control cabinet drawings and I/O documentation. The board should not be installed solely according to its physical appearance because different turbine projects can use different I/O allocations.

4. What types of field signals can the DS215TCQBG1BZZ01A support?

The TCQB is an extended analog I/O board designed to increase the analog signal processing capability of the Mark V control system. Depending on the specific application, it can interface with signals associated with proximity probes, accelerometers, vibration measurement equipment, and other analog field devices. In certain applications, the board can process vibration-related signals generated by accelerometers and provide the appropriate signal conditioning and scaling for the Mark V system. The actual signal types and active channels depend on the installed terminal boards, connected sensors, hardware jumper configuration, and software configuration. Therefore, the applicable turbine I/O documentation should always be used when determining the exact signal assignment for a particular DS215TCQBG1BZZ01A installation.

5. What is the purpose of the hardware jumpers on the DS215TCQBG1BZZ01A?

The TCQB board contains multiple hardware jumpers that allow its signal-processing functions to be configured for the specific application. Jumper settings can affect the operating configuration of particular analog input channels and related signal interfaces. For applications involving proximity probes or accelerometers, the correct jumper configuration is important for ensuring that the connected field signals are properly interpreted by the board. Incorrect jumper positions can result in incorrect signal conditioning, abnormal signal levels, or inaccurate values being received by the Mark V control system. When replacing a board, the jumper positions on the original board should therefore be recorded before removal and reproduced on the replacement board according to the approved system configuration rather than using default settings without verification.

6. How should an analog signal problem on the DS215TCQBG1BZZ01A be diagnosed?

An analog signal problem should be investigated systematically through the complete signal path rather than immediately assuming that the TCQB board has failed. First, inspect the field sensor, transmitter, excitation supply, terminal board, wiring, and connectors. Then verify the TCQB hardware jumper configuration and check the condition of the EPROM modules and board connections. If the hardware appears normal, review the corresponding Mark V I/O configuration and scaling parameters. If only one channel is affected, the field sensor, wiring, and individual input circuit should receive particular attention. If several channels fail simultaneously, the investigation should focus on common power supplies, connectors, data connections, and board-level circuitry. This approach helps distinguish between a field-device problem, wiring fault, configuration error, and actual TCQB board failure.

7. What should be considered when replacing a DS215TCQBG1BZZ01A?

Before replacing the TCQB board, verify the complete replacement model, revision, and application configuration. Record all cable connections, connector positions, hardware jumper settings, and EPROM locations on the original board before removing it. The EPROM modules contain board operating information and should be handled carefully during any transfer or replacement procedure. Appropriate electrostatic discharge protection should also be used because electronic components and memory devices can be damaged by static electricity. After installing the replacement board, all connectors and jumper positions should be checked again before applying power. The Mark V system should then be checked to confirm that the board is correctly recognized and that the associated analog channels are operating normally.

8. What tests should be performed after installing a new DS215TCQBG1BZZ01A?

After installation, verify the board power supply, OK status indicator, connectors, and hardware jumper configuration. The EPROM modules should be checked to ensure that they are correctly installed and compatible with the intended Mark V application. The relevant data connections should then be verified before testing the active analog channels. Each field signal should be checked to confirm that it reaches the control system correctly and that the corresponding scaling, range, and engineering units are correct. For applications involving proximity probes or accelerometers, the sensor excitation, feedback signal, and associated channel processing should also be verified. Finally, inspect the Mark V diagnostic and alarm status for abnormal conditions and compare actual field measurements with the values displayed by the control system. Once all relevant channels and diagnostics have been verified, the system can be returned to normal operation according to the approved commissioning procedure.
