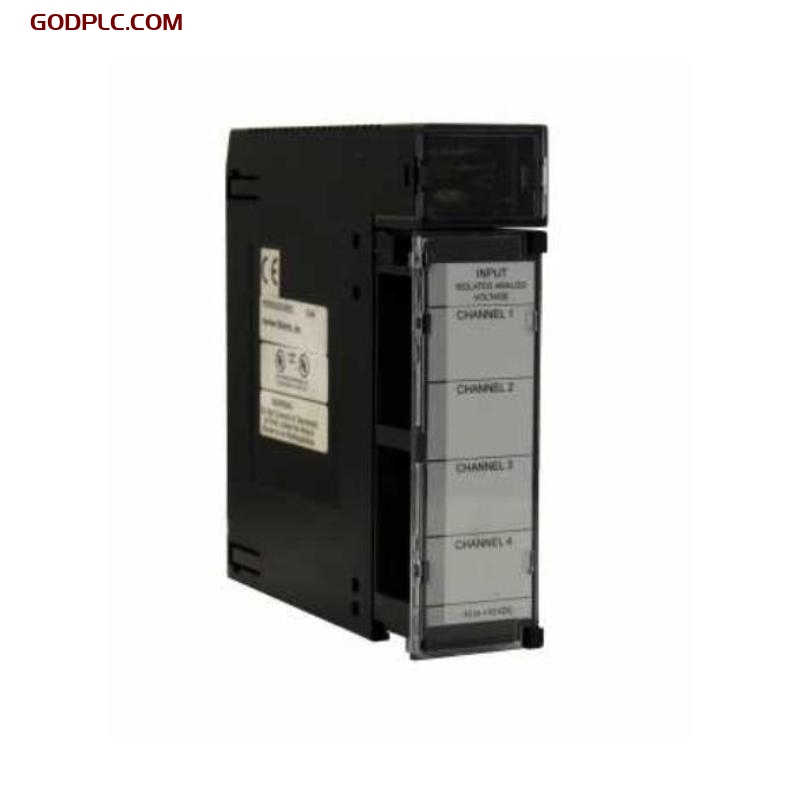

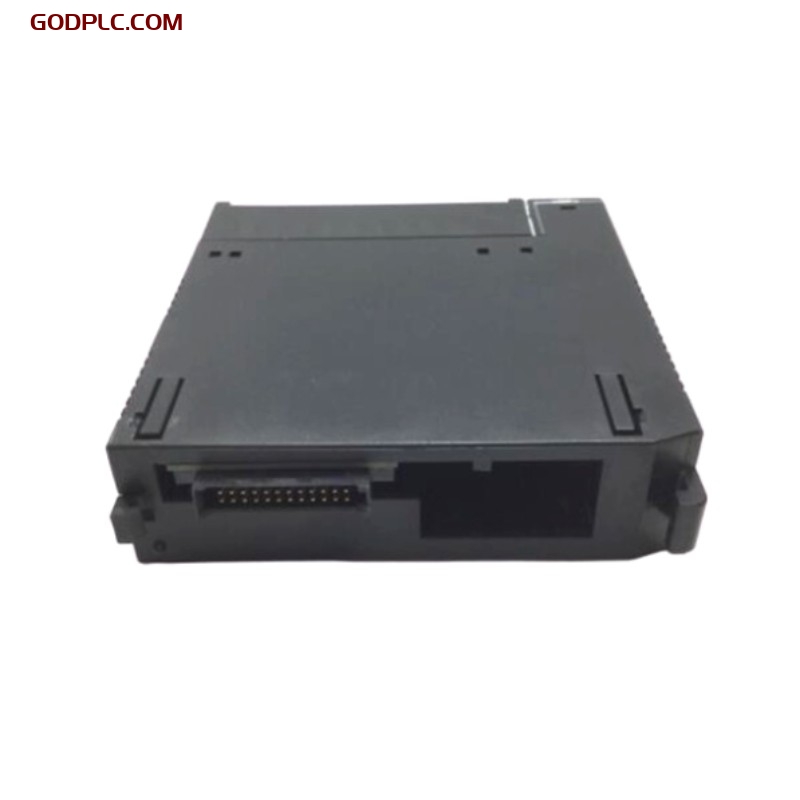

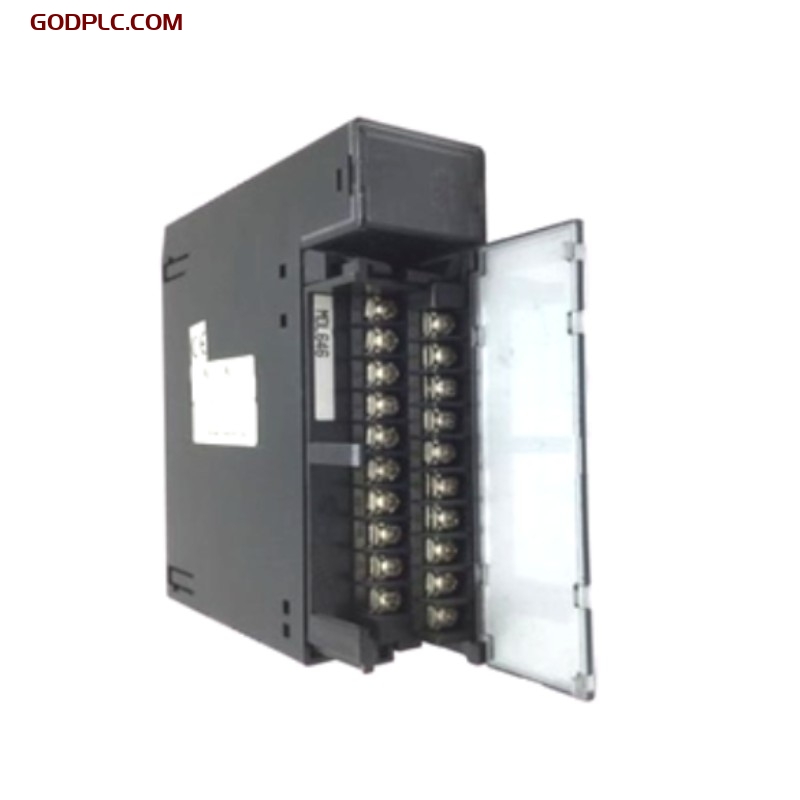

GE Fanuc HE693ADC409 Analog Input Module
Product Overview
The GE Fanuc HE693ADC409 Analog Input Module is designed for use within the GE Fanuc Series 90-30 automation systems, providing precise and reliable analog signal conversion. This module is capable of converting analog signals from field devices such as temperature sensors, pressure transmitters, and flow meters into digital values that can be processed by the control system. With high accuracy and rugged construction, the HE693ADC409 ensures dependable operation in a wide range of industrial environments, from manufacturing to process control.
Key Features
-
High-Accuracy Analog Input: Supports up to 16 channels of analog input, providing precise measurement and conversion of signals from various analog devices.
-
Multiple Input Types: Accepts a wide range of input signal types, including voltage (0-10 V), current (4-20 mA), and resistance (RTD, thermocouple) for flexibility in different applications.
-
User-Configurable: Allows users to configure the module for different types of sensors and signal conditioning, making it versatile and adaptable to various process control needs.
-
Built-in Diagnostics: Includes diagnostic features such as LED indicators and fault detection for easier troubleshooting and system monitoring.
-
Isolation: Each channel is optically isolated to prevent ground loop issues and electrical noise from affecting measurement accuracy and system stability.
-
Compact Design: The module’s compact form factor allows for efficient use of space in control panels and racks, optimizing system performance.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 34 x 145 x 140 mm |
| Weight | 0.3 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | HE693ADC409 |
| Module Type | Analog Input Module |
| Number of Channels | 16 |
| Input Type | Voltage, Current, RTD, Thermocouple |
| Mounting | GE Fanuc Series 90-30 rack |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 0-10 V DC |
| Input Current | 4-20 mA |
| Input Resistance | RTD, thermocouple |
| Power Consumption | < 5 W |
| Operating Temp | -25°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | GE Fanuc Series 90-30 |
| Communication Interface | Backplane communication |
| Software Configuration | Logicmaster or Proficy Machine Edition |
Industry Applications
-
Manufacturing Automation: Used to monitor and control processes such as temperature, pressure, and flow in industrial production lines.
-
Process Control: Enables accurate measurement and control of variables in chemical, pharmaceutical, and food processing industries.
-
Building Automation: Suitable for HVAC systems, monitoring environmental variables like temperature and humidity.
-
Energy Management: Ideal for integrating energy meters and managing energy consumption in industrial settings.
-
Water Treatment: Helps monitor water quality parameters, such as pH levels and flow rates, for efficient water treatment processes.
The GE Fanuc HE693ADC409 Analog Input Module provides an effective solution for integrating analog signals into GE Fanuc Series 90-30 control systems. Its versatility, diagnostic capabilities, and reliable performance make it a valuable component for a variety of industrial automation applications.
