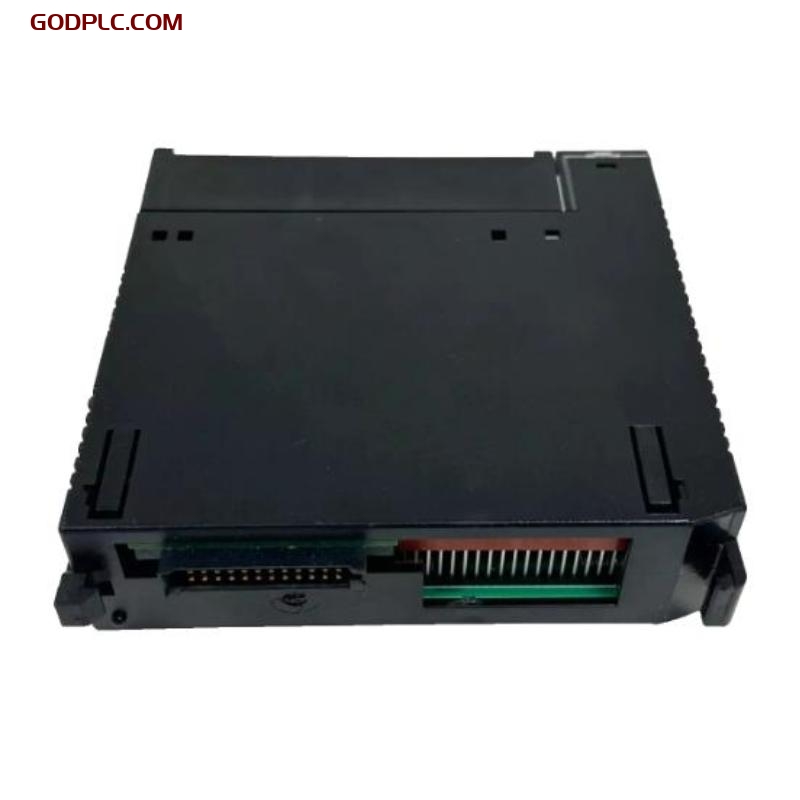

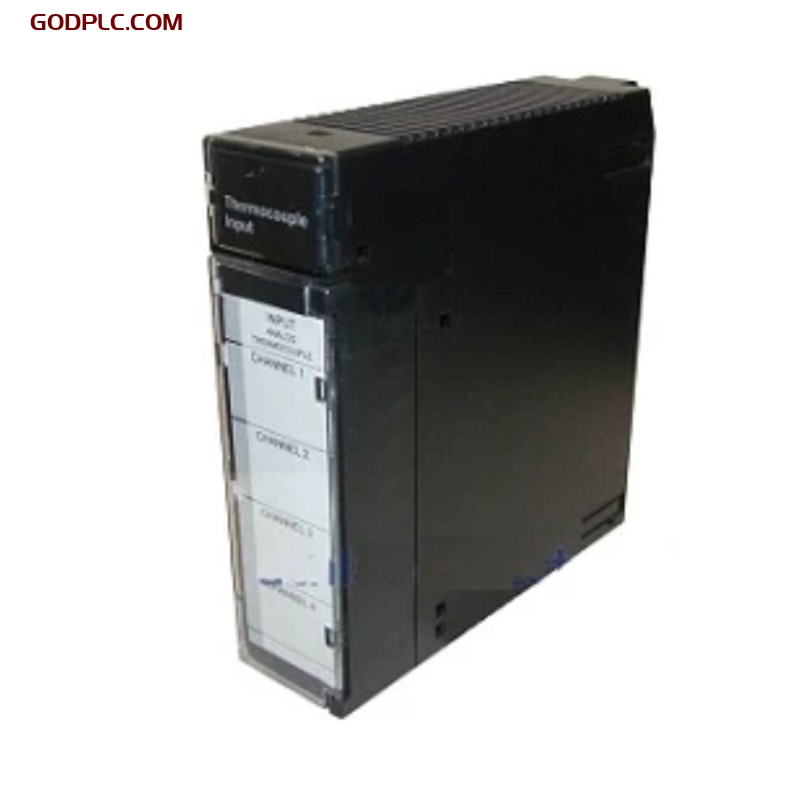

GE Fanuc HE693THM409 Thermocouple Input Module
Product Overview
The GE Fanuc HE693THM409 Thermocouple Input Module is designed to provide high-accuracy temperature measurements for industrial automation systems. As part of the GE Fanuc Series 90-30 PLC family, this module interfaces directly with various thermocouple types and converts analog temperature signals into digital values for real-time processing and control.
Engineered for precision, reliability, and ease of integration, the HE693THM409 supports multiple channels, advanced cold junction compensation, and diagnostics to ensure dependable performance in temperature-sensitive applications.
Key Features
-
Multi-Channel Support: Offers 8 individually configurable thermocouple input channels
-
Wide Thermocouple Compatibility: Supports Type J, K, T, E, R, S, and B thermocouples
-
High Accuracy and Resolution: Provides precise temperature measurements for demanding applications
-
Cold Junction Compensation (CJC): Built-in CJC for improved accuracy
-
Channel Isolation: Channel-to-channel and channel-to-ground isolation for signal integrity
-
Diagnostics and Fault Detection: Automatic open circuit detection and fault reporting
-
Modular Installation: Seamlessly integrates into GE Fanuc Series 90-30 PLC systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 45 x 80mm |
| Weight | 0.5 kg |
3.2 General Information
| Item | Specification |
|---|---|
| Model Number | HE693THM409 |
| Module Type | Thermocouple Input Module |
| Number of Channels | 8 Differential Channels |
| Input Types | Type J, K, T, E, R, S, B Thermocouples |
| System Compatibility | GE Fanuc Series 90-30 PLC |
3.3 Electrical and Signal Characteristics
| Item | Specification |
|---|---|
| Input Range | Thermocouple-dependent |
| Resolution | 14-bit |
| Accuracy | ±1°C typical (depends on thermocouple type) |
| Cold Junction Compensation | Integrated |
| Isolation | 500 V channel-to-channel and to ground |
| Power Supply | 5 V DC (via PLC backplane) |
| Power Consumption | < 3 W |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
Industry Applications
-
Process Automation: Temperature monitoring in chemical, pharmaceutical, and food industries
-
Power Generation: Accurate turbine and boiler temperature measurement
-
HVAC and Building Automation: Environmental temperature control and logging
-
Metal Processing: Furnace, kiln, and annealing process monitoring
-
Oil & Gas: Pipeline and vessel temperature supervision
-
Research & Development: High-precision temperature tracking in laboratory settings
The GE Fanuc HE693THM409 Thermocouple Input Module is a robust and flexible solution for precise temperature measurement in industrial automation systems. With its wide thermocouple compatibility and reliable integration into the Series 90-30 PLC environment, it ensures accurate monitoring and control of thermal processes across a variety of industries.
GE Fanuc HE693THM409 Thermocouple Input Module is in stock. Please contact us for a quick quote and competitive pricing.
