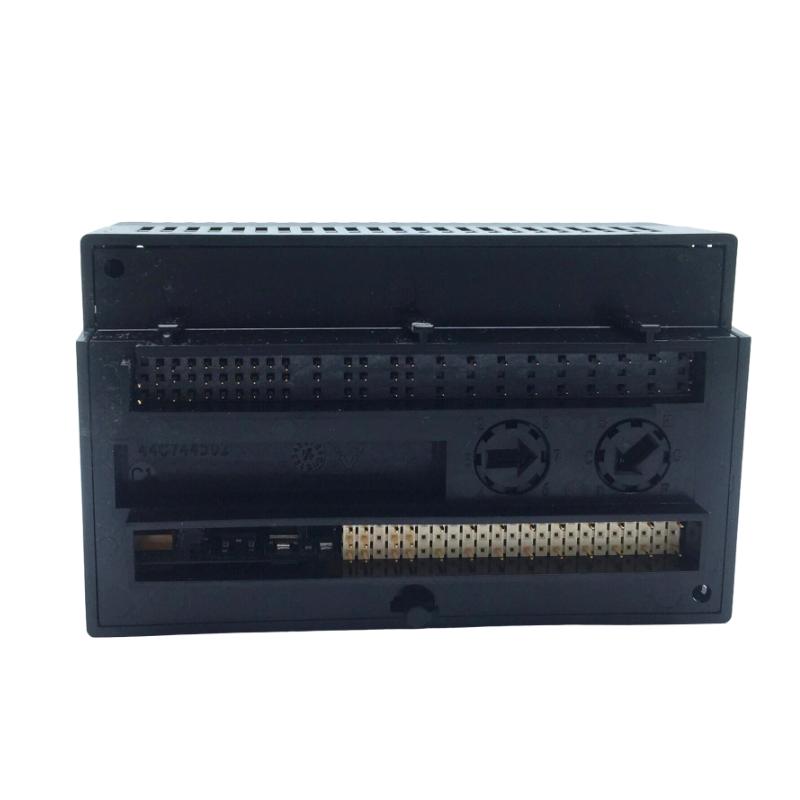

GE Fanuc IC200ALG326G Analog Current Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200ALG326G |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Analog Current Output Module |
| Main Function | Provides 8-channel analog current output signals for controlling external analog devices |
| Application | Industrial automation, process control, valve regulation, actuator control, inverter control, and distributed control systems |
| Output Type | Analog current output |
| Number of Outputs | 8 channels |
| Output Configuration | 8 single-ended outputs, one group |
| Output Signal Range | 4–20 mA (default) |
| Optional Output Range | 0–20 mA (selectable by jumper) |
| Output Resolution | 13-bit |
| Output Current Capacity | Approximately 20.38 mA maximum per channel |
| Output Load Resistance | 0–800 Ω maximum (depending on field supply voltage) |
| Output Update Rate | Approximately 15 ms per module |
| Output Accuracy | ±0.3% typical of full scale; ±0.5% maximum of full scale |
| Capacitive Load Capability | 1.0 μF maximum |
| Inductive Load Capability | 0.5 H maximum |
| External Power Supply | +18 to +30 VDC |
| Field Power Consumption | Approximately 100 mA no-load; 185 mA maximum at full-scale output |
| Inrush Current | 2 A maximum |
| Backplane Power Consumption | Approximately 50 mA from 5 VDC bus |
| Isolation Type | Optical isolation between field side and logic side |
| Isolation Rating | 250 VAC continuous / 1500 VAC for 1 minute |
| Channel Isolation | No individual channel-to-channel isolation |
| Diagnostics | Loss of user-side power detection |
| Output Default Function | Configurable: hold last state or return to default value during communication interruption |
| LED Indicators | FLD PWR LED (field power status), OK LED (backplane power status) |
| Configuration | Jumper-selectable output range and default output behavior |
| Mounting Type | VersaMax I/O carrier mounting |
| Terminal Connection | VersaMax terminal carrier interface |
| Compatible Modules | VersaMax CPU, Network Interface Unit, and I/O carrier systems |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 110 mm × 66.8 mm × 50 mm |
| Weight | Approximately 0.15 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200ALG326G?
A: The IC200ALG326G is a VersaMax analog output module that provides eight 4–20 mA current output channels for controlling industrial analog devices.
Q2: How many output channels does the IC200ALG326G provide?
A: The module provides 8 single-ended analog current output channels.
Q3: What output signals are supported by the IC200ALG326G?
A: It supports 4–20 mA current output as the default setting and can be configured for 0–20 mA output.
Q4: What is the resolution of the IC200ALG326G?
A: The module provides 13-bit analog output resolution.
Q5: Does the IC200ALG326G require an external power supply?
A: Yes. The output circuits require an external 18–30 VDC field power supply.
Q6: What devices can be connected to the IC200ALG326G?
A: It can connect to analog control devices such as proportional valves, actuators, motor controllers, signal converters, and industrial regulators.
Q7: What should be checked before replacing an IC200ALG326G?
A: Verify VersaMax system compatibility, output current range, external 24 VDC supply, load resistance, terminal wiring, and PLC configuration.
Q8: How can the reliability of the IC200ALG326G be maintained?
A: Use shielded analog wiring, maintain stable field power, avoid electrical interference, secure terminal connections, and keep the module operating within specified environmental limits.
GE Fanuc IC200ALG326G Analog Current Output Module is in stock. Please contact us for a quick quote and competitive pricing.
