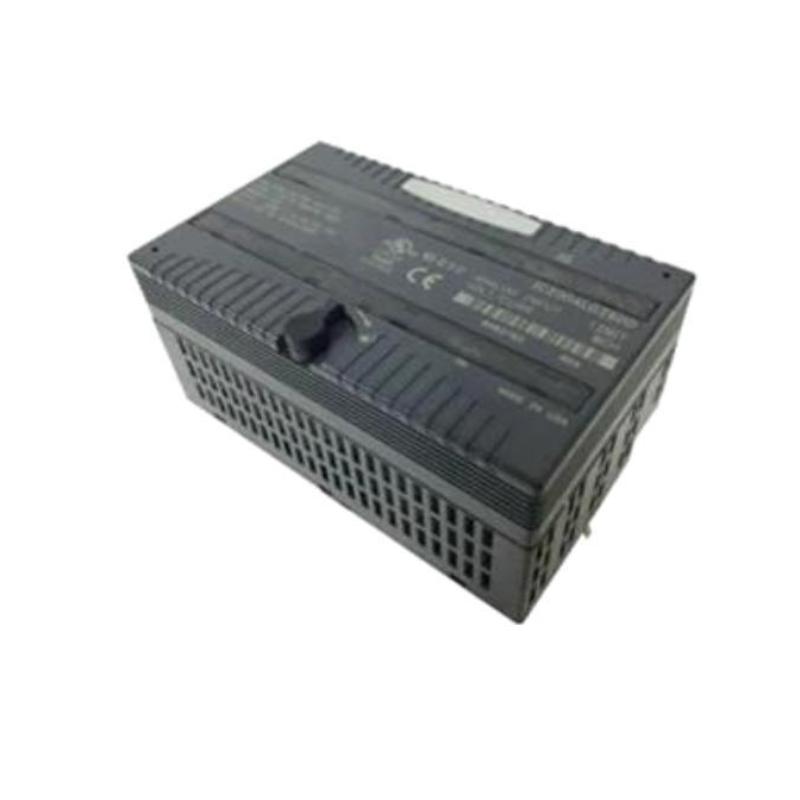

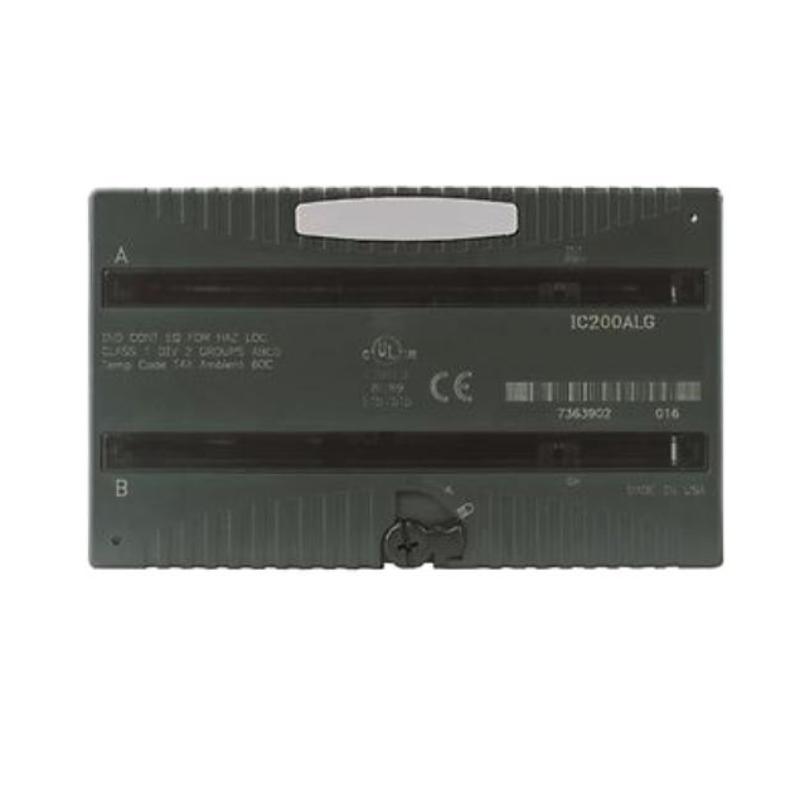

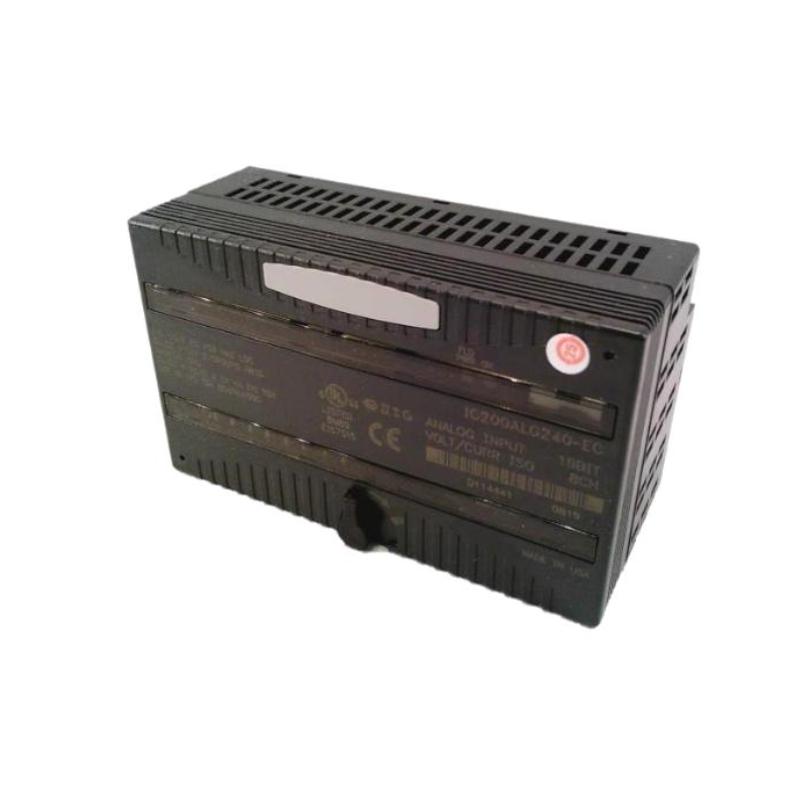

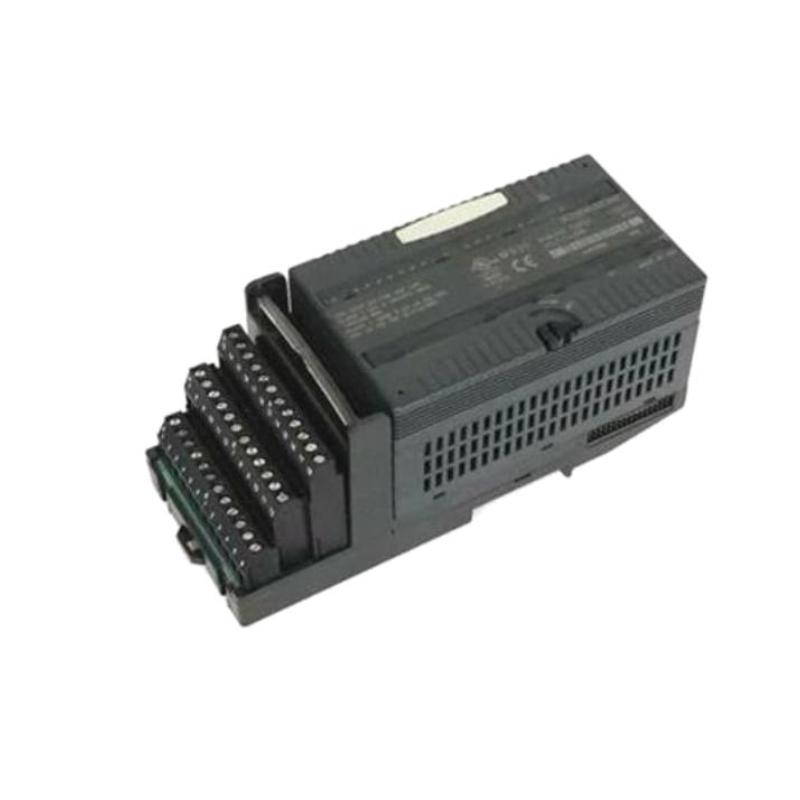

GE Fanuc IC200ALG431H Analog Mixed I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200ALG431H |
| Product Type | Analog Mixed I/O Module |
| Series Compatibility | GE Fanuc VersaMax PLC System |
| Module Function | Analog signal acquisition and output control module for industrial automation |
| Input Type | Analog voltage input |
| Number of Analog Inputs | 4 channels |
| Input Range | 0 to +10 VDC |
| Input Resolution | 12-bit |
| Input Conversion Type | Analog-to-digital conversion |
| Number of Analog Outputs | 2 channels |
| Output Type | Analog voltage output |
| Output Range | 0 to +10 VDC |
| Output Resolution | 12-bit |
| Output Conversion Type | Digital-to-analog conversion |
| Channel Configuration | 4 analog inputs and 2 analog outputs |
| Isolation | Provides isolation between field circuits and PLC logic circuits |
| Accuracy | ±0.5% of full scale maximum |
| Update Time | Approx. 0.4 ms per module |
| Status Indicators | LED indicators for module and field power status |
| Power Consumption | Approx. 125 mA from 5 VDC backplane supply |
| External Power Supply | Requires 24 VDC field power for analog output operation |
| Installation Method | Installed on GE Fanuc VersaMax carrier base |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 109 mm × 67 mm × 50 mm |
| Weight | Approx. 0.25 kg |
| Application Areas | Industrial automation, process monitoring, analog signal measurement, and machine control systems |
| Reliability Features | Provides stable analog conversion performance with compact integration for industrial applications |
FAQ
Q1: What is the IC200ALG431H used for?
- The IC200ALG431H is an analog mixed I/O module designed for GE Fanuc VersaMax PLC systems. It handles analog signal measurement and output control in industrial automation applications.
Q2: How many analog inputs does the IC200ALG431H provide?
- The module provides 4 analog voltage input channels with 12-bit resolution for accurate field signal acquisition.
Q3: What input signal range is supported by the IC200ALG431H?
- The module supports 0 to +10 VDC analog input signals from sensors, transmitters, and other industrial measurement devices.
Q4: How many analog outputs are available on the IC200ALG431H?
- The module provides 2 analog voltage output channels with a 0 to +10 VDC output range for controlling external analog devices.
Q5: Does the IC200ALG431H require external power?
- Yes. The analog output section requires a 24 VDC external field power supply for proper operation.
Q6: Which PLC systems are compatible with the IC200ALG431H?
- The module is designed for GE Fanuc VersaMax PLC systems and requires installation on a compatible VersaMax carrier base.
Q7: What applications commonly use the IC200ALG431H?
- Common applications include process monitoring, industrial measurement, machine automation, analog sensor integration, and control system upgrades.
Q8: What should be checked before replacing an IC200ALG431H module?
- Users should confirm PLC compatibility, carrier base type, analog signal ranges, field power requirements, wiring configuration, and system parameters before replacement.
GE Fanuc IC200ALG431H Analog Mixed I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
