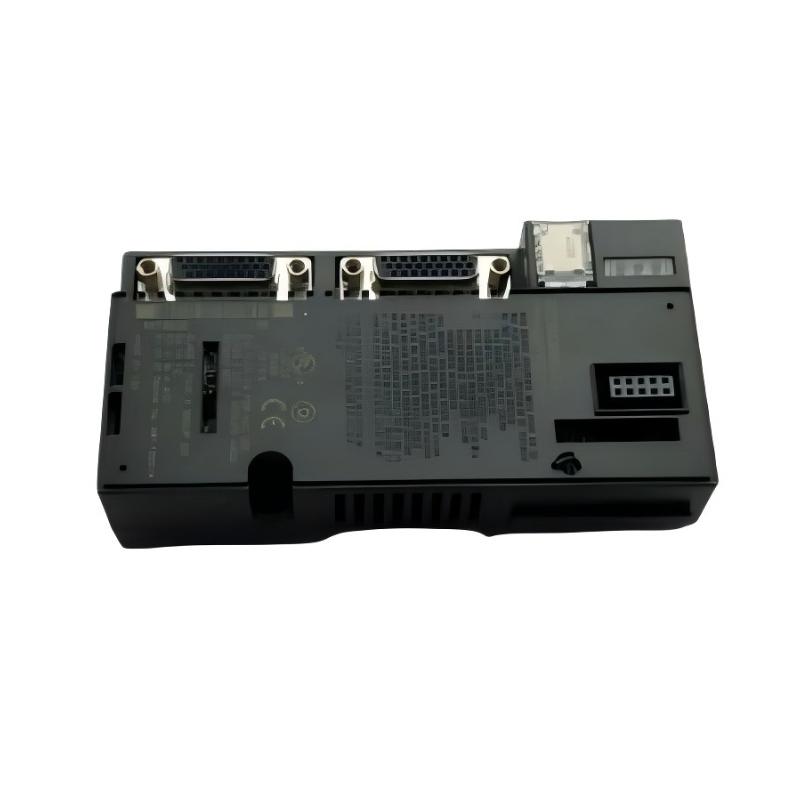

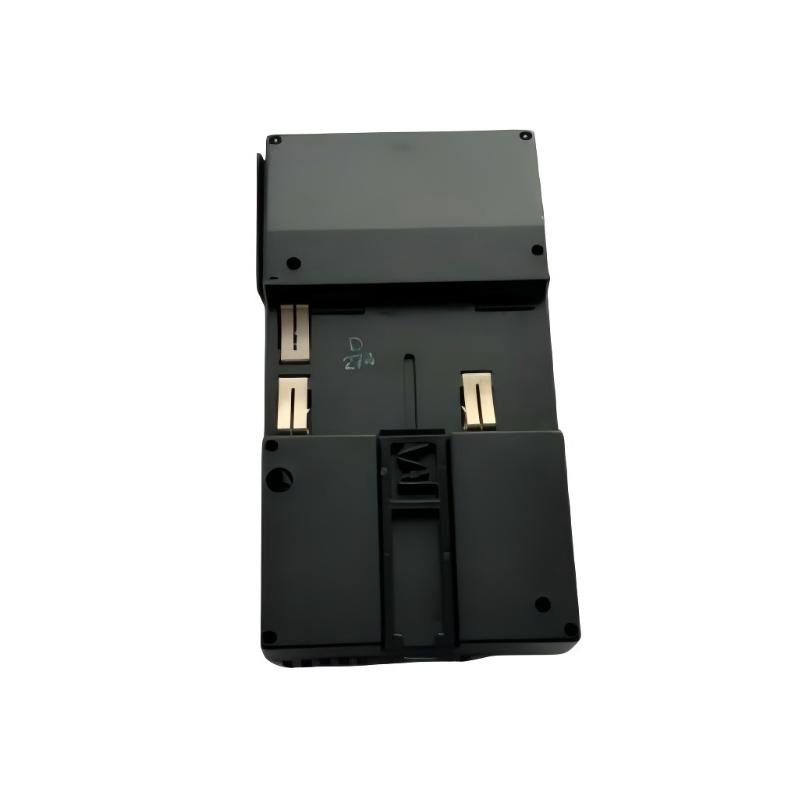

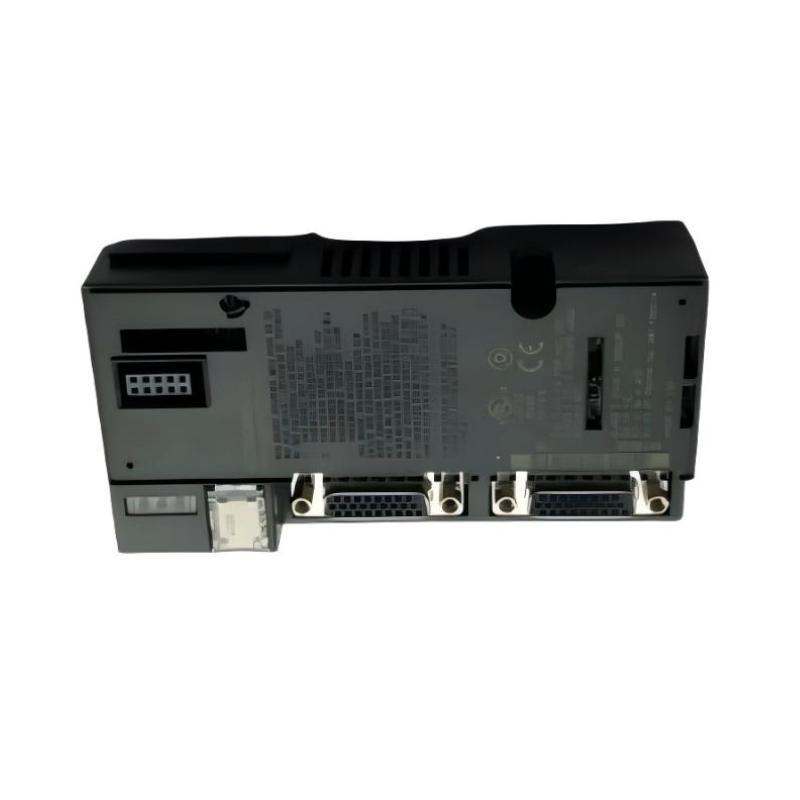

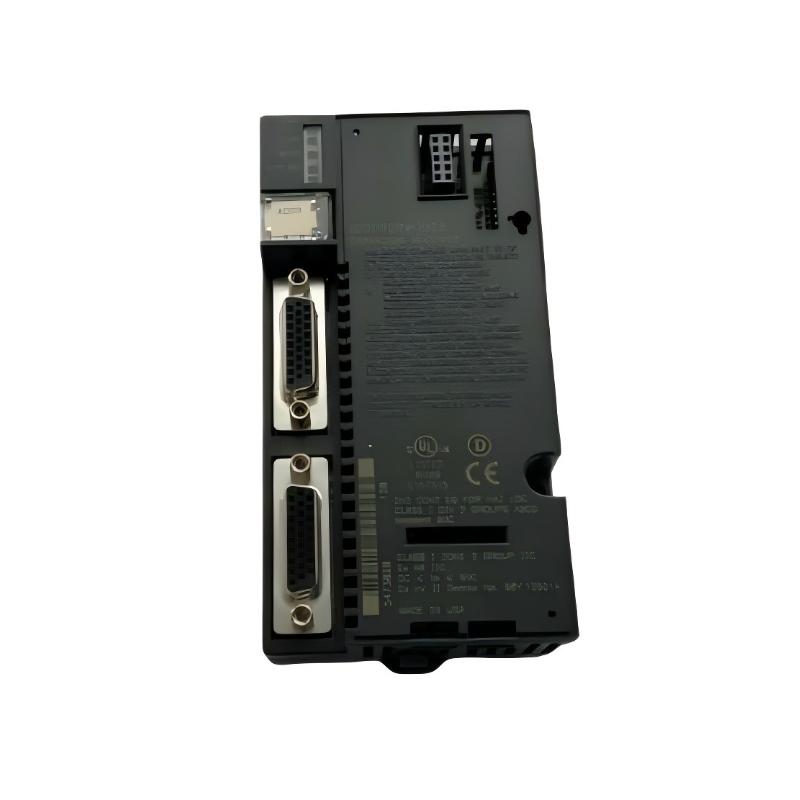

GE Fanuc IC200ETM001D Expansion Transmitter Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200ETM001D |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Expansion Transmitter Module |
| Main Function | Expands VersaMax PLC or I/O station by connecting the main CPU/NIU rack to remote expansion racks |
| Application | Industrial automation, distributed I/O expansion, machine control systems, and modular PLC architectures |
| Expansion Type | Bus Transmitter Expansion Module |
| Expansion Capability | Supports up to 7 additional expansion racks |
| Compatible Receiver Modules | IC200ERM001 (isolated), IC200ERM002 (non-isolated) |
| Expansion Port | 26-pin female D-shell connector |
| Firmware Update Port | 16-pin serial connector |
| Communication Type | VersaMax expansion bus communication |
| Data Rate | 250 Kbps standard |
| Maximum Expansion Distance | Up to 750 m with isolated expansion receiver modules; shorter distance with non-isolated modules |
| Maximum I/O Modules per Expansion Rack | Up to 8 VersaMax I/O modules |
| Power Supply | 5 VDC supplied from CPU or Network Interface Unit |
| Backplane Current Consumption | Approximately 44 mA at 5 VDC |
| Electrical Isolation | 500 VDC differential isolation when used with isolated receiver modules |
| LED Indicators | PWR status LED and EXP TX expansion communication LED |
| Mounting Type | VersaMax DIN rail mounting |
| Installation Position | Mounted to the left side of CPU or NIU |
| Terminal Connection | Expansion cable interface |
| Compatible Modules | VersaMax CPU, Network Interface Unit, VersaMax I/O modules, and expansion receiver modules |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 37 mm × 128 mm × 38 mm |
| Weight | Approximately 0.09–0.14 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200ETM001D?
A: The IC200ETM001D is a VersaMax expansion transmitter module used to connect the main CPU or Network Interface Unit (NIU) rack with additional remote expansion racks.
Q2: How many expansion racks can the IC200ETM001D support?
A: It can expand a VersaMax system by supporting up to 7 additional expansion racks.
Q3: Which receiver modules are compatible with the IC200ETM001D?
A: It works with IC200ERM001 isolated expansion receiver modules and IC200ERM002 non-isolated expansion receiver modules.
Q4: What type of cable connection does the IC200ETM001D use?
A: It uses a 26-pin female D-shell expansion connector with VersaMax expansion cables.
Q5: Does the IC200ETM001D require an external power supply?
A: No. The module receives 5 VDC power from the VersaMax CPU or Network Interface Unit backplane.
Q6: What indicators are available on the IC200ETM001D?
A: It includes a PWR LED for power status and an EXP TX LED for expansion bus communication status.
Q7: What should be checked before replacing an IC200ETM001D?
A: Verify VersaMax system compatibility, expansion rack configuration, receiver module type, expansion cable condition, rack addressing, and power availability.
Q8: How can the reliability of the IC200ETM001D be maintained?
A: Ensure correct expansion cable installation, maintain proper DIN rail mounting, avoid excessive cable interference, check connector condition regularly, and keep the control cabinet environment within specifications.
GE Fanuc IC200ETM001D Expansion Transmitter Module is in stock. Please contact us for a quick quote and competitive pricing.
