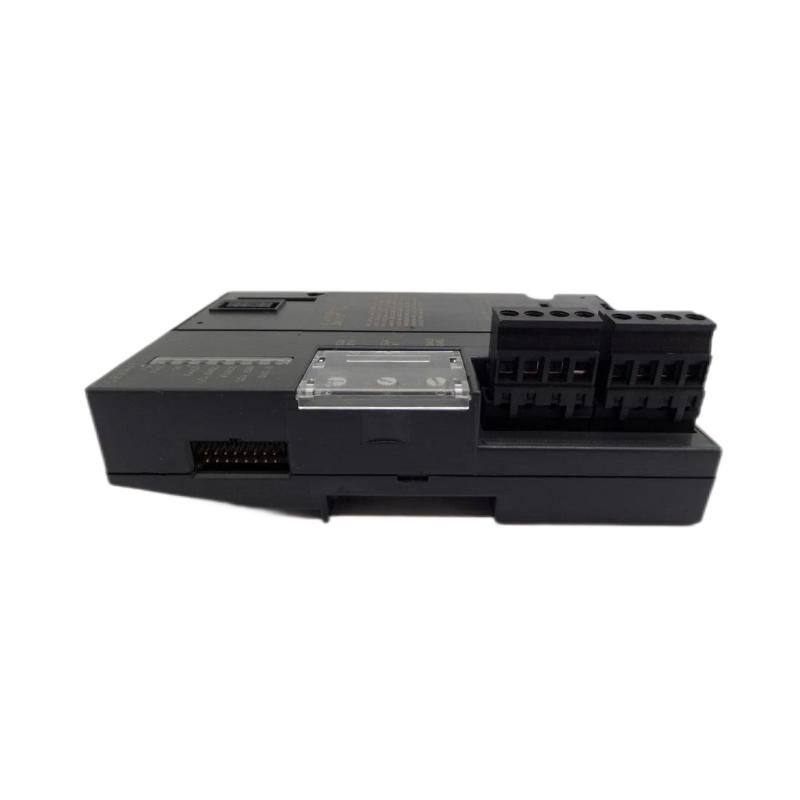

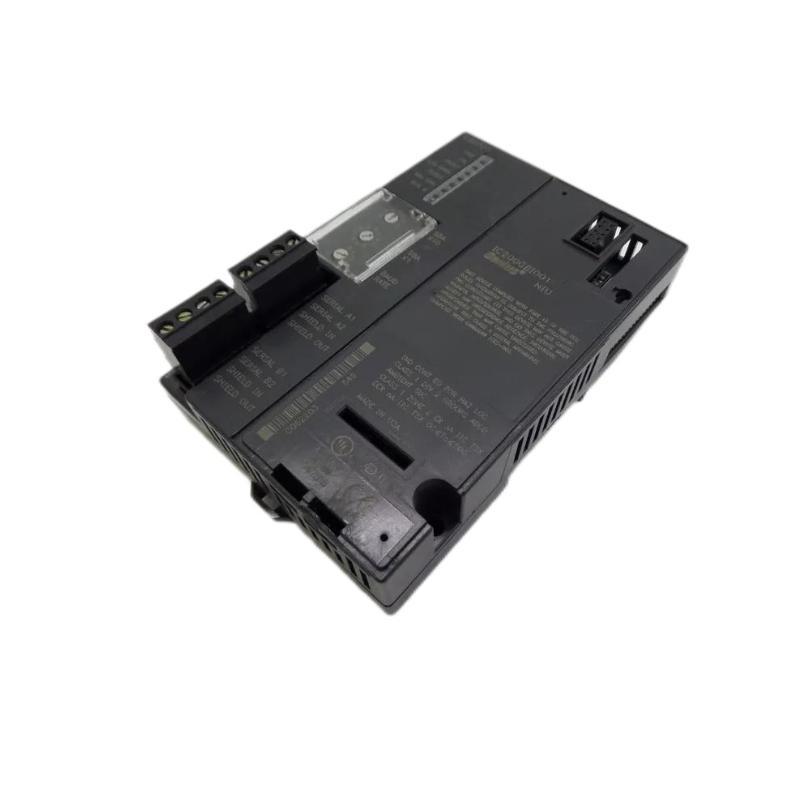

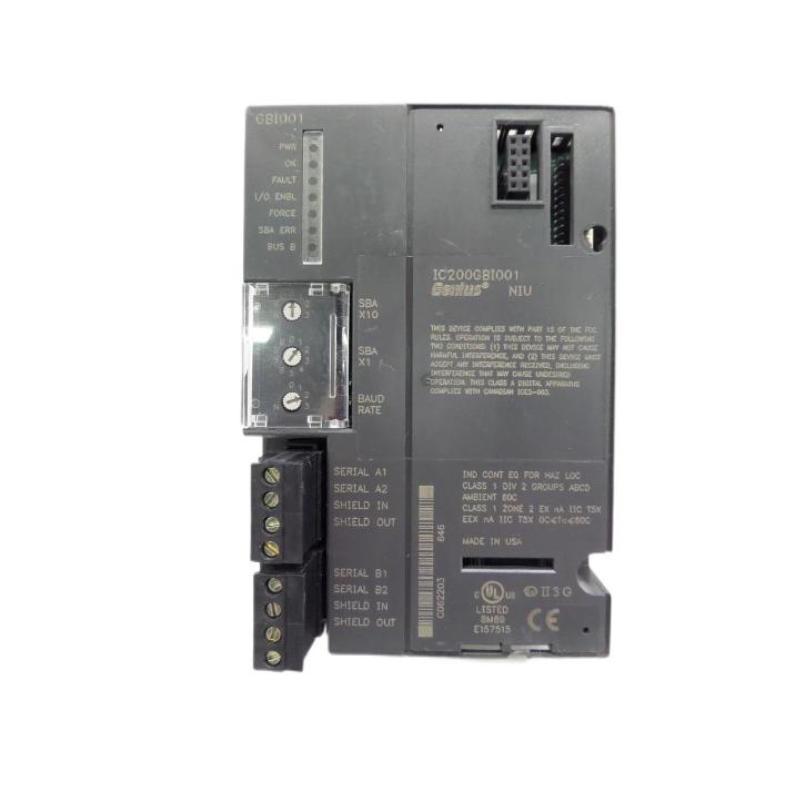

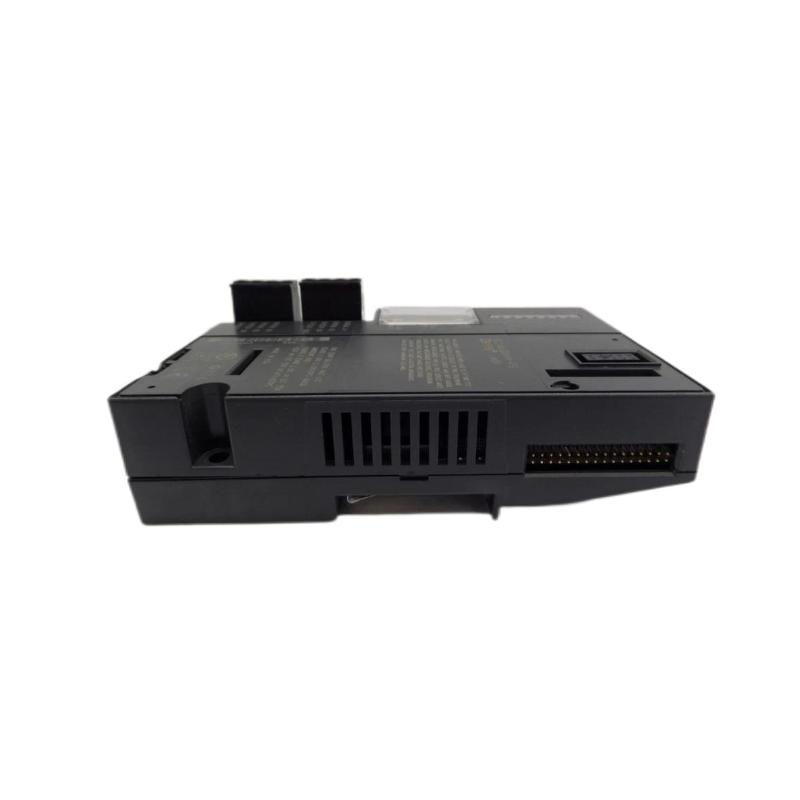

GE Fanuc IC200GBI001-BF Genius Network Interface Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200GBI001-BF |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Genius Network Interface Unit (NIU) |
| Main Function | Provides communication interface between VersaMax I/O modules and Genius bus controllers, enabling remote I/O expansion and distributed control |
| Application | Industrial automation, remote I/O systems, machine control, process automation, and distributed PLC architectures |
| Communication Type | Genius Bus communication |
| Communication Ports | 2 Genius bus terminals |
| Supported Protocol | GE Genius protocol |
| Network Data Rate | 38.4 Kbaud / 76.8 Kbaud / 153.6 Kbaud standard / 153.6 Kbaud extended |
| Serial Bus Address Range | 0–31 |
| Network Inputs per Bus Scan | 128 bytes |
| Network Outputs per Bus Scan | 128 bytes |
| Discrete Input Memory | 1024 points |
| Discrete Output Memory | 1024 points |
| Analog Input Memory | 128 bytes |
| Analog Output Memory | 128 bytes |
| Maximum I/O Modules | 8 modules per NIU station |
| Maximum Rack Expansion | Up to 8 racks supported |
| Compatible Controllers | Series 90-70 PLC, PACSystems RX3i, PACSystems RX7i, and Genius bus controllers |
| Wiring Topology | Daisy-chain network |
| Termination Requirement | External termination resistor required at network ends |
| Firmware Revision | Revision BF firmware version |
| Power Supply | +5 VDC from backplane |
| Power Consumption | Approximately 250 mA at 5 VDC |
| LED Indicators | PWR, OK, FAULT, I/O ENABLE, FORCE, SBA ERROR, BUS status indicators |
| Mounting Type | VersaMax carrier / DIN rail mounting |
| Installation Position | Standard VersaMax I/O station slot |
| Terminal Connection | Genius bus screw terminals |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 84 mm × 127 mm × 46 mm |
| Weight | Approximately 0.2 kg |
| Compatibility | GE Fanuc VersaMax PLC and Genius distributed I/O systems |
FAQ
Q1: What is the main function of the IC200GBI001-BF?
A: The IC200GBI001-BF is a VersaMax Genius Network Interface Unit used to connect VersaMax I/O modules to a Genius communication network for remote distributed control.
Q2: What type of communication does the IC200GBI001-BF support?
A: It supports GE Genius Bus communication with data rates of 38.4 Kbaud, 76.8 Kbaud, and 153.6 Kbaud.
Q3: How many I/O modules can the IC200GBI001-BF support?
A: The unit can support up to 8 I/O modules per NIU station depending on system configuration.
Q4: Which PLC systems are compatible with the IC200GBI001-BF?
A: It is compatible with GE Fanuc Series 90-70, PACSystems RX3i, PACSystems RX7i, and Genius bus controller systems.
Q5: Does the IC200GBI001-BF require an external power supply?
A: No. The module receives power directly from the VersaMax backplane.
Q6: What should be checked before replacing an IC200GBI001-BF?
A: Verify Genius network configuration, bus address settings, communication baud rate, terminal wiring, PLC compatibility, firmware requirements, and I/O module configuration.
Q7: What factors may affect the performance of the IC200GBI001-BF?
A: Incorrect Genius bus wiring, improper termination, address conflicts, communication parameter mismatch, electrical interference, and unstable system power may affect network reliability.
Q8: How can the reliability of the IC200GBI001-BF be maintained?
A: Maintain correct Genius bus wiring, use proper termination resistors, secure communication terminals, keep the cabinet environment within specifications, and perform regular PLC diagnostics.
GE Fanuc IC200GBI001-BF Genius Network Interface Unit is in stock. Please contact us for a quick quote and competitive pricing.
