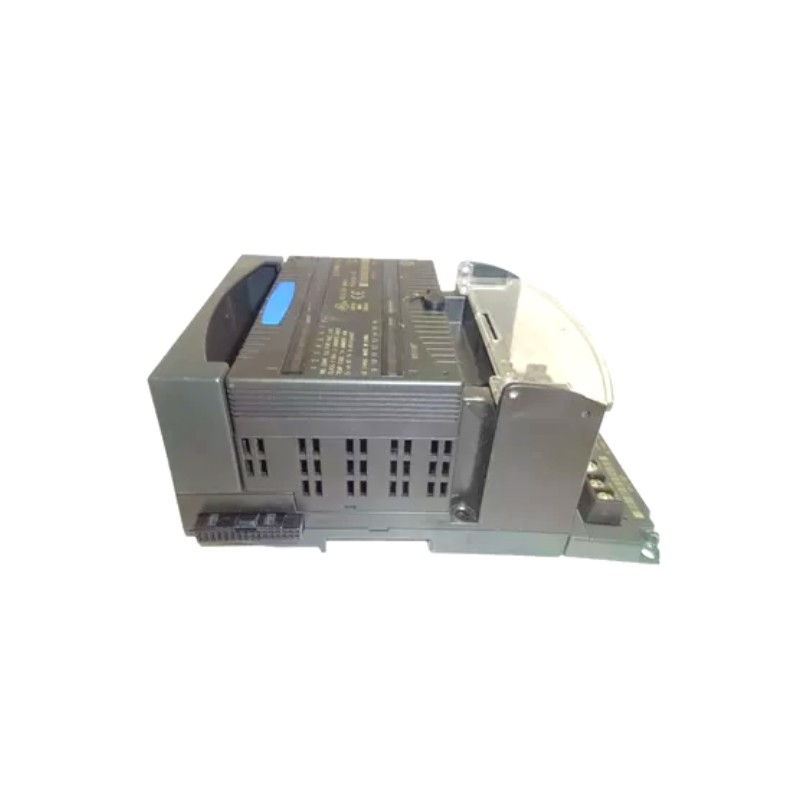

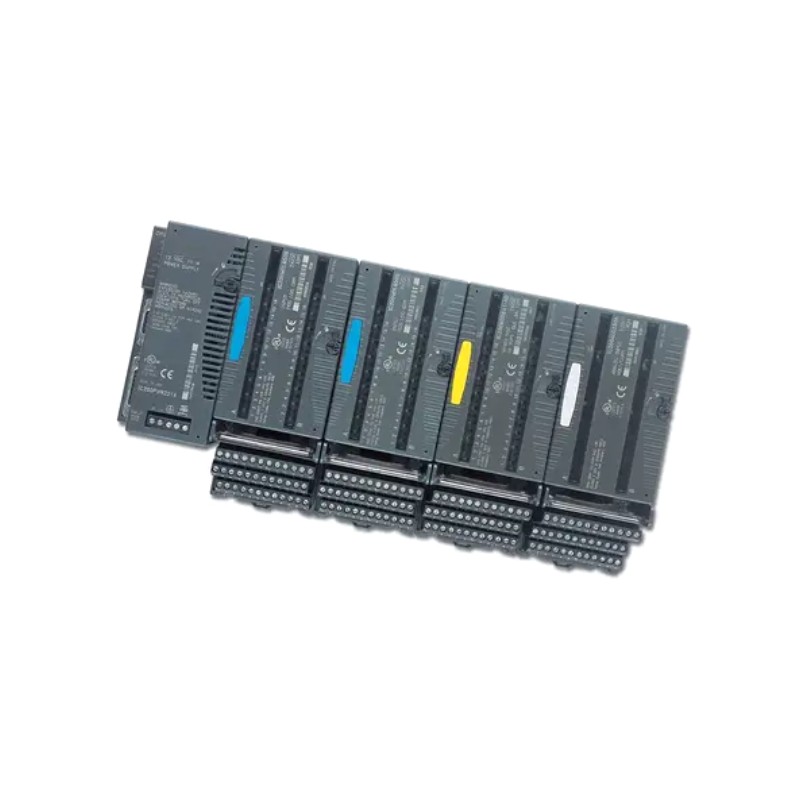

GE Fanuc IC200MDL632 DC High-Voltage Discrete Input Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
IC200MDL632
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL632 |
| Product Type | DC High-Voltage Discrete Input Module |
| Series | GE Fanuc / Emerson VersaMax PLC system |
| Function | Provides 16 isolated digital inputs for high-voltage DC field signals |
| System Role | VersaMax input module |
| Application Area | Industrial automation, turbine control systems, power plants, process I/O |
| Input Channels | 16 × DC inputs |
| Input Type | Positive / negative logic selectable (sourcing or sinking field devices) |
| Input Voltage Range | 0–150 VDC |
| Nominal Voltage | 125 VDC |
| Input Current | ~1.7 mA @ 125 VDC (typical) |
| Input Impedance | ~74 kΩ (typical) |
| On-State Voltage | ~90–150 VDC |
| Off-State Voltage | ~0–30 VDC |
| Input Response Time | ≤ 0.5 ms |
| Input Isolation | 250 VAC continuous / 1500 VAC for 1 minute (field-to-logic & channel isolation) |
| Backplane Power | 5 VDC from VersaMax rack |
| Backplane Current | ~80 mA max |
| Filtering | 0 ms / 1 ms / 7 ms selectable |
| Indicators | 16 channel LEDs + module status LED |
| Wiring Type | Individual isolated input terminals |
| Mounting Type | IC200CHS carrier base required |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95% non-condensing |
| Dimensions (approx.) | ~110 mm × 66.8 mm × 50 mm |
| Weight | ~0.2–0.5 kg |
FAQ
What is IC200MDL632 used for?
It is a 16-point high-voltage DC input module (125 VDC class) used to read field signals in industrial control systems.
What makes it different from MDL102 or MDL240 series?
- MDL102 → 24 VDC standard input
- MDL240/241 → AC input (120/240 VAC)
- MDL632 → high-voltage DC input (up to 150 VDC), fully isolated
Is it a CPU or controller?
No. It is only an input module.
Where is it commonly used?
Power generation systems, turbine control panels, and legacy industrial DC signaling systems.
GE Fanuc IC200MDL632 DC High-Voltage Discrete Input Module is in stock. Please contact us for a quick quote and competitive pricing.
