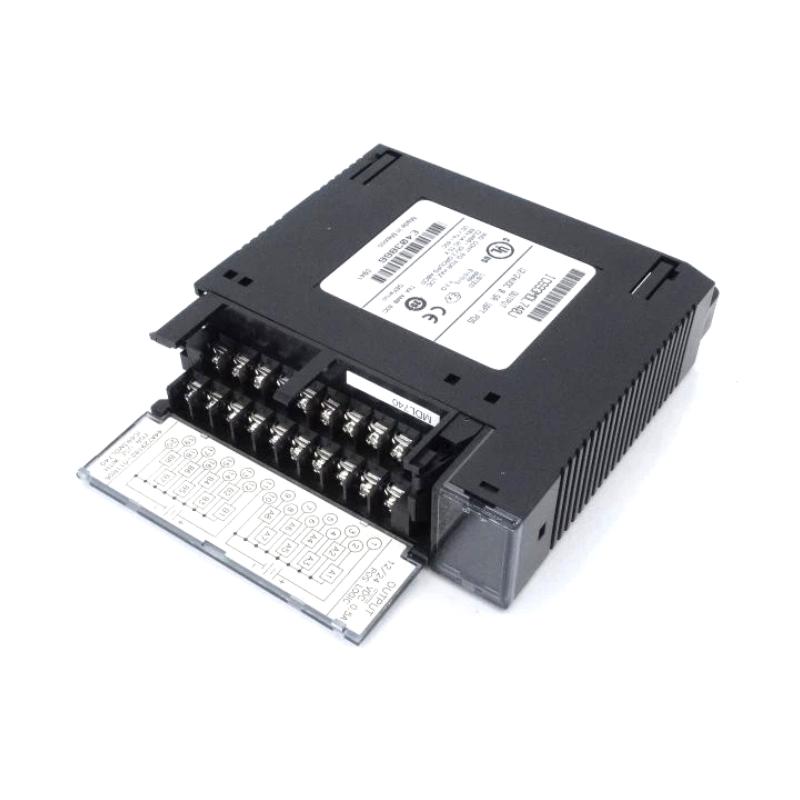

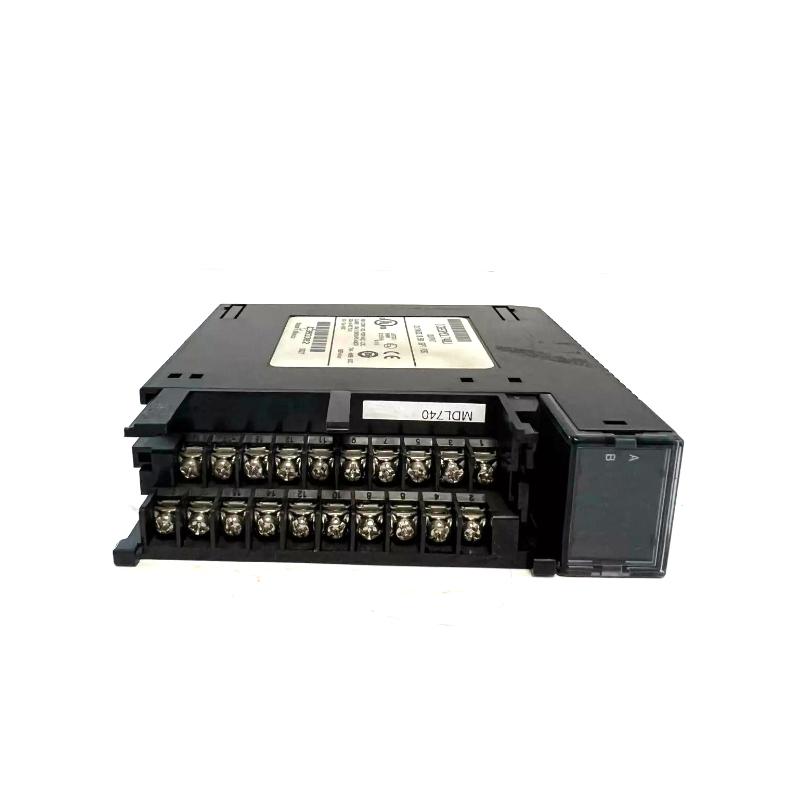

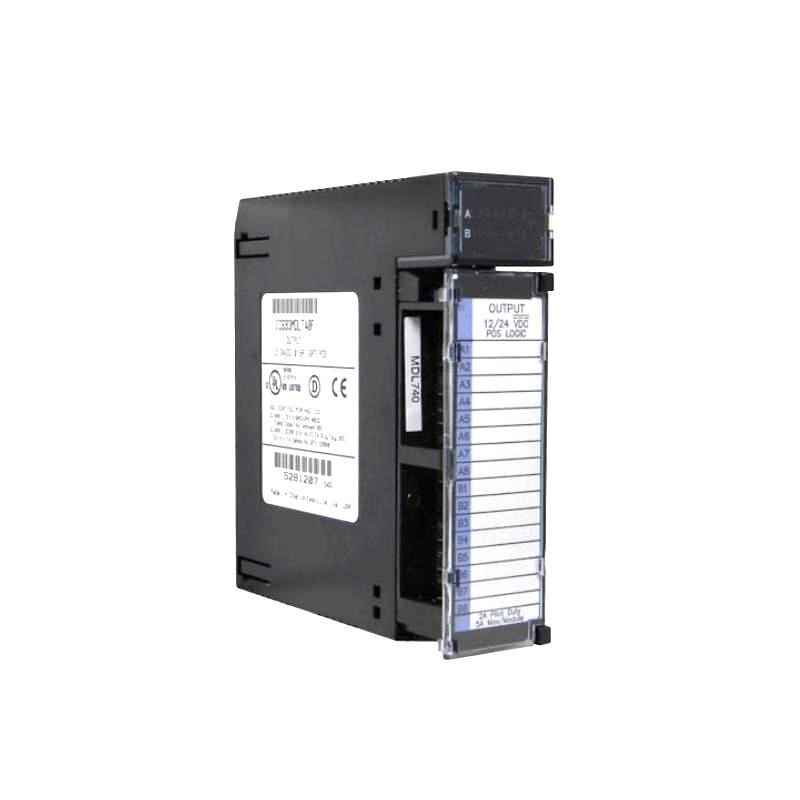

GE Fanuc IC200MDL740G DC Discrete Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200MDL740G |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | DC Discrete Output Module |
| Main Function | Provides 12/24 VDC positive logic (sourcing) transistor outputs for controlling DC field devices |
| Application | Industrial automation, machine control, actuator control, solenoid control, relay driving, and distributed I/O systems |
| Output Type | DC transistor output |
| Logic Type | Positive logic (sourcing output) |
| Number of Outputs | 16 output points |
| Output Configuration | One group of 16 outputs |
| Rated Output Voltage | 12/24 VDC |
| Output Voltage Range | 10.2 to 30 VDC |
| Output Current Rating | 0.5 A maximum per point |
| Maximum Inrush Current | 2.0 A for 100 ms |
| Output Voltage Drop | 0.3 V maximum |
| Output Leakage Current | 0.5 mA maximum at 30 VDC |
| Output Response Time | ON: approximately 0.2 ms maximum; OFF: approximately 1.0 ms maximum |
| External Power Supply | Required, 10.2 to 30 VDC nominal |
| Isolation Type | Optical isolation between field side and logic side |
| Channel Isolation | No point-to-point isolation |
| Protection | No internal fuses; external protection recommended |
| LED Indicators | Individual output status LEDs and module status indication |
| Backplane Power Consumption | Approximately 45–50 mA maximum at 5 VDC |
| Terminal Connection | VersaMax terminal carrier interface |
| Mounting Type | VersaMax base/carrier mounted module |
| Output Data | Receives 16-bit discrete output data from CPU or Network Interface Unit |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 110 mm × 50 mm × 66.8 mm |
| Weight | Approximately 0.45 kg |
| Compatibility | GE Fanuc VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200MDL740G?
A: The IC200MDL740G is a VersaMax 16-point DC transistor output module used to control external 12/24 VDC field devices through positive logic sourcing outputs.
Q2: How many output channels does the IC200MDL740G provide?
A: The module provides 16 discrete output points arranged in one group.
Q3: What voltage range does the IC200MDL740G support?
A: The module supports 12/24 VDC operation with an allowable output voltage range of 10.2 to 30 VDC.
Q4: What type of devices can be controlled by the IC200MDL740G?
A: It can control DC loads such as solenoid valves, relays, indicator lamps, actuators, and other industrial DC devices.
Q5: Is an external power supply required for the IC200MDL740G?
A: Yes. An external 10.2–30 VDC field power supply is required to provide power for output loads.
Q6: What should be checked before replacing an IC200MDL740G module?
A: Verify VersaMax compatibility, output voltage requirements, field wiring, external power supply polarity, terminal connections, load current ratings, and PLC configuration before replacement.
Q7: What factors may affect the performance of the IC200MDL740G?
A: Excessive load current, incorrect wiring polarity, unstable field power, electrical noise, high temperature, and insufficient protection may affect output reliability.
Q8: How can the reliability of the IC200MDL740G be maintained?
A: Maintain correct wiring, keep loads within rated limits, inspect terminals regularly, ensure proper cabinet ventilation, and perform periodic PLC diagnostics.
GE Fanuc IC200MDL740G DC Discrete Output Module is in stock. Please contact us for a quick quote and competitive pricing.
