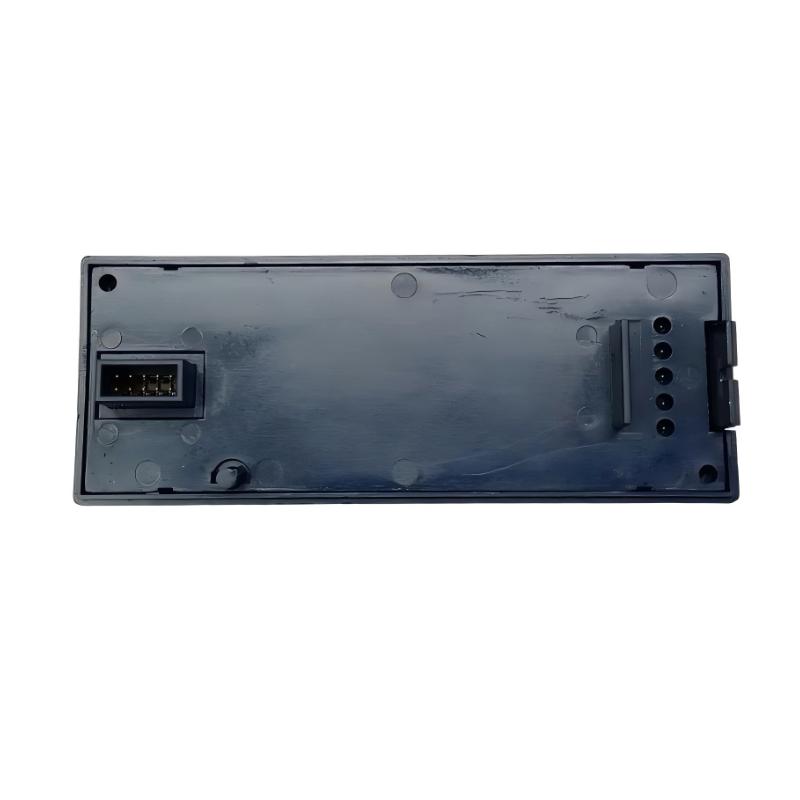

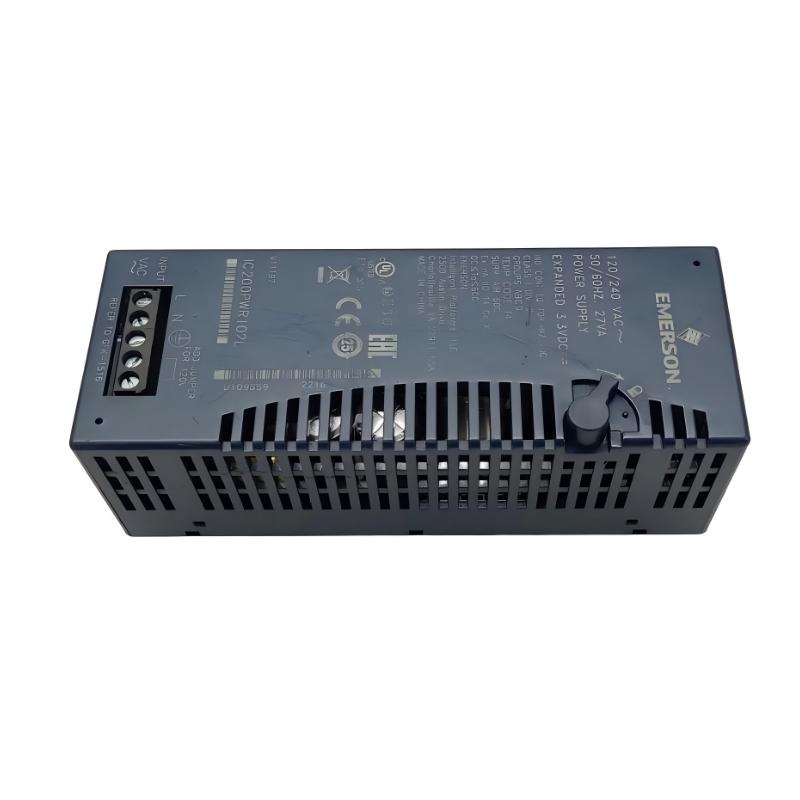

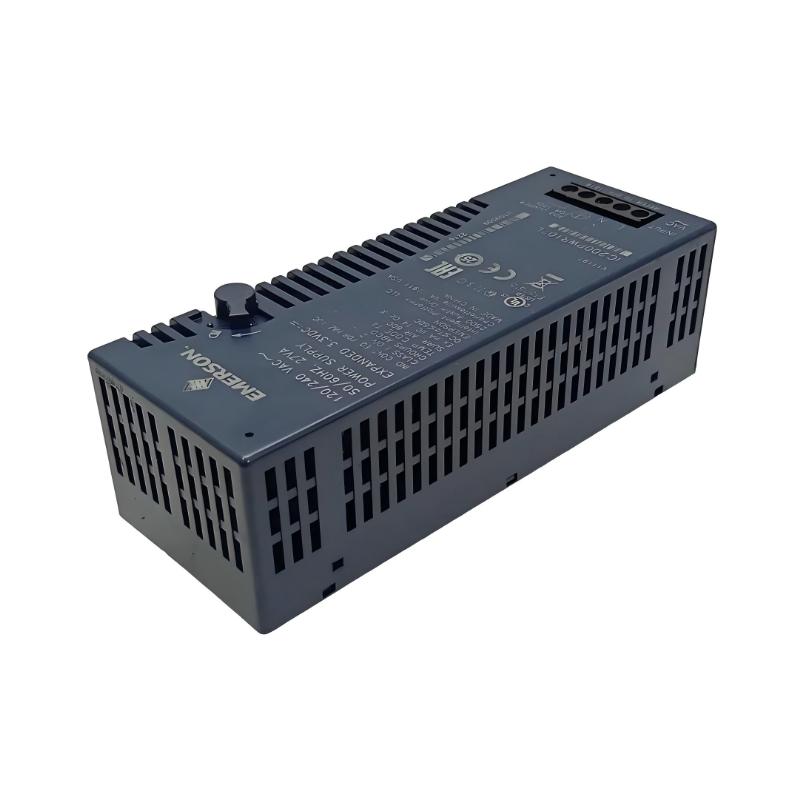

GE Fanuc IC200PWR102H Expanded AC Power Supply Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200PWR102H |
| Manufacturer | GE Fanuc / Emerson |
| Product Series | VersaMax Distributed I/O |
| Product Type | Expanded AC Power Supply Module |
| Main Function | Provides regulated 5 VDC and 3.3 VDC power for VersaMax CPU, NIU, and I/O modules |
| Application | Industrial automation, distributed control systems, PLC power management, and VersaMax I/O stations |
| Input Voltage Type | AC input |
| Nominal Input Voltage | 120/240 VAC |
| Input Voltage Range | 85–132 VAC / 176–264 VAC |
| Input Frequency | 47–63 Hz |
| Input Power Consumption | 27 VA maximum |
| Output Voltage | 5 VDC and 3.3 VDC |
| Total Output Current | 1.5 A maximum |
| 5 VDC Output Current | Maximum 1.5 A（需与3.3 VDC输出负载共享） |
| 3.3 VDC Output Current | Maximum 1.0 A |
| Extended Power Capability | Yes |
| Hold-up Time | Approximately 20 ms |
| Protection Functions | Short-circuit protection and overload protection |
| Voltage Selection | 120 VAC / 240 VAC selectable |
| Power Supply Function | Main power supply for VersaMax station or supplemental power supply with booster carrier |
| Backplane Power Supply | Provides power to CPU, network interface, and I/O modules |
| LED Indicators | Power/status indicator |
| Mounting Type | VersaMax CPU, NIU, or booster carrier mounting |
| Terminal Connection | Screw terminal connection |
| Compatible Modules | VersaMax CPU modules, Network Interface Units, I/O modules, and booster carriers |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | Approximately 49 mm × 133.4 mm × 39 mm |
| Weight | Approximately 0.14 kg |
| Compatibility | GE Fanuc / Emerson VersaMax PLC and distributed I/O systems |
FAQ
Q1: What is the main function of the IC200PWR102H?
A: The IC200PWR102H is a VersaMax expanded power supply module that provides regulated 5 VDC and 3.3 VDC power for VersaMax CPU, network interface, and I/O modules.
Q2: What input voltage does the IC200PWR102H support?
A: It supports 120/240 VAC input, with an operating range of 85–132 VAC or 176–264 VAC.
Q3: What output voltages does the IC200PWR102H provide?
A: It provides 5 VDC and 3.3 VDC outputs with a maximum combined output current of 1.5 A.
Q4: Can the IC200PWR102H be used as an expansion power supply?
A: Yes. It can operate as the main power source for a VersaMax station or provide additional power when installed on a power supply booster carrier.
Q5: Does the IC200PWR102H provide protection functions?
A: Yes. The module includes short-circuit protection and overload protection.
Q6: Where is the IC200PWR102H installed?
A: It can be mounted directly on VersaMax CPU modules, Network Interface Units, or a power supply booster carrier.
Q7: What should be checked before replacing an IC200PWR102H?
A: Verify AC input voltage selection, VersaMax system compatibility, output power requirements, terminal wiring, and installed module load.
Q8: How can the reliability of the IC200PWR102H be maintained?
A: Ensure correct AC voltage selection, maintain proper ventilation, avoid overloading the power supply, keep terminals secure, and inspect the PLC power system regularly.
GE Fanuc IC200PWR102H Expanded AC Power Supply Module is in stock. Please contact us for a quick quote and competitive pricing.
