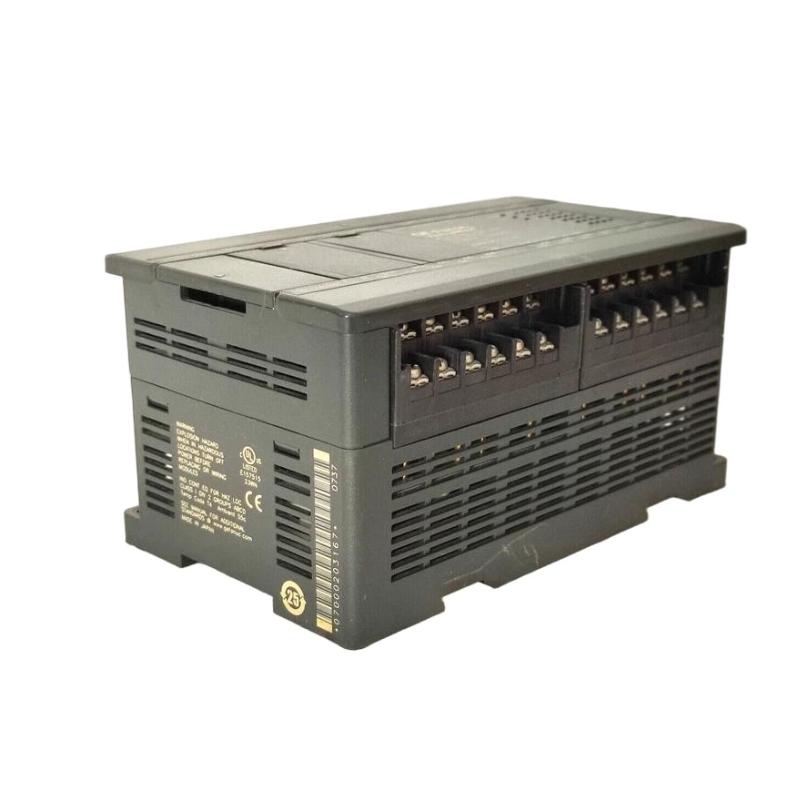

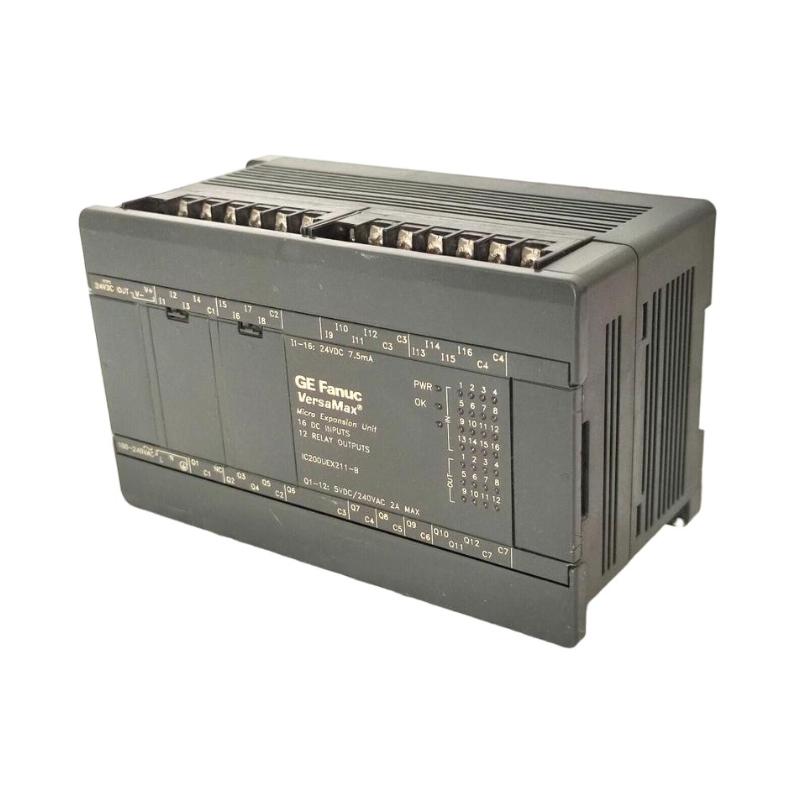

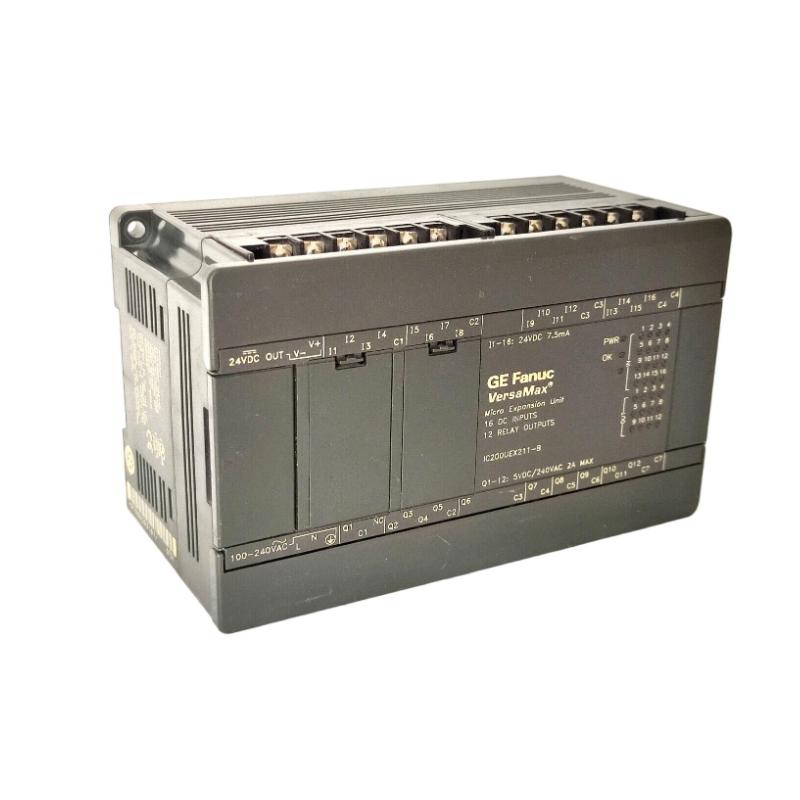

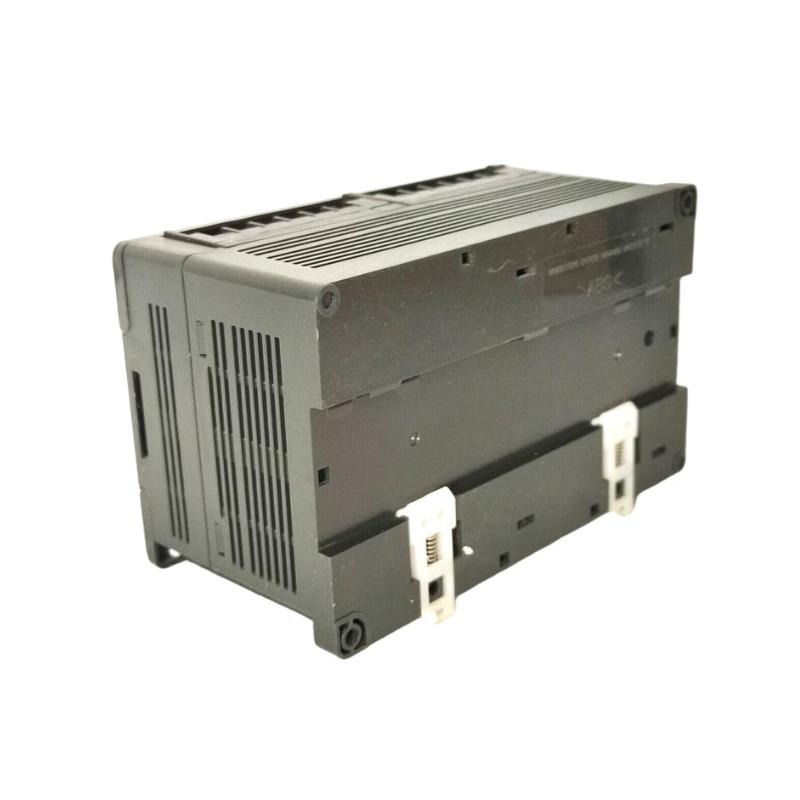

GE Fanuc IC200UEX122-B VersaMax Micro PLC Expansion Unit
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IC200UEX122-B |
| Product Type | VersaMax Micro PLC Expansion Unit |
| Series Compatibility | GE Fanuc VersaMax Micro PLC System |
| Module Function | Provides additional digital I/O capacity and 24 VDC power expansion for VersaMax Micro PLC systems |
| Total I/O Points | 14 points |
| Input Type | 24 VDC positive/negative logic inputs |
| Number of Inputs | 8 input points |
| Input Voltage Rating | 24 VDC nominal |
| Input Voltage Range | 0 to 30 VDC |
| Input ON Voltage | 15 VDC minimum |
| Input OFF Voltage | 5 VDC maximum |
| Input Current | Approx. 7.5 mA per input |
| Input Impedance | Approx. 2.8 kΩ |
| Output Type | DC transistor outputs with electronic protection |
| Number of Outputs | 6 output points |
| Output Configuration | 2 high-current outputs and 4 standard-current outputs |
| High-Current Output Rating | Up to 1 A per point |
| Standard Output Rating | Up to 0.7 A per point |
| Output Voltage Range | 12/24 VDC |
| Output Protection | Electronic short-circuit protection and negative voltage pulse protection |
| Output Isolation | Field side isolated from logic side |
| External Power Supply | 19.2 to 30 VDC, 24 VDC nominal |
| Built-in 24 VDC Supply Capacity | 200 mA maximum for input circuits and user devices |
| Input Power Consumption | Approx. 0.16 A at 24 VDC |
| Hold-up Time | Approx. 10 ms at 19.2 VDC |
| Inrush Current | 1 A maximum at 30 VDC |
| Response Time | Approx. 0.05 ms maximum for transistor outputs |
| Installation Method | Installed as an expansion unit for VersaMax Micro PLC |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 90 mm × 90 mm × 50 mm |
| Weight | Approx. 0.34 kg |
| Application Areas | Compact machine control, industrial automation, conveyor systems, and digital I/O expansion |
| Reliability Features | Provides protected transistor outputs, flexible I/O expansion, and stable 24 VDC operation for industrial environments |
FAQ
Q1: What is the IC200UEX122-B used for?
- The IC200UEX122-B is a VersaMax Micro PLC expansion unit designed to increase digital I/O capacity by adding additional input and output points to compact control systems.
Q2: How many input and output points does the IC200UEX122-B provide?
- The module provides 14 total I/O points, including 8 digital inputs and 6 transistor outputs for industrial field device control.
Q3: What type of outputs are available on the IC200UEX122-B?
- The module provides DC transistor outputs, including high-current outputs and standard-current outputs, with built-in electronic protection functions.
Q4: What power supply is required for the IC200UEX122-B?
- The module requires a 24 VDC power supply and supports an operating voltage range from 19.2 to 30 VDC.
Q5: Does the IC200UEX122-B provide output protection?
- Yes. The transistor outputs include electronic short-circuit protection and negative voltage pulse protection to improve reliability when controlling external loads.
Q6: What devices can be connected to the IC200UEX122-B?
- The module can connect to sensors, switches, proximity detectors, indicators, actuators, and other 24 VDC industrial devices.
Q7: What applications commonly use the IC200UEX122-B?
- Typical applications include compact automation systems, machine control equipment, production lines, material handling systems, and small PLC-based control solutions.
Q8: What should be checked before replacing an IC200UEX122-B module?
- Users should verify VersaMax Micro PLC compatibility, power supply specifications, I/O wiring configuration, output load requirements, installation conditions, and system settings before replacement.
GE Fanuc IC200UEX122-B VersaMax Micro PLC Expansion Unit is in stock. Please contact us for a quick quote and competitive pricing.
