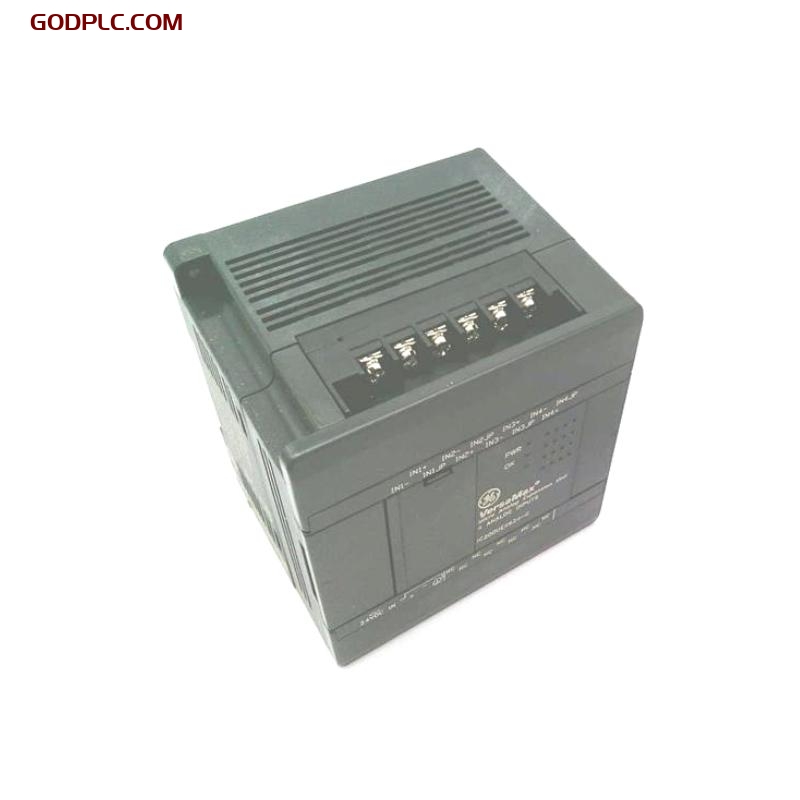

GE Fanuc IC200UEX624-A VersaMax Micro Expansion Module
Product Overview
The GE Fanuc IC200UEX624-A is a digital I/O expansion module designed for use with VersaMax Micro PLCs. It provides 24 additional I/O points (14 inputs and 10 relay outputs), expanding the capabilities of base VersaMax Microcontrollers. Engineered for flexibility and compactness, this module allows users to tailor system configurations to their specific automation needs while maintaining ease of installation and integration. It is well-suited for space-constrained applications that require additional control points without the overhead of a larger PLC system.
Key Features
-
24 Additional I/O Points – Includes 14 digital inputs (24 VDC) and 10 relay outputs
-
Seamless Integration – Directly connects to VersaMax Micro base units
-
Relay Output Flexibility – Supports control of a wide range of field devices
-
DIN Rail Mountable – Compact design ideal for small panels
-
Isolation Protection – Optically isolated inputs for system reliability
-
No External Power Required – Powered through connection to the base unit
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 95 x 90 x 76 mm |
| Weight | 0.367 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Digital Inputs | 14 points, 24 VDC, sink/source configurable |
| Input Current | 7 mA nominal per input |
| Relay Outputs | 10 points, normally open contacts |
| Output Current | Max 2.0 A per channel, resistive load |
| Switching Voltage | 250 VAC / 30 VDC max |
| Isolation | Optical isolation between field and logic |
| Power Supply | Supplied via Micro base unit |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when mounted in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | GE Fanuc VersaMax Micro PLCs |
| Mounting | DIN rail or direct mount to base unit |
| Expansion Method | Plug-in via side connector |
| Configuration Tools | Proficy Machine Edition (Logic Developer) |
Industry Applications
-
Packaging Machinery – Supports additional sensors and actuators in compact systems
-
Automated Material Handling – Expands control in sortation, conveyor, and indexing systems
-
Building Automation – Adds control for HVAC dampers, fans, and lighting systems
-
Water Treatment Plants – Integrates with pumps, valves, and monitoring systems
-
Food & Beverage – Provides additional I/O for bottling, filling, and packing lines
The GE Fanuc IC200UEX624-A VersaMax Micro Expansion Module offers an efficient and scalable way to expand I/O capabilities in small automation systems. Its reliable performance and seamless integration make it a preferred choice for OEMs and industrial automation professionals.
GE Fanuc IC200UEX624-A VersaMax Micro Expansion Module is in stock. Please contact us for a quick quote and competitive pricing.
