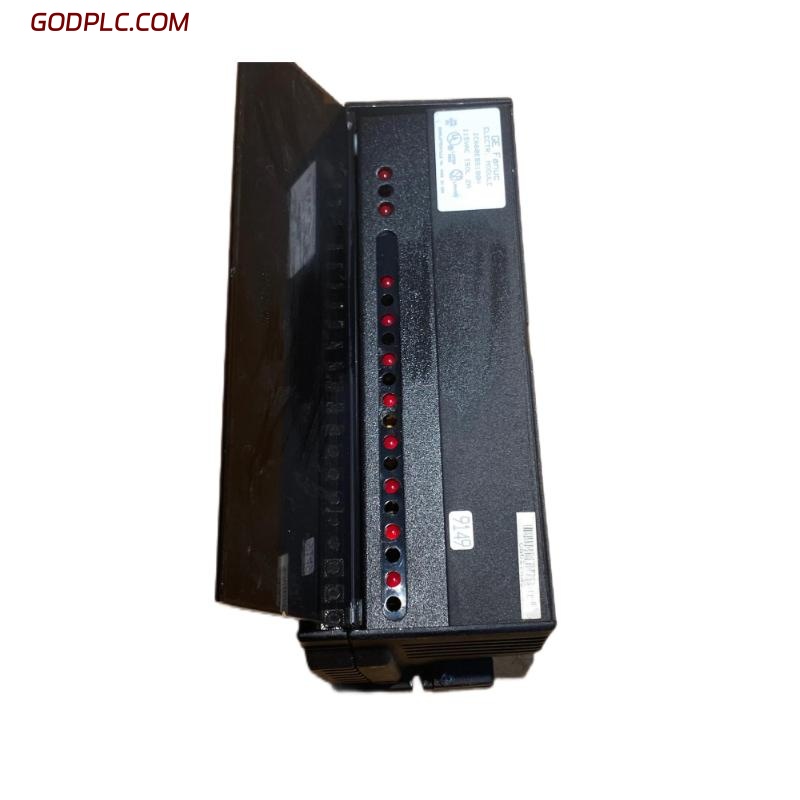

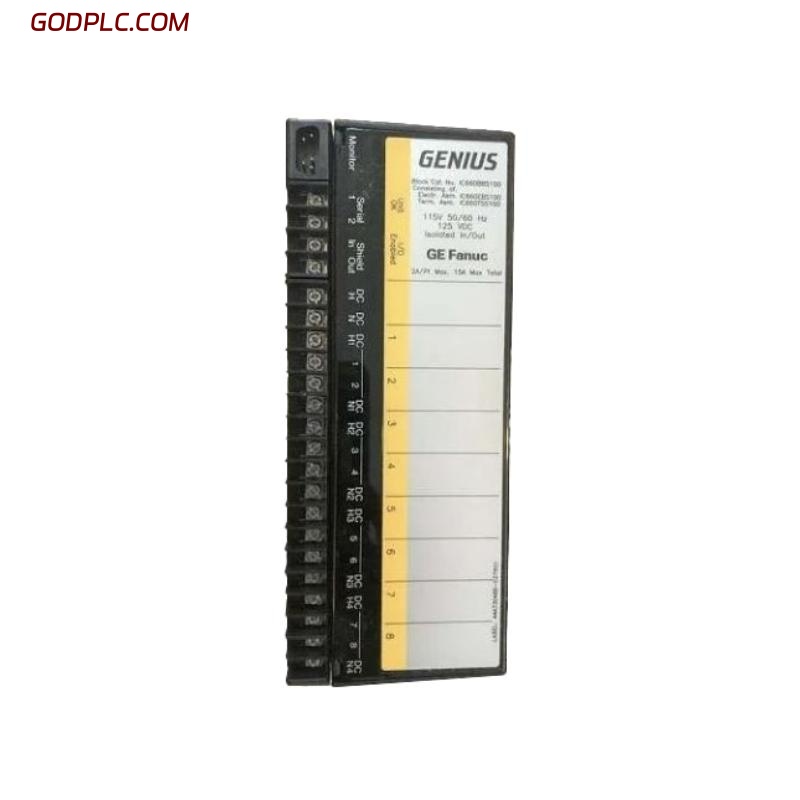

GE Fanuc IC660BBS100 Isolation I/O Module
Product Overview
The GE Fanuc IC660BBS100 Isolation I/O Module is a versatile digital I/O block from the Genius I/O family, designed to provide electrically isolated connections for both input and output signals in distributed control systems. With 16 isolated discrete I/O points—configurable as either inputs or outputs—the IC660BBS100 supports a wide range of field devices while offering enhanced protection against electrical noise and signal interference. Its rugged, modular design enables reliable operation in harsh industrial environments, making it a trusted choice for mission-critical automation systems.
Key Features
-
16 Isolated Digital I/O Points – Each point can be independently configured as an input or output
-
Enhanced Electrical Isolation – Protects control logic from field disturbances and ground loops
-
Flexible Control Options – Supports AC or DC signals, allowing integration with diverse field devices
-
Built-In Diagnostics – Includes advanced status and fault monitoring for improved system visibility
-
Genius I/O Compatibility – Seamlessly integrates with GE Fanuc Genius networks and controllers
-
Robust Industrial Design – Engineered to operate reliably under vibration, temperature, and humidity extremes
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 224.4 x 88.9 x 100 mm |
| Weight | 1.47 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Number of I/O Points | 16 (individually configurable) |
| Signal Type | Discrete, AC/DC (input or output) |
| Voltage Range | 5–250 VAC / 5–220 VDC |
| Output Current | Up to 2 A per output channel |
| Isolation Rating | 1500 V RMS between channels and ground |
| Power Supply | 115 VAC or 125 VDC (typical) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Compliant with GE industrial specs |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | GE Fanuc Genius I/O, Series 90-70 |
| Configuration | Software-configurable I/O mode per channel |
Industry Applications
-
Factory Automation – Enables control and monitoring of switches, relays, and indicator devices
-
Utilities and Power Plants – Provides isolated interfacing for control circuits and alarms
-
Oil & Gas Facilities – Suitable for hazardous or remote I/O applications with high noise immunity
-
Process Control Systems – Integrates with distributed I/O for analog/digital device communication
-
Infrastructure Systems – Supports critical control in transportation, water, and energy networks
The GE Fanuc IC660BBS100 Isolation I/O Module is a flexible and reliable solution for applications that demand secure signal isolation, configurable I/O functionality, and robust performance. Its electrical and mechanical resilience makes it ideal for deployment in complex and challenging industrial environments.
