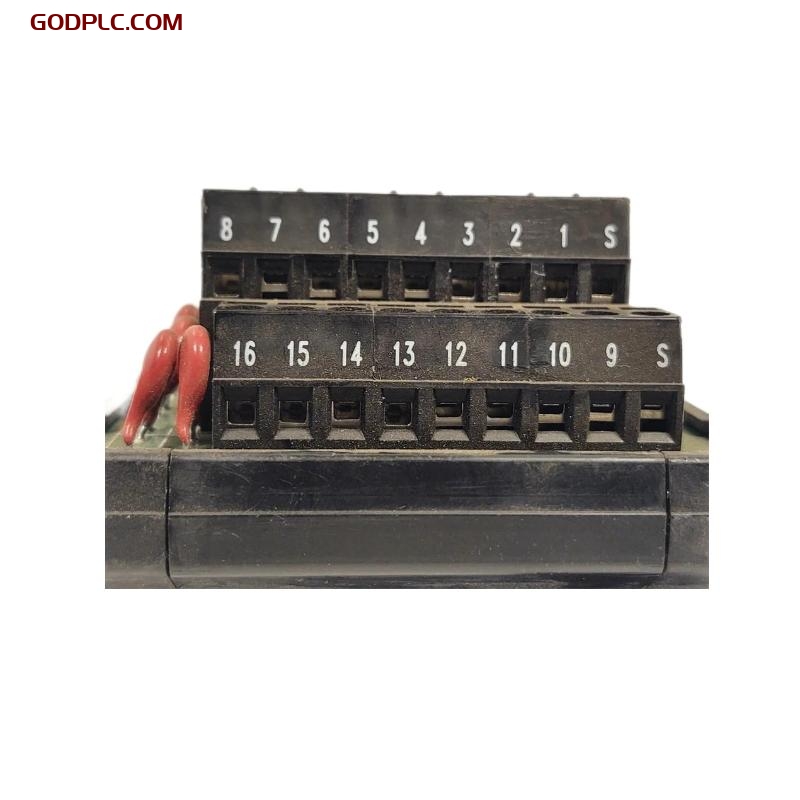

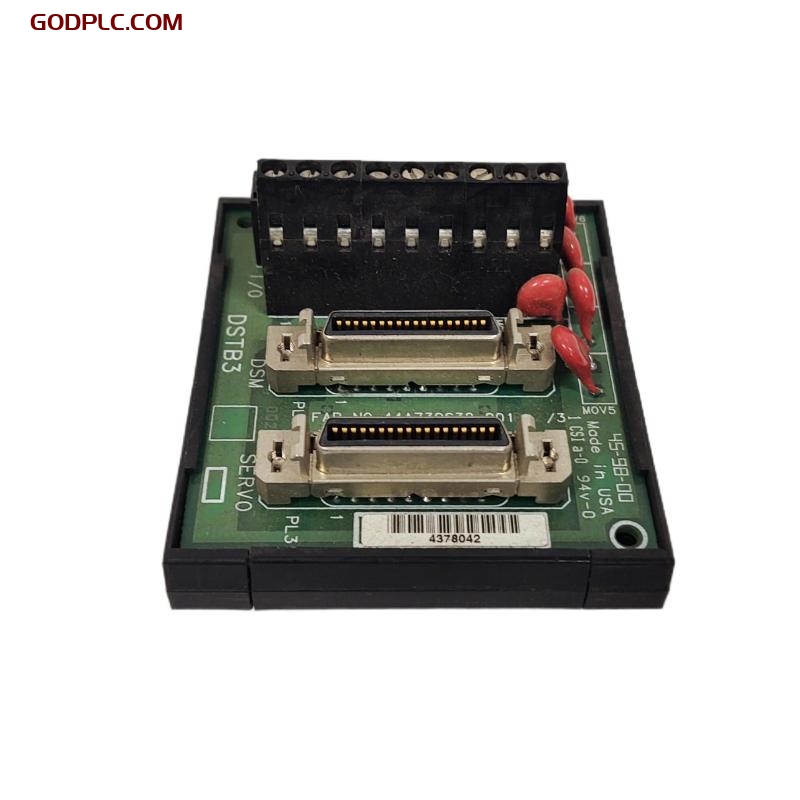

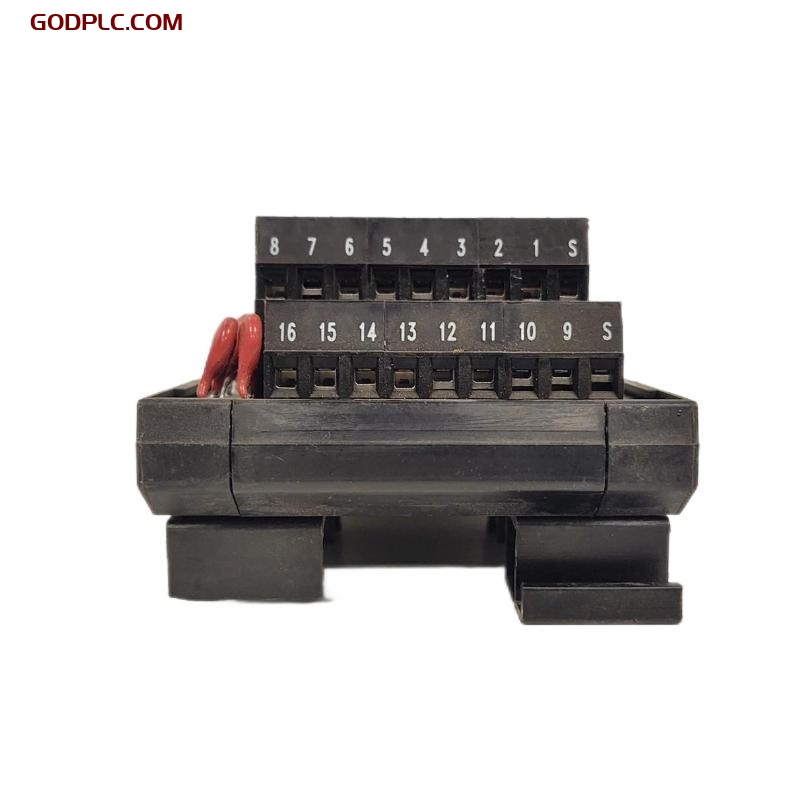

GE Fanuc IC693ACC335 Digital Servo Axis Terminal Board
Product Overview
The GE Fanuc IC693ACC335 is a digital servo axis terminal board designed for use with GE’s Series 90-30 and related motion control systems. It serves as a reliable and organized connection point for servo drive wiring, interfacing directly with the axis positioning module to transmit command and feedback signals. Built for ease of integration and durability, the IC693ACC335 enhances the accuracy, maintainability, and performance of industrial motion control applications.
Key Features
-
Motion System Integration – Designed specifically for use with GE digital servo axis positioning systems
-
Secure Terminal Interface – Screw-terminal connections ensure robust and vibration-resistant wire termination
-
Simplified Wiring Layout – Clearly labeled connections for power, feedback, and command signal routing
-
Compact Form Factor – Optimized size for control cabinet integration and space efficiency
-
Quick Installation – Enables rapid setup and maintenance without disturbing existing wiring
-
Shield Ground Support – Provides grounding points for noise-sensitive motion signal lines
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 140 x 80 x 25 mm |
| Weight | 0.3 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Support | As defined by connected servo amplifier |
| Signal Types Supported | Position command, encoder feedback, enable signals |
| Terminal Type | Screw-clamp terminals |
| Wire Size Supported | 16–24 AWG (solid or stranded) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Modules | IC693APU300/302 Axis Positioning Modules |
| Mounting | Panel-mounted using standoffs or brackets |
Industry Applications
-
Factory Automation – Interfaces digital servo control in robotics and CNC machines
-
Material Handling – Provides accurate signal routing for conveyors and pick-and-place systems
-
Packaging Machinery – Ensures precise motion control for cutting, labeling, and sorting tasks
-
Electronics Assembly – Supports high-speed motion commands in surface-mount and inspection systems
-
Printing and Converting – Facilitates coordinated multi-axis drive control for web-based machines
The GE Fanuc IC693ACC335 Digital Servo Axis Terminal Board is a critical component in the reliable operation of GE motion control solutions, offering dependable connectivity and streamlined installation for a wide range of automated systems.
GE Fanuc IC693ACC335 Digital Servo Axis Terminal Board is in stock. Please contact us for a quick quote and competitive pricing.
